BRIGHT TANGERINE Side and Top Plate Kit for RED KOMODO B4002.0016
SKU: 28095
Model: B4002.0016
Ean: 0008523272737
Būklė: Naujas produktas
- Left side rail for RED KOMODO
- Right side rail for RED KOMODO
- Top rail for RED KOMODO
- Material of Construction Aluminum
- Accessory Mounting 2 x 3/8"-16 Threads, 1 x 1/4"-20 Thread, 1 x NATO Rail, 2 x Strap SlotsInterface 2 x , Captive Screws
- Dimensions 4.3 x 0.8 x 0.5" / 10.9 x 2.1 x 1.3 cm
- Weight 1.5 oz / 43 g
| Type of Product | Other Accessories |

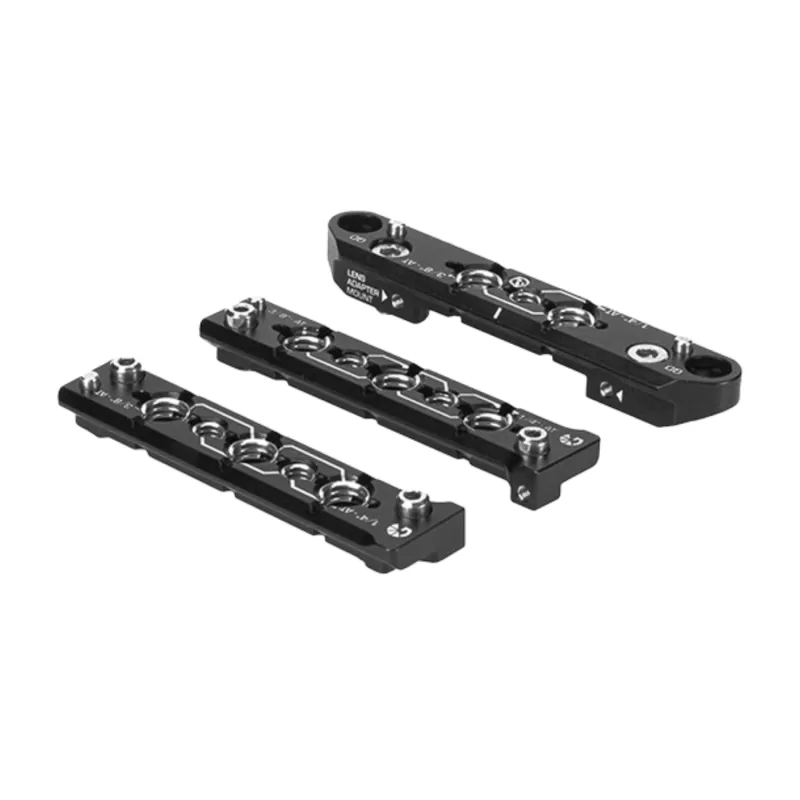

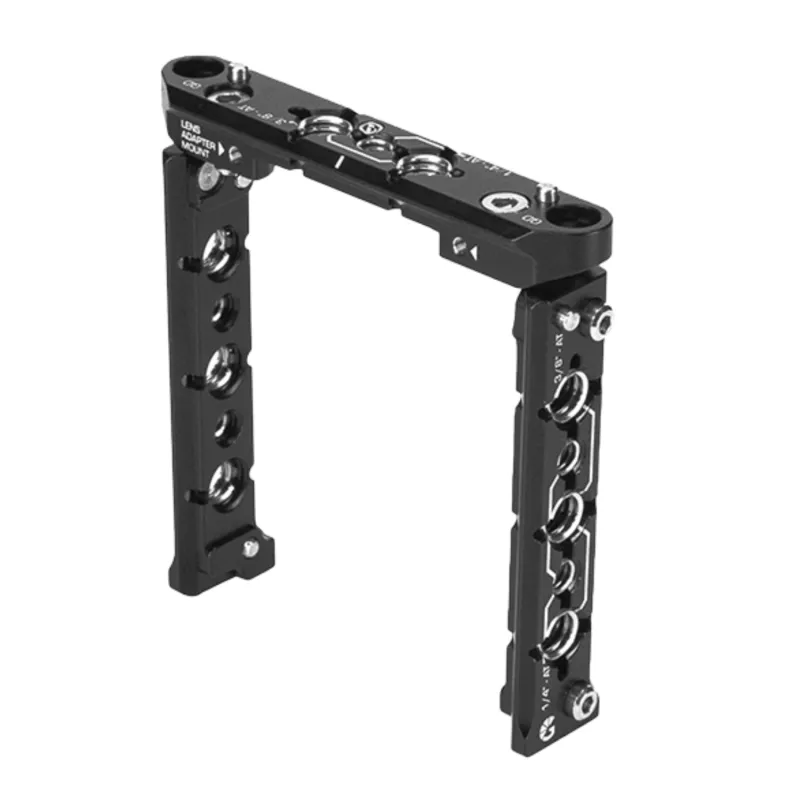

This kit includes all three NATO rails for the top & both sides of the RED KOMODO®. They provide secure mounting & rigging points for accessories like handles and rod mounts. The kit also provides the required mounting points for the LeftField range of adapter supports.
This Top Rail attaches to the top of the RED KOMODO®, providing a secure mounting point for top handles and other NATO based accessories. When attaching a Top Handle, a special locating dimple lets you know when it is perfectly centred. The Top Rail also features two military-standard Quick-Detach (QD) points for straps & tethers.
When it comes to fixing, you can choose from threaded, NATO and QD points, or any combination you need. All threaded points are stainless-steel helicoiled for added strength. Helicoil fittings are crucial to prevent thread stripping or binding. An important factor to consider when constantly changing rig configurations.
Each section of this Side & Top Plate Kit is CNC cut from high-grade aluminmium alloy billet, which is then hard anodised for extra durability. The result is highly resilient component, which is also extremely light-weight at only 35 grams each. The low-profile design is also a handy feature when creating compact camera builds.
COMBINES WITH:
The Top Rail can be used with the NATO top handle & 15mm top bar bracket. It can also be used with any other standard NATO accessories. The LeftField range of adapter supports can also be added for a secure mount removing any flex.
Every part of the LeftField System is machined from single aluminium-alloy billets to create extremely rigid and light weight components. All of which play perfectly to the strengths of the Komodo.
Absolutely no compromise has been made in our manufacturing process. Our engineering is focussed on creating products that are both high-performance and enabled with a longer service life. Combine that with unparalleled level of Bright Tangerine support, and your LeftField Komodo System becomes the most reliable and hard-working partnership that any filmmaker could wish for.
