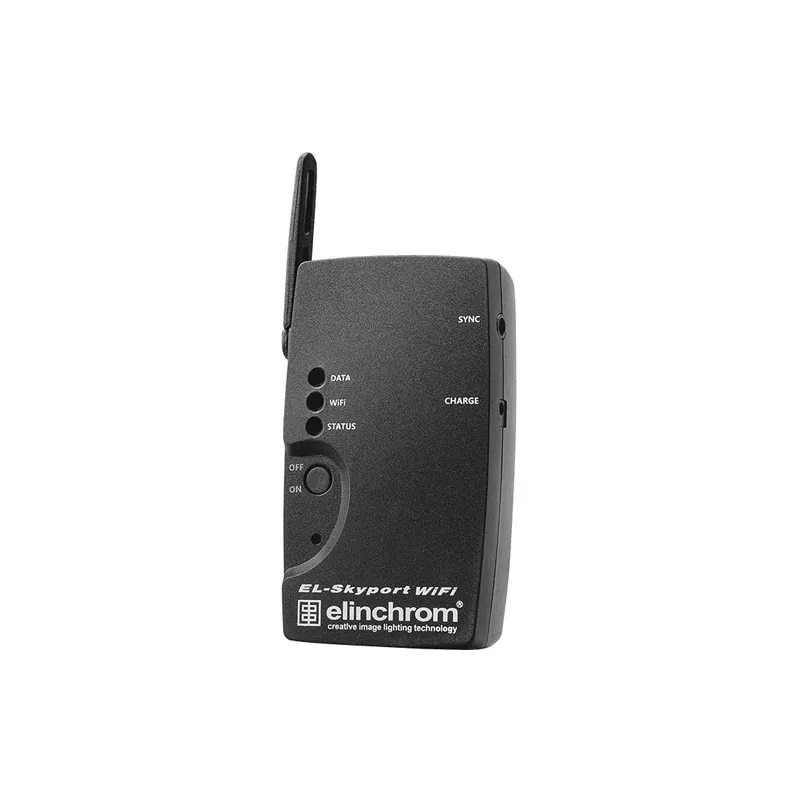

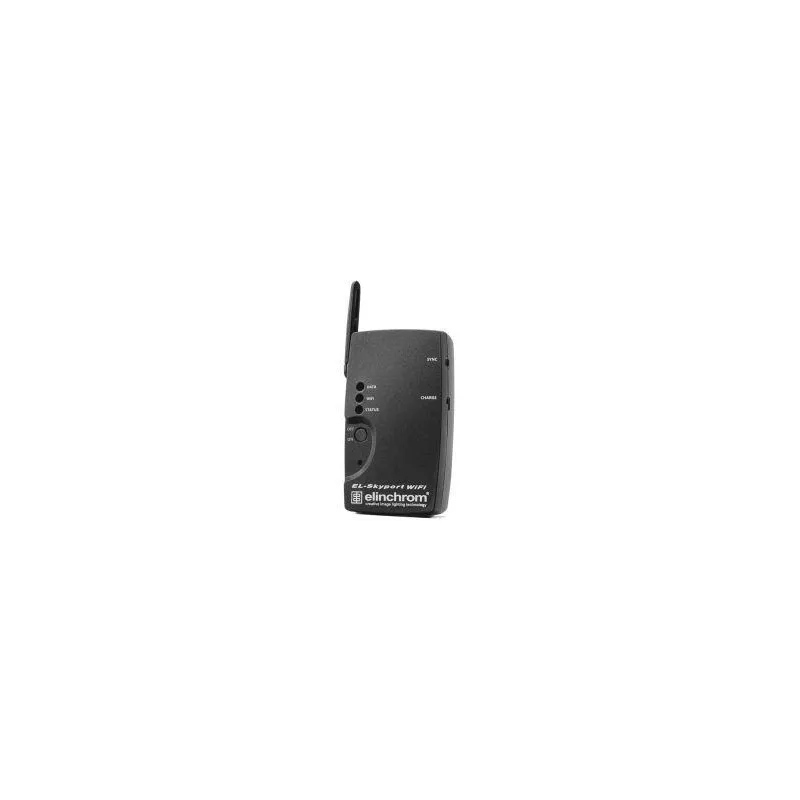

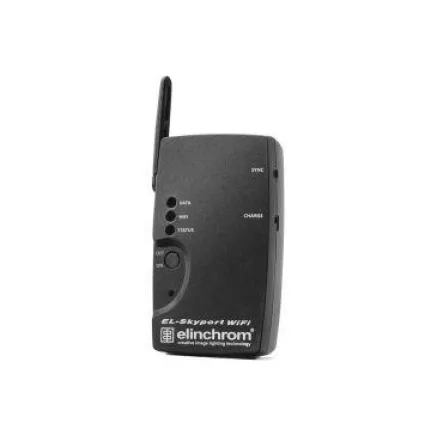

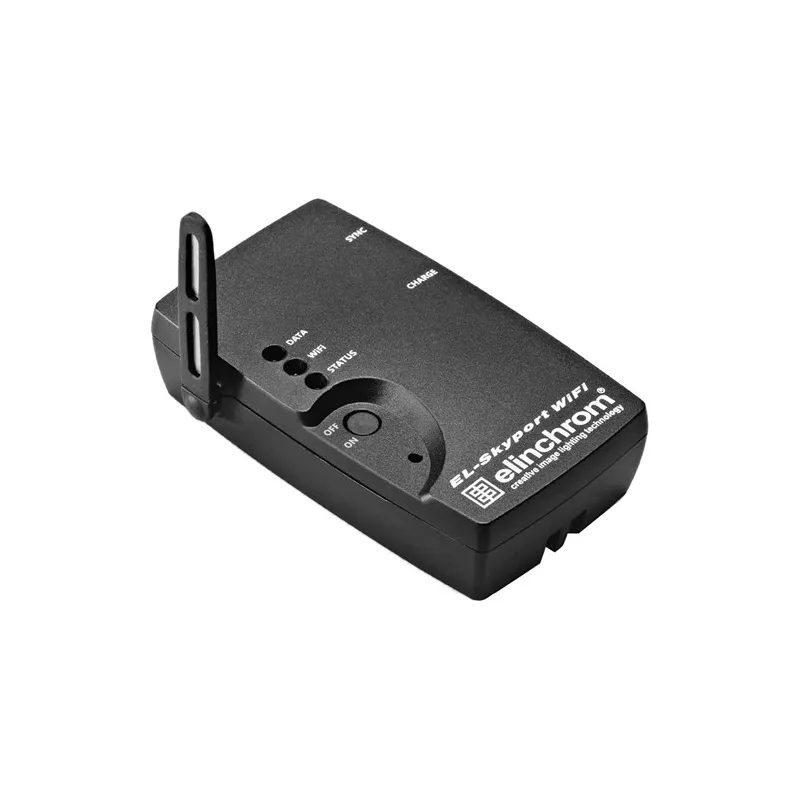

Elinchrom EL-Skyport WiFi Module (19356)

Elinchrom's EL-Skyport WiFi Module gives you the opportunity to expand the capabilities of the iPhone, iPad or iPod Touch to include remote triggering of your Elinchrom RX series flash equipment. All you need to do is purchase this WiFi Module then download the free EL-Skyport app and instruction manual.

The module features 8 channels and runs on a Li-ion battery that fully charges in 3 hours and lasts for 10 hours of use. 40 Bit security ensures interference-free WiFi operation at distances up to 164' outdoors and 65.6' indoors. The module can also be used as a non-WiFi EL-Skyport radio transceiver at distances up to 328' outdoors and 131' indoors. The EL- Skyport WiFi Module comes with a set of adapters and cords that enable connection to your RX flash gear.

Control RX Heads with iPhone, iPad, iPod Touch

Mobile Application for Apple Mobile Devices and EL-Skyport WiFi Module
Compatible RX Units:

Compacts: Style RX 300 / 600 / 1200

Battery Power Packs: Ranger Quadra RX / Ranger RX / Ranger RX Speed / Ranger RX Speed AS

Power Packs: Digital RX 1200 / 2400

Use built-in receiver or EL-Skyport transceiver
What you need to make it work:

Apple iPhone 3G / 3Gs / 4, iPod Touch, iPad / 2

Elinchrom EL-Skyport Mobile Phone Application from the Apple App Store (free)

EL Skyport WiFi Module

Elinchrom "RX" flash units

Download and follow the EL Skyport WiFi manual from Elinchrom's support area

WiFi Module Features

Internal rechargeable Li-ion battery, one charged battery lasts up to 10 hours

The Li-Ion battery recharges in approx. 3 hours

Integrated intelligent quick-charge circuit

Multi-Voltage, Multi-Connector EL-Skyport Universal Charger

Indication LED's for charge and operating modes.

Multi-use, as EL-Skyport Universal Receiver module, when synchronized directly with a flash unit or as a EL-Skyport RX WiFi module

3.5 mm SYNC-socket for all common flash units, when used directly as a "Universal Receiver"

EL-Skyport Normal Sync and Speed Sync mode settings

Settable 8 frequency channels and 4 workgroups

Interference free operation with 40 bits security

Distance range: WiFi up to 164' (50 m) outdoors and 65.6' (20 m) indoors

Distance range: EL-Skyport up to 328' (100 m) outdoors and (40 m) indoors

Other Features

Compatible with EL-Skyport Universal Receiver modules

Wireless Firmware Update possibility with EL-Skyport 3.0 PC/MAC software

Automatic Auto-Standby to save battery power, when the module is not used for more than 1 hour

Camera triggering capability; requires extra camera cables

Designed, engineered and produced in Switzerland
