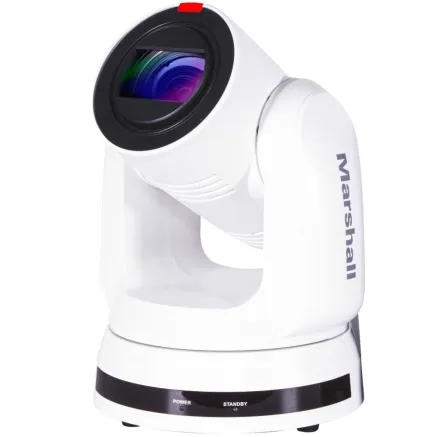

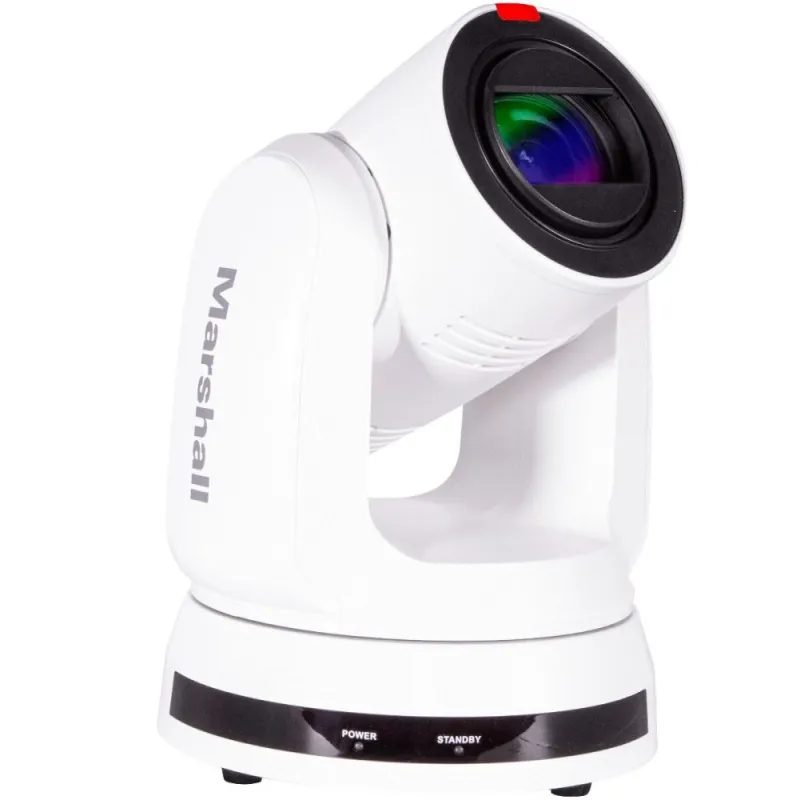

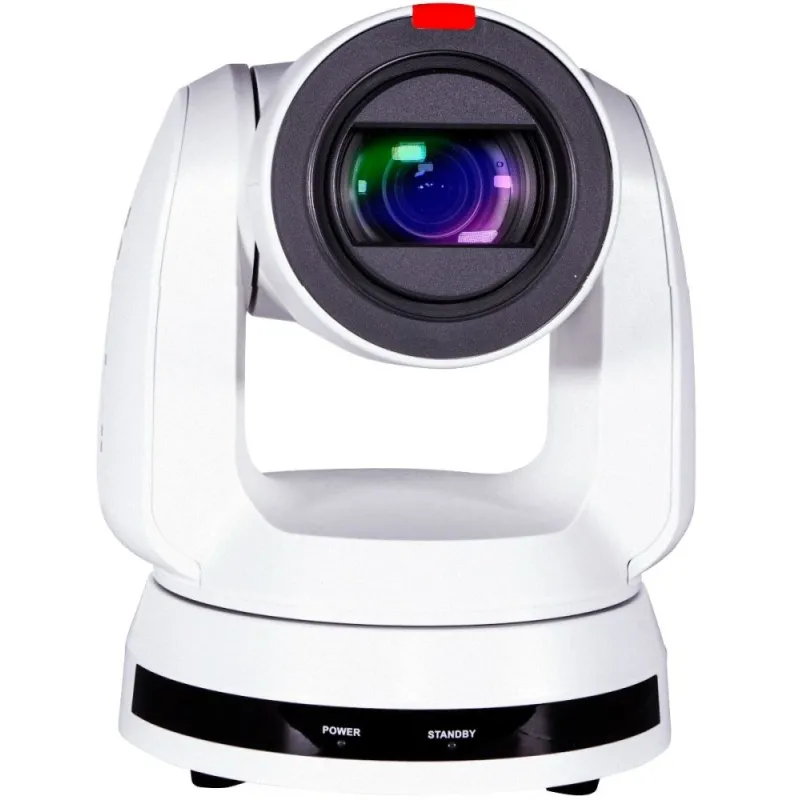

Marshall CV730-WHN 9MP 4K PTZ Camera

Marshall CV730-WHN

Features

• NDI High Bandwidth
• NDI|HX3 (Premium HX)
• IP (H.265/H.264/MJPEG)
• PoE++ (Simultaneous transmission of video & control signals and power supply via one CAT cable)
• Front Tally Light

Included in delivery

• Camera
• Adapter plate for ceiling mounting
• Infrared remote control
• Power supply unit & IEC cable

Sensor & Objektiv

Sensor

9 Megapixel Sony IMX334 Sensor (1/1,.8") UHK

Zoom

30x Optical Zoom (6.5 ~ 202mm) - 65° horizontal AOV

Minimum Illumination

0.1 lux (F1.6, 50IRE, 30fps)

Resolution and Frame Rates

3840 x 2160p

60 / 59.94 / 50 / 29.97 /25 fps

1920 x 1080p

60 / 59.94 / 50 / 29.97 /25 fps

1280 x 720p

60 / 59.94 / 50 / 29.97 /25 fps

Setting options:
mechanically via rotary control on the rear side
Web- / NDI-Interface
On-Screen-Menu with IR remote

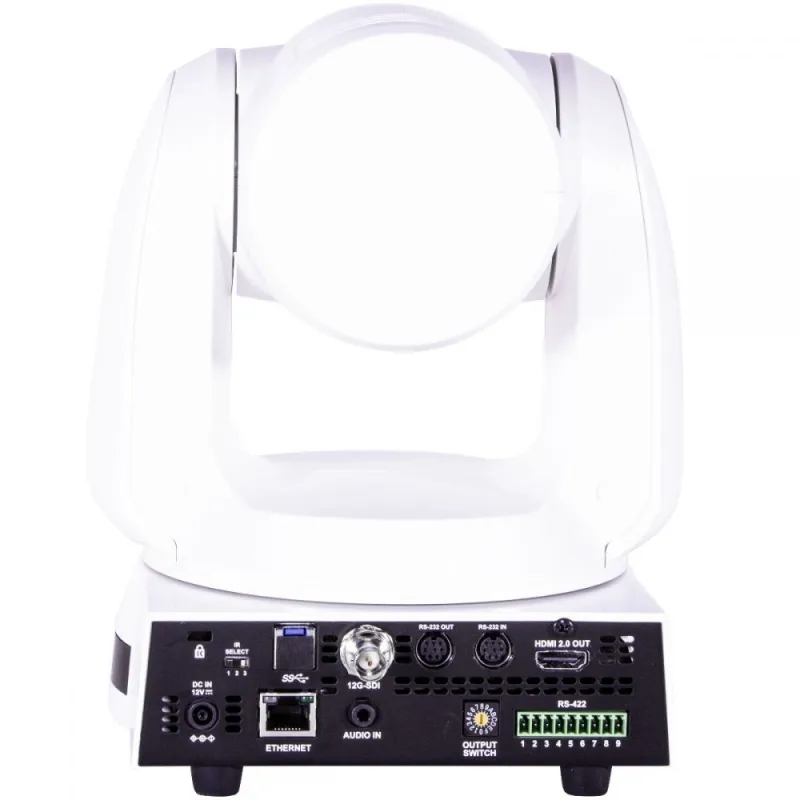

Connections
RS-485 (NDI / Ethernet)
12G-SDI and additional 3G-SDI
HDMI 2.0
USB 3.0
RS232 in / out
RS422
3.5mm Audio Input

Dimensions & Weight
235mm (H) x 190mm (B) x 190mm (T)
2.025g
