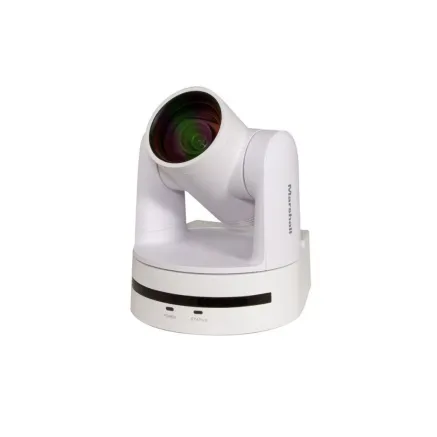

Marshall Electronics CV612-TWI

Marshall Electronics CV612-TWI

The Marshall CV620-TWI features advanced tracking capabilities with three distinct modes for optimal performance:

• New Sony IMX327 sensor
• Full HD resolution
• Simultaneous output via SDI, HDMI, and IP port
• Smooth motion during slow movements
• Dynamic operations with pan/tilt up to 300 per second

Tracking Modes

1. Everywhere Tracking: Free tracking of multiple individuals, selectable via web interface.
2. Partition Tracking: Switch between presets for presentations in front of different panels.
3. Stage Tracking: Sideways movement without zooming for stage presentations.

Smart Face Recognition

Automatically keeps faces in focus, regardless of their position in the room.

Available Colors

• Black (CV620-BI)
• White (CV620-WI)

Sensor & Lens

• Sony IMX327, 2 Megapixel (1/2.8)
• 20x optical zoom (5.3-110mm)
• AOV: 60 (Wide) to 3 (Tele)
• Minimum illumination: 1.0 lux (F1.6, 30fps)

Resolution and Frame Rates

• 1920 x 1080p (up to 60 fps)
• 1280 x 720p (up to 60 fps)

Connectivity

• IP, 3G-SDI, HDMI, RS232, RS422
• 3.5mm Audio Input with Passthrough

Control

• Protocols: ONVIF, VISCA, PELCO D
• Panning Speed: 120/second
• Panning Angle: 170

Audio

• Input: Line in/Mic in
• Output: Ethernet/SDI/HDMI

Dimensions & Weight

• 185mm x 186mm x 174mm
• Weight: 1.9kg

Power Supply

• DC 16W max.
• PoE+ 18W max.

Delivery Content

• Camera
• Adapter plate for ceiling mounting
• IR Remote
• Power Supply and Power Cord
