Marshall CV420e

• 3840 x 2160p (up to 60 fps)
• IP | USB | HDMI
• digital PTZ

With zoom and free navigation on the horizontal and vertical axis, the CV420e workflow is similar to a PTZ camera. The integrated 4.5mm lens captures a wide image area. Via the digital zoom, dynamic recordings in Full HD are possible. In addition to the manual selection of the image section, up to 250 presets can be controlled. Operation is possible via the web interface, external software such as OBS and vMix, as well as the included IR remote control.

Delivery Content
• Camera

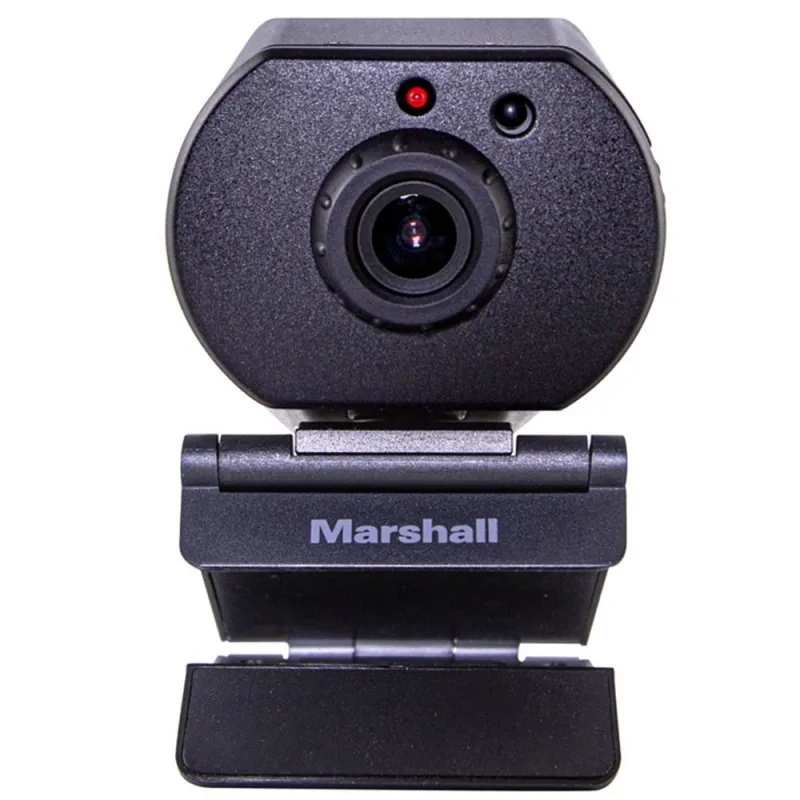

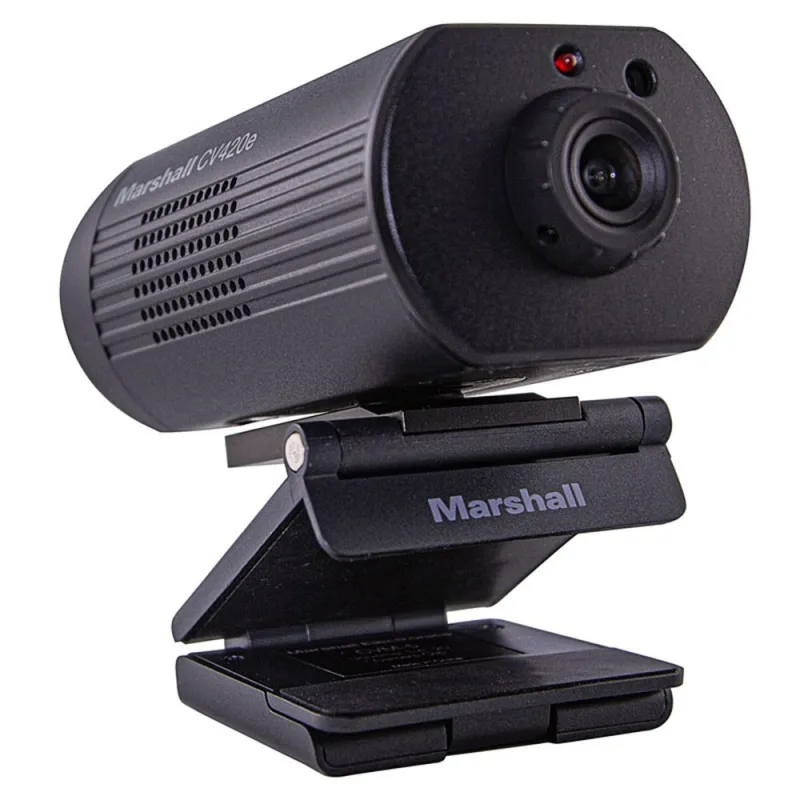

• Combination stand for table and monitor (CVM-5)
• Infrared remote control
• Power supply unit & power cord

Specifications

Sensor & Lens

4K Sony sensor with 9.2 megapixels (1/1.8)
fixed 4.5mm lens
horizontal angle of view: up to 100
12x digital zoom
low light capable up to 0.05 lux
min. distance for precise focus: 30cm

Resolution and frame rates

3840 x 2160p (up to 60 fps)
1920 x 1080p (up to 60 fps)
1920 x 1080i (up to 60 fps)
1280 x 720p (up to 60 fps)

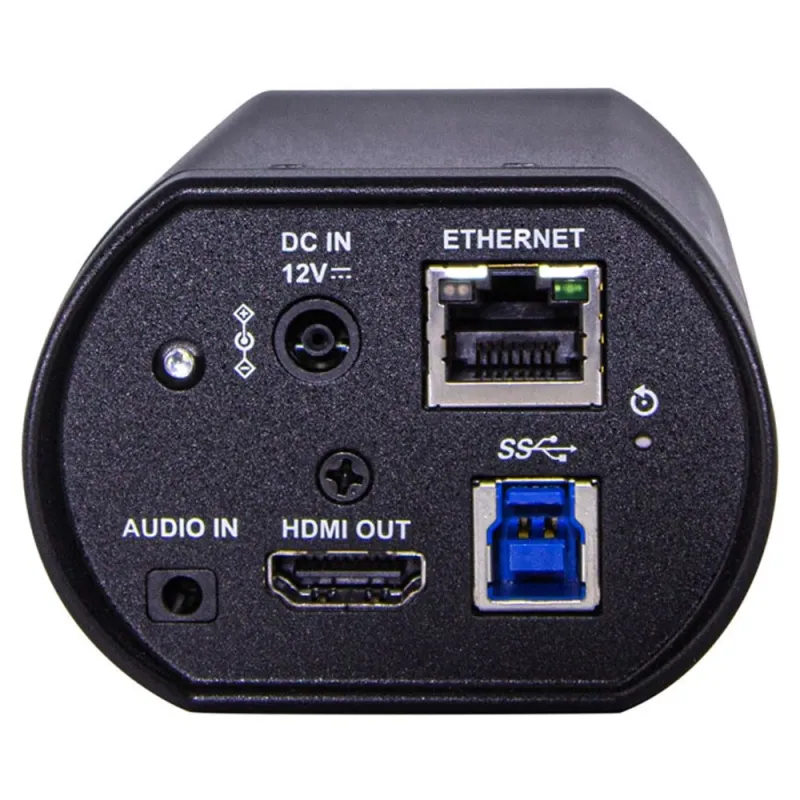

Connections

IP
HDMI
USB 3.0
Audio input: 3.5mm jack
Audio output via Ethernet / HDMI / USB
Simultaneous Video Output: USB + IP + HDMI

Control

up to 250 presets
IR remote control
Marshall web interface
VISCA over IP
UVC
ONVIF

Compatible with

OBS
Plugins/Docks
VMS
vMix
Clickshare

Dimensions

113mm x 70mm x 51mm

Power supply

DC power supply (10W power consumption)
PoE (11W power consumption)
