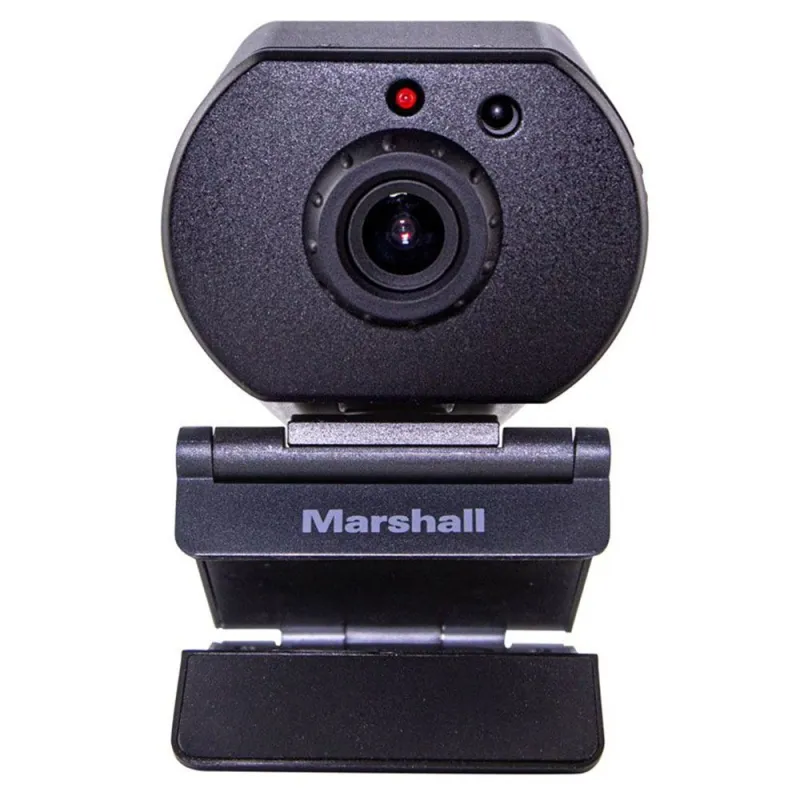

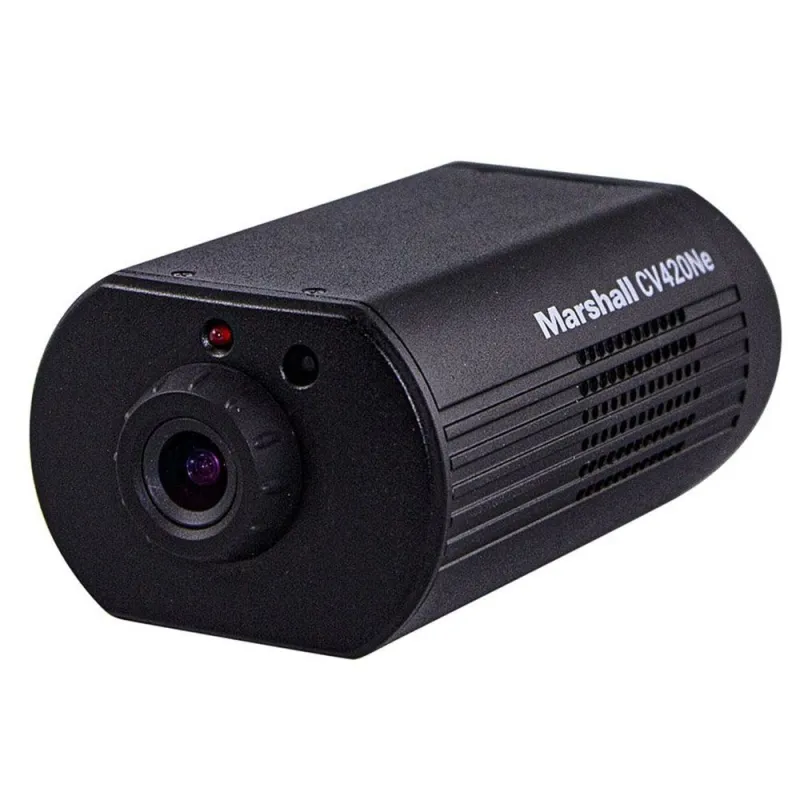

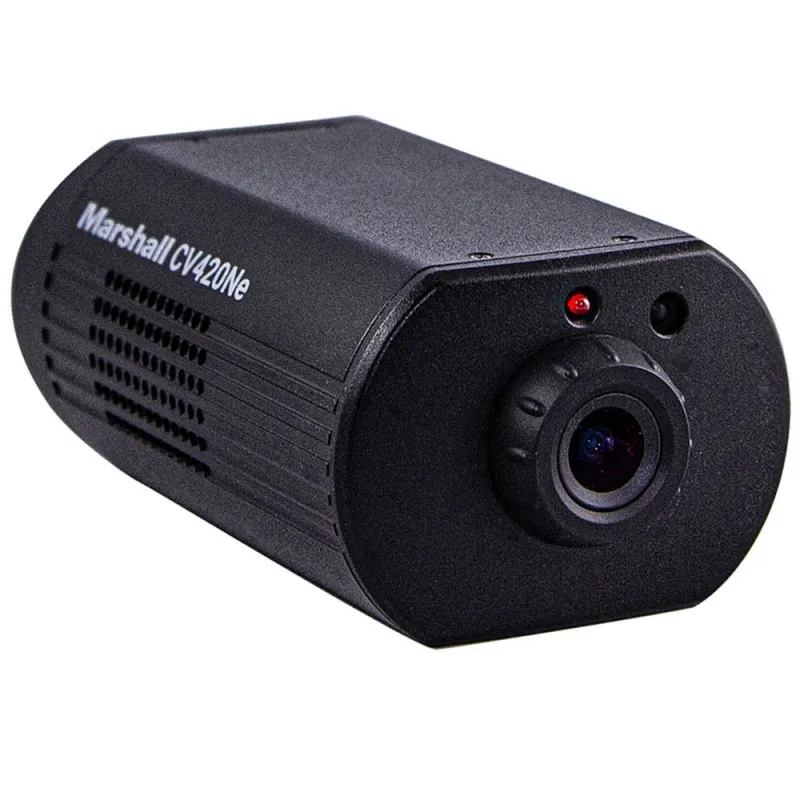

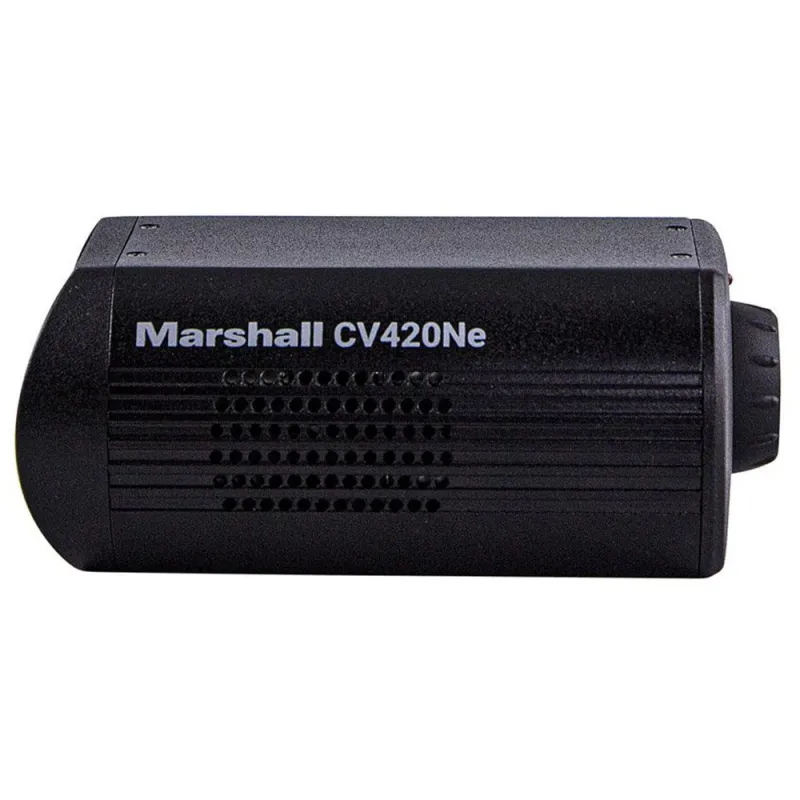

Marshall CV420Ne

• 3840 x 2160p 60 fps
• NDI HX3 | IP | USB | HDMI
• digital PTZ

The CV420Ne is basically the same camera as the CV420e. A very compact block camera with Ultra HD sensor and digital PTZ control. With the difference that it can additionally be integrated into NDI HX3 workflows.

Delivery Content
• Camera
• Combination stand for table and monitor (CVM-5)

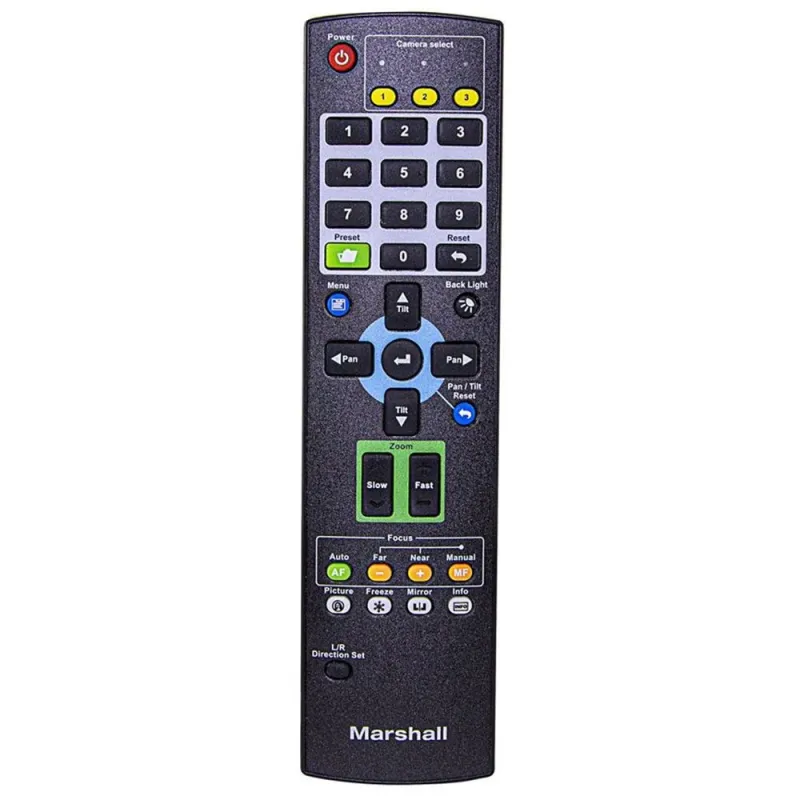

• Infrared remote control
• Power supply unit & power cord

Specifications

Sensor & Lens

4K Sony sensor with 9.2 megapixels (1/1.8)
fixed 4.5mm lens
horizontal angle of view: up to 100
12x digital zoom
low light capable up to 0.05 lux
min. distance for precise focus: 30cm

Resolution and frame rates

3840 x 2160p (up to 60 fps)
1920 x 1080p (up to 60 fps)
1920 x 1080i (up to 60 fps)
1280 x 720p (up to 60 fps)

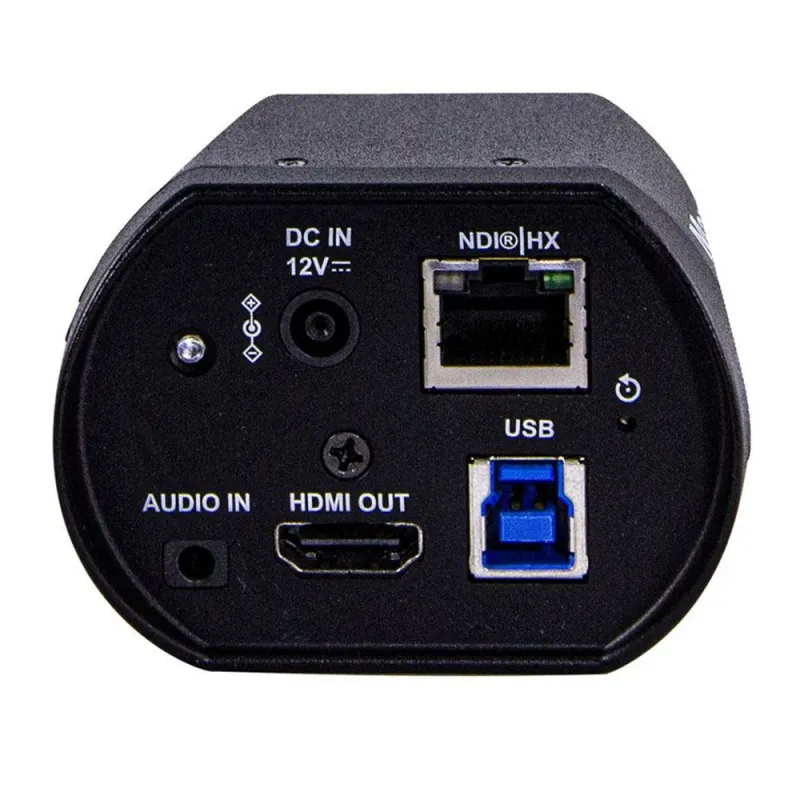

Connections

IP
HDMI
USB 3.0
Audio input: 3.5mm jack
Audio output via Ethernet / HDMI / USB
Simultaneous Video Output: USB + IP + HDMI

Control

up to 250 presets
IR remote control
Marshall web interface
VISCA over IP
UVC
ONVIF

Network

NDI|HX 3
IP (H.264 / H.265)
SRT

Compatible with

OBS
Plugins/Docks
VMS
vMix
Barco Clickshare

Dimensions

113mm x 70mm x 51mm

Power supply

DC power supply (10W power consumption)
PoE (11W power consumption)
