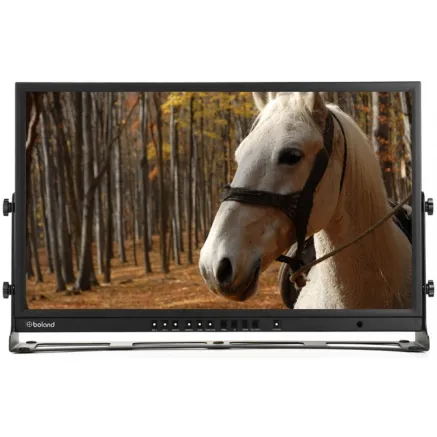

Boland LVB23-G 23" Video LCD Monitor
SKU: 15439
Būklė: Naujas produktas
Šiuo metu šio produkto negalima užsisakyti, prašome patikrinti vėliau.
€ 3 178.26 su mokesčiais
| LCD monitors | monitors |
Boland LVB23-G 23" Video LCD Monitor
• High & Standard Definition Video LCD Monitor 1080/720/576/480(@60/59.94/50)
• 3G includes 2x3G HD/SD SDI-Digital input/ HD HDMI/DVI (+HDCP)
• HDMI/DVI inputs accepts up to 1080p HD
• Modes: EGA to UXGA, NTSC/PAL/SECAM/NTSC4.43/PAL-M
• Analog Inputs are Composite, Y/C, Component, RGB(SOG), DVI – I(Analog PC)
• Aspect Ratio: 16:9, 4:3, 14:9, 13:9, 1.85:1, 2.35:1:
• Marker Display
• UMD Support
• Color Temperature – User, VAR, 11000K, 9300K, 6500K, 5400K, 3200K
Specifications
| Active Area (Diagonal): | 23”/ 584.2 mm |
| MODES | |
| High & Standard Definition Video Modes: | 1920x1080p(50/60/30psf/25psf/24psf/30/25/24),1920x1080i(50/60), 1280x720p(50/59.94/60), 480i(59.94),576i(50) Digital, VESA VGA, DVI/HDMI *24psf/23.98psf signal format is not supported in “UNDERSCAN ” Mode. |
| PC Video Modes: | EGA, VGA, SVGA, XGA, WXGA, SXGA, WSXGA, UXGA |
| Standard Definition Video Modes: | NTSC/PAL/SECAM/NTSC4.43/PAL-M |
| Scanning Modes: | Under/Over/Zero/Pixel to Pixel Scanning |
| INPUTS | |
| Digital Video Inputs: | 3G HD SDI (@50/59.94/60), HD HDMI/DVI (+HDCP) |
| Digital Video Inputs: | Digital Visual Interface, VESA & SMPTE Rates. |
| Analog Video Inputs: | Composite, Y/C, Component, RGB(SOG), DVI – I(Analog PC) |
| PICTURE | |
| Aspect Ratios: | Full Screen, 16:9, 4:3, 14:9, 13:9, 1.85:1, 2.35:1 |
| Picture-in-Picture : | Analog (Composite1, 2, 3, Y.Pb.Pr, GBR, PC),SDI 1 inputs + SDI 2, Digital (DVI, HDMI) input PIP |
| Picture-by-Picture: | Side by Side split screen display |
| Pixel (RGB Trio) Arrangement: | 1920 H x 1080 V Pixels RGB strip arrangement(2,073,600 Pixes, 16:9) |
| Pixel (RGB Trio) Pitch, Depth: | 0.2655 x 0.2655mm |
| Brightness, typical, 0°: | 250 cd/m2 |
| Contrast Ratio, 0° | 1000:1 |
| Color Processor: | 10 bit color Processor |
| Viewing Angle, contrast>10:1 : | Horizontal: 178(Typ),Vertical 178(Typ), 1000:1 |
| Response Time: | 12 ms |
| CONTROLS | |
| User Controls: | STANDBY, SDI 1, SID 2, ANALOG, MARKER, FUNCTION, MENU, UP, DOWN, SEL/INPUT |
| Remote Controls: | IR, TCP/IP, RS-422, RS-232 |
| LIGHT | |
| Light Source (standard): | LED backlight system |
| LED Life: | 12,000 Hrs |
| CONNECTORS | |
| Video Connectors: | BNC x 2 SDI 2 Channel Input, BNC x 3 Composite, YC(S-Video), Component(YPbPr/RGB) Input |
| HDMI/DVI Connectors: | DVI-I x 1 DVI & Analog RGB Input, HDMI x 1 HDMI Input |
| POWER | |
| DC Power: | 12 VDC ±10%, 40 watts |
| DC Connector: | XLR-4M (pin 1=Gnd, pin 4=+volts) |
| AC Power (detached power supply included): | 90-264 VAC, 50/60 Hz |
| AC Power Connector: | IEC 320-C14 3 pin Male |
| DISPLAY | |
| Window (Display Area): | 20.06” x 11.29”/ 509.76 mm x 286.74 mm |
| Cabinet Dimensions: | 21.2 x 12.7 x 2.2” / 540 x 323.2 x 58mm (whd) |
| Weight: | 23.1 lbs / 10.5kg |
| Mounting / Rack Mounting: | VESA (100 x 100) |
| Operating (full spec): | 0 ~ +50°C, no condensation, 0 ~ 10,000 feet (3,048m) |
| Storage: | -20 ~ +60°C, no condensation, 0 ~ 40,000 feet (12,192m) |
| Available Options: | - |
