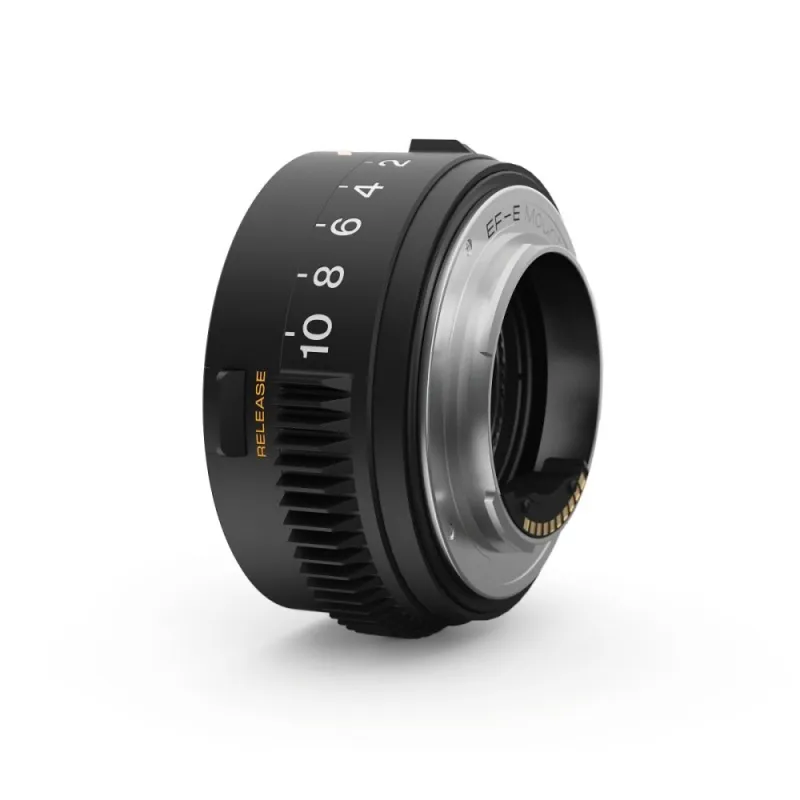

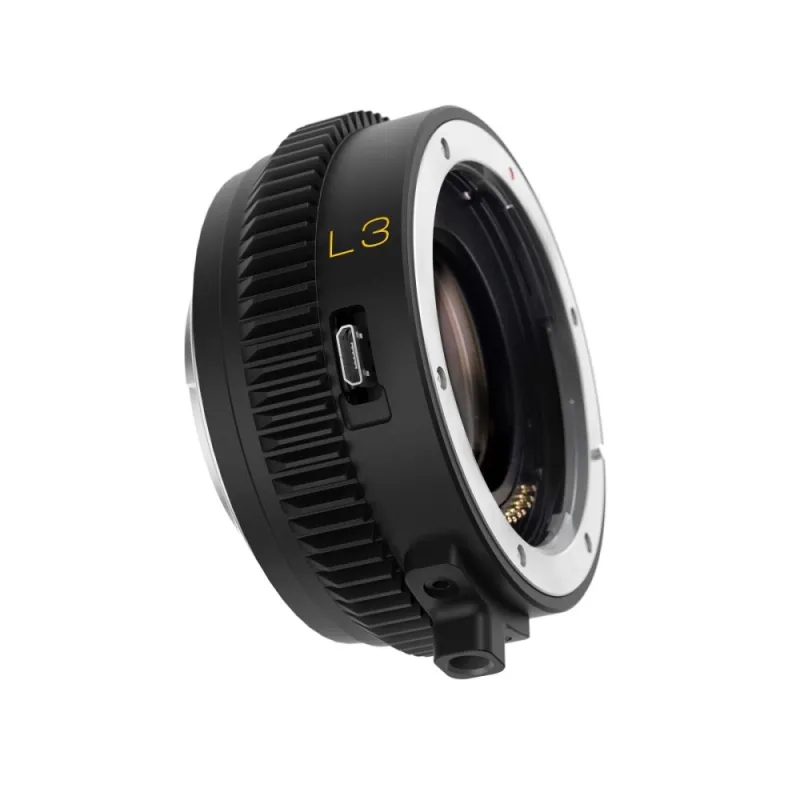

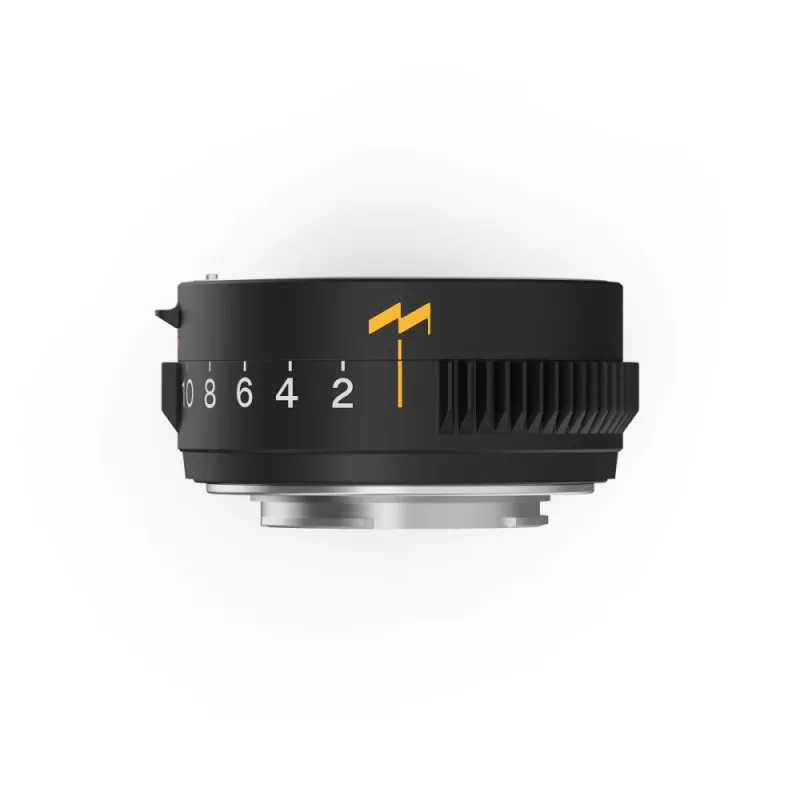

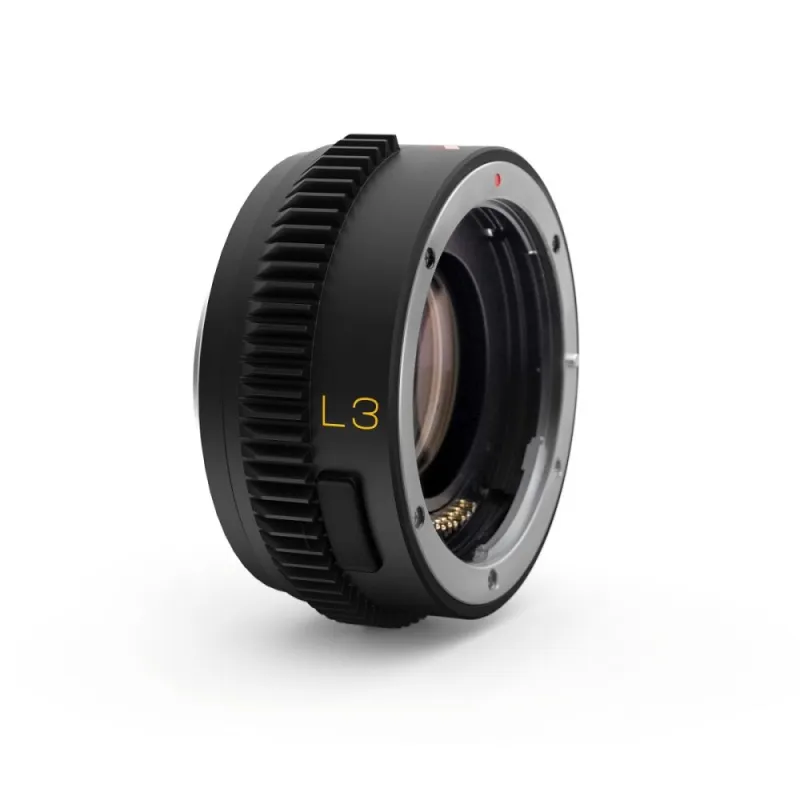

Module 8 L3 Tuner - Retroscope Variable Look - EF Lens to RF Mount (1003-02)
SKU: 56551
Būklė: Naujas produktas
Šiuo metu šio produkto negalima užsisakyti, prašome patikrinti vėliau.
€ 1 565,45 su mokesčiais
| Type of Product | Adapters for lens |
| Compatible | Canon |
| Lens mount | Canon RF |
| Lens mount | Canon EF |
| Lens Format Coverage | Full Frame |
| Focus Type | Manual Focus |
| Adapter type | Mount replacement |
| Adapter is for lenses | Canon EF |
Module 8 L3 Tuner - Retroscope Variable Look - EF Lens to RF Mount (1003-02)
Tuner L3 is Iain A. Neill signature look and represents the culmination of decades of experience in cinema lens design. L3 gives you the characteristics of classic anamorphic lenses, even when using spherical optics. L3 simulates the vertical/horizontal depth of field effects seen in vintage anamorphic lenses, without flares or bokeh.
- Supported lens brands: Canon, Tamron, Sigma
- Inspired by anamorphic lenses
- Magnification: 1.08x F/# Max (optical) - F/1.4
- Electronic control supported: Focus (wired), iris, image stabilisation and autofocus pass-through
- Tuner dial rotation: EF lens mount
- Vari-Tune technology (worldwide patent pending)
In the Box
• L3 Tuner - Retroscope Variable Look - EF Lens to RF Mount (1003-02)
Technical specializations
| Lens Type | Variable Look Zoom Adapter |
| Mechanical Design | Precision Multi-cam |
| Lens Side Mount | Canon EF Lenses and PL Lenses Only |
| Electronics Support | Canon, Tamron, Sigma |
| Camera Side Mounts | Sony E or Canon RF |
| Electronics Support | EF Tuner: Focus (wire), Aperture, IS and Autofocus Pass though - PL Tuner: None |
| Inspired by | Anamorphic |
| Neutral Setting | No |
| Adjustment Rage | 0-10 |
| Halation (Center) | Low |
| Halation (Edge) | Low |
| Axial Aberrations | Spherical |
| Full Frame Aberrations | Astigmatism |
| Resolution | 4K+ |
| Max. Bokeh Effect | Swirl |
| Magnification Factor | 1.08x |
| Tuner Breathing | < 0.5% |
| F/# Range (Optimal) | EF Tuner: F/1.2-F/5.6 - PL Tuner: F/1.0-F/5.6 |
| Stop Loss | < 1/4 |
| Lens Image Circle | Full Frame |
| Coatings | Vintage Emulation |
| Dimensions | EF Tuner: Ø76mm x L32mm - PL Tuner: Ø80mm x L46mm |
| Weight | 200g (E Mount) - 200g (RF Mount) - 300g (Pl Tuners) |
| Tuner Dial Rotation | 70 degrees |
| Firmware Update | EF Tuner: Via Micro USB - PL Tuner: No Firmware |
| Warranty | 1 Year |
