AGM Voyage TB75-640 Thermal/Night Vision Fusion Monocular with Laser Rangefinder

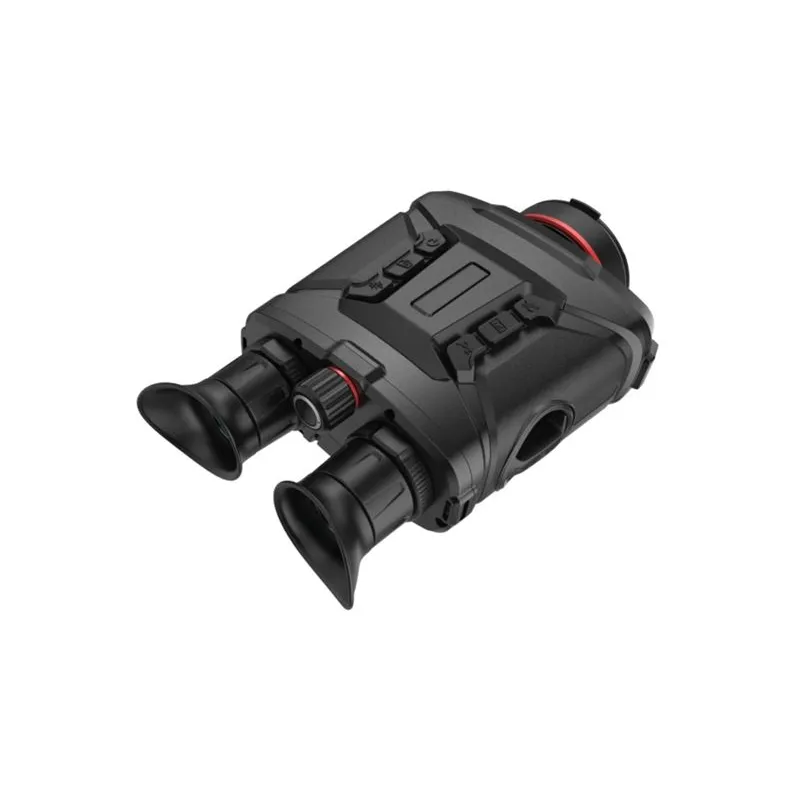

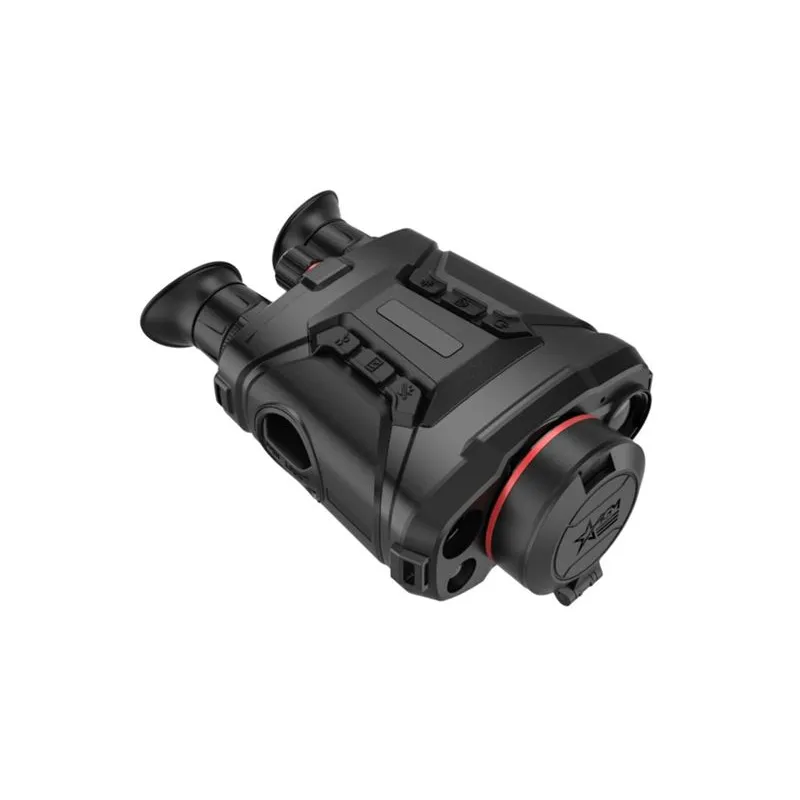

AGM Voyage LRF TB75-640 Camera Overview

The AGM Voyage LRF TB75-640 is a high-end fusion camera featuring a 640x512 detector, a 50mm objective lens, and a laser rangefinder. It combines thermal imaging with digital night vision, offering a viewing distance of up to 2.6 kilometers. The camera is user-friendly with a Dutch control menu.

Image Fusion Explained

Image fusion combines thermal imaging with black and white optical night vision, providing clear visibility of surroundings and highlighting hot objects based on their heat source.

Camera Features

• The camera offers 4-in-1 functionality, allowing users to switch between thermal imaging, night vision, optical imaging, or a combination of these modes.
• It includes a 75mm lens, 5x basic magnification, 16x digital zoom, and a 0.39 OLED display with adjustable brightness and contrast.
• The camera has a 12-micron, 640x512 thermal sensor with a refresh rate of 25 Hz and a sensitivity rating of less than 20 mK.

Laser Specifications

The built-in laser rangefinder has a range of up to 600m, with a wavelength of 905nm and Laser Safety Class 1 classification for eye safety.

Physical Features

The camera is powered by three 18650 batteries, providing up to eight hours of operation. It is lightweight, compact, and IP67 certified for optimal performance in harsh conditions.

Applications

The AGM Voyage LRF TB75-640 is suitable for hunting, security, tactical use, and nature observations, offering enhanced visibility in various conditions. It is designed for both professionals and enthusiasts.
