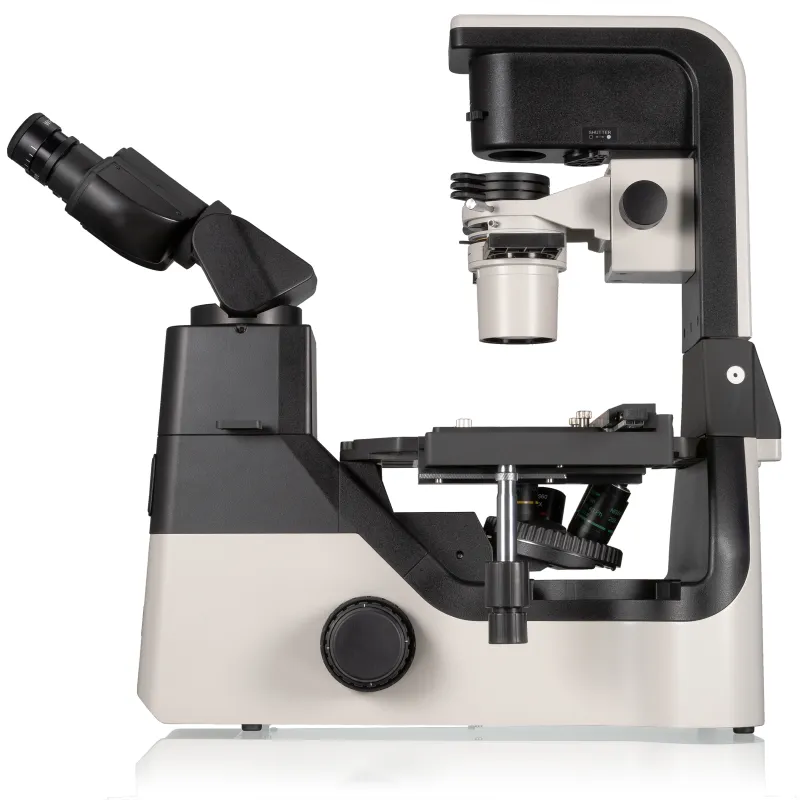

Bresser Nexcope NIB630 inverted research microscope with tiltable lighting unit

The NIB 630 is the flagship of the NIB600 series of inverted microscopes. With such an inverted design, the device enables the microscopy of plankton, microalgae and cell cultures . Cell cultures can be examined directly in the culture vessel without taking samples.

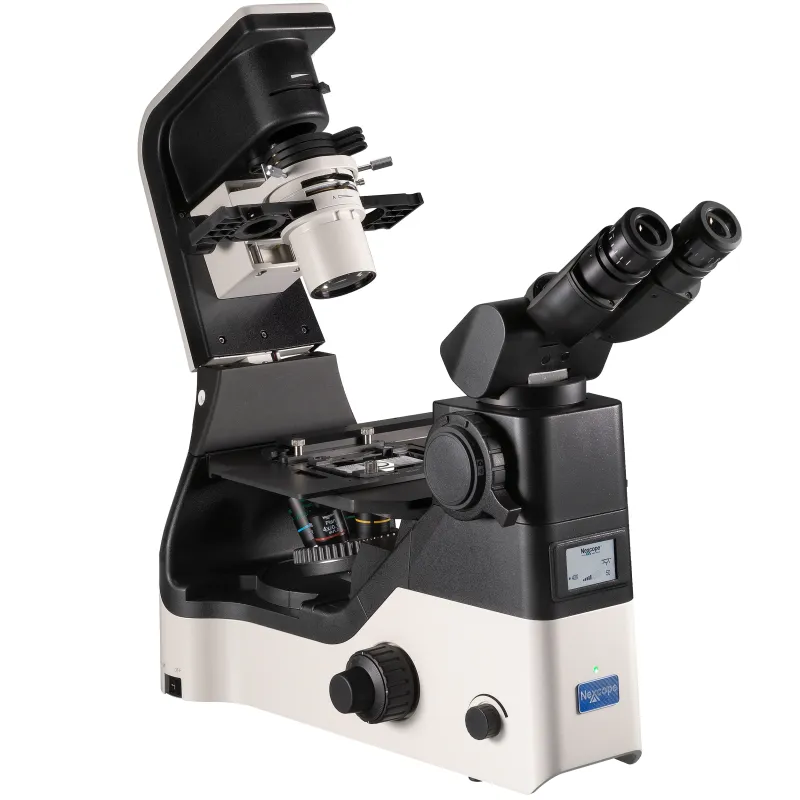

For particularly easy sample handling, it is equipped with a tiltable lighting unit. This means that even tall vessels can be placed comfortably without bumping against the lighting unit. The microscope head is equipped with a height-adjustable ergo viewing head. This allows users of different heights to adjust the microscope to a comfortable and ergonomic viewing height with a single hand movement.

This special microscope is used in water management offices, research institutes and universities, in human and veterinary medicine, agriculture, marine biology, limnology, aquaculture and many more.

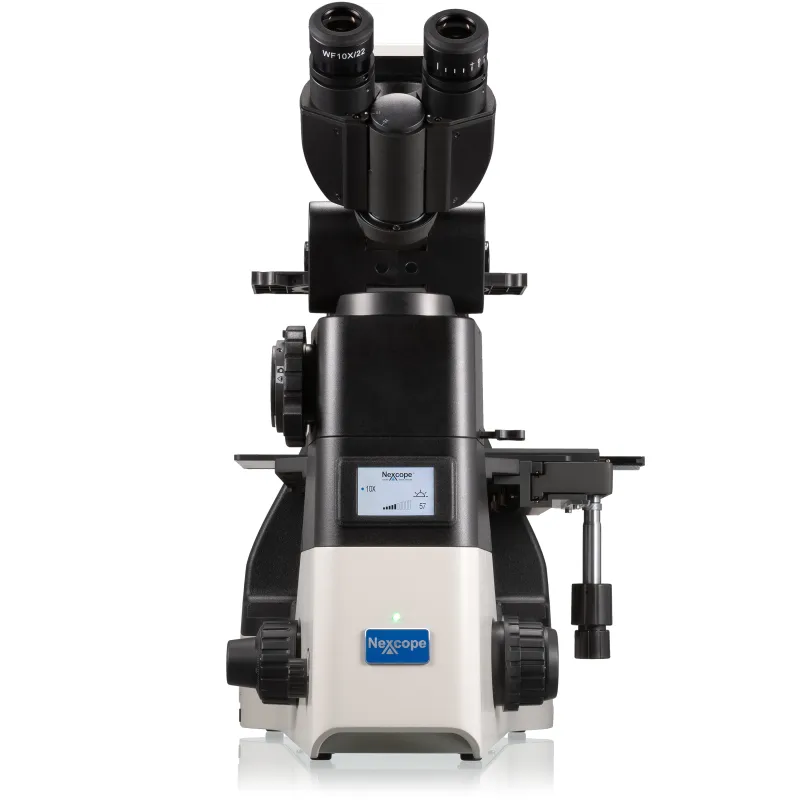

The integrated display informs you at any time about the selected magnification and the status of the illumination as well as the ECO mode. The brightness can be programmed for each objective so that there is no need to readjust when changing magnification and the user is not blinded.

OBJECTIVE
The NEXCOPE NIB630 microscope is equipped with a quintuple nosepiece. A 4x planachromatic objective and one each of 10x, 20x and 40x planachromatic phase contrast objectives are included. The condenser has a numerical aperture of 0.3 and an extra long working distance. The objectives are calculated for a soil thickness of 1.2 mm. Please use appropriate culture vessels. The universal specimen holder is suitable for standard slides.


EYEPIECES
The eyepieces have a field of view of 22 mm . This gives you a very large field of view. The high eye point makes them very comfortable even for spectacle wearers. A rubber edge protects against scratches on contact. Dioptric compensation from -5 to +5 can be individually adjusted for each eyepiece.
The interpupillary distance can be adjusted between 48 mm and 75 mm. The binocular can be tilted up and down to adjust the viewing height.


ILLUMINATION
The Koehler illumination provides the best possible light guidance of the microscopy light. This avoids stray light and only illuminates the just visible area in the specimen. This protects sensitive living specimens from excessive light irradiation. The powerful 3W LED can be adjusted in brightness and ensures optimal illumination. The brightness can be adjusted individually for each objective. If an objective is changed, the NEXCOPE NIB630 automatically adjusts the previously set brightness. The display shows the currently selected lens and the current brightness. The tiltable lighting unit makes it easier to work with taller sample vessels. The adjustable condenser with extra-long working distance enables quick readiness for use.

MECHANICS
In addition to coarse focusing, fine focusing helps to bring the specimen into focus very precisely. A full turn of the fine focusing knob moves the stage up or down by 0.2 mm. On the right side, the fine focus can be adjusted with a finger. The friction of the coarse focusing can also be varied.
The fine focusing knobs are held magnetically and can be mounted on the left or right.
The XY stage offers the possibility of inserting various holders. This allows slides or even petri dishes to be inserted.

CAMERA CONNECTION
The NEXCOPE NIB630 is specially designed for use with C-mount cameras . The camera connection is located on the side and has a switch between visual observation and camera (100/0 or 0/100). You can choose from two different adapters, depending on the sensor size:

• 0.5x C-mount adapter
• 1x C-mount adapter (already included in the scope of delivery)

ACCESSORIES (optional)

• Hoffman Modulation Contrast
• Relief 3D contrast
• Terasaki holder, Petri dish holder 54 mm and 90 mm
• Camera adapter for C-mount 0.5x

FEATURES

• Professional inverted transmitted light microscope
• Type of objectives: infinity plan achromatic (60 mm adjustment length, M25)
• Precise mechanics
• Very bright illumination

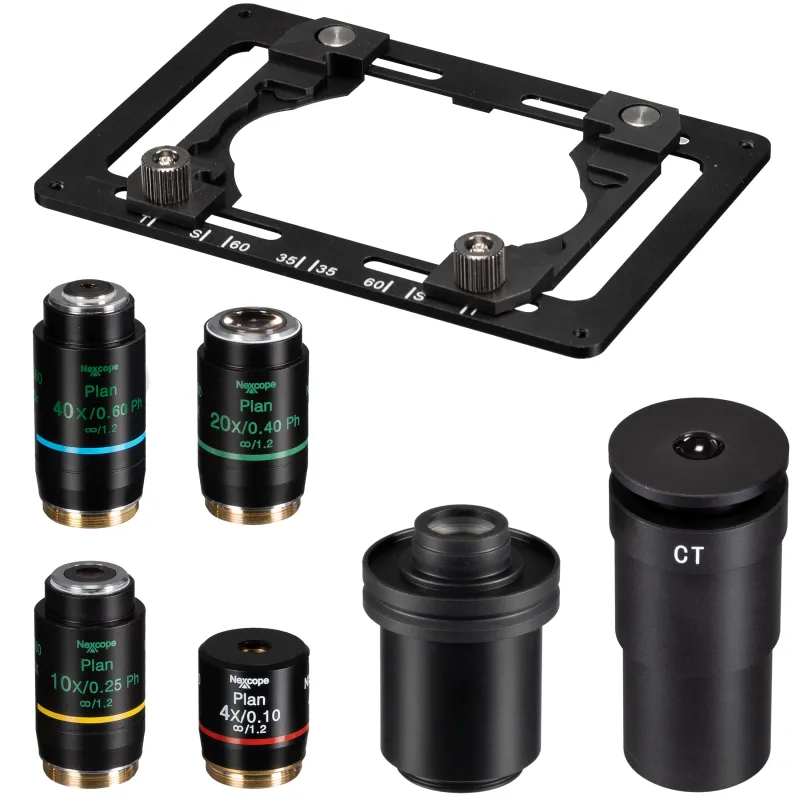

SCOPE OF DELIVERY

• Inverted transmitted light microscope
• 4x objectives, of which 10x, 20x and 40x as phase contrast objectives
• Filter slider for phase contrast
• Universal sample holder
• Centering telescope for phase contrast
