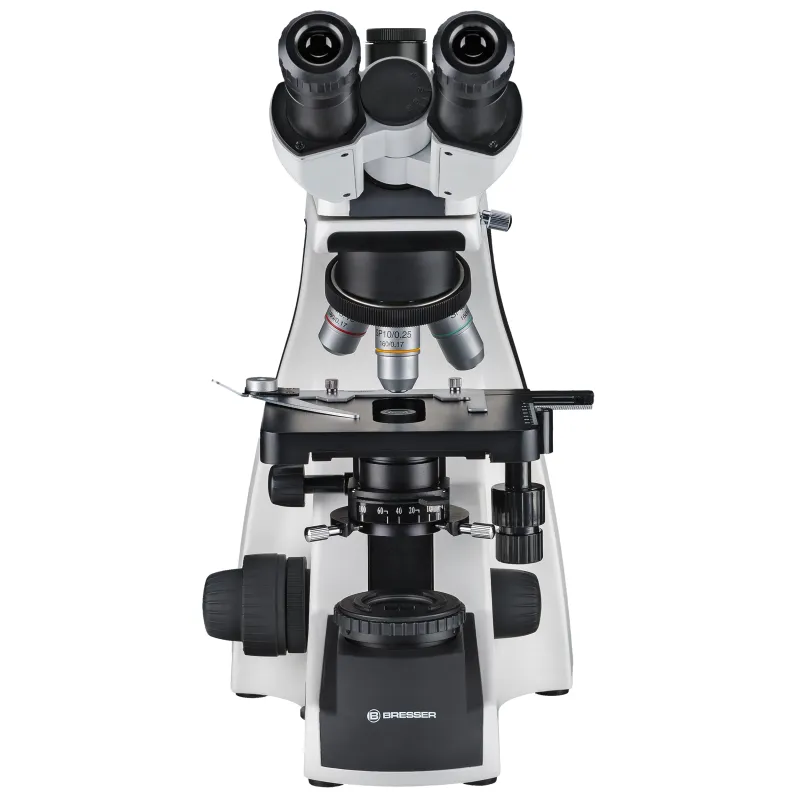

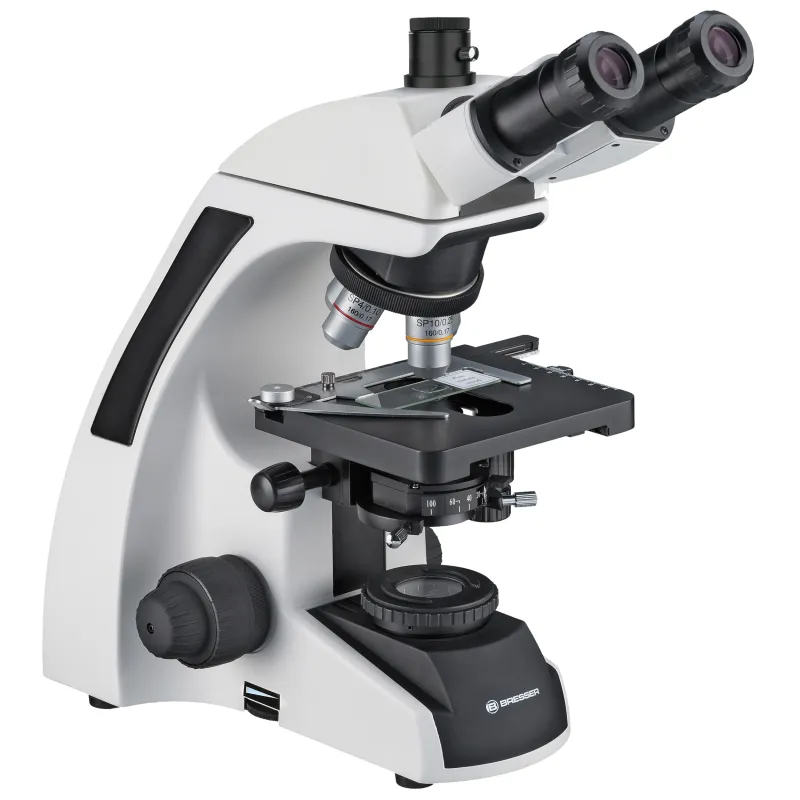

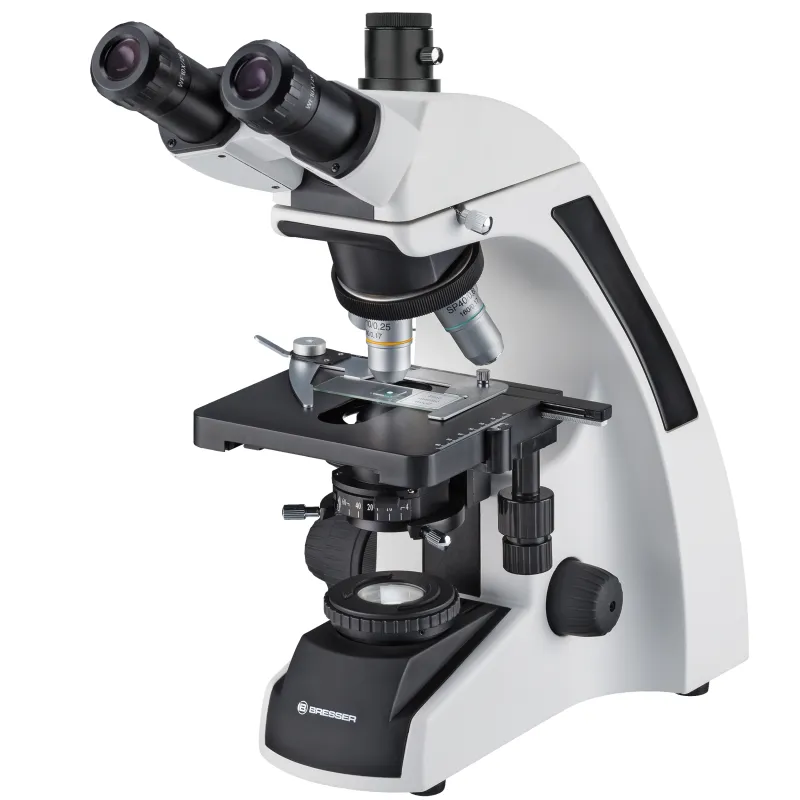

BRESSER Science TFM-301 Trino

The  New BRESSER Science TFM-301  is a trinocular microsscope, which is equipped with  semiplan objectives . In addition to the binocular viewing pictures can also be made via the trinocular tube with C mount thread. The  WF 10x eyepieces  offer a  large visual field  of 20mm. The interpupillary distance can be adjusted from ca. 55mm to 75mm.  Dioptre adjustments  are possible with both eyepieces.

The  bright and durable LED illumination  is dimmable. Very versatile power supply system via USB port and cable or mains adapter (both included).

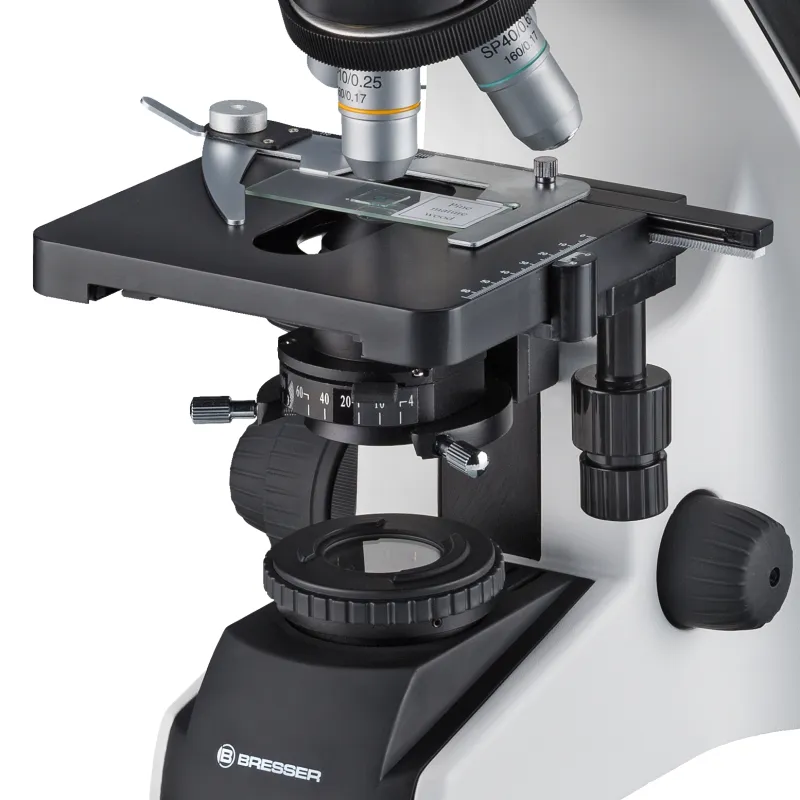

The  Köhler illumination  is regulable with the built-in luminous-field diaphragm and the vertically and horizontally adjustable  Abbe condenser  (numerical aperture 1.25, with iris diaphragm). An imprint of the different possible magnifications on the condenser makes the adjustment of the iris diaphragm very fast and precise.

Coaxial pinions  drive the stage and focus which enables ergonomic operation of the microscope.

The trinocular tube enables the direct attachment of a c-mount camera or MikroCam .

SCOPE OF DELIVERY

• Microscope with integrated LED illumination
• semiplan objectives (4x, 10x, 40x, 100x oil)
• 2x eyepieces (WF 10x)
• Mains adapter
• USB power cable
• Manual
• Immersion oil
• Dust cover
