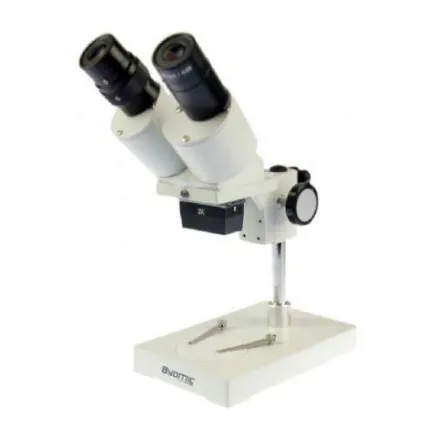

Byomic Stereo Microscope BYO-ST2
Pristatymas per 8 - 14 dienas
1x Byomic Stereo Microscope BYO-ST2; 2x WF10x Wide-angle eyepieces; 2x Premium eyecups; 1x Contrast plate Ш60mm White/Black; 1x Protective cover; 1x Manual

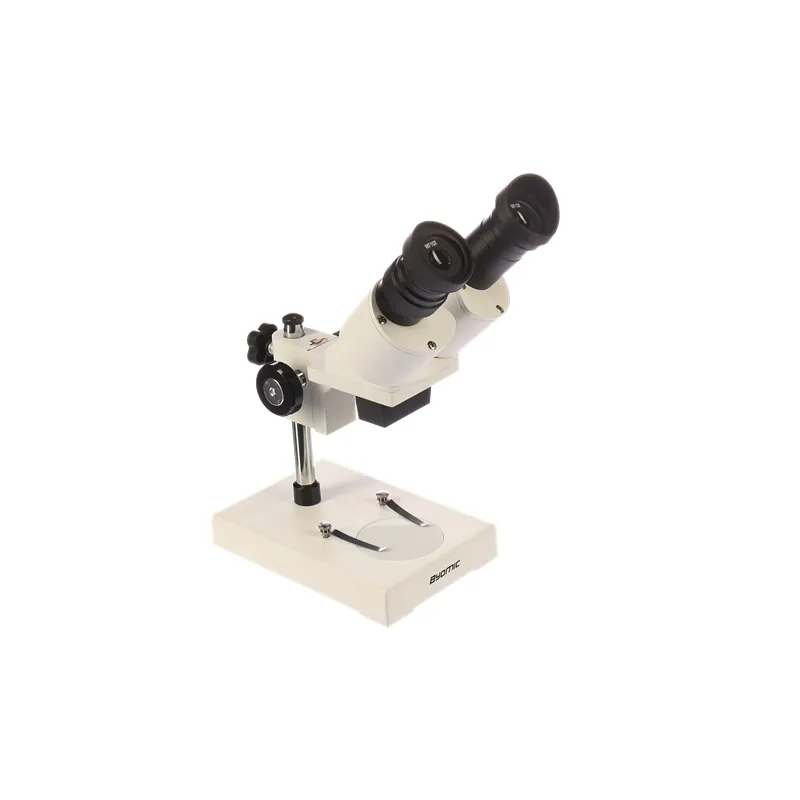

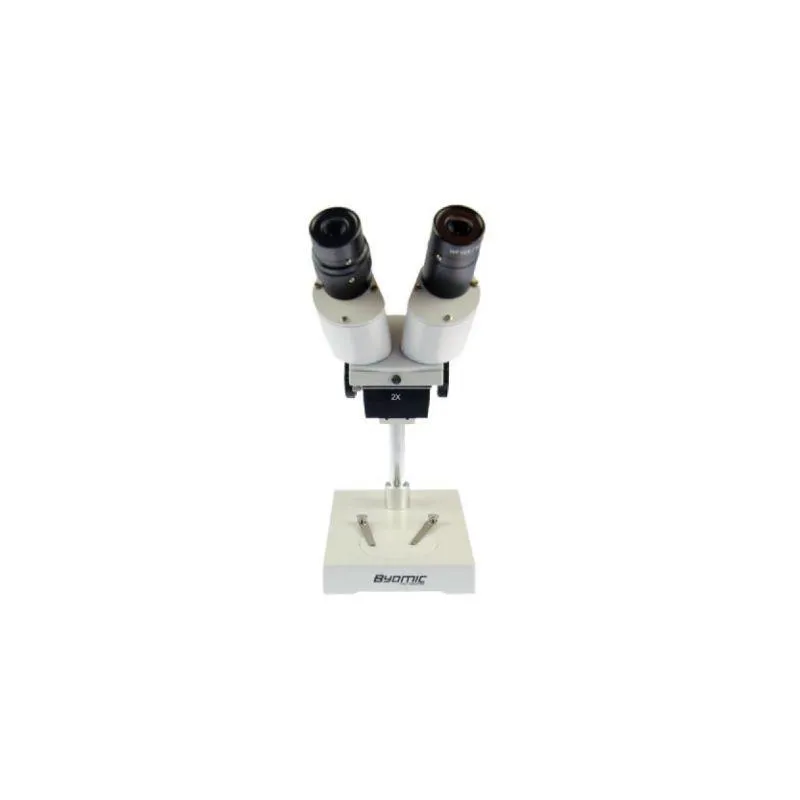

The Byomic Stereo Microscope BYO-ST2 is an easy to use microscope and suitable for beginners as well as for primary schools and the first classes of secondary education. This microscope has a fixed magnification of 2x. With the wide angle eyepieces of 10x a magnification of 20x is achieved.
Body

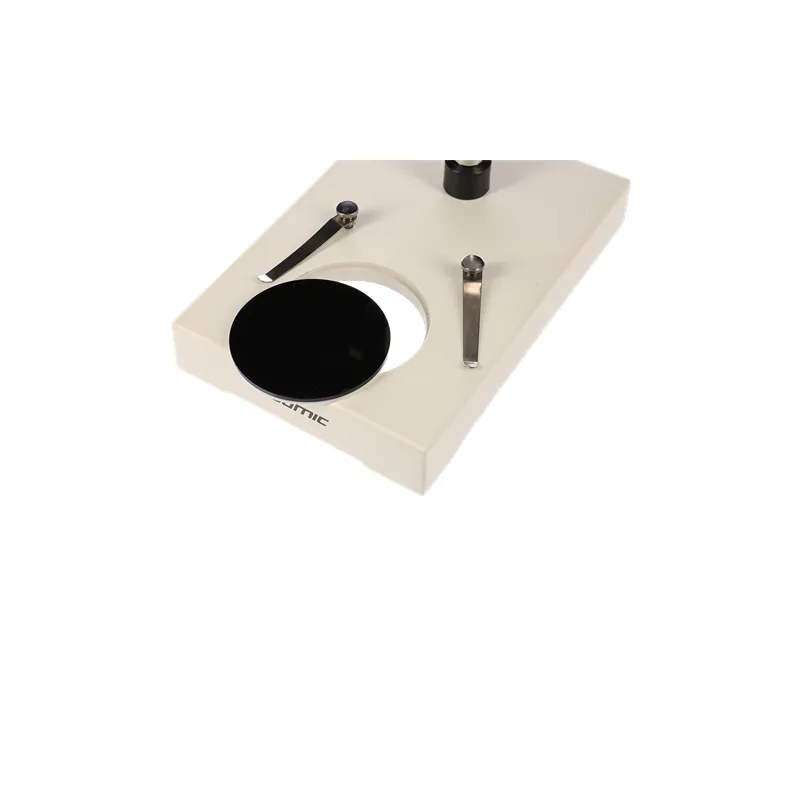

The BYO-ST2 has a sturdy metal body with an integrated table of 110 by 75 mm. It is equipped with two solid clamps to keep a specimen in position, so it does not shift during observation. In the table there is a contrast plate of Ø60mm. This contrast plate is white on one side and black on the other side.
Oculairs

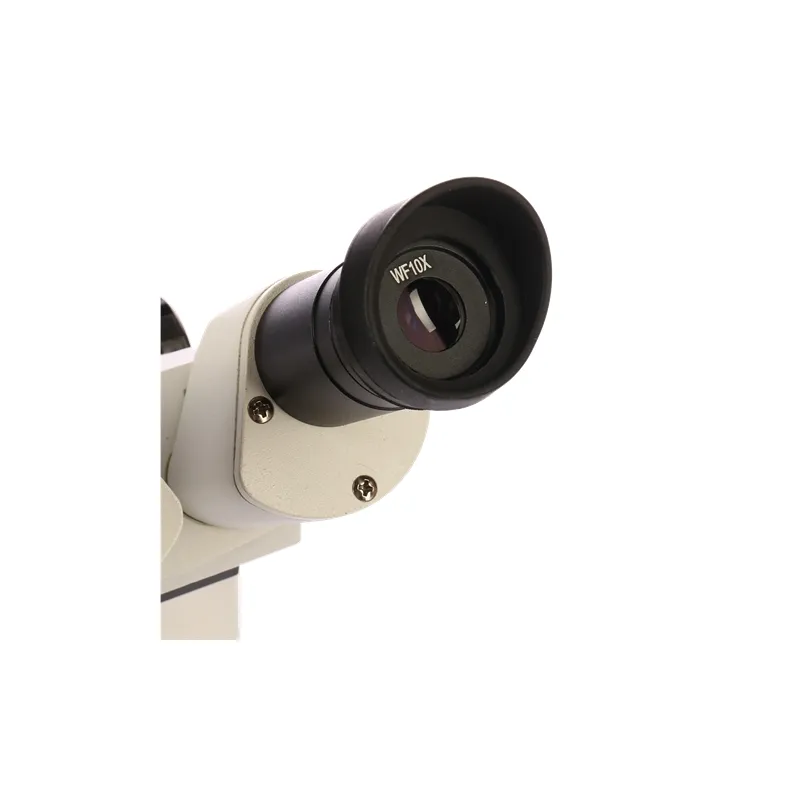

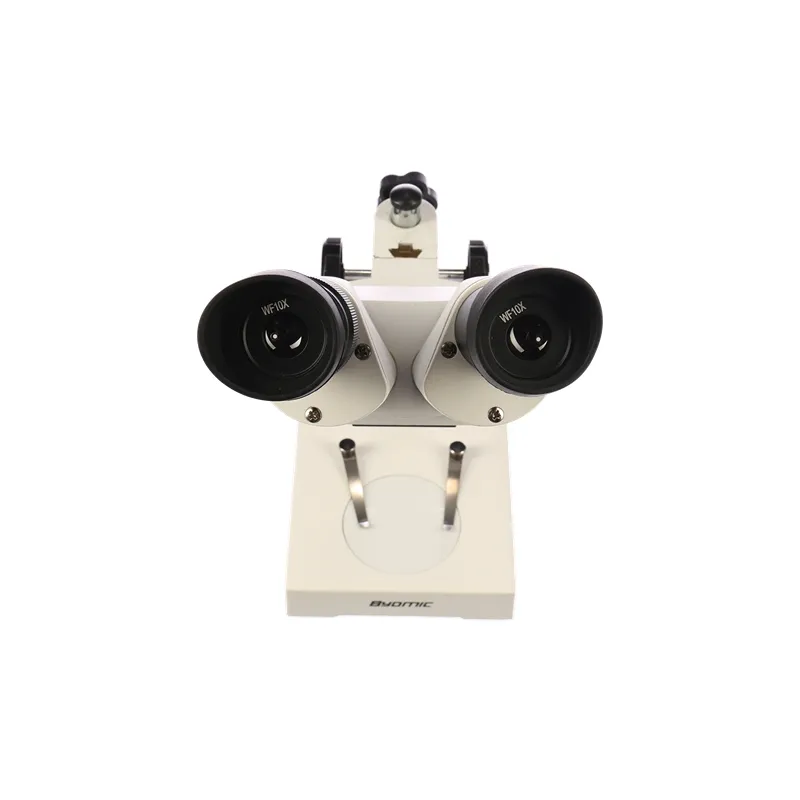

Because the Byomic BYO-ST2 is equipped with two wide-angle eyepieces, you have a large field of view and the depth of field is excellent. A 45° viewing angle allows you to look through the microscope in a natural position. The BYO-ST2 can be adjusted as desired, the eye distance is adjustable between 54 and 76 mm and there is a ring on the left ocular with which the dioptre can be adjusted. By adjusting the dioptre to your eye, the subject is brought into sharp focus.
Also included are premium eyecups which can be slid over the eyepieces. This way you will not be distracted from movements that you perceive around the eyepiece. By using these eyecups it is possible to fully focus on the subject and you can more easily maintain the correct distance to the lens.
Application Byomic Stereo Microscope BYO-ST2
The BYO-ST2 is suitable for viewing stamps and coins as well as observing plants, insects and other small animals. Also for observing minerals and gemstones or working with small electronics and/or soldering on a circuit board are no problem for this microscope.
With another set of eyepieces a different magnification can be achieved. This microscope uses eyepieces with a diameter of 23mm (see optional accessories).
The following table shows the magnifications that can be achieved with an optional eyepiece. Please note that you should order two eyepieces because this is a stereo microscope.
| 2x Objective | |
|---|---|
| standard Eyepiece | 20x |
| 264017 Eyepiece WF 20x | 40x |
| 264016 Eyepiece WF 16x | 32x |
| 264015 Eyepiece WF 15x | 30x |
