SKU: 18423
Model: 12267
Ean: 4580614170901
Būklė: Naujas produktas
Prieinamumo data: 10-05-2023
Pristatymas per 5 - 6 dienas
Įspėjimas: Paskutinės prekės sandėlyje!

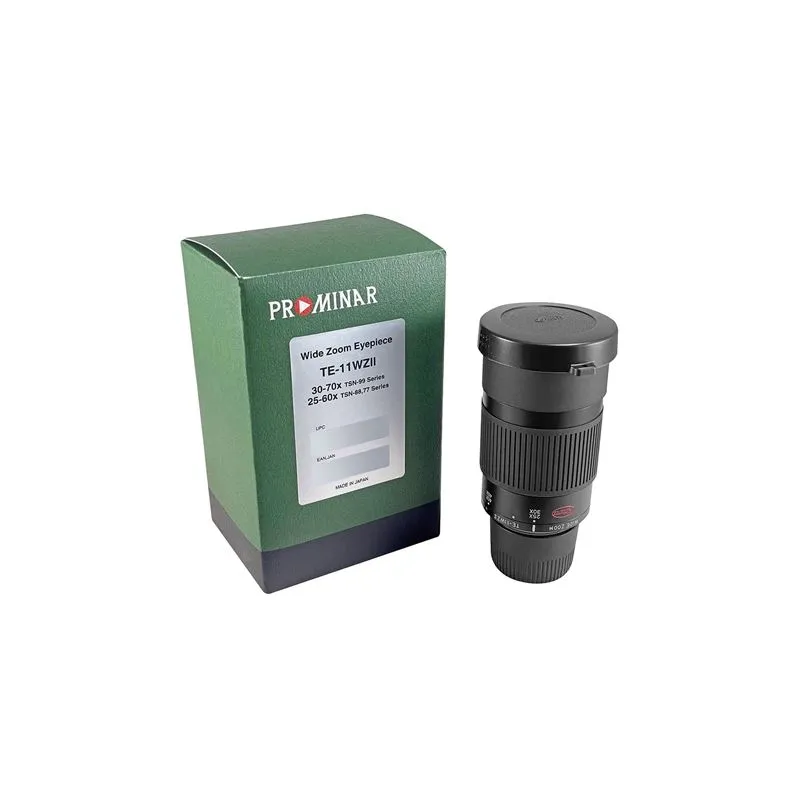

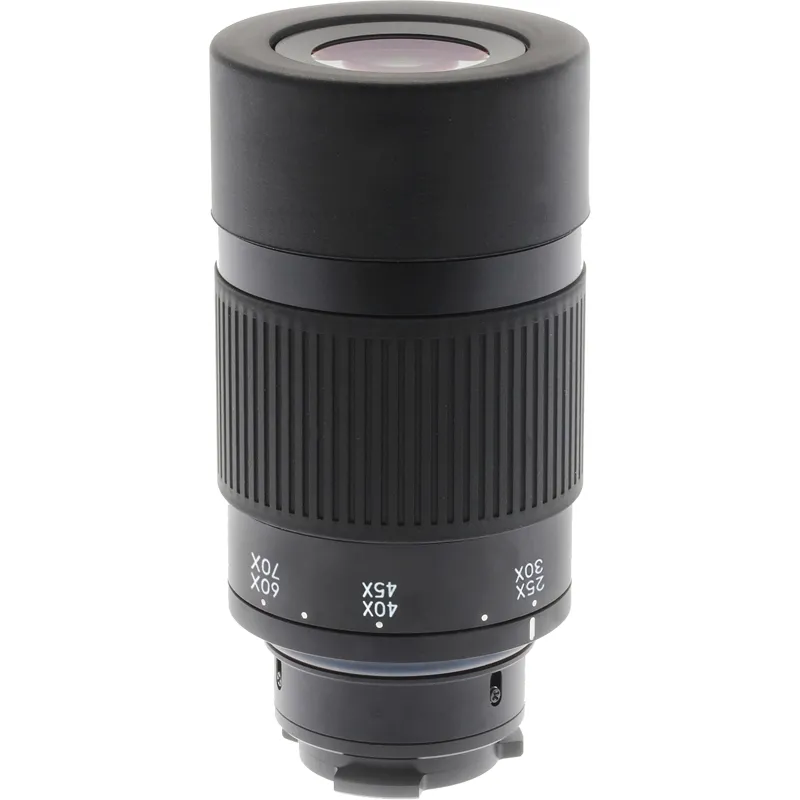

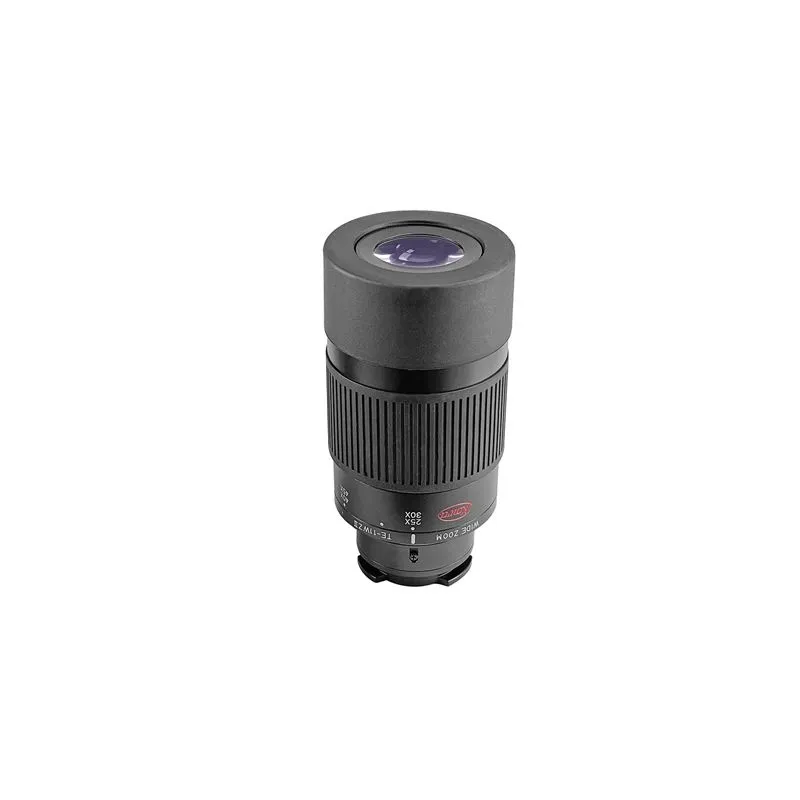

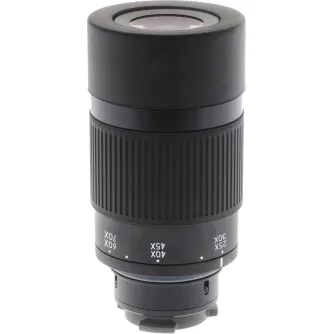

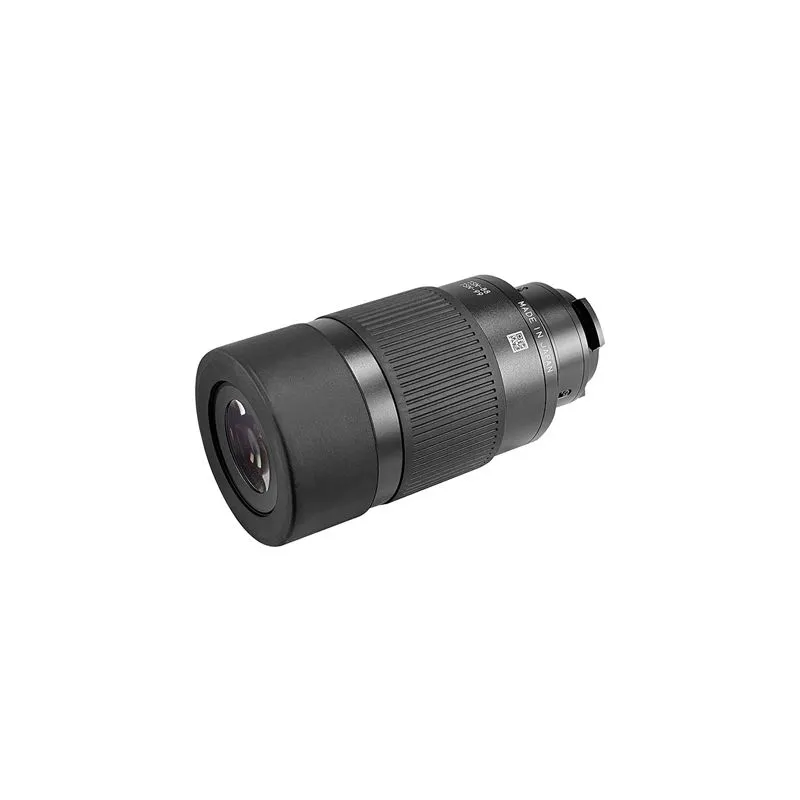

The Kowa Zoom Ocular TE-11WZ II 25-60x/30-70x has no less than two XD-lenses, which means that the images are displayed with excellent sharpness, even at the highest magnification. Chromatic aberration is also reduced to the absolute minimum.
In combination with a Kowa spotting scope from the TSN-99 series, a magnification of 30-70x can be achieved. In combination with a Kowa spotting scope from the TSN-880 or TSN-770 series, this is 25-60x
This eyepiece also fits the following historical spotting scopes of Kowa:
TSN-881/882, TSN-771/772 and
Telephoto lens (requires TP-88EC1 prism adapter)
Because the TE-11WZ II is equipped with a Twist-up eyepiece ring with three positions, the distance between your eye and the eyepiece can be adjusted. In this way, both spectacle and non-spectacle wearers have a pleasant viewing experience.
| TSN-99 serie | TSN-880 serie | TSN-770 serie | ||||
|---|---|---|---|---|---|---|
| Magnification | 30x | 70x | 25x | 60x | 28x | 60x |
| Eye Relief in mm | 17,0 | 17,0 | 17,0 | 17,0 | 17,0 | 17,0 |
| Exit pupil in mm | 3,3 | 1,4 | 3,5 | 1,3 | 3,1 | 1,3 |
| Brightness | 10,9 | 2,3 | 12,3 | 1,7 | 9,6 | 1,7 |
| Twilight Factor | 41,4 | 78,6 | 46,9 | 68,0 | 43,9 | 68,0 |
| Field of view in ° | 2,0 | 1,1 | 2,4 | 1,32 | 2,4 | 1,32 |
| Field of view / 1000m in m | 35,0 | 20,0 | 42,0 | 23,0 | 42,0 | 23,0 |
