KOWA EYEPIECE 25-60X 30-70X WIDE FOR TSN 770/880/99 SERIE 12267 TE-11WZ II

Kowa

SKU: 18423

Model: 12267

Ean: 4580614170901

Būklė: Naujas produktas

Pristatymas per 5 - 6 dienas

€ 715.45 su mokesčiais

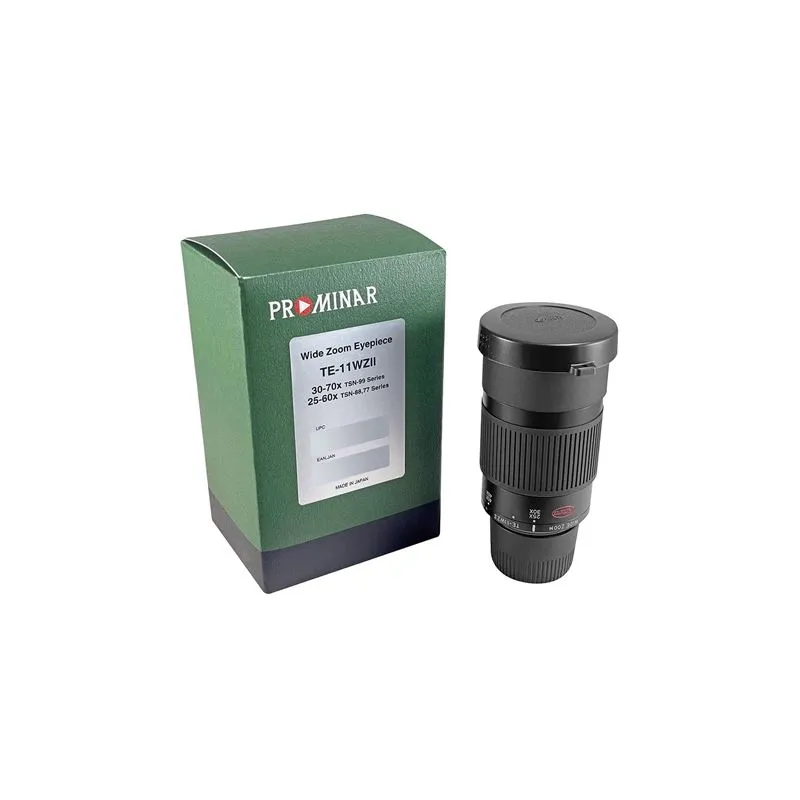

1x Kowa Zoom eyepiece TE-11WZ II 25-60x/30-70x;1x Leather pouch;1x Eyepiece cap;1x Protective cap

Daugiau detalių

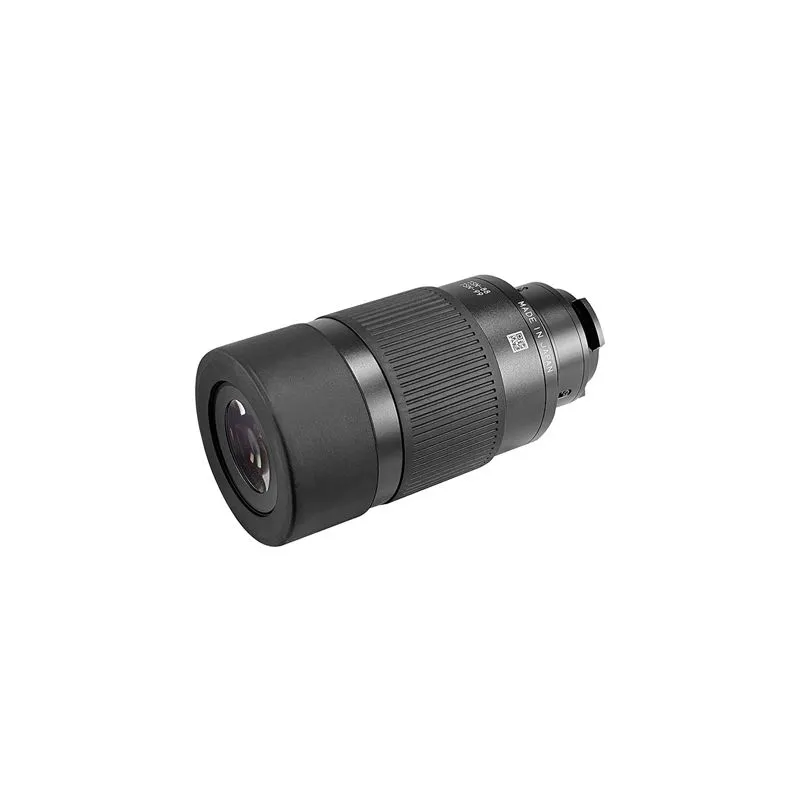

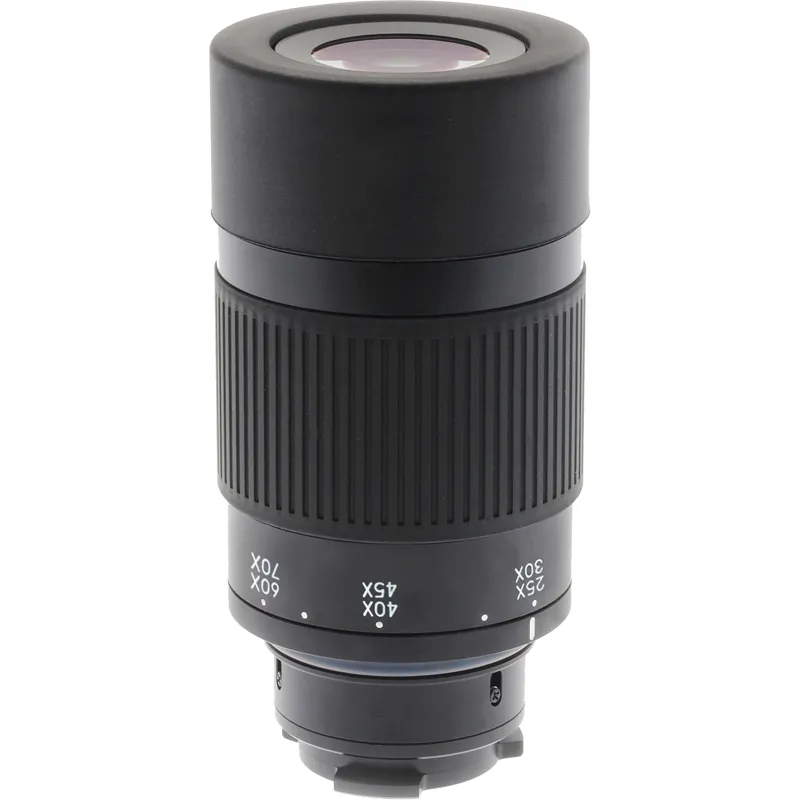

The Kowa Zoom Ocular TE-11WZ II 25-60x/30-70x has no less than two XD-lenses, which means that the images are displayed with excellent sharpness, even at the highest magnification. Chromatic aberration is also reduced to the absolute minimum.

In combination with a Kowa spotting scope from the TSN-99 series, a magnification of 30-70x can be achieved. In combination with a Kowa spotting scope from the TSN-880 or TSN-770 series, this is 25-60x

This eyepiece also fits the following historical spotting scopes of Kowa:

TSN-881/882, TSN-771/772 and
Telephoto lens (requires TP-88EC1 prism adapter)

Because the TE-11WZ II is equipped with a Twist-up eyepiece ring with three positions, the distance between your eye and the eyepiece can be adjusted. In this way, both spectacle and non-spectacle wearers have a pleasant viewing experience.

Main features Kowa Zoom Eyepiece TE-11WZ II 25-60x/30-70x:

  • 2 XD-Lenses
    This eyepiece is a novelty, as it contains no less than two XD lenses. As a result, the images are displayed with excellent sharpness, even at 70x magnification. Chromatic aberration is also reduced to an absolute minimum.
  • Twist Up eyepiece
    Suitable for both spectacle and non-spectacle wearers.
  • Waterproof
    The eyepiece is waterproof when mounted.
SPECIFICATIONS AT MAGNIFICATION WITH KOWA TE-11WZ EYEPIECE
 TSN-99 serieTSN-880 serieTSN-770 serie
Magnification30x70x25x60x28x60x
Eye Relief in mm17,017,017,017,017,017,0
Exit pupil in mm3,31,43,51,33,11,3
Brightness10,92,312,31,79,61,7
Twilight Factor41,478,646,968,043,968,0
Field of view in ° 2,01,1 2,41,322,41,32
Field of view / 1000m in m35,020,042,023,042,023,0
