Newell voltage converter with modified sine wave - 12 V / 230 V, 500 W

Description

The Newell voltage converter with modified sine wave – 12 V / 230 V, 500 W is the ideal choice for people who travel frequently or want to use their favourite devices wherever there is no access to traditional electrical sockets. It will make your universal power source a rechargeable battery or car cigarette lighter. The device is equipped with 1 traditional electrical socket (E standard) and 1 USB-A socket. You can easily connect devices such as heaters, laptops, smartphones, tablets, grinders and much more to the inverter. The maximum usable power of the inverter is 500 watts. In addition to the usual cables and a cable for the cigarette lighter socket, you will find convenient to use cables with clamps (clamps), which will make it even easier to connect the device to the batteries.

Main product features

• universal inverter (inverter / inverter) with 500 watts of power
• powers devices requiring 230 V AC voltage from batteries or vehicle installations
• converts the DC voltage from a 12-volt battery or cigarette lighter into ~230 W alternating current
• ideal choice for people who frequently travel by car, camper van or truck
• allows you to use an electrical outlet where the only power source is a battery or car cigarette lighter socket
• equipped with 1 electrical socket (E standard) and 1 USB-A port
• to the inverter you can easily connect, among others: heater, laptop power supply, mobile device charger, grinder and many other devices
• A type A USB port for convenient charging of popular electronic gadgets (smartphones, tablets, e-book readers, headphones, etc.)
• equipped with a number of safety features to ensure device protection and trouble-free operation
• protection against overvoltage, short-circuit, overheating and overcharging
• safety guaranteed by CE and RoHS certification
• intelligent cooling system that adjusts fan operation to the device temperature
• LED indicating correct operation
• 3 types of cable
• 3 types of cable included in the set (standard, crimped and for cigarette lighter socket)
• durable housing with compact dimensions

Compact dimensions

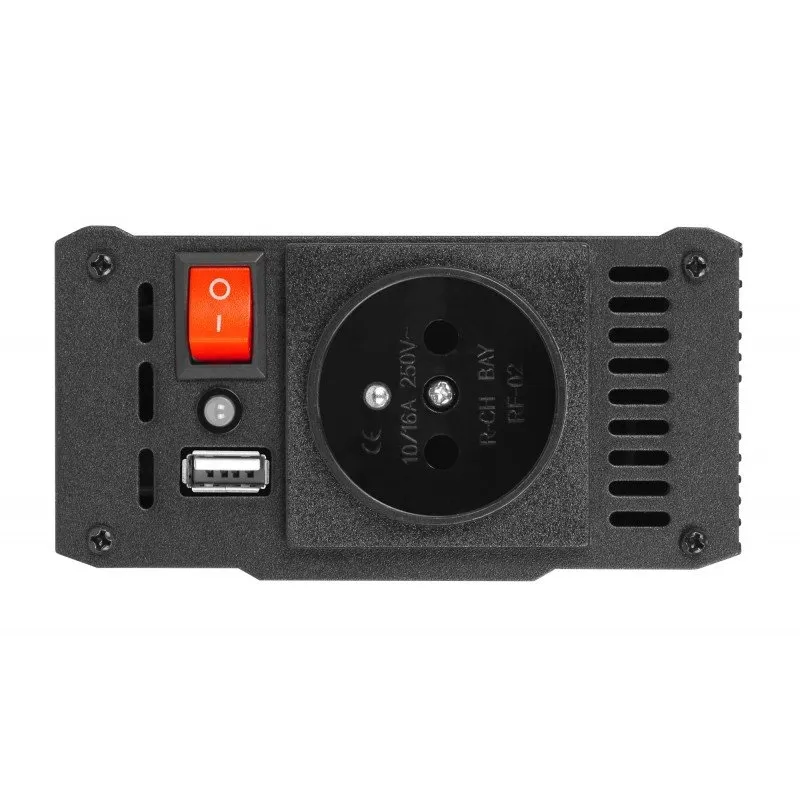

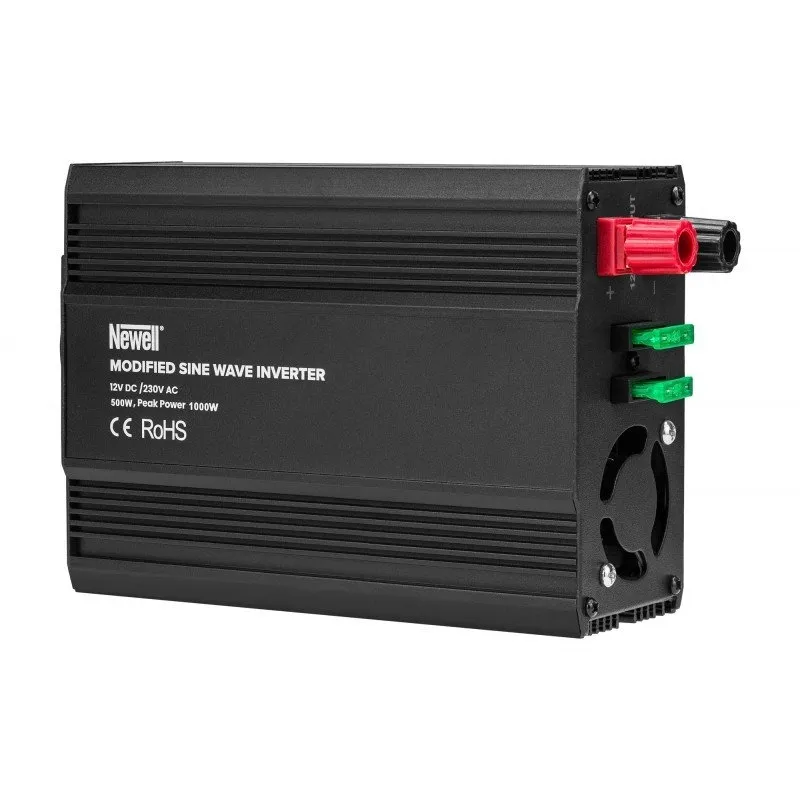

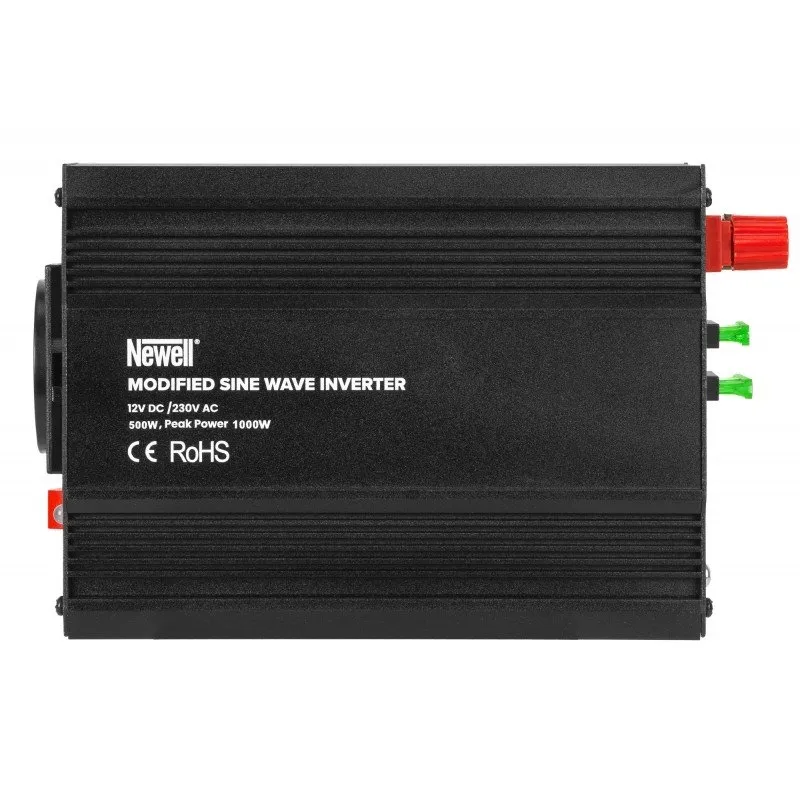

Who said inverters have to be big and bulky! The Newell voltage inverter with modified sine wave – 12 V / 230 V, 500 W is the best proof that also such devices can stand out with excellent ergonomics. The small and handy box offers convenient access to fuses, sockets and cable mounting points. Its casing does not lack a large on/off switch and an LED indicating the operating status.

Gain your independence!

The Newell voltage converter with modified sine wave – 12 V / 230 V, 500 W, which is also often referred to as an inverter or inverter, is a small device that allows you to convert the direct current from a battery or 12 V car lighter socket into the alternating current that you use at home electrical sockets. It will give you even more independence when travelling in your camper van, on long car trips or camping.

The ideal travel companion

Access to electrical outlets on the move can sometimes be problematic. A heater, kettle or laptop are devices that often cannot be plugged into a power bank or car lighter socket. This is when the Newell voltage inverter with modified sine wave – 12 V / 230 V, 500 W – comes to the rescue. You don’t need to buy new electronic devices to use them on the go. The inverter will make it possible to power equipment previously compatible only with traditional power sockets from your battery or cigarette lighter socket.

Modified sine wave

Modified sine wave inverters are characterised by their light weight, which will certainly be appreciated by those who want lightweight luggage when travelling. Their simple design also makes inverters much less prone to failure, compared to devices offering pure sine wave. The technology used also contributes to a very good price/quality ratio.

500 watts of power

The Newell voltage inverter with modified sine wave – 12 V / 230 V, 500 W offers a maximum of 500 W of usable power and is compatible with 12 V batteries. It is worth remembering that the power consumed by the device connected to the inverter should not exceed 88% of the rated power (in this case 500 W). Before purchasing your chosen inverter model, make sure that its parameters will suit your needs.

NEWELL INVERTERS WITH MODIFIED SINUSOID WITH 300 W AND 1000 W POWER SINUSOID ARE ALSO AVAILABLE

Protection and safety

The Newell voltage inverter with modified sine wave – 12 V / 230 V, 500 W uses a state-of-the-art protection system responsible for protecting the device and the electronic equipment connected to it. It regulates the power supply process while ensuring optimum performance. This guarantees reliability and durability, as well as adequate protection against overvoltage, short-circuit, overheating and overcharging.

Optimal operating temperature

For the ultimate in user comfort and optimum safety, the Newell inverter is equipped with an automatic cooling system. The fans adjust themselves to the temperature of the device, ensuring optimal operating conditions. This ensures adequate protection for the equipment, but also very quiet operation.

Modified sine wave or pure sine wave?

Newell’s modified sine wave voltage converter – 12 V / 230 V, 500 W generates a voltage waveform similar to a sine wave. You can easily connect less demanding devices to it (e.g. a laptop or smartphone charger, heater or electric kettle). This inverter will also work well with power tools (e.g. angle grinders or drills) equipped with commutator motors. If you are looking for a way to power appliances with induction motors (e.g. water pumps, fridges, air conditioners), compressors, LED light bulbs or Hi-Fi equipment, we recommend purchasing an inverter with true (pure) sine wave. This generates an almost identical waveform to that of the domestic 230 V network and gives you the assurance that the equipment you are replacing will work properly.

Memorise that the usable power of the inverter is appropriately matched to the appliances you plan to connect to it. .

3 cable sets included

The Newell brand has decided to meet the diverse needs of inverter users. In addition to the traditional cables to connect your Newell voltage inverter to your battery and a cable compatible with your car’s cigarette lighter socket, you will find something else in the kit. Cables with clamps (commonly known as clamps) offer even more freedom to connect the inverter to electrical devices!

Specification

• model: Newell voltage inverter with modified sine wave – 12 V / 230 V, 500 W
• remaining input voltage: 220 / 230 / 240 V AC
• usable power (constant): 500 W
• instantaneous power (pulsed): 1000 W
• output frequency: 50 / 60 Hz
• operating efficiency: 88% (at 100% load)
• nominal input voltage: 12 V DC
• range of rated input voltage: 10.0 ~ 15.5 V DC
• cooling: cooling fans
• operating temperature range: -10ºC – 40ºC
• operating humidity range: 20% ~ 90% RH
• dimensions: 23 x 14.5 x 6 cm
• weight: 970 g

Kit contents

• Newell voltage converter with modified sine wave – 12 V / 230 V, 500 W
• car cigarette lighter cable
• battery cables with clamps
• spare fuses
