Lilliput UQ23

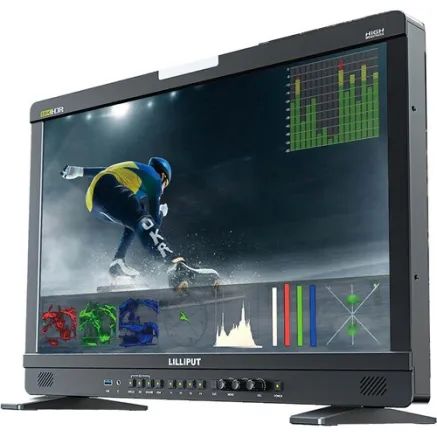

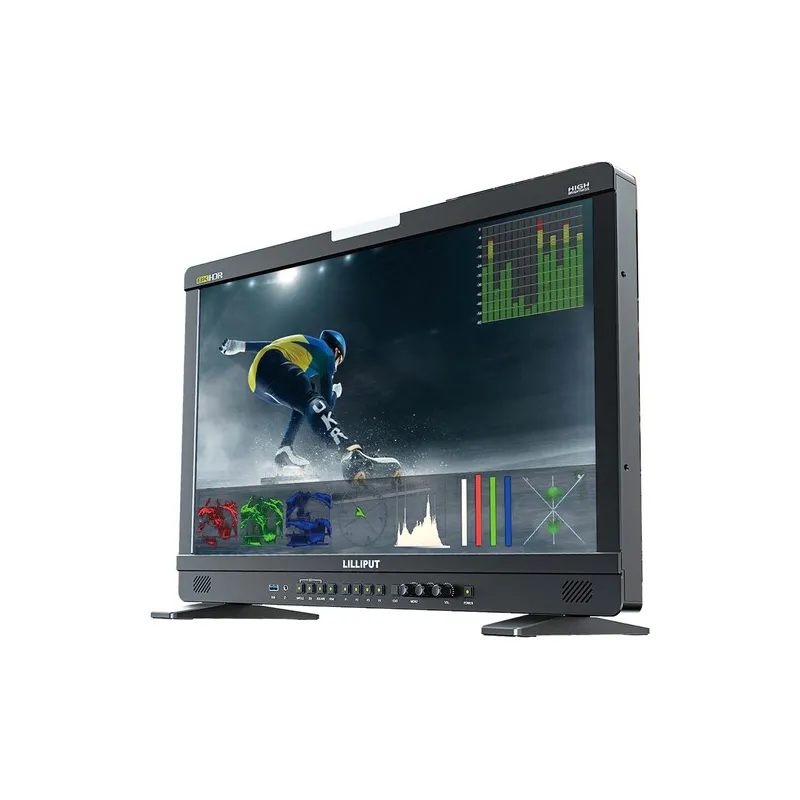

The Lilliput UQ23 is a portable 4K production monitor with a 23.8-inch diagonal, 1200 nits high brightness and 10-bit color depth.

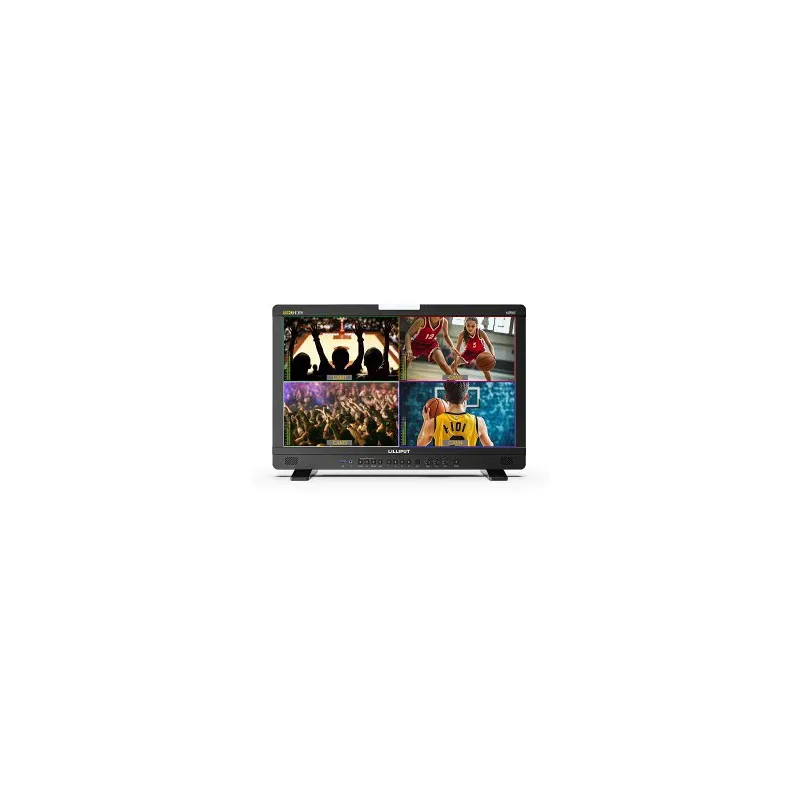

The monitor'senhanced user interface consists of a three-level menu and F1-F4 buttons and knobs whose functions can be customized. The Lilliput UQ23 can be controlled remotely via the app. The Quad-Split multiview function allows simultaneous viewing of multiple sources.
Good sunlight readability
The 1200 nits brightness screen not only provides the director with accurate colors even in outdoor use, but also, in combination with the HDR algorithm, delivers exceptional image quality that plays an important role in post-production. HDR supports both HLG and PQ (ST2084 300/1000/10000).
A+ accurate colour rendering
The A+ quality screen with 1.07 billion colour depth ensures faithful colour reproduction.
8K 12G-SDI, HDMI video signal
4x12G-SDI (Single- and Quad-link) offers support for ST2082-10 and ST2082-12. 12G-SDI quad-link generates video signal up to 4K 60Hz. The monitor also offers 12G SFP+ support and HDMI 2.1 input and loop output.
Key Features:
- 23.8" display, 3840×1200, 1200 nits brightness
- 4K screen, 10-bit color depth and 100% DCI-P3 coverage
- 4×12G-SDI and HDMI 2.1 inputs and loop outputs
- Enhanced user interface and new features
- Quad-split display and remote control
| Type of Product | LCD Monitor |
| LCD monitors | monitors |
| Connector | HDMI |
| Connector | SDI |
The Lilliput UQ23 is a portable 4K production monitor with a 23.8-inch diagonal, 1200 nits high brightness and 10-bit color depth.
The monitor'senhanced user interface consists of a three-level menu and F1-F4 buttons and knobs whose functions can be customized. The Lilliput UQ23 can be controlled remotely via the app. The Quad-Split multiview function allows simultaneous viewing of multiple sources.
Good sunlight readability
The 1200 nits brightness screen not only provides the director with accurate colors even in outdoor use, but also, in combination with the HDR algorithm, delivers exceptional image quality that plays an important role in post-production. HDR supports both HLG and PQ (ST2084 300/1000/10000).
A+ accurate colour rendering
The A+ quality screen with 1.07 billion colour depth ensures faithful colour reproduction.
8K 12G-SDI, HDMI video signal
4x12G-SDI (Single- and Quad-link) offers support for ST2082-10 and ST2082-12. 12G-SDI quad-link generates video signal up to 4K 60Hz. The monitor also offers 12G SFP+ support and HDMI 2.1 input and loop output.
Key Features:
- 23.8" display, 3840×1200, 1200 nits brightness
- 4K screen, 10-bit color depth and 100% DCI-P3 coverage
- 4×12G-SDI and HDMI 2.1 inputs and loop outputs
- Enhanced user interface and new features
- Quad-split display and remote control
