Ikan Saga 7 High Bright Monitor Deluxe Kit for Canon E6 Series (S7H-DK-E6)

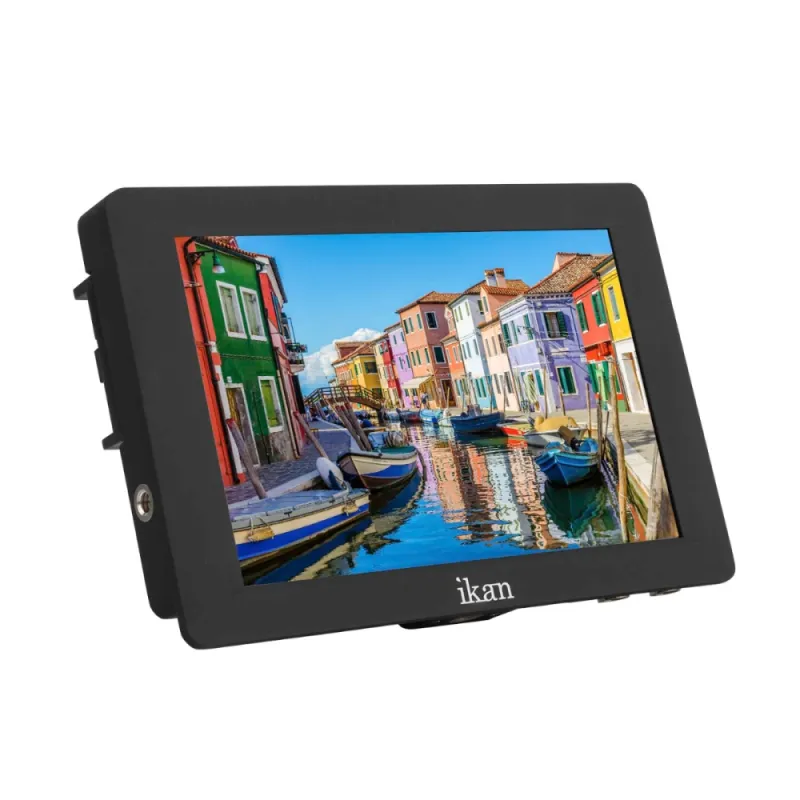

The Ikan Saga line of on-camera LCD monitors are high resolution and extremely portable. The Saga S7H is a 7 high bright monitor with both HDMI and 3G-SDI inputs and outputs (loop-through). This versatile and affordable monitor is designed for the run and gun shooter. The S7H differentiates itself from other high bright monitors by being slim, lightweight, and affordable.

High Brightness
The S7H is equipped with a high resolution color accurate LCD panel. At 700 NITS of brightness, this makes it an ideal outdoor field or on-camera monitor.

4K Signal Capability
The monitor supports both UltraHD (3840×2160), as well as DCI 4K (4096×2160) via the HDMI ports. With 1:1 pixel mapping and peaking, everything will stay in sharp focus.

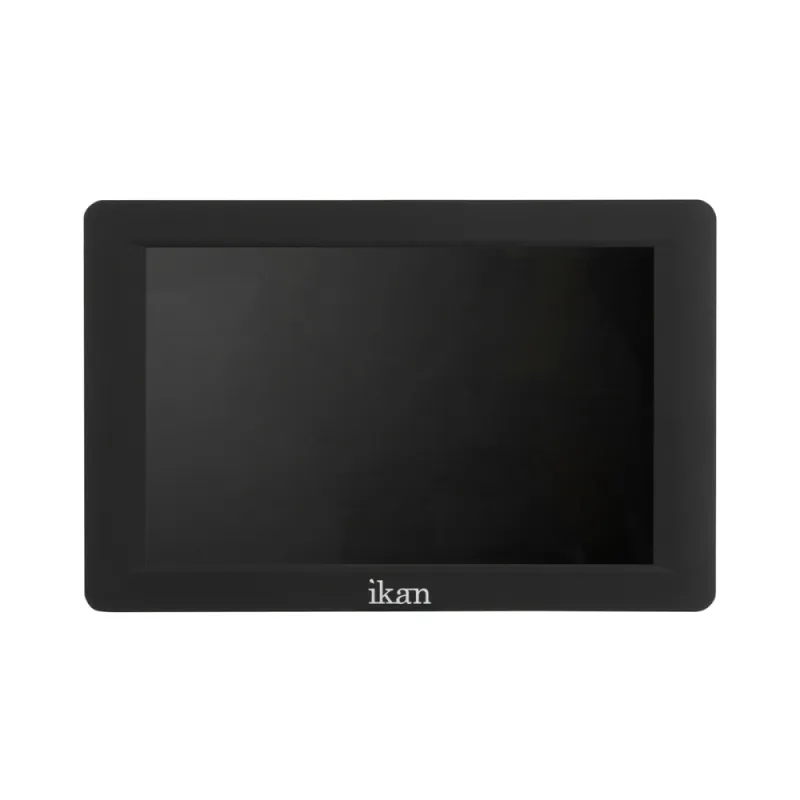

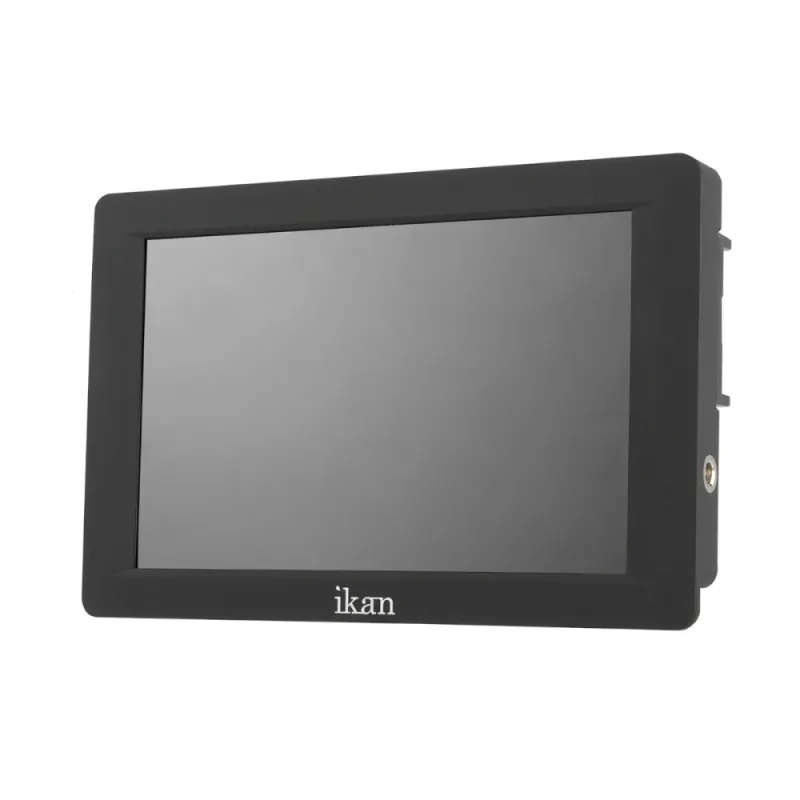

1920×1200 IPS Panel
The monitors 1920×1200 resolution delivers a sharp picture and the IPS technology gives you great viewing angles and accurate colors.

Inputs & Outputs
The versatile S7H is compatible with all cameras and also equipped with both HDMI and 3G-SDI inputs and outputs. In addition, the monitor has a 3.5mm headphone output so you can easily monitor your audio.

Battery Power

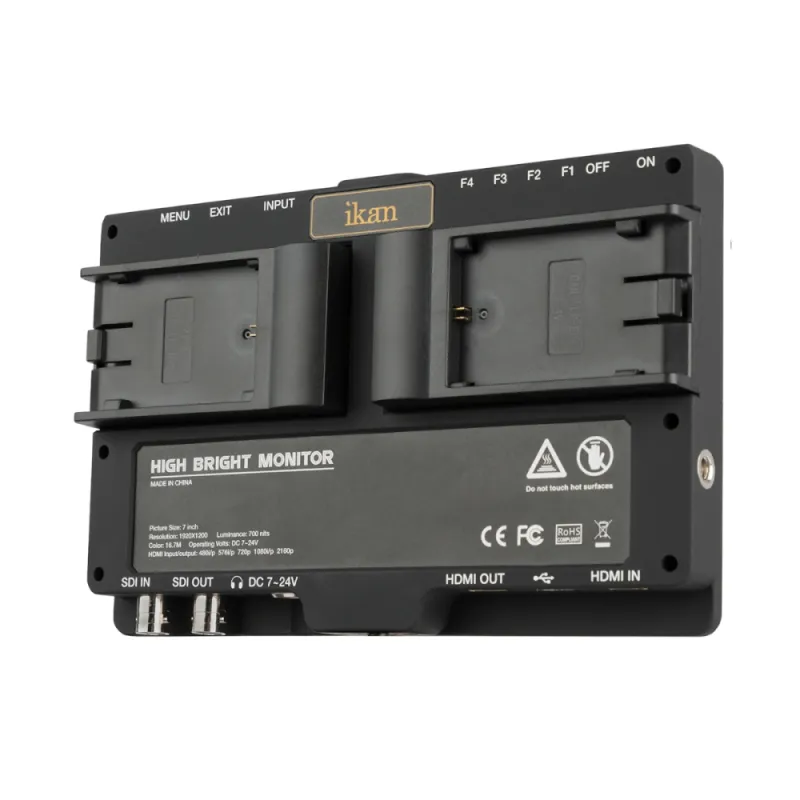

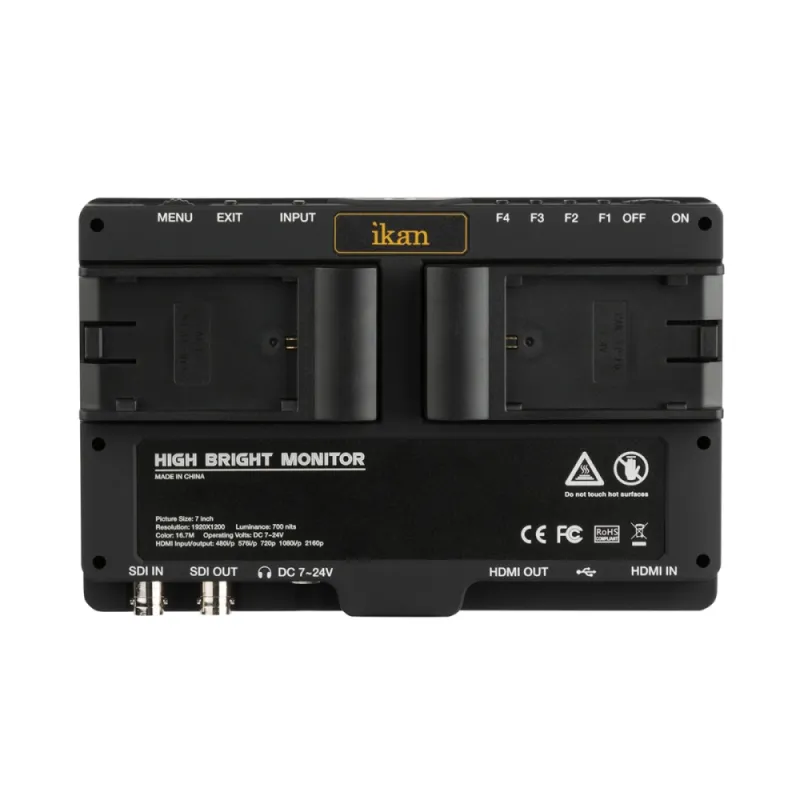

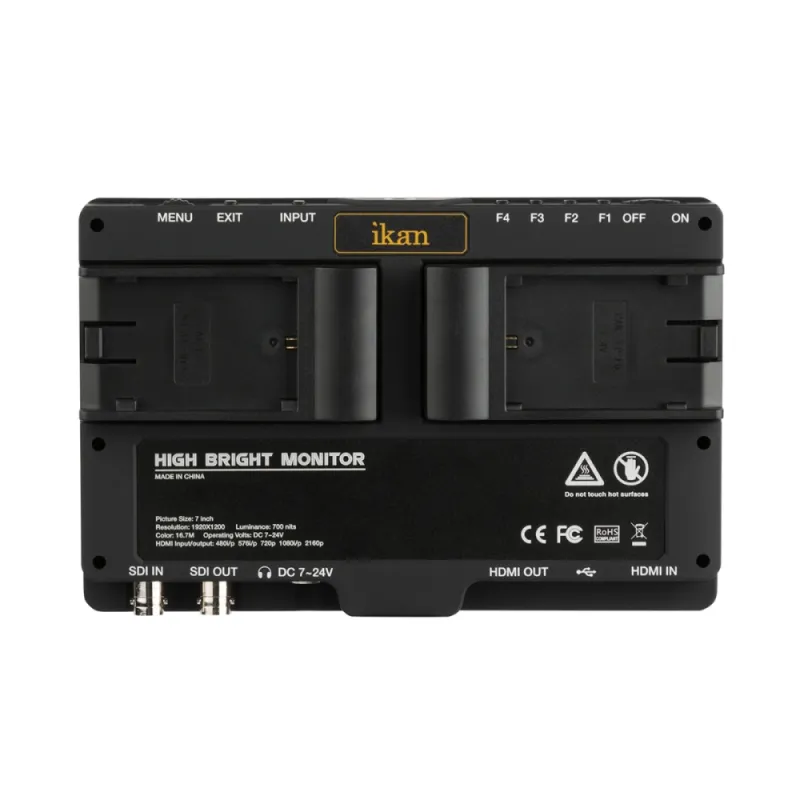

The S7H includes dual Canon E6 battery plates. With the ability to use two batteries at a time, the monitor can extend its run time. Designed to usw our BP5 style battery plates, the S7H is campatible with most battery styles with optional battery plates.

Peaking
Ikan monitors are equipped with Monochrome Peaking features which highlight the desired focus area in a bright, red outline. The operator adjusts the focus control until the red indicator outlines on the desired area are razor sharp, indicating optimal focus. For the best results, be sure the subject is properly exposed.

Movable Pixel to Pixel
The 1:1 pixel-to-pixel mapping allows the video professional to emphasize on individual chosen elements in the shot. This feature is essential for capturing optimum detail.

DSLR Scaling
The DSLR Scaling function enables users to extend their DSLR camera’s HDMI video output to any option of four: Normal, 3:2, 16:9 or Full Screen – convenience made simple.

Underscan
Underscan constrains the size of your image so the monitor shows everything the camera is seeing.

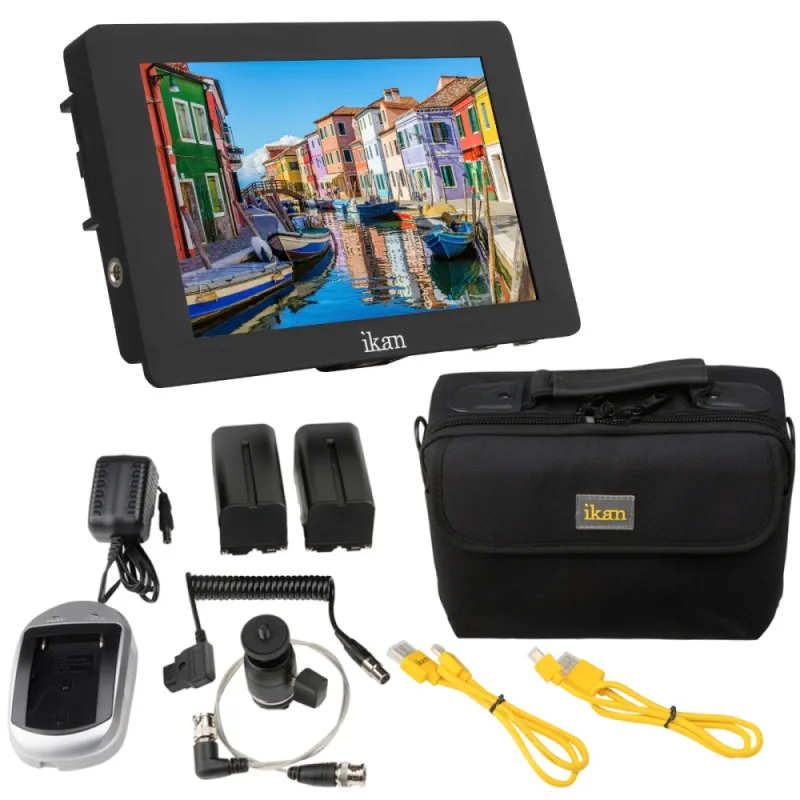

Delivery Contents:
1 X DV Battery Charger
1 X P-TAP To Mini-XLR Cable (36 In.)
1 X S7H Monitor
1 X Shoe Mount
1 X Slim 1.5 Ft HDMI Cable (Micro To Standard)
1 X Slim 1.5 Ft HDMI Cable (Mini To Standard)
1 X Soft Carry Case
2 X Battery Plate (BP5-E6)
2 X DV Battery
1 X Ultra Slim SDI Cable w/ Right Angle Connector (1.5 ft) (SDI-SLM-18)

Specifications
