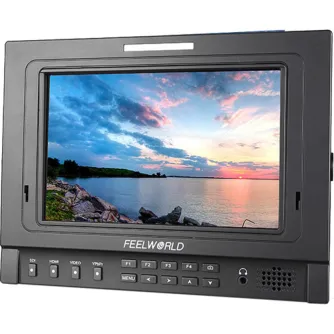

Feelworld 7" IPS 1280x800 3G-SDI Field Monitor (FW-1D/S/O)

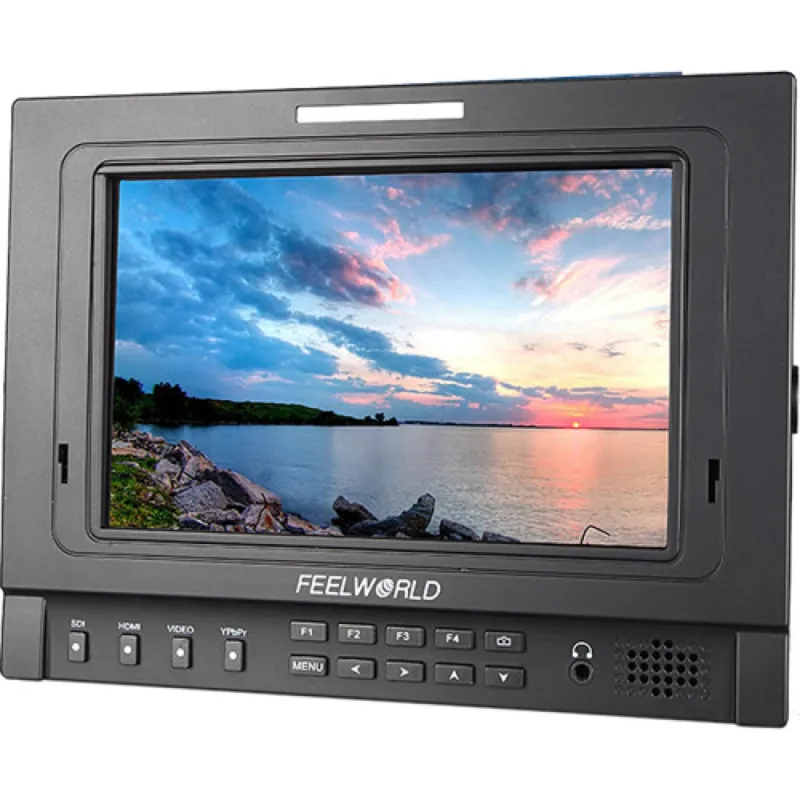

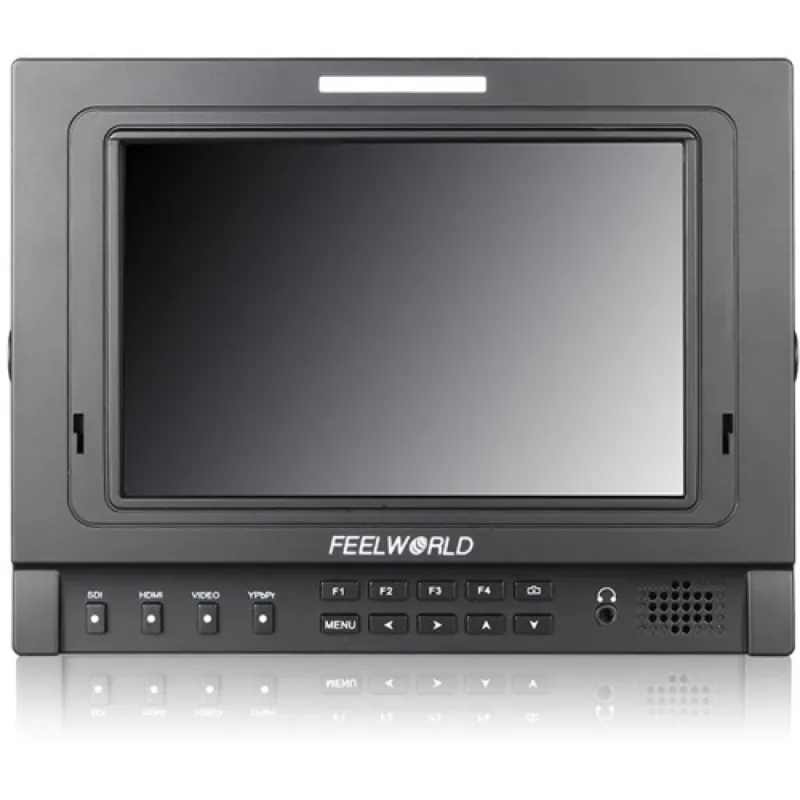

This Monitor has a vivid image reproduction and wide viewing angles. The 1280x800 LCD panel supports the display of 1080p, 720p and SD resolutions for high-definition and legacy workflows.
Various image assessment tools are built into the monitor, including zebra, peaking, magnification, Check Field and Pixel-to-Pixel Mapping

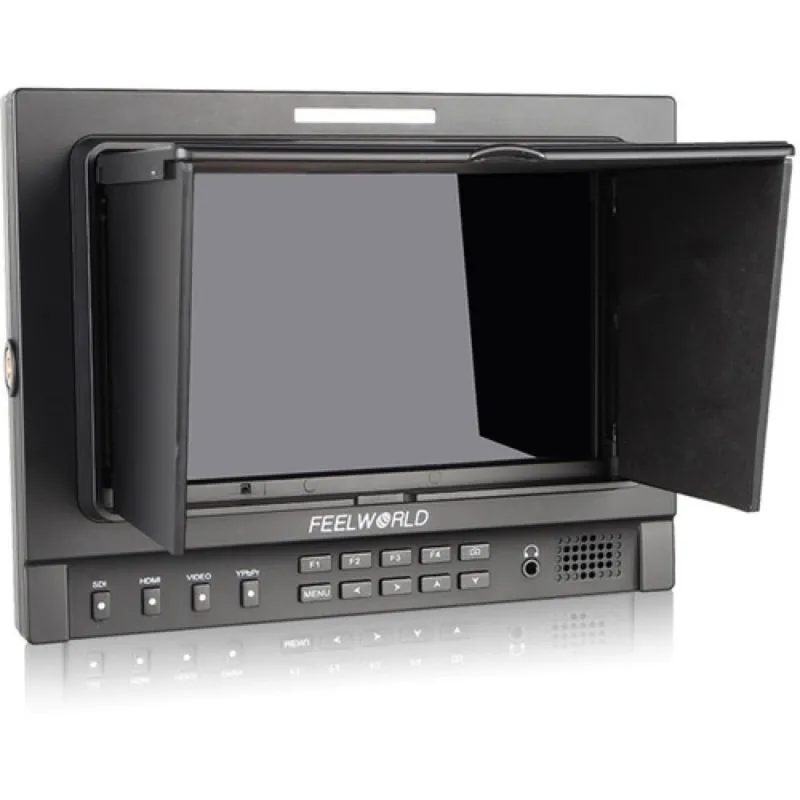

Advantages of the IPS panel employed in this monitor include wider viewing angles,  a more vibrant color representation and a bright 400cd/m² output. A collapsible hood is included for blocking screen glare resulting from bright light sources.

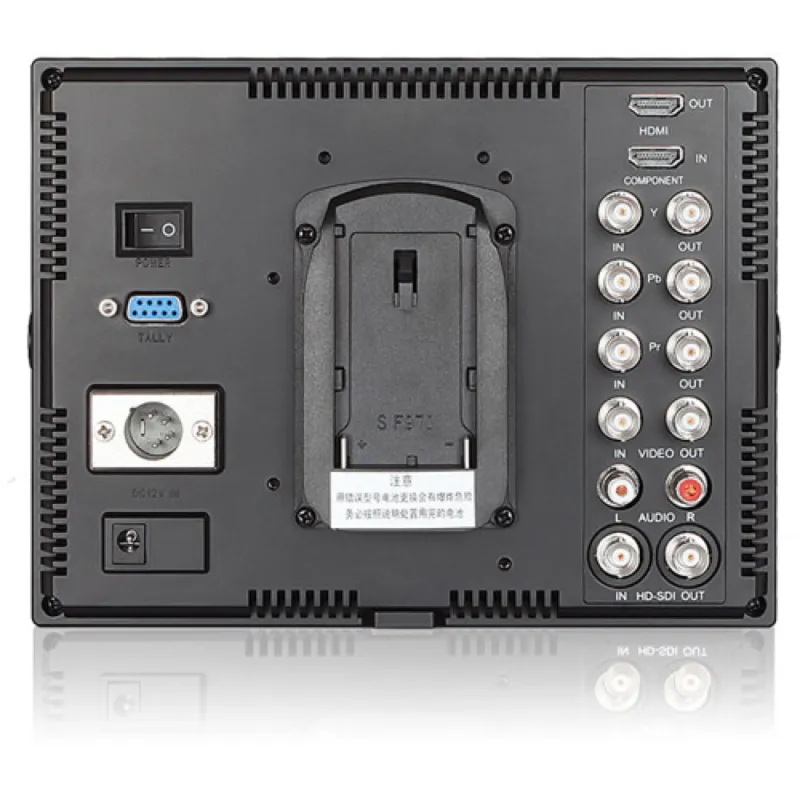

A wide selection of video I/O on the rear is available. Digital SDI and HDMI inputs and outputs are complemented by component and composite analog inputs and outputs. Audio input into the monitor can be monitored via on-board speaker or with the 3.5mm headphone jack. On the outside surface of the monitor, four 1/4"-20 threads can be used for mounting the display on a rig or a stand.

Characteristics

  • Resolution: 1280 x 800 pixels
  • Dot Pitch: 0.117 mm²
  • Aspect Ratio: 16:9
  • Brightness: 400 cd/m²
  • Contrast: 800:1
  • Viewing Angle: 178°
  • Backlight: LED
  • SDI: 1080p 23.98/24/25/29.97/30/50/59.94/60 1080PsF 23.98/24 720p 23.98/24/25/29.97/30/50/59.94/60, NTSC, PAL
  • HDMI: 1080p 23.98/24/25/29.97/30/50/59.94/60 1080PsF 23.98/24 720p 23.98/24/25/29.97/30/50/59.94/60, NTSC, PAL
  • Input: 1 x 3G/HD/SD-SDI, 1 x HDMI, 1 x YPbPr, 1 x Video, 1 x Audio(L/R)
  • Output: 1 x 3G/HD/SD-SDI, 1 x HDMI, 1 x YPbPr, 1 x Video
  • Audio: 1 x Speaker output, 1 x Headphone output
  • Input Voltage: 6 to 18 VDC
  • Power Consumption: Maximum: 12 W
  • Environmental Operating Temperature: 14 to 131°F / -10 to 55°C
  • Storage Temperature: -4 to 149°F / -20 to 65°C
  • Threads: 4 x 1/4"-20

In the box

  • HDMI to Mini HDMI Cable
  • Sun Shade
  • Shoe Mount
  • L-Series Battery Plate
  • Tally Adapter Kit
