Viltrox DC-X2 6-inch Touchscreen HD Monitor DC X2

Precision and Clarity for the Modern Filmmaker

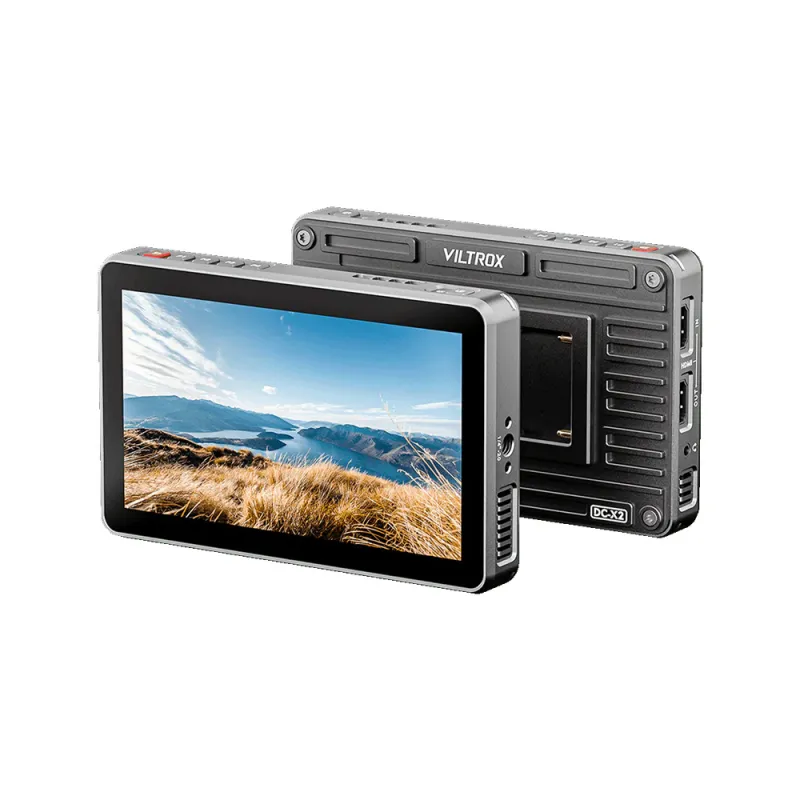

The Viltrox DC X2 6 inch Touchscreen HD Monitor is a lightweight 6 inch touchscreen HD monitor that supports images in DCI/UHD 4K30 via HDMI. With a brightness of 2000cd/m, the screen is highly visible both indoors and outdoors. The device has useful image tools such as histogram and waveform.

Highlights

• Compact 6 inch on-camera monitor
• 1920 x 1080 touchscreen display
• 2000cd/m brightness and 3D LUTs

Flexible Connections and Audio

With a 1920 x 1080 resolution, the monitor shows live images from your camera. Audio can be monitored via the built-in speaker or the 3.5 mm headphone jack. Firmware updates and 3D LUT files are easily added via the SD card slot or USB port.

Easy to Mount and Power

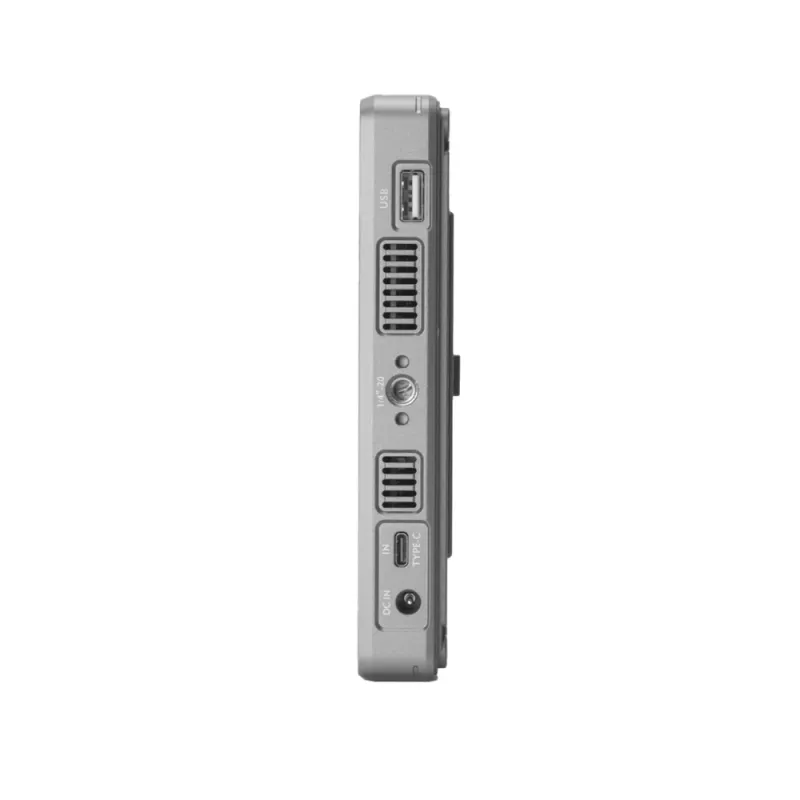

The DC X2 runs on an L series battery or via a DC cylinder or USB C adapter. Mounting is easy with the included shoe adapter. The lens hood protects against glare in bright light.

Specifications

• Screen: 6 inch IPS touchscreen
• Resolution: 1920 x 1080
• Aspect Ratio: 16:9
• Screen Contrast Ratio: 1000:1
• Refresh Rate: 60Hz
• Viewing Angle: 160
• Pixel Density: 360 PPI
• Screen Color Range: 100% sRGB/Rec.709
• Color Depth: 8 bit
• Input Interface: HDMI
• Output Interface: HDMI
• Power Interface: DC 12-18V/2A, Type C 9V/3A
• USB Interface: Supports USB interface upgrade, 3D LUT file import
• Dimensions: 155.4 x 98.4 x 26.8 mm
• Weight: 324.5g
• Audio Output: 3.5mm headphone jack
• Battery: Li battery NP-F550/F570/F750/F770/F960/F970
• Storage Temperature: 0-75C
• Warranty: 2 years

Included Accessories

• 1 x DC X2 monitor
• 1 x Hard shell carrying case
• 1 x Adapted ball head
• 1 x NP-F550 battery
• 1 x Quick release lens hood
• 1 x Customized screen protector
• 1 x HDMI cable
• 1 x Mini HDMI cable
• 1 x USB C power cable
• 1 x User guide
