Feelworld T51 PLUS-H
The Feelworld T51 PLUS-H is a triple 5.5" Full HD rackmount monitor designed for professional broadcast and video production, featuring HDMI & Composite BNC I/O, RCA audio, headphone outputs, 3-color tally lights, and advanced video assist tools including waveform, vectorscope, histogram, focus assist, and 3D-LUT support.

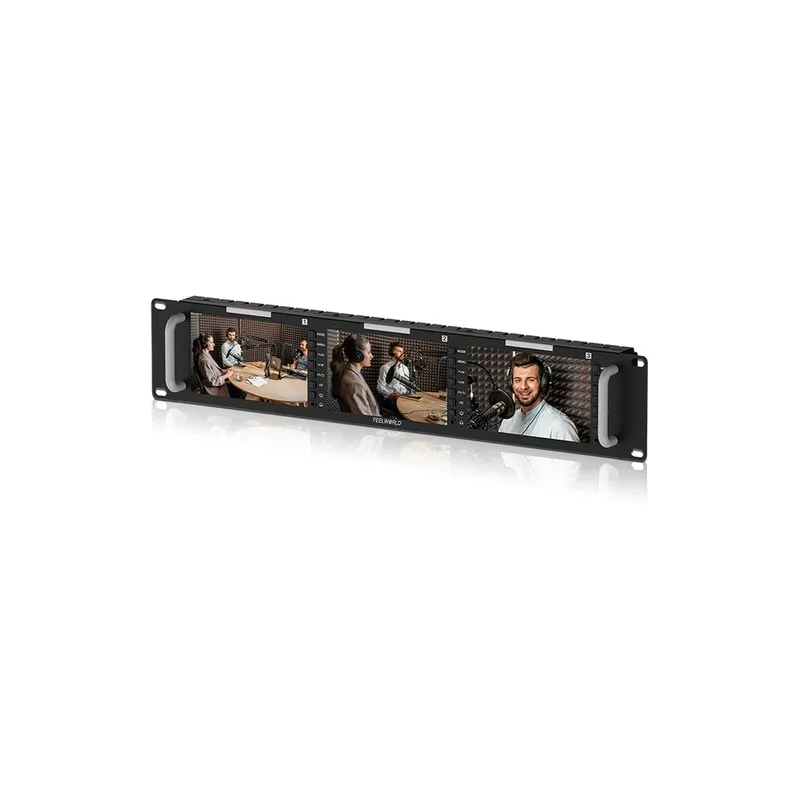

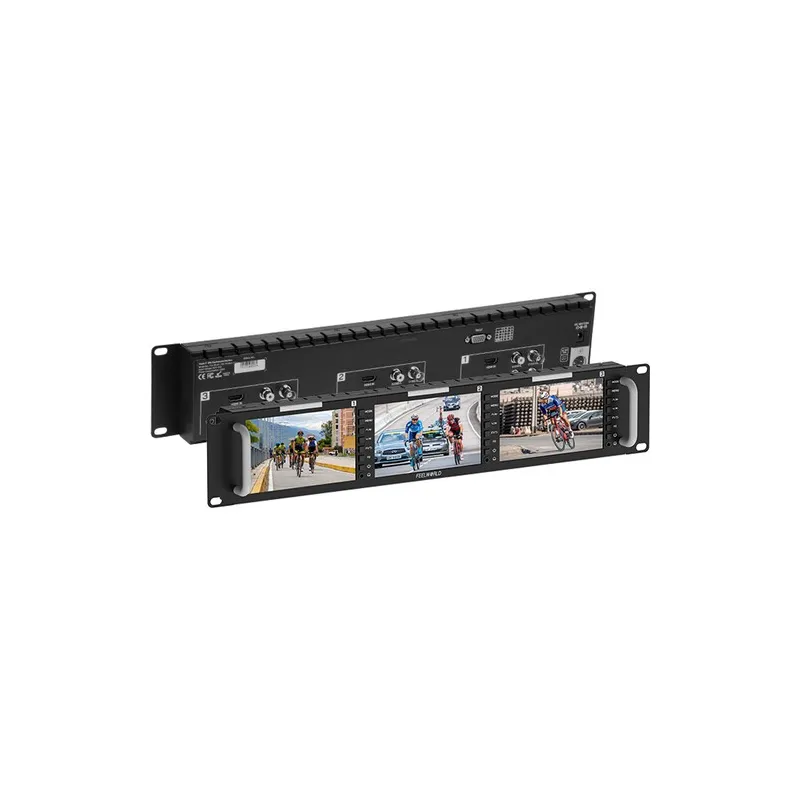

The Feelworld T51 PLUS-H offers three 5.5" 1920 x 1080 Full HD IPS displays in a slim 2 RU rackmount chassis, providing a compact yet powerful monitoring solution for multi-camera setups. Each display features 400 cd/m² brightness, 1000:1 contrast, and 170° viewing angles for clear and accurate viewing.

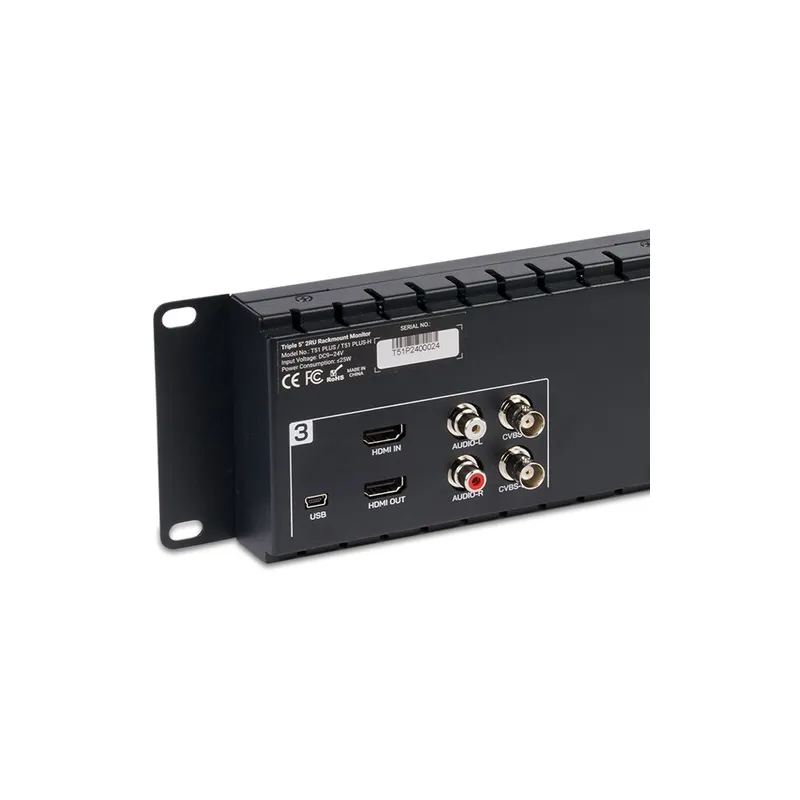

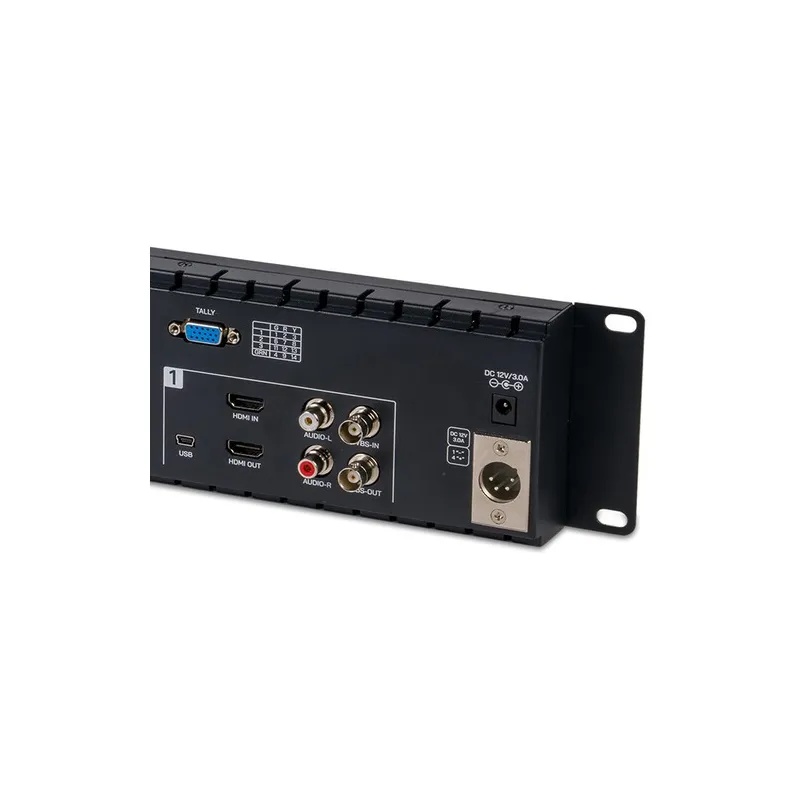

Connectivity includes three HDMI inputs/outputs supporting up to 4K video, three composite BNC inputs/outputs, and three L/R RCA audio inputs. Each display has a dedicated headphone output and three-color tally light for broadcast coordination. The monitor supports DC barrel and 4-pin XLR power inputs, with an included adapter for DC input.

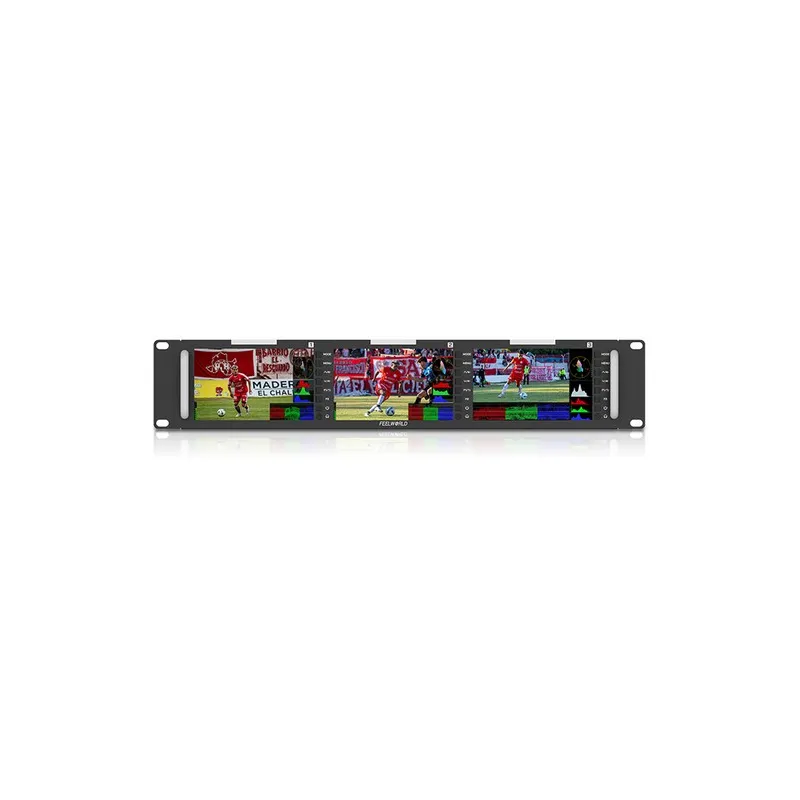

The T51 PLUS-H incorporates a suite of professional video assist tools, including waveform, vectorscope, histogram, focus assist, embedded audio, overexposure, check field, false color, timecode, nine-grid, safe frames, center & ratio markers, scan mode, anamorphic support, image flip, image freeze, zoom mode, pixel-to-pixel, and 3D-LUT upload (SLOG2, SLOG3, LOGC, VLOG, plus 32 custom LUTs). Adjustable color temperature enhances monitoring precision for various production environments.
Key Features:
Triple 5.5" FHD IPS Displays – 1920 x 1080 resolution, 170° viewing angles
Rackmount Design – 2 RU slim aluminum chassis
Multiple Inputs/Outputs – 3x HDMI (up to 4K), 3x Composite BNC, 3x RCA audio
Headphone Outputs – One per display for individual audio monitoring
3-Color Tally Lights – Front panel tally for each display
Video Assist Functions – Waveform, vectorscope, histogram, focus assist, overexposure, check field, false color, timecode, nine-grid, safe frames, center & ratio markers, image flip, freeze, zoom, pixel-to-pixel
3D-LUT Support – SLOG2, SLOG3, LOGC, VLOG, plus upload 32 custom LUTs
Flexible Power Options – DC barrel or 4-pin XLR input, adapter included
High Image Accuracy – 400 cd/m² brightness, 1000:1 contrast ratio
| Type of Product | LCD Monitor |
| LCD monitors | monitors |
| LCD monitors | monitor mount |
| Connector | USB-C įkrovimas/ryšys |
| Connector | HDMI |
| Connector | SDI |
The Feelworld T51 PLUS-H is a triple 5.5" Full HD rackmount monitor designed for professional broadcast and video production, featuring HDMI & Composite BNC I/O, RCA audio, headphone outputs, 3-color tally lights, and advanced video assist tools including waveform, vectorscope, histogram, focus assist, and 3D-LUT support.
The Feelworld T51 PLUS-H offers three 5.5" 1920 x 1080 Full HD IPS displays in a slim 2 RU rackmount chassis, providing a compact yet powerful monitoring solution for multi-camera setups. Each display features 400 cd/m² brightness, 1000:1 contrast, and 170° viewing angles for clear and accurate viewing.
Connectivity includes three HDMI inputs/outputs supporting up to 4K video, three composite BNC inputs/outputs, and three L/R RCA audio inputs. Each display has a dedicated headphone output and three-color tally light for broadcast coordination. The monitor supports DC barrel and 4-pin XLR power inputs, with an included adapter for DC input.
The T51 PLUS-H incorporates a suite of professional video assist tools, including waveform, vectorscope, histogram, focus assist, embedded audio, overexposure, check field, false color, timecode, nine-grid, safe frames, center & ratio markers, scan mode, anamorphic support, image flip, image freeze, zoom mode, pixel-to-pixel, and 3D-LUT upload (SLOG2, SLOG3, LOGC, VLOG, plus 32 custom LUTs). Adjustable color temperature enhances monitoring precision for various production environments.
Key Features:
Triple 5.5" FHD IPS Displays – 1920 x 1080 resolution, 170° viewing angles
Rackmount Design – 2 RU slim aluminum chassis
Multiple Inputs/Outputs – 3x HDMI (up to 4K), 3x Composite BNC, 3x RCA audio
Headphone Outputs – One per display for individual audio monitoring
3-Color Tally Lights – Front panel tally for each display
Video Assist Functions – Waveform, vectorscope, histogram, focus assist, overexposure, check field, false color, timecode, nine-grid, safe frames, center & ratio markers, image flip, freeze, zoom, pixel-to-pixel
3D-LUT Support – SLOG2, SLOG3, LOGC, VLOG, plus upload 32 custom LUTs
Flexible Power Options – DC barrel or 4-pin XLR input, adapter included
High Image Accuracy – 400 cd/m² brightness, 1000:1 contrast ratio
