Feelworld D71 H Dual Rack Monitor HDMI (No SDI) D71 H

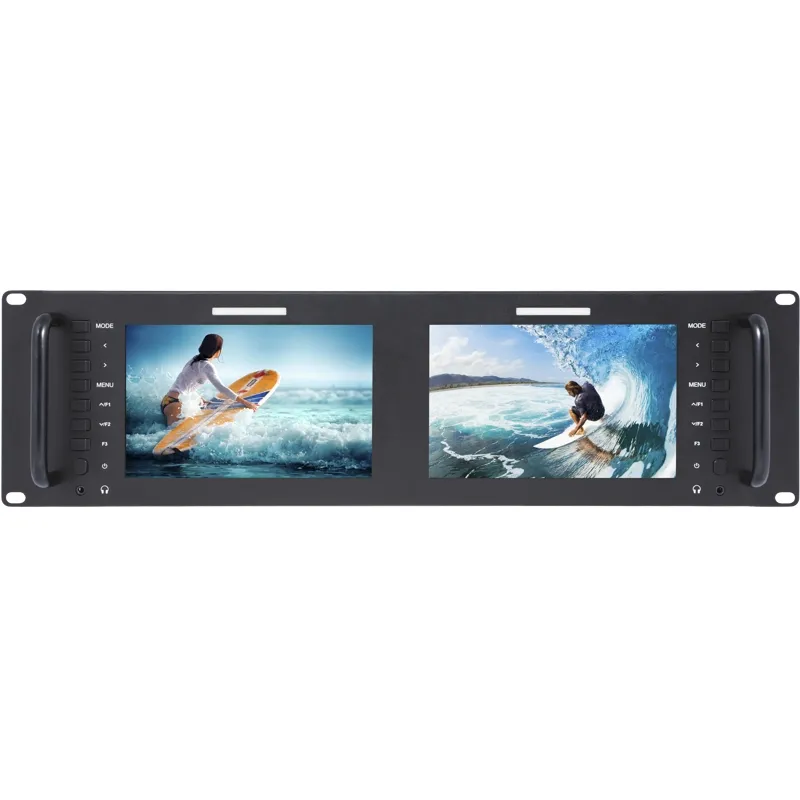

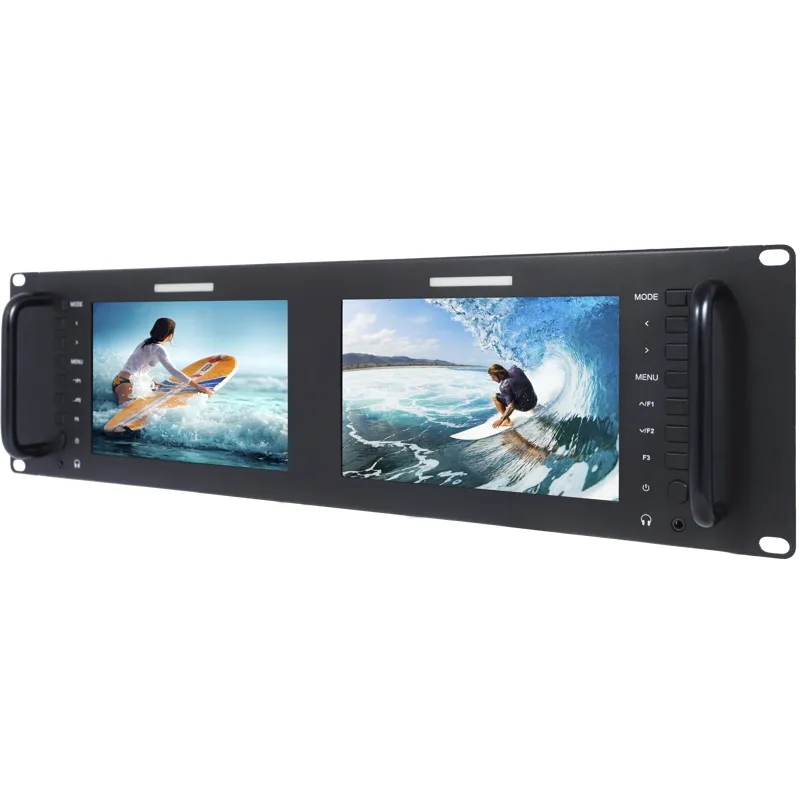

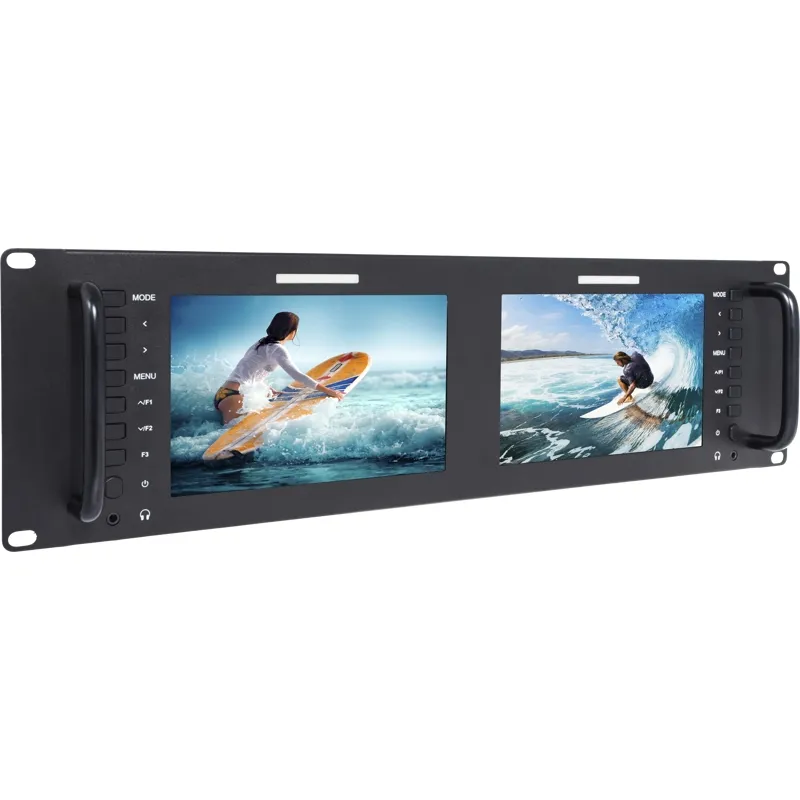

Dual 7" 3RU Rack Monitors
D71 are extremely thin and lightweight. 7" 3RU Rack Monitors with dual 7” IPS 1080x800 screens, viewing SD, HD video on 3RU rack monitor. With GPIO for Software control via Ethernet connection. FEELWORLD Rack mount LCD monitor has been widely used in all levels of TV news production, post production, programme broadcasting and TV broadcasting trucks, special vehicles video surveillance and other fields. Since this series is working with other adjacent professional equipments, therefore, the high stability, high reliability and electromagnetic compatibility are very important conditions to make sure the whole system work smoothly.

Enjoy Consistent Images from Any Perspective
D71 uses an IPS panel, which provides a wide 178°/178° viewing angle and brightness output of up to 400nit. This means you’ll be able to see accurate, consistent and bright images from any point of view.

Easy to operate, time-saving
Consistent design style, the same function and operation mode setting is one of the features of the products. Users only need to know one product operation mode, you can operate the full range products, time-saving and convenient.

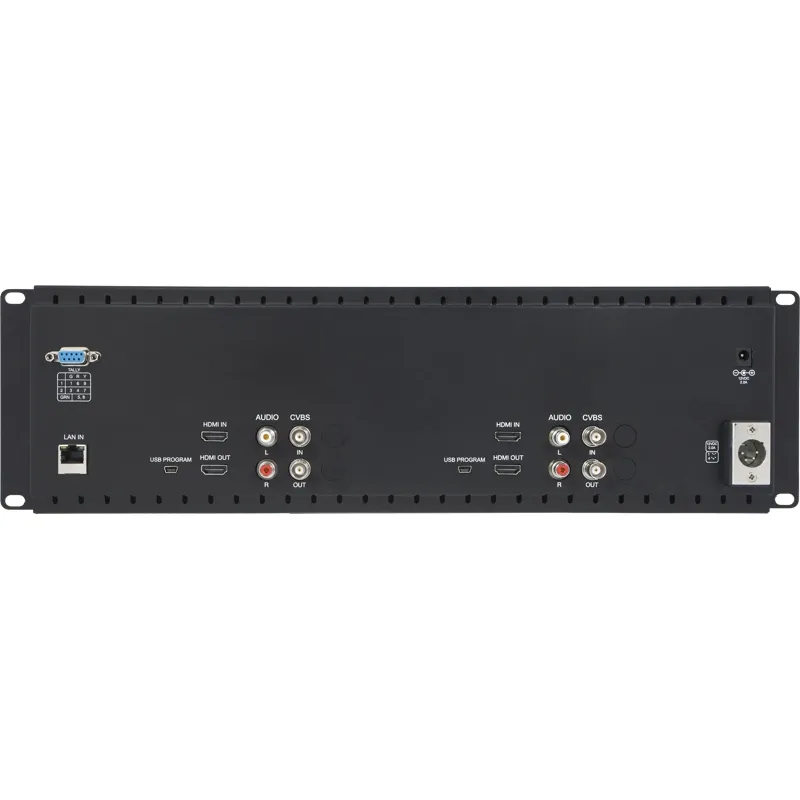

Multiple Inputs and Outputs
HDMI / CVBS / Audio
Each LCD of D71 monitor supports:
Input: HDMI X 1, CVBS X 1, Audio (L/R) X 2
Output: HDMI X 1, CVBS X 1
Audio: Stereo Headphone

Network Control D71 rack mount Monitor includes a LAN port. This allows the operator to Software control via Ethernet connection (software included). The rear panel LAN 100 port connects the unit to the LAN. Once connected, the user simply locates the IP address of any one of the units connected to the LAN. This is accomplished by going to the MAIN MENU of any of the connected units and selecting the NETWORK CONFIGURATION submenu. This will display the IP address of that unit. Simply type this IP address into the address bar of your Software. It is possible to poll your LAN for all other units connected by accessing the NETWORK tab from the Top Menu.

The user can control multiple networked D71 monitor at once using a single Software. The user may select which monitor(s) they wish to control and send commands to those particular monitors. The browser provides real-time status of any connected monitor, ensuring consistent signals / feeds and so forth.

3-color Tally Light
DB-9 input signal
There are front TALLY lights for each screen, with 3 colors display (Red, Green, Yellow), and controlled via DB-9 ports on the rear panel.

Stablity and Reliability
As rack mount LCD monitors usually in a continuous working condition, all components including LCD panel must be accordance with industrial quality standard. Full Metal case not only makes the product more robust and durable, but also is a good solution to the heat dissipation problem.

Key Features

• Peaking Focus Assist
• Pixel to Pixel
• Centre Marker
• Screen Marker (80%, 85%, 90%, 93%, 96%, 2.35:1)
• Image Flip (H, V, H/V)
• Check Field (Red, Green, Blue, Mono)
• Image Freeze
• Zoom All
• U/D & L/R Zoom
• Built-in LED tally indicators (Red, Green, Yellow)
• Software control via Ethernet connection

In the box

• D71-H monitor
• 3A Power Adapter
• Tally Kit
• Operation Manual
