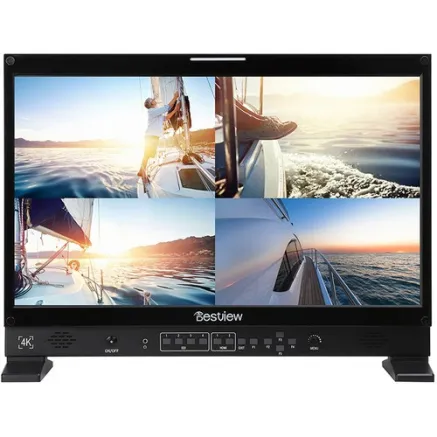

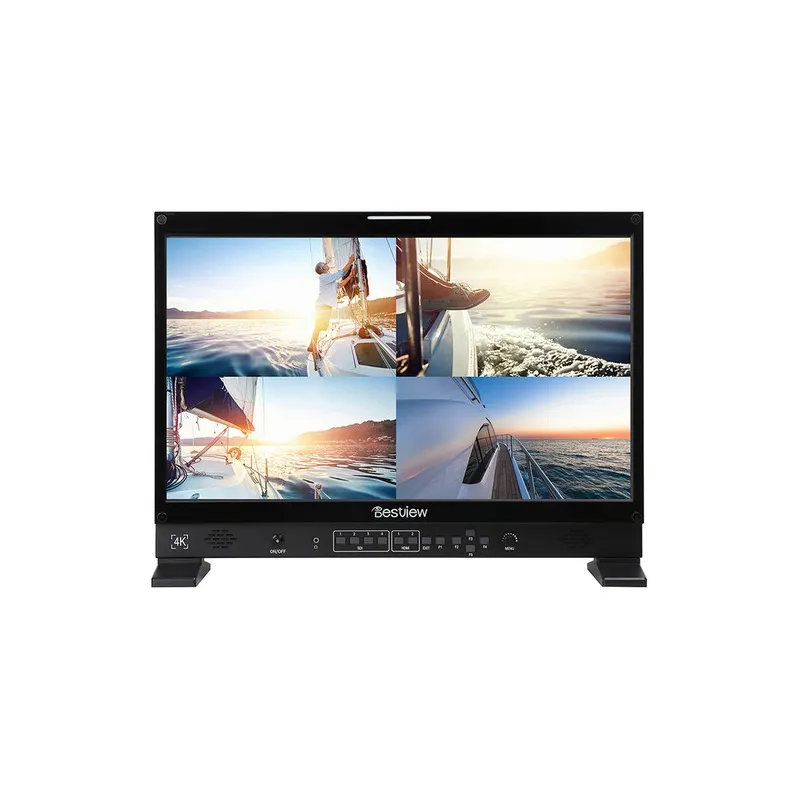

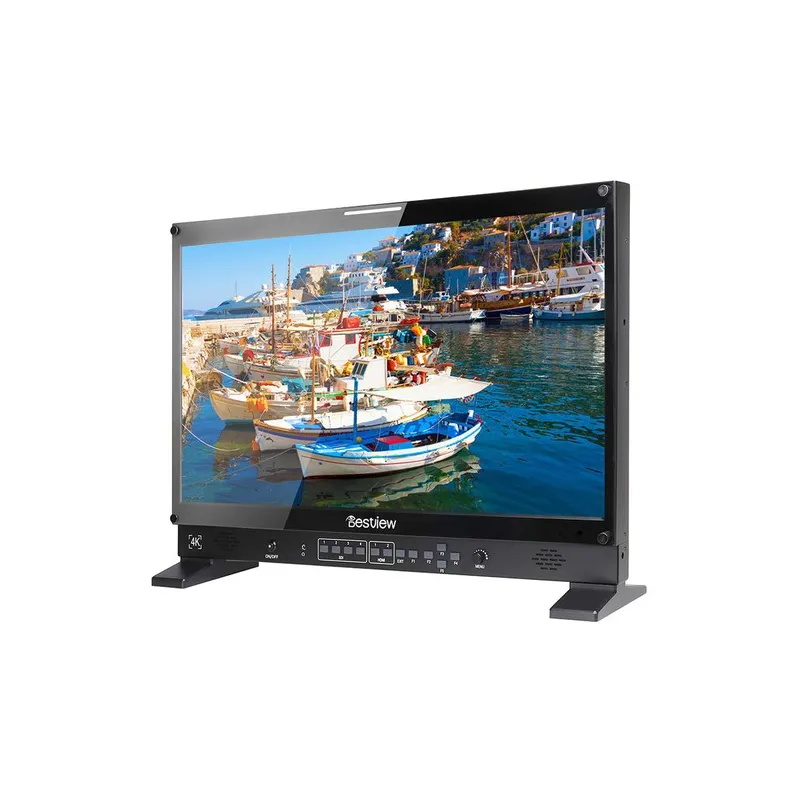

Desview S24F
Produkto numeris: 24565
Produktas užsakomas. Pristatymo laikas nuo 3 savaičių.
The Desview S24F 24" 4K UHD Broadcast Monitor delivers ultra-clear visuals with a 3840 x 2160 10-bit IPS display and 400 cd/m² brightness. Designed for professional video production and broadcast environments, it features multiple SDI and HDMI inputs/outputs, HDR support, multi-view functions, a wide 178° viewing angle, and a protective sunhood for outdoor use.
The Desview S24F is a professional 24-inch 4K UHD broadcast monitor built for video production, live streaming, and multi-camera studio setups. Featuring a 10-bit IPS panel, 3840 x 2160 resolution at 60 Hz, and a 178° wide viewing angle, this monitor ensures accurate color representation and detailed imagery from any perspective. Its 400 cd/m² brightness and Rec.709 calibration make it ideal for indoor and controlled outdoor shooting.
Equipped with four 3G-SDI inputs and thru-puts, two HDMI 2.0 inputs, and multi-view support (PIP/PBP/quad), the S24F allows simultaneous monitoring of multiple cameras. Professional imaging tools include peaking, center mark, R/G/B check fields, safe area display, display ratio control, and underscan. Audio monitoring is supported via a 3.5mm headphone jack and built-in stereo speakers, while tally light functionality is provided through RJ45 input.
The monitor supports flexible power options, including AC power (110–265V), XLR 4-pin, or V-mount battery (sold separately), and comes with a zip-open sunhood, HDMI and SDI cables, and a protective wipe cloth. Its lightweight design and robust construction make it suitable for studio, field, or live broadcast environments.
Key Features:
- 24" 10-bit IPS UHD display with 3840 x 2160 resolution
- 16:9 aspect ratio with 178° viewing angle
- HDR support for enhanced dynamic range
- 400 cd/m² brightness and 1000:1 contrast ratio
- 4 x 3G-SDI inputs/thru-puts and 2 x HDMI 2.0 inputs
- Multi-view support (PIP, PBP, quad) for multi-camera monitoring
- Professional imaging tools: peaking, safe area, center mark, R/G/B check field, display ratio, underscan
- Built-in stereo speakers and 3.5mm headphone output
- Tally light via RJ45 input
- Flexible power options: AC, 4-pin XLR, V-mount battery
- Protective sunhood included
- Rec.709 color calibration
- Acrylic screen for panel protection
- Desview S24F 24" UHD Monitor
- Sunhood (zip-open)
- HDMI cable
- SDI cable
- Protective wipe cloth
- Display Size: 24" / 61.0 cm
- Panel Type: IPS-Type LCD
- Native Resolution: 3840 x 2160
- Aspect Ratio: 16:9
- Brightness: 400 nits / cd/m²
- Contrast Ratio: 1000:1
- Viewing Angle: 178° horizontal & vertical
- HDR Support: Yes
- Color Support: 1.07 Billion Colors (10-bit)

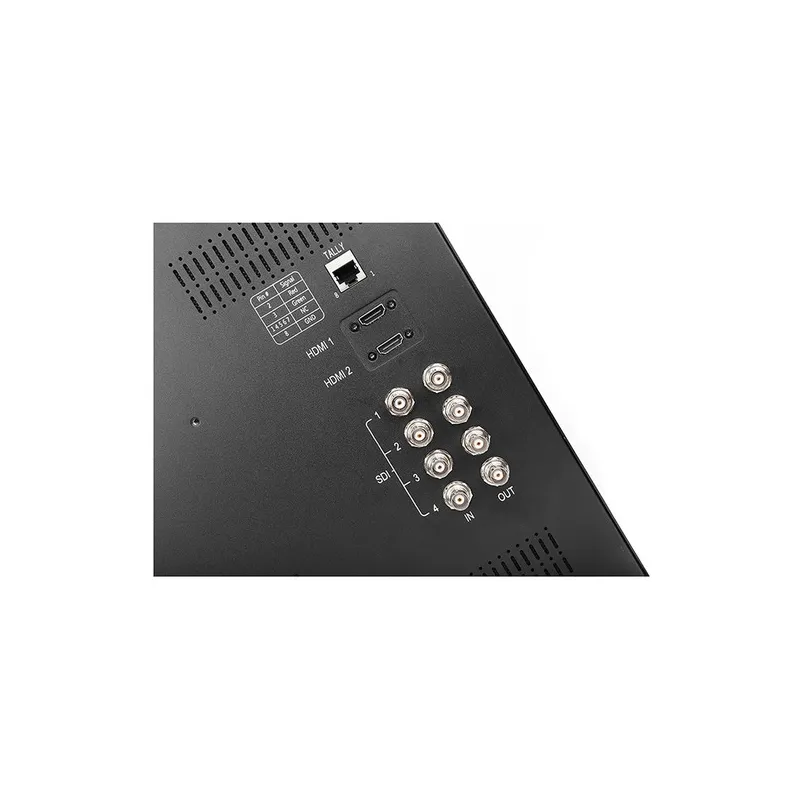

- Video I/O: 2x HDMI 2.0 Input, 4x BNC (HD-SDI) Input, 4x BNC (HD-SDI) Output
- Audio I/O: 1x 3.5 mm headphone, stereo speakers

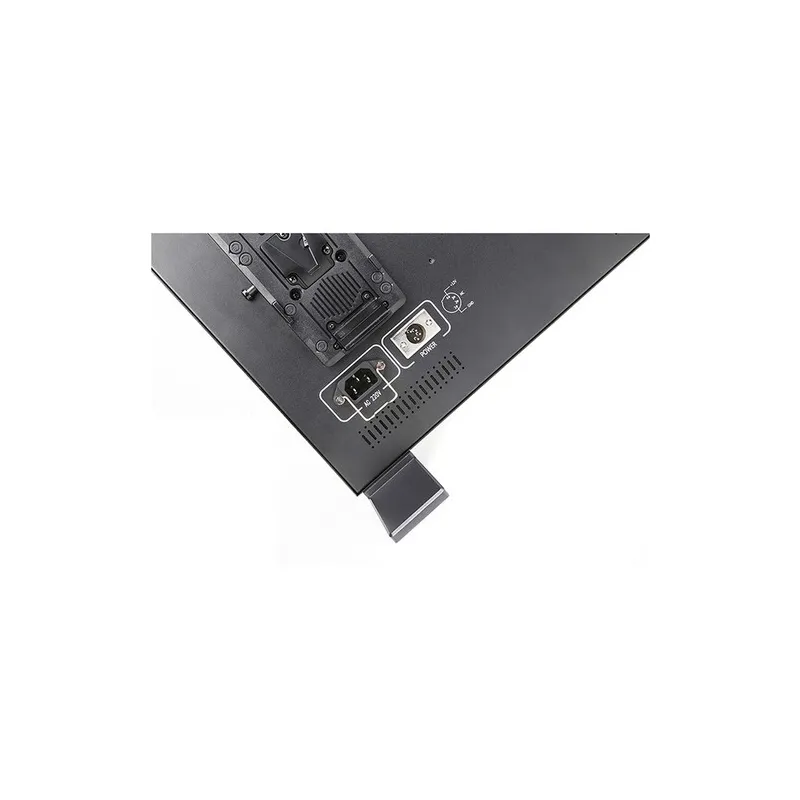

- Power Input: 110–265V AC, 4-pin XLR, or V-mount battery
- Dimensions: 21.9 x 15.5 x 1.6" / 556 x 394 x 40 mm
- Weight: 25.35 lb / 11.5 kg
| Type of Product | LCD Monitor |
| Battery type | Gold mount |
| LCD monitors | hood |
| Connector | SDI |
| Connector | HDMI |
The Desview S24F 24" 4K UHD Broadcast Monitor delivers ultra-clear visuals with a 3840 x 2160 10-bit IPS display and 400 cd/m² brightness. Designed for professional video production and broadcast environments, it features multiple SDI and HDMI inputs/outputs, HDR support, multi-view functions, a wide 178° viewing angle, and a protective sunhood for outdoor use.
The Desview S24F is a professional 24-inch 4K UHD broadcast monitor built for video production, live streaming, and multi-camera studio setups. Featuring a 10-bit IPS panel, 3840 x 2160 resolution at 60 Hz, and a 178° wide viewing angle, this monitor ensures accurate color representation and detailed imagery from any perspective. Its 400 cd/m² brightness and Rec.709 calibration make it ideal for indoor and controlled outdoor shooting.
Equipped with four 3G-SDI inputs and thru-puts, two HDMI 2.0 inputs, and multi-view support (PIP/PBP/quad), the S24F allows simultaneous monitoring of multiple cameras. Professional imaging tools include peaking, center mark, R/G/B check fields, safe area display, display ratio control, and underscan. Audio monitoring is supported via a 3.5mm headphone jack and built-in stereo speakers, while tally light functionality is provided through RJ45 input.
The monitor supports flexible power options, including AC power (110–265V), XLR 4-pin, or V-mount battery (sold separately), and comes with a zip-open sunhood, HDMI and SDI cables, and a protective wipe cloth. Its lightweight design and robust construction make it suitable for studio, field, or live broadcast environments.
Key Features:
- 24" 10-bit IPS UHD display with 3840 x 2160 resolution
- 16:9 aspect ratio with 178° viewing angle
- HDR support for enhanced dynamic range
- 400 cd/m² brightness and 1000:1 contrast ratio
- 4 x 3G-SDI inputs/thru-puts and 2 x HDMI 2.0 inputs
- Multi-view support (PIP, PBP, quad) for multi-camera monitoring
- Professional imaging tools: peaking, safe area, center mark, R/G/B check field, display ratio, underscan
- Built-in stereo speakers and 3.5mm headphone output
- Tally light via RJ45 input
- Flexible power options: AC, 4-pin XLR, V-mount battery
- Protective sunhood included
- Rec.709 color calibration
- Acrylic screen for panel protection
- Desview S24F 24" UHD Monitor
- Sunhood (zip-open)
- HDMI cable
- SDI cable
- Protective wipe cloth
- Display Size: 24" / 61.0 cm
- Panel Type: IPS-Type LCD
- Native Resolution: 3840 x 2160
- Aspect Ratio: 16:9
- Brightness: 400 nits / cd/m²
- Contrast Ratio: 1000:1
- Viewing Angle: 178° horizontal & vertical
- HDR Support: Yes
- Color Support: 1.07 Billion Colors (10-bit)
- Video I/O: 2x HDMI 2.0 Input, 4x BNC (HD-SDI) Input, 4x BNC (HD-SDI) Output
- Audio I/O: 1x 3.5 mm headphone, stereo speakers
- Power Input: 110–265V AC, 4-pin XLR, or V-mount battery
- Dimensions: 21.9 x 15.5 x 1.6" / 556 x 394 x 40 mm
- Weight: 25.35 lb / 11.5 kg
