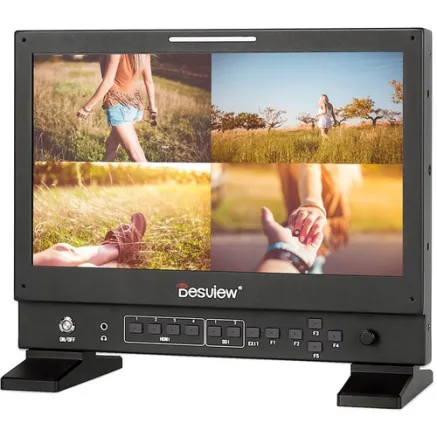

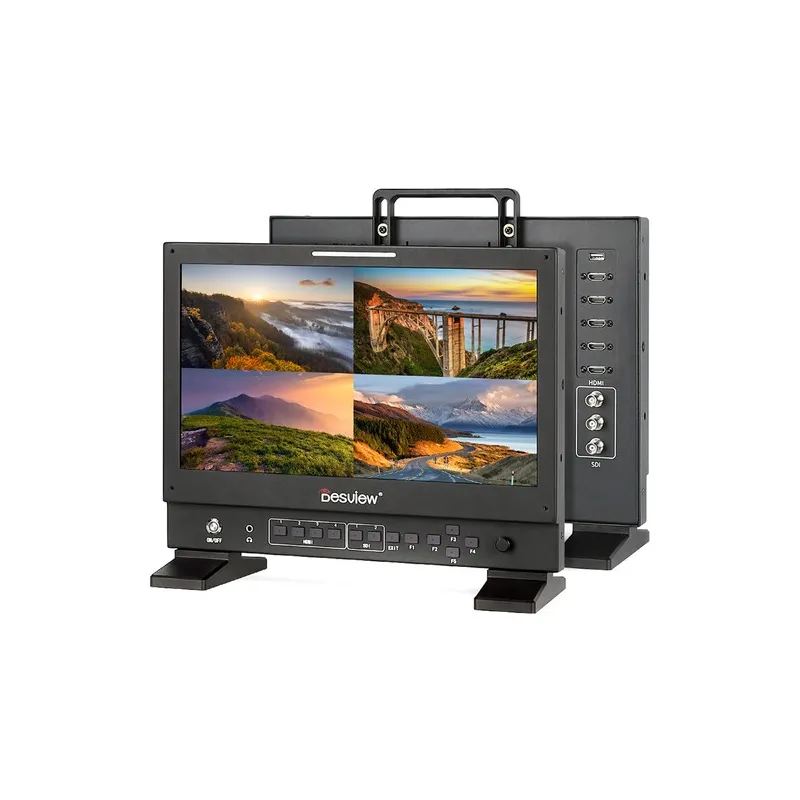

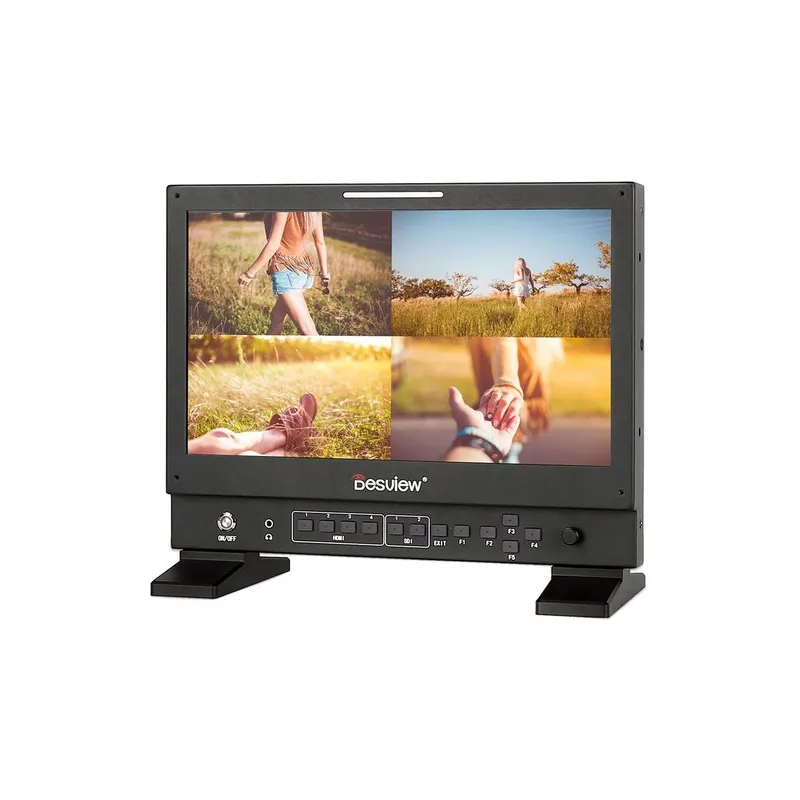

Desview S14-HDR
The Desview S14-HDR is a 14" UHD 4K HDR professional monitor designed for directors, ENG, live broadcast, and mobile production. Featuring HDMI and 3G-SDI inputs/outputs, 400 cd/m² brightness, 1000:1 contrast ratio, and advanced imaging tools like 3D LUT, false color, and multiview, it provides versatile monitoring and precise color evaluation.
The Desview S14-HDR 14" UHD 4K60 monitor brings professional multiview monitoring to ENG, live broadcast, and mobile production workflows. Its 3840 × 2160 resolution panel with 400 cd/m² brightness and 1000:1 contrast ratio ensures clear, high-fidelity image reproduction, while a 178° wide viewing angle maintains color accuracy across any perspective. Equipped with four HDMI inputs, two SDI inputs, and corresponding outputs, it supports DCI/UHD 4K60 video, 1080p, 1080i, 720p, and SD formats. The monitor features advanced broadcast tools such as gamma selection, false color, monochrome, pixel view, safety markers, aspect ratio overlays, PiP/PbP multiview, and a tally light system controllable via RJ45. Designed for tabletop use, it also includes a 100 × 100 mm VESA mount, V-mount battery plate, and 4-pin XLR DC input, enabling versatile mounting and power options. With stereo speakers and a 3.5mm headphone output, the S14-HDR is a complete on-set monitoring solution for professional production environments.
Key Features:
- 14" UHD 4K60 monitor, 3840 × 2160 resolution
- HDR support with 400 cd/m² brightness
- 1000:1 contrast ratio, 178° viewing angle
- HDMI & 3G-SDI inputs and outputs
- Gamma selection, false color, monochrome, pixel view, aspect ratios
- Multiview, PiP/PbP display for up to four sources
- Tally light controllable via RJ45
- V-Mount battery plate & 4-pin XLR DC input
- 100 × 100 mm VESA mounting pattern
- Stereo speakers and 3.5mm headphone output
- 1 × Desview S14-HDR 14" UHD 4K HDR Monitor
- 1 × AC Power Adapter
- 1 × V-Mount Battery Plate
- 1 × 4-Pin XLR DC Input Cable
- 1 × User Manual
- Display: 14" LCD, 3840×2160 (4K UHD), 16:9, 400 cd/m² brightness, 1000:1 contrast, 178° viewing angle, HDR, non-touch

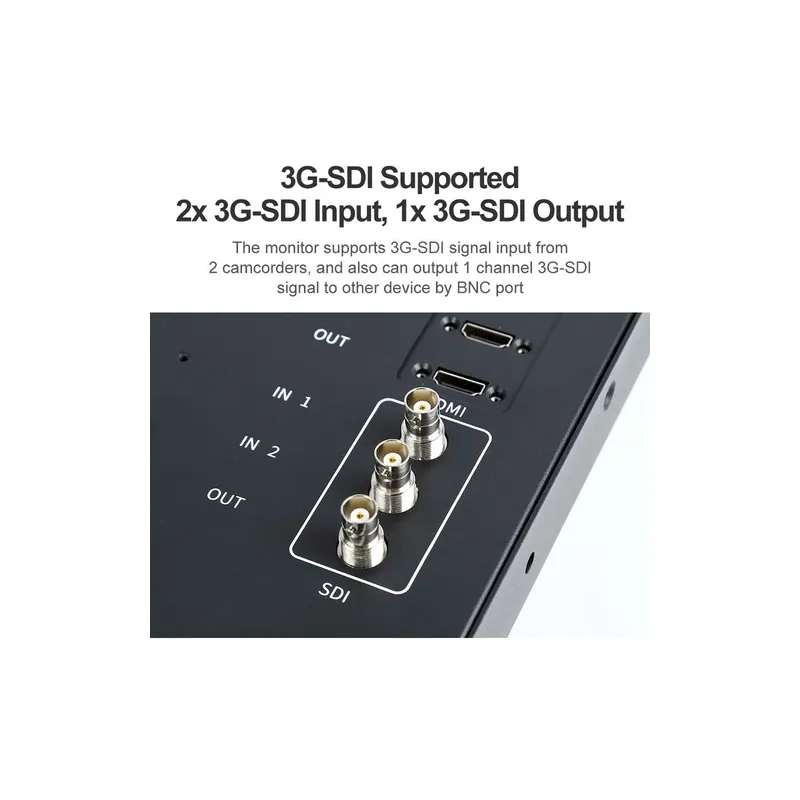

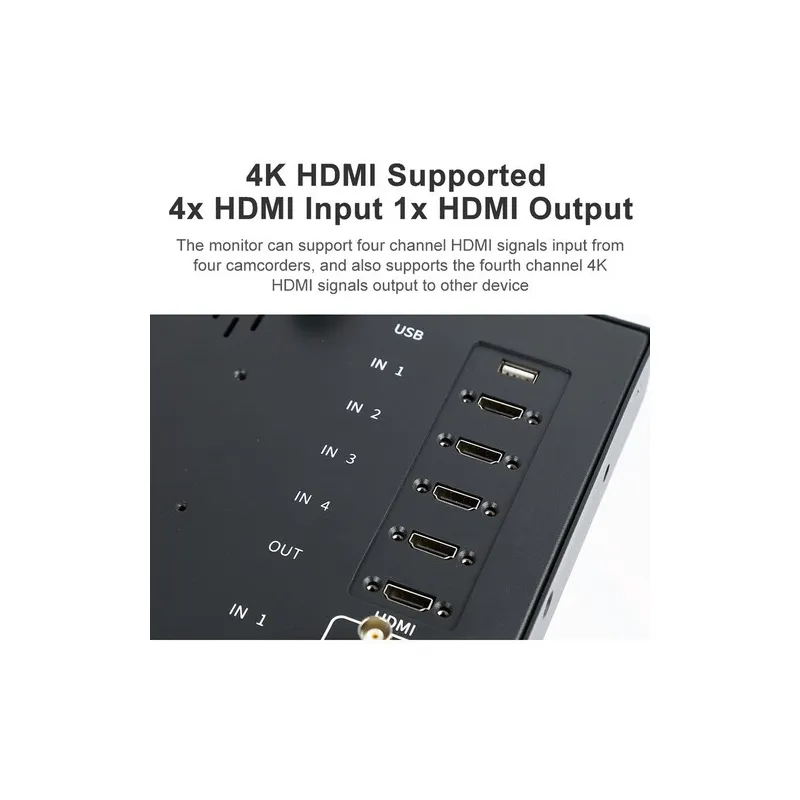

- I/O: 4× HDMI in, 1× HDMI out, 2× 3G-SDI in, 1× 3G-SDI out, 3.5mm audio out, stereo speakers, USB-A (firmware/LUT), RJ45 tally
- Video Support: DCI 4K up to 30 fps, UHD 4K up to 30 fps, 1080p/i & 720p/576p/480p multiple fps

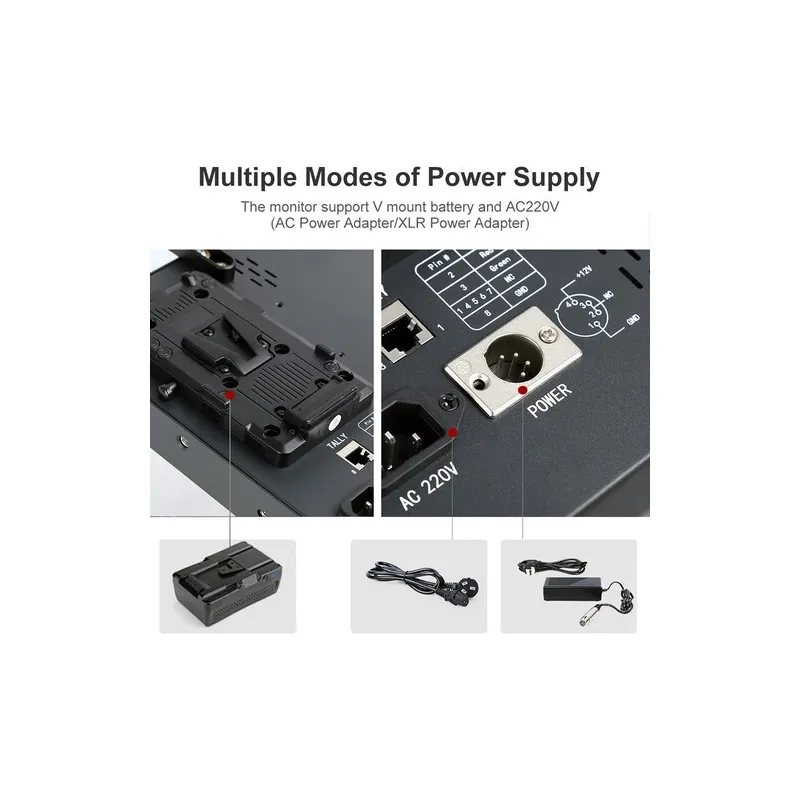

- Power: 12–24 VDC or 100–240 VAC, V-Mount battery, 26 W max
- Mounting: VESA 100×100 mm, tabletop compatible
- Environment: Operating –20–60°C, storage –30–70°C, 10–90% humidity
| Type of Product | LCD Monitor |
| Battery type | Gold mount |
| LCD monitors | monitor mount |
| LCD monitors | battery adapter plate |
| LCD monitors | AC adapter |
| Connector | HDMI |
| Connector | 3,5mm |
| Connector | SDI |
The Desview S14-HDR is a 14" UHD 4K HDR professional monitor designed for directors, ENG, live broadcast, and mobile production. Featuring HDMI and 3G-SDI inputs/outputs, 400 cd/m² brightness, 1000:1 contrast ratio, and advanced imaging tools like 3D LUT, false color, and multiview, it provides versatile monitoring and precise color evaluation.
The Desview S14-HDR 14" UHD 4K60 monitor brings professional multiview monitoring to ENG, live broadcast, and mobile production workflows. Its 3840 × 2160 resolution panel with 400 cd/m² brightness and 1000:1 contrast ratio ensures clear, high-fidelity image reproduction, while a 178° wide viewing angle maintains color accuracy across any perspective. Equipped with four HDMI inputs, two SDI inputs, and corresponding outputs, it supports DCI/UHD 4K60 video, 1080p, 1080i, 720p, and SD formats. The monitor features advanced broadcast tools such as gamma selection, false color, monochrome, pixel view, safety markers, aspect ratio overlays, PiP/PbP multiview, and a tally light system controllable via RJ45. Designed for tabletop use, it also includes a 100 × 100 mm VESA mount, V-mount battery plate, and 4-pin XLR DC input, enabling versatile mounting and power options. With stereo speakers and a 3.5mm headphone output, the S14-HDR is a complete on-set monitoring solution for professional production environments.
Key Features:
- 14" UHD 4K60 monitor, 3840 × 2160 resolution
- HDR support with 400 cd/m² brightness
- 1000:1 contrast ratio, 178° viewing angle
- HDMI & 3G-SDI inputs and outputs
- Gamma selection, false color, monochrome, pixel view, aspect ratios
- Multiview, PiP/PbP display for up to four sources
- Tally light controllable via RJ45
- V-Mount battery plate & 4-pin XLR DC input
- 100 × 100 mm VESA mounting pattern
- Stereo speakers and 3.5mm headphone output
- 1 × Desview S14-HDR 14" UHD 4K HDR Monitor
- 1 × AC Power Adapter
- 1 × V-Mount Battery Plate
- 1 × 4-Pin XLR DC Input Cable
- 1 × User Manual
- Display: 14" LCD, 3840×2160 (4K UHD), 16:9, 400 cd/m² brightness, 1000:1 contrast, 178° viewing angle, HDR, non-touch
- I/O: 4× HDMI in, 1× HDMI out, 2× 3G-SDI in, 1× 3G-SDI out, 3.5mm audio out, stereo speakers, USB-A (firmware/LUT), RJ45 tally
- Video Support: DCI 4K up to 30 fps, UHD 4K up to 30 fps, 1080p/i & 720p/576p/480p multiple fps
- Power: 12–24 VDC or 100–240 VAC, V-Mount battery, 26 W max
- Mounting: VESA 100×100 mm, tabletop compatible
- Environment: Operating –20–60°C, storage –30–70°C, 10–90% humidity
