Feelworld D71 PLUS Dual Rack Monitor SDI

Your Complete Live Production Solution

The Feelworld D71 PLUS Dual Rack Monitor SDI features two 7-inch screens in a very slim RU design. It has a LAN port for network control and is designed to provide efficient broadcast monitoring of up to two video signals.

Highlights

• Two 7-inch 1900 x 1200 IPS displays
• Up to 4K input via HDMI, 1080p via SDI
• Numerous image analysis functions

Inputs and Outputs

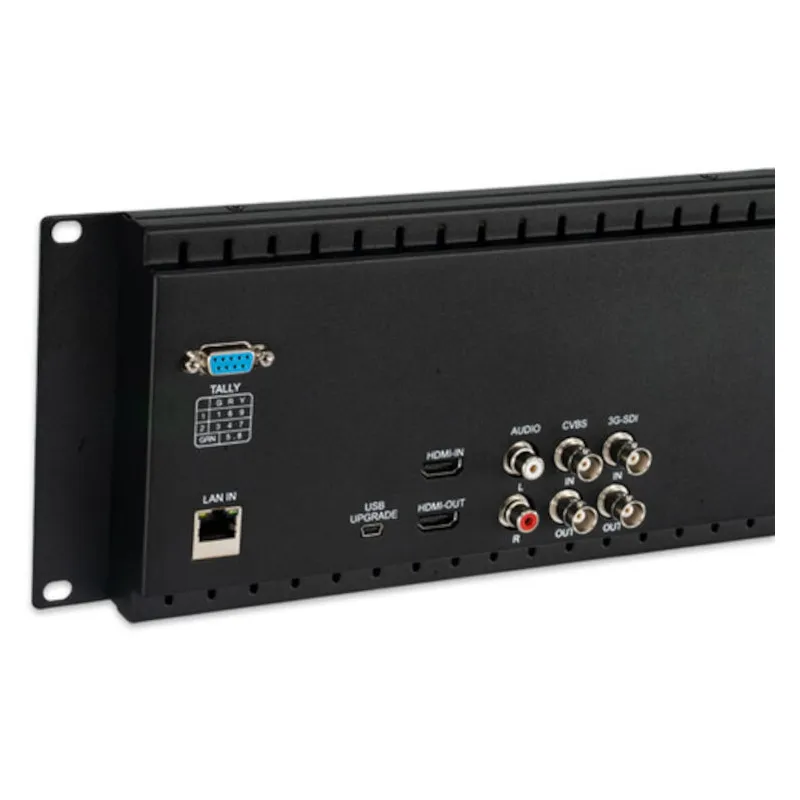

This model features 3G SDI, HDMI, and composite BNC inputs and outputs per screen, as well as RCA audio inputs for each panel. Each panel also has a headphone jack. There is a single tally port at the rear and a three-color tally above each screen.

Consistent Monitoring

These IPS panels have a resolution of 1920 x 1200 pixels and a wide viewing angle of 160 degrees, ensuring more consistent monitoring. Via the LAN port, you can control multiple D71 Plus units simultaneously through a single control program.

Metal Casing

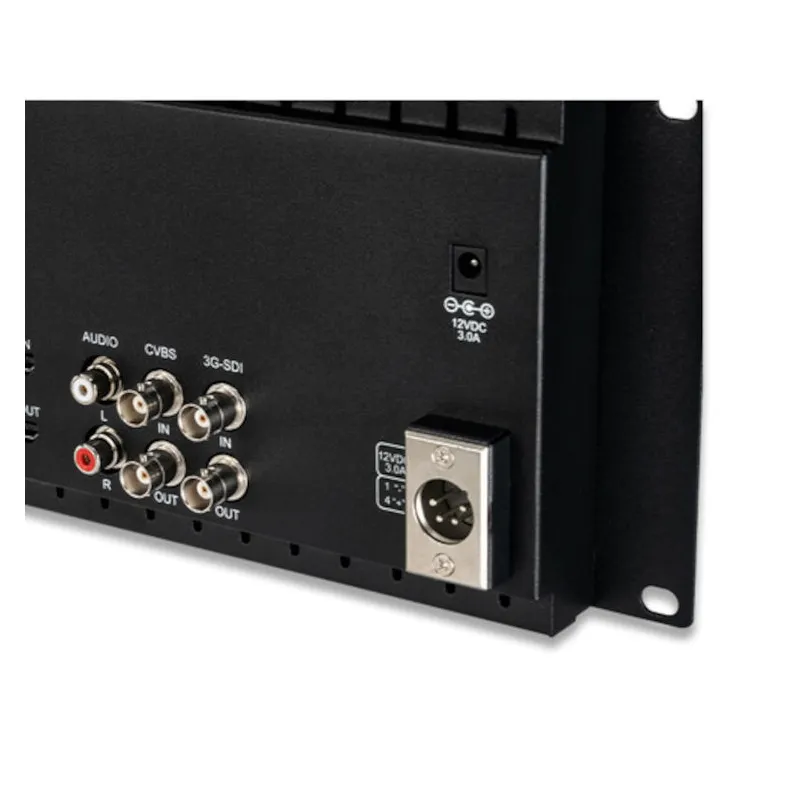

The D71 Plus comes in a metal housing that ensures optimal heat dissipation. It features durable handles for easy handling when installing or removing it from a rack. At the rear is a cylinder input and a 4-pin XLR port to power the D71.

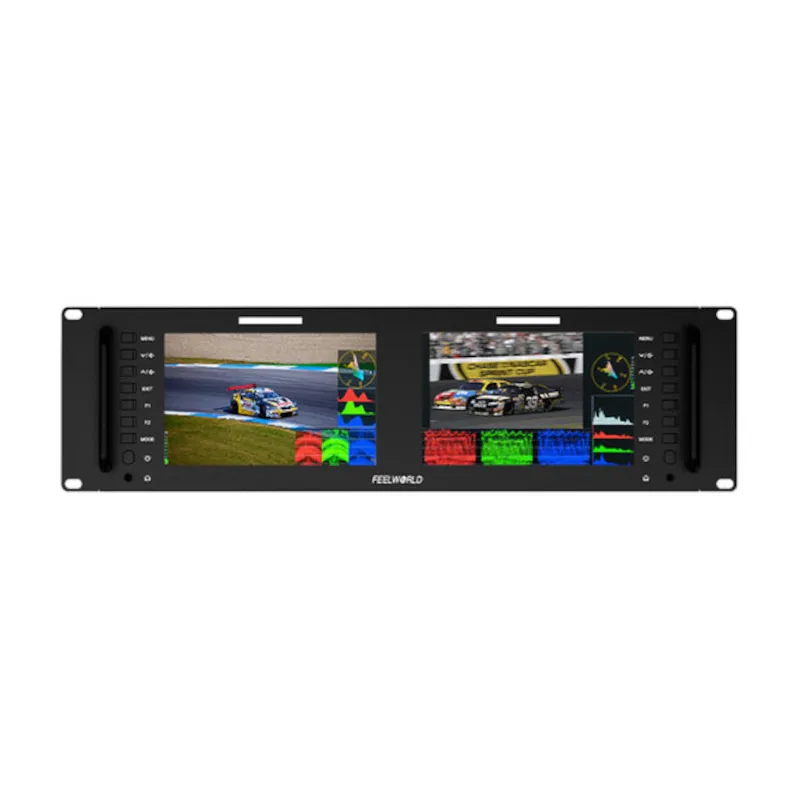

Image Analysis Functions

A variety of built-in image analysis functions include peaking focus assist, check field, pixel-to-pixel, and zoom all. There are function buttons on the front panel.

Specifications

• Two 7-inch 1900 x 1200 IPS displays
• 3G SDI, HDMI, and composite BNC I/O
• Up to 4K input via HDMI, 1080p via SDI
• LAN control of multiple units
• 160 L/R viewing angle
• RCA audio inputs, headphone outputs
• Tally Port and 3-color Tally lights
• DC cylinder/4-pin XLR power ports
• 450 cd/m brightness
• 1100:1 contrast
• Numerous image analysis functions
• 2-year warranty

Included Accessories

• Charger
• Tally kit
