Feelworld D71 PLUS H Dual Rack Monitor D71PLUS H

Your Complete Live Production Solution

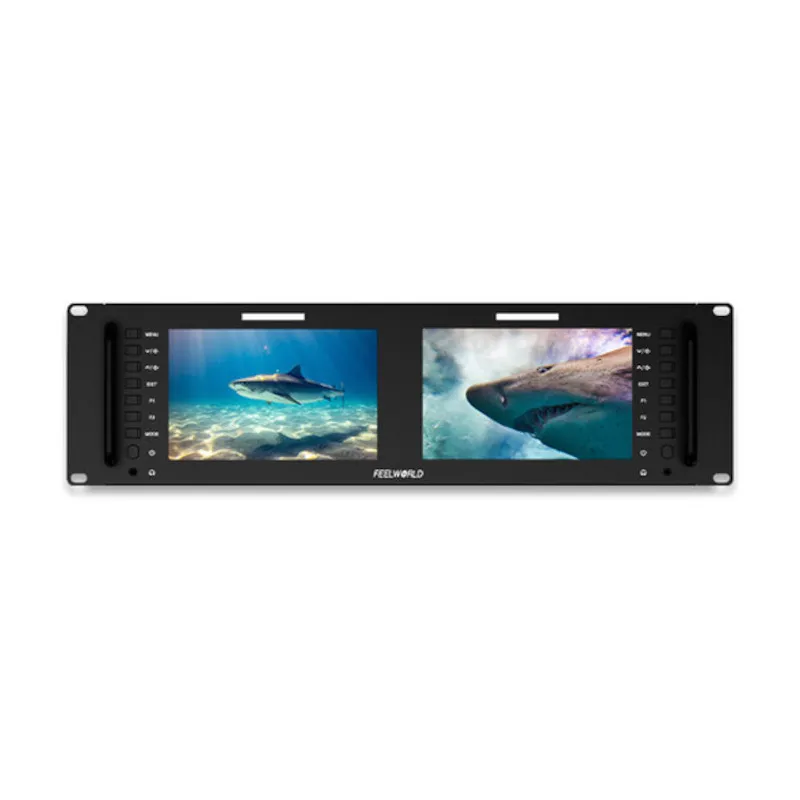

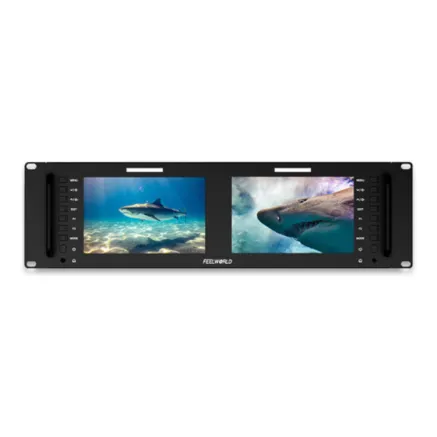

The Feelworld D71 PLUS H Dual Rack Monitor features two 7-inch displays in an ultra-slim 3 RU design and includes a LAN port for network control. It is designed for efficient broadcast monitoring of up to two video signals. This D71 PLUS H model has HDMI and composite BNC inputs and outputs per display, as well as RCA audio inputs for each panel.

Highlights

• Two 7-inch 1900 x 1200 IPS displays
• HDMI and composite BNC inputs and outputs
• Numerous image analysis functions

The monitor includes a tally port and three-color tally lights. Each panel has a headphone jack for monitoring audio. There is a single tally port at the rear and a three-color tally light above each screen. The screens are IPS panels with a resolution of 1920 x 1200 and a wide viewing angle of 160 degrees, allowing for consistent monitoring.

Use Multiple Units Simultaneously

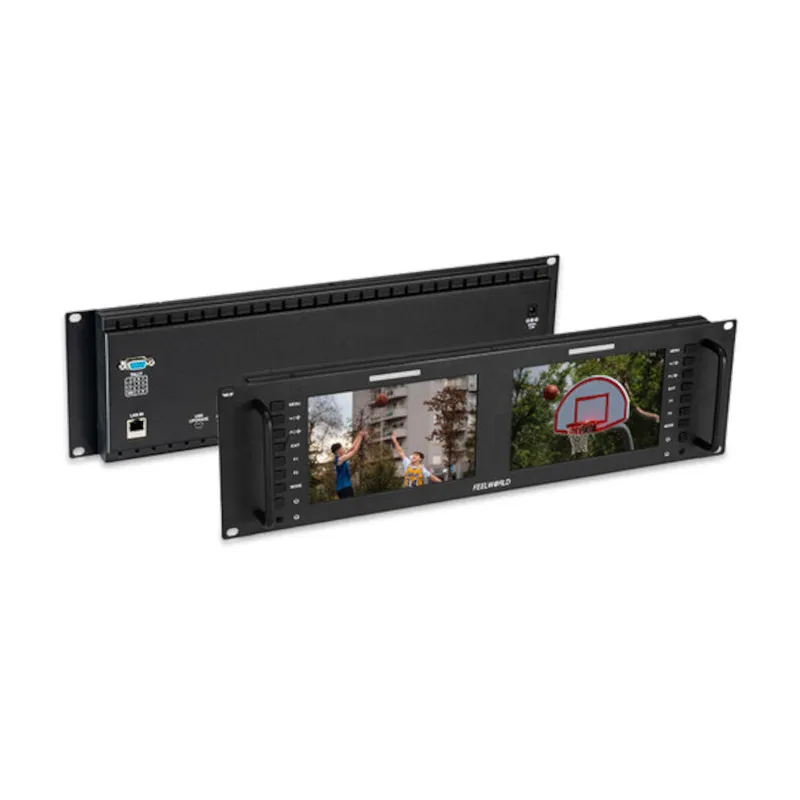

Via the LAN port, multiple D71 PLUS H units can be controlled simultaneously using a single control software. The D71 PLUS H comes in a metal housing that ensures optimal heat dissipation and features durable handles on the sides for convenient handling when installing in or removing from a rack.

Various Functions and Inputs

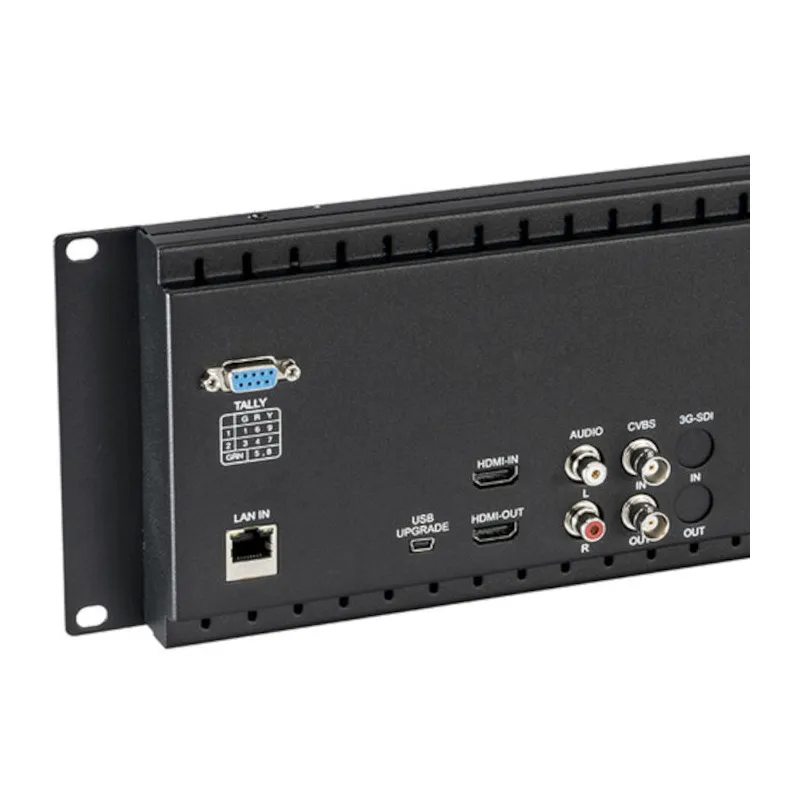

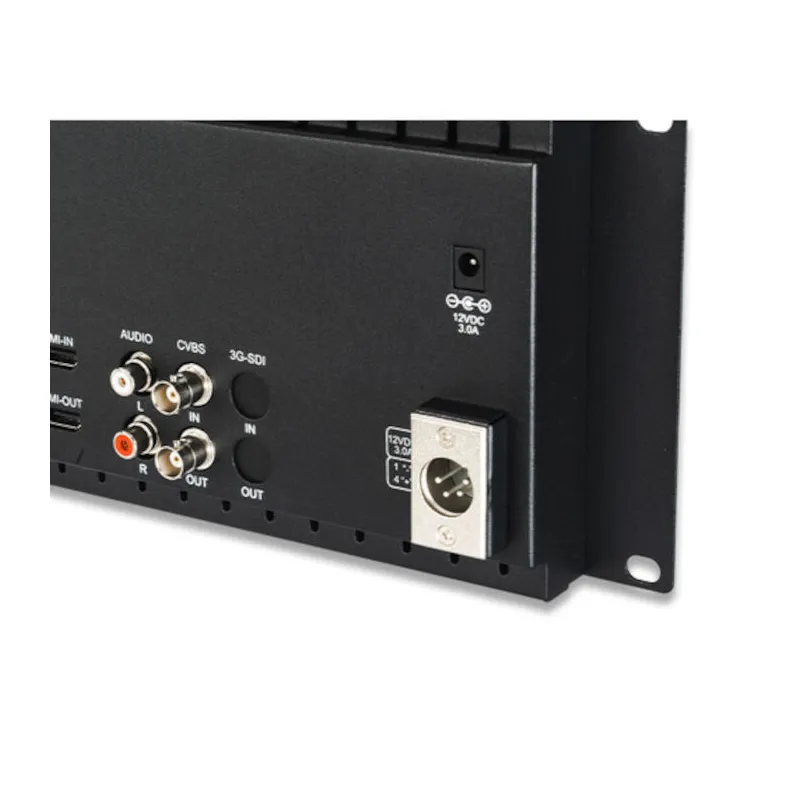

A range of built-in image analysis functions such as peaking focus assist, check field, pixel to pixel, zoom all, and more are available, along with function buttons on the front panel. At the rear, there is a barrel input and a 4-pin XLR port for powering the unit.

Specifications

• Two 7-inch 1900 x 1200 IPS screens
• HDMI and Composite BNC inputs and outputs
• Up to 4K input via HDMI
• LAN control of multiple units
• 160-degree horizontal and vertical viewing angle
• RCA audio inputs and headphone outputs
• Tally port and 3-color tally lights
• DC tube / 4-pin XLR power ports
• 450 cd/m brightness and 1100:1 contrast
• Numerous image analysis functions
• 2-year warranty

Included Accessories

• Feelworld D71 PLUS H Dual Rack Monitor
• Power adapter
• Tally Kit
