Canare Hybrid cable SMPTE 311M on Schill reel 250m FCC250N-PUR HT485.RM
Pagal išankstinį užsakymą, pristatymo terminas nežinomas
| Type of Product | Cables |

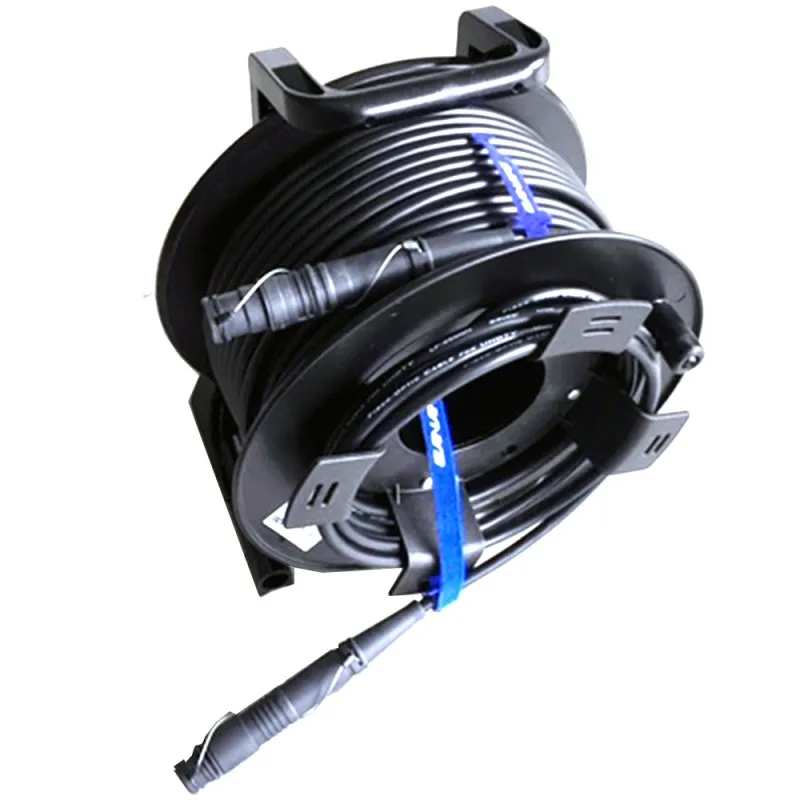

SMPTE HFO Hybrid Cable SMPTE 311M on Schill Reel - Length 250m
Technical Specifications
- Cable: Canare LF-2SM9N
- Connectors: Canare FC series (SMPTE 304)
- Outer Diameter: 9.2mm
- Construction: 2x SM 9/125 0.9mm fiber
- Auxiliary (power) cable: 4x20AWG 21/0.18TA O.D. units 1.7mm
- Signal (control): 2x25 AWG 7/0.18TA Unit O.D. 1.2mm
- Cable Weight: 12kg/100m
- Drum: Schill HT 485.RM
