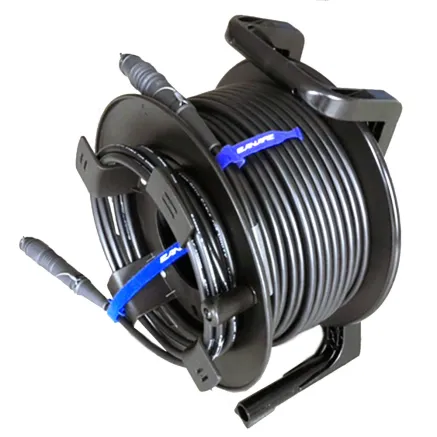

Canare SMPTE 311M hybrid cable on Schill drum 100m FCC100N+GT380.RM

SMPTE HFO Hybrid SMPTE 311M Camera-Ready Cable on Schill Drum

Length: 100 m

Technical Specifications

• Cable: Canare LF-2SM9N
• Outer Diameter: 9.2 mm
• Construction: Fiber 2x SM 9/125 0.9 mm
• Aux (Power): 4x20AWG 21/0.18TA Unit O.D. 1.7mm
• Signal (Control): 2x25 AWG 7/0.18TA Unit O.D. 1.2mm
• Cable Weight: 12 kg/100m
• Drum: Schill GT 380.RM
• Drum Dimensions (mm): 380 x 236 x 491
• Weight of Empty Drum: 4.30 kg
• Total Weight: 17.00 kg
