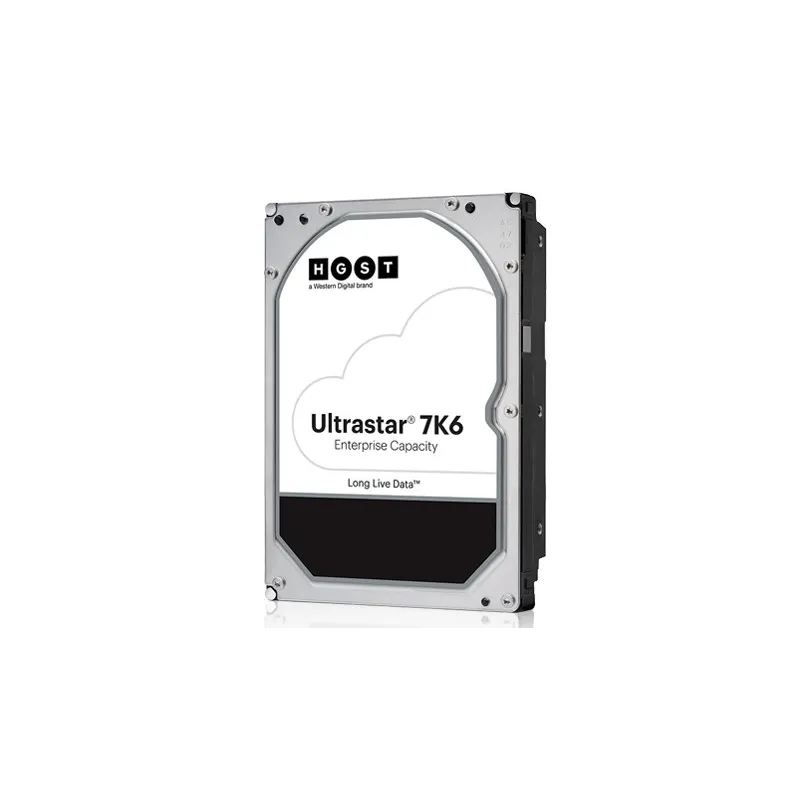

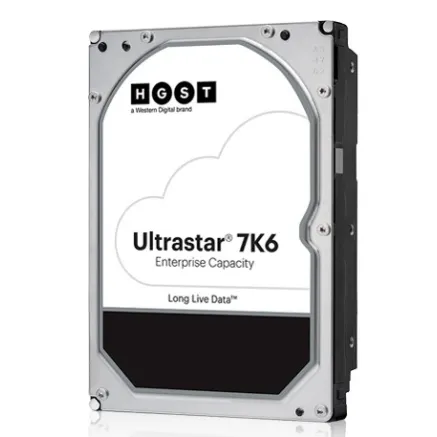

Western Digital Ultrastar 7K6 6TB SAS Hard Drive

Western Digital 3.5 6TB SAS

A 3.5 hard disk drive with a capacity of 6TB, ideal for servers and workstations.

Key Features

• Buffer Size: 256 MB
• Interface: SAS (Serial Attached SCSI)
• Speed: 7200 RPM

Specifications

• Average Latency: 4.16 ms
• MTBF: 2,000,000 hours
• Read Seek Time: 8 ms
• Write Seek Time: 8.6 ms
• Transfer Rate: 12 Gbit/s
• Start/Stop Cycles: 600,000

Power Consumption

• Idle: 7 W
• Typical: 12.1 W
• Operating Voltage: 5 / 12 V

Operational Conditions

• Storage Temperature: -40 to 70 C
• Operating Temperature: 5 to 60 C
• Operating Shock: 70 G
• Non-Operating Shock: 300 G

Dimensions & Weight

• Height: 26.1 mm
• Depth: 147 mm
• Width: 101.6 mm
• Weight: 715 g
