Blackmagic Design URSA Mini Recorder (BM-CINEURSASHMSSD2) BM-CINEURSASHMSSD2

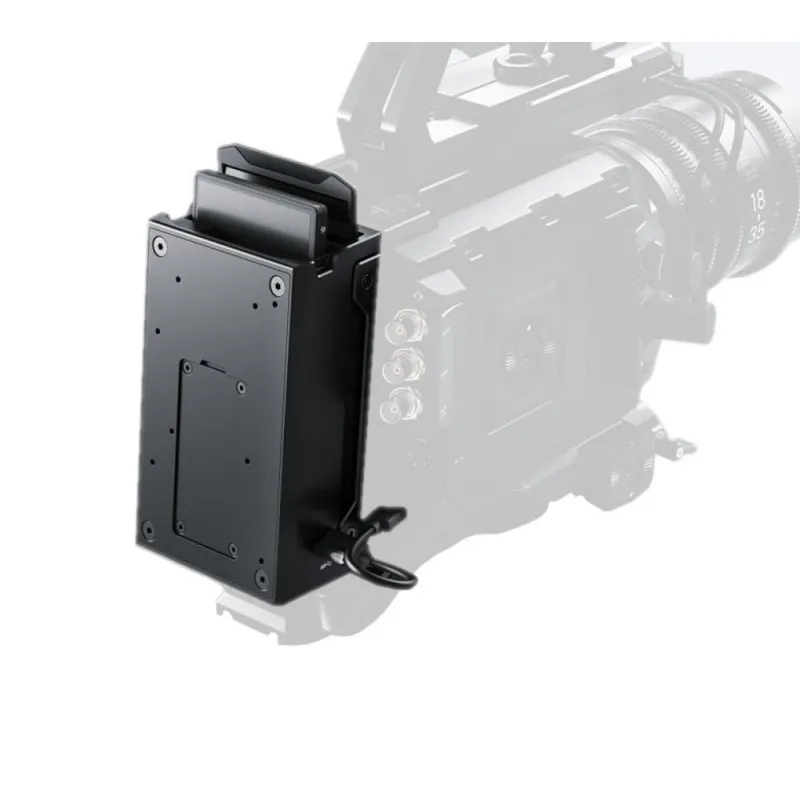

The new model of the optional Blackmagic URSA Mini Recorder external recorder enables recording of 12-bit 12K Blackmagic RAW files to powerful 2.5" SSD drives, including the latest generations of U.2 NVMe media. These drives are extremely fast and easily achieve transfer speeds of up to 900 MB/s for recording 4K, 8K and 12K Blackmagic RAW material at the highest Q0 quality. The recorder mounts to the rear panel, between the Blackmagic URSA Mini Pro 12K camera and the battery, and connects via a fast USB-C interface. Available from 8/9 2020.

Connections
Computer Interface
1 x USB Type-C 3.1 Gen 2 with locking screw for bidirectional data link with URSA Mini Pro 12K and software updates.

Media
1 x 2.5 inch SSD for 4K, 8K and 12K recording.

Supported Codecs
Blackmagic RAW Constant Bitrate 5:1, Blackmagic RAW Constant Bitrate 8:1, Blackmagic RAW Constant Bitrate 12:1, Blackmagic RAW Constant Bitrate 18:1, Blackmagic RAW Constant Quality Q0, Blackmagic RAW Constant Quality Q1, Blackmagic RAW Constant Quality Q3, Blackmagic RAW Constant Quality Q5.

Operating Systems

Mac 10.14 Mojave,
Mac 10.15 Catalina or later.

Windows 10.

Power Requirements
Power Connection
12-pin Molex connector with passthrough to battery plate.

EMC Certifications
FCC, CE and KCC.

Environmental Specifications
Operating temperature
0° to 40° C (32° to 104° F)

Storage temperature
-20° to 45° C (-4° to 113° F)

Relative humidity
0% to 90% non-condensing

What's Included
Blackmagic URSA Mini Recorder
URSA Mini SSD Recorder Mount Plate with mounting screws
USB Type-C SuperSpeed+ Cable with locking screw connectors

Warranty
12 Month Limited Manufacturer's Warranty.
