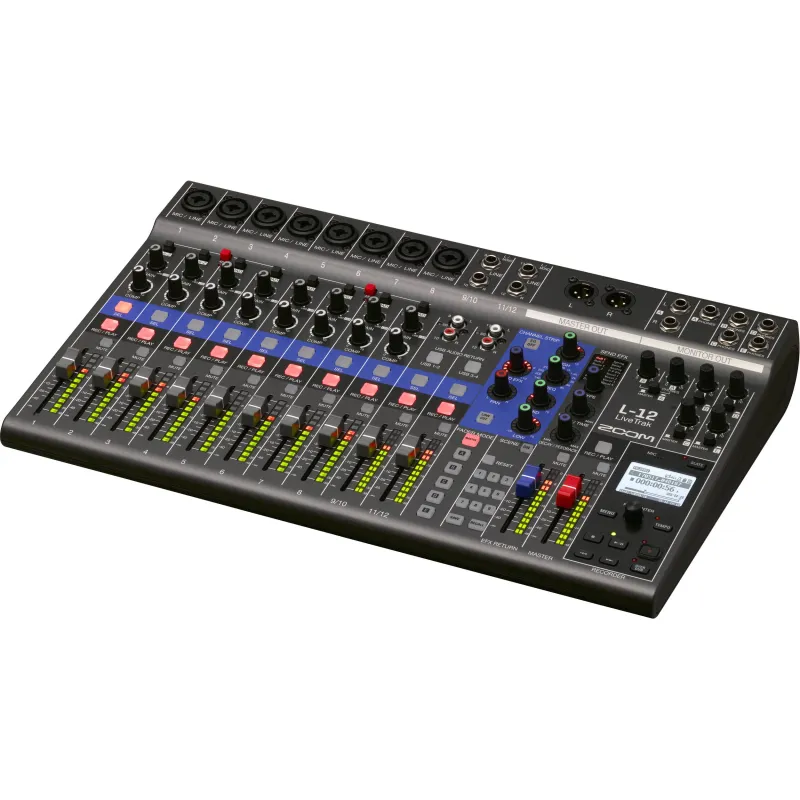

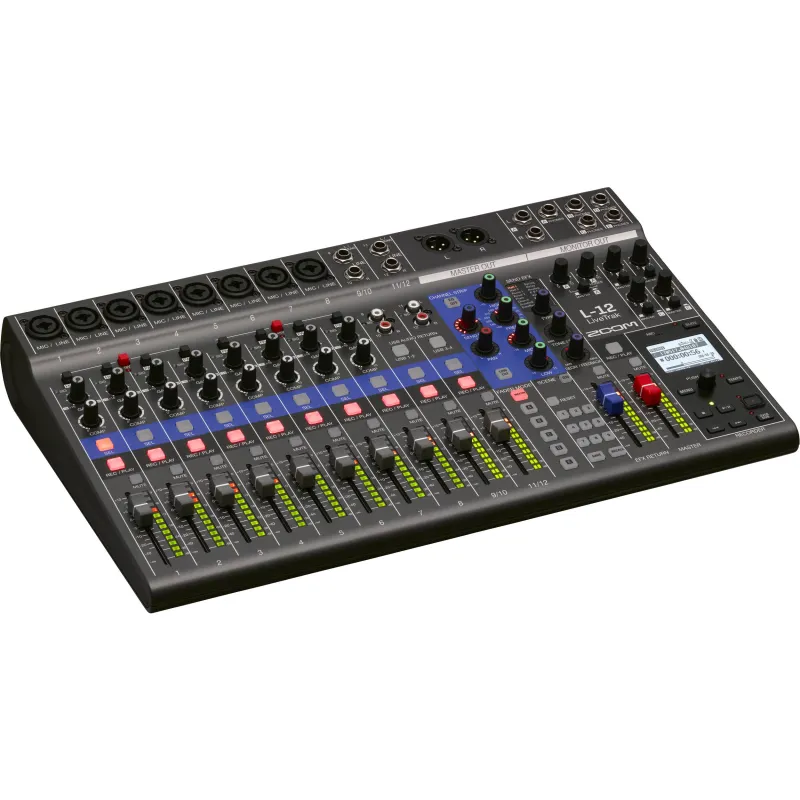

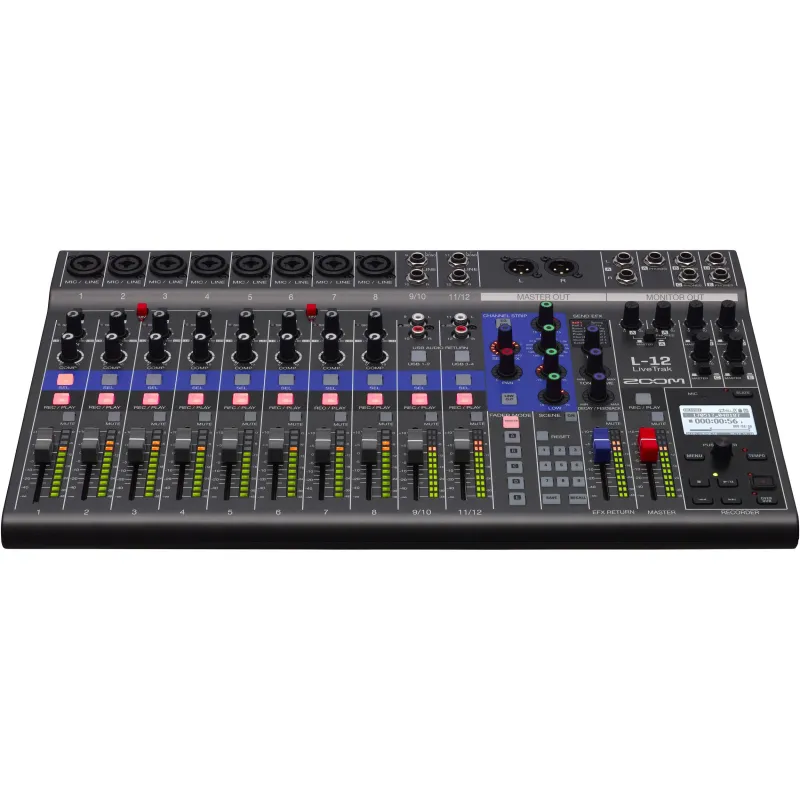

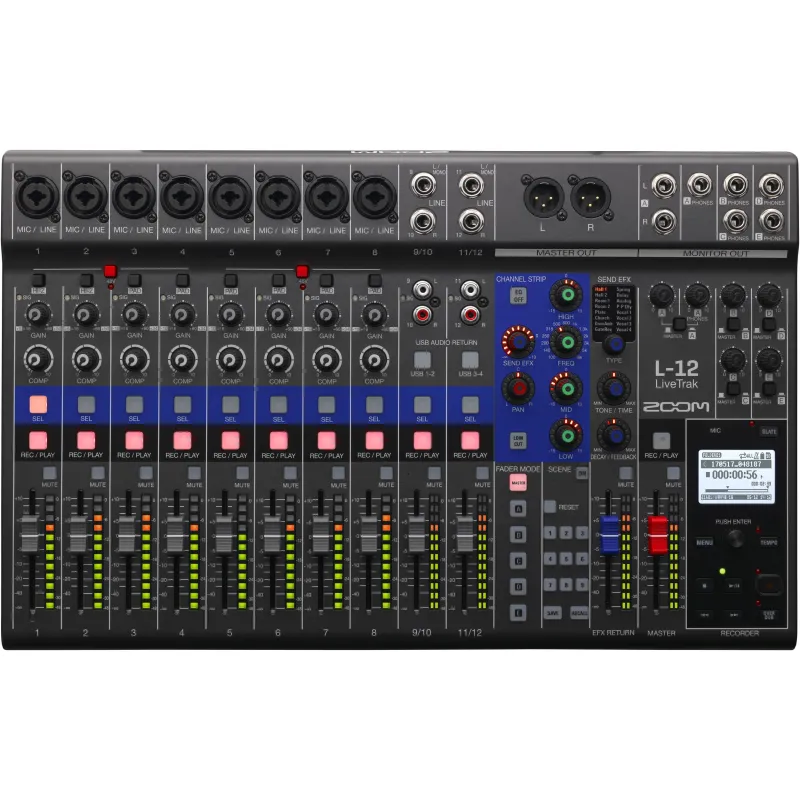

Zoom L-12 LiveTrak - 12-Channel Digital Mixer and Recorder
SKU: 31379
Ean: 4515260018079
Būklė: Naujas produktas
Pristatymas per 5 - 8 dienas
€ 649.46 su mokesčiais
| Type of Product | Recorders |
| Connector | XLR |
| Connector | USB |
Number of Inputs Mono (Mic/Line): 8 x Combo XLR-1/4" / 6.35 mm
Stereo (Line): 2 x 1/4" / 6.35 mm TRS, 4 x RCA (2 x stereo pairs)Number of Outputs Master Out: 2 x XLR
Monitor Out: A-E
Monitor A: 2 x 1/4" / 6.35 mm TRS
Monitor A-E: 5 x Headphone 1/4" / 6.35 mm TRSInput Gain Pad Off: +16 to +60 dB
Pad On: −10 to +34 dB
Hi-Z ON: +6 to +50 dBInput Impedance XLR: 3 kOhms
TRS: 10 kOhms/1 MOhm (when Hi-Z on)Maximum Input Levels Mono (Mic/Line)
Pad Off: 0 dBu (at 0 dBFS)
Pad On: +26 dBu (at 0 dBFS)
Stereo (Line): +16 dBuPhantom Power 48 V Maximum Output Levels Master Out: +14.5 dBu
Monitor A (TRS): +14.5 dBu
Monitor A-E (Headphones): 42 mW + 42 mW at 60 OhmsOutput Impedances 100 Ohms Buses Master: 1
Monitor: 5
Send EFX: 1Channel Control Channel Strip
Comp: Yes, channels 1 to 8
Low Cut: 75 Hz, 12 dB/oct
EQ
High: 10 kHz, ±15 dB, shelving
Mid: 100 Hz to 8 kHz, ±15 dB, peaking
Low: 100 Hz, ±15 dB, shelvingLevel Meters 12-segment Effects 16 types Recorder Maximum Simultaneous Recording Tracks:
14 at 44.1/48 kHz
12 at 96 kHz
Maximum Simultaneous Playback Tracks: 12
Recording Format: WAV 44.1, 48, 96 kHz, 16/24-bit, mono/stereo WAV format
Recording Media:
16 MB to 2 GB SD cards
4 to 32 GB SDHC cards
64 to 512 GB SDXC cardsAudio Interface 44.1 / 48 kHz Recording: 14 channels
Playback: 4 channels
Bit depth: 24-bit
Interface: USB 2.0Card Reader SDHC USB Host Class-compliant USB 2.0 high-speed Sample Rate (Audio) 44.1, 48, 96 kHz Frequency Characteristics 44.1 kHz: 20 Hz - 20 kHz (-1.0 dB)
96 kHz: 20 Hz - 40 kHz (-3.0 dB)Equivalent Input Noise Actual Measurements: 128 dB EIN (IHF-A) with +60 dB/150 Ohms input Display LCD with backlight (128×64 resolution) Power Supply AD-19 AC Adapter: 12 VDC / 2 A Dimensions (W x D x H) 17.5 x 11.1 x 2.8" / 445.0 x 282.0 x 70.5 mm Weight 5.6 lb / 2.5 kg
