Beamlink Quad Plus CVW 1000011570 Wireless HD Video Transmission
SKU: 19496
Būklė: Naujas produktas
Šiuo metu šio produkto negalima užsisakyti, prašome patikrinti vėliau.
€ 8 329.45 su mokesčiais
| Type of Product | Recorders |
| Connector | 3,5mm |
| Connector | USB |
| Connector | XLR |
CVW Crystal Video Beamlink Quad Plus
Redevelopment of the Beamlink Duo. Improvements are highlighted in bold.

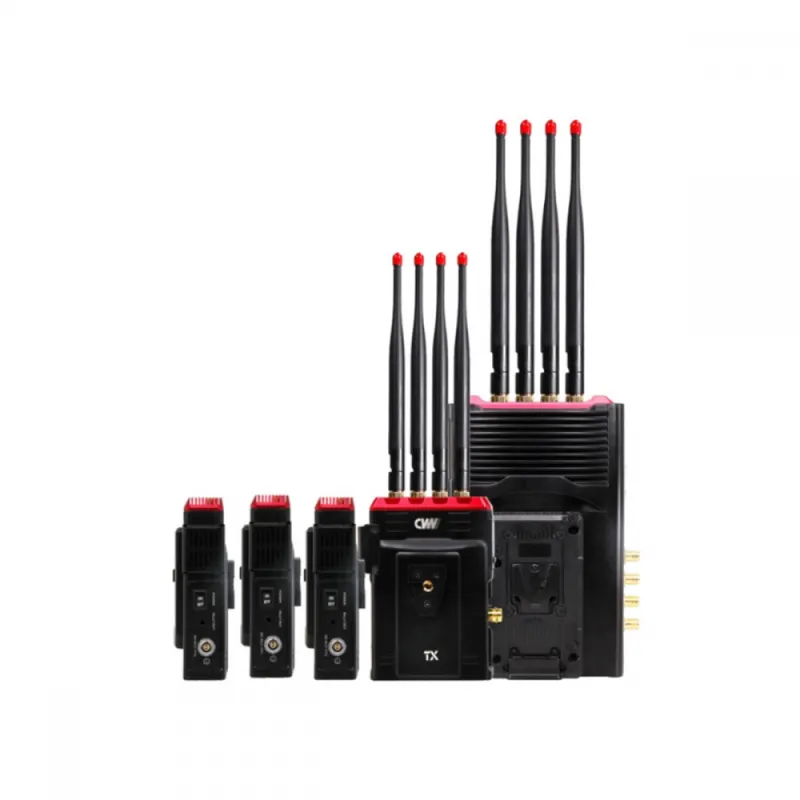

BeamLink-Quad,the 4 Transmitters-to-1 Receiver wireless HD video transmission system.
Features:
• Wireless HD, long distance transmission up to 800m range
• Channel Scanning
• Display shows signal strength
• Encoding / Decoding via H.265
• Combination interface for PTZ control
• 2TX-to-1RX, Tally function, support 2 channels HDvideo transmission
• In 1 RF channel provide a seamless connection between RX and video switcher
• Support both SDI and HDMI input
• Simple installation, convenient operation
• Flexible application
• Eliminate the hassle of running wires for multi-position.
Specifications
| Antenna Mode | 4×4 MIMO 5dBi External antenna |
| Frequency | 5.1~5.8GHz |
| Transmission power | 17dBm |
| Audio Format | PCM, MP2 |
| Receiving Sensitivity | -70dBm |
| Bandwidth | 40MHz |
| Power consumption | 10W |
| Transmission range | 800m(video code rate: 8Mbps per channel) |
| Temperature | 0~40 C(Working);-20~80 C(Storage) |
| Overvoltage Protection | 7V~17V |
| Product Size | 96(L)×46(W)×127(H) |
| Receiving Sensitivity | -70dBm |
| RX:BEAMLINK-Quad | |
| Antenna Mode | 4×4 MIMO 5dBiExternal antenna |
| Frequency | 5.1~5.8GHz |
| Receiving Sensitivity | -70dBm |
| Bandwidth | 40MHz |
| Audio Format | PCM,MP2 |
| SDI Protocol | SMPTE 424M 3G-SDI |
| Power consumption | 20W |
| Transmission range | 500m(video code rate: 8Mbps per channel) |
| Product Size | 176(L)×81(W)×235(H) |
| Operating voltage | 7-17V |
