LAOWA Proteus anamorphic 35/60mm silver PL/EF (Meter)
Pristatymas per 13 - 24 dienas
| Lens mount | Arri PL/Canon EF |
| Lens Design | Anamorphic Primes |
| Lens type | Lens Kit |
| Maximum Aperture | T2.0 |

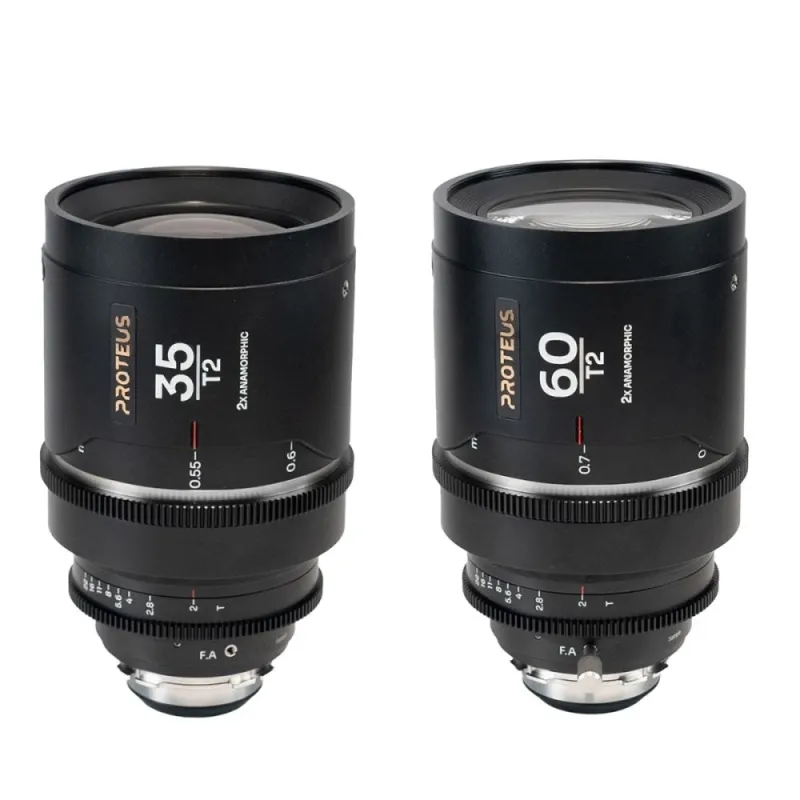

LAOWA Proteus anamorphic lenses 35/60mm silver PL/EF (Meter)
LAOWA Proteus are cine lenses with optimized optical properties for professional anamorphic productions. It is a series of anamorphic lenses with a constant 2x compression factor.
With its reliable anamorphic glass and robust construction, a Proteus is a modern piece of jewelry that combines a vintage anamorphic look with a unique character.
Features:
- Patented anamorphic design
- Constant 2x compression factor: you get a 2.66:1 on a 4:3 sensor and a 2.41 on a 4:3 sensor and a 2.4:1 on a 6:5 sensor after de-squeezing
- LAOWA Proteus supports the S35+ sensor format and covers the Alexa 35 sensor in 2.39:1 ratio and the Red V-Raptor sensor in 7K 6:5 ANA.
- Large T2 aperture
- Short focusing distance (55cm)
- Artistic oval bokeh
- Low focus breathing
- Excellent sharpness
- Full frame coverage with 1.4x extender
- Professional cine case
Specifications:
| Proteus 35mm T2 2X S35 | Arri PL Proteus 60mm T2 2X S35 |
focal length | 35mm | 60mm |
Horizontal image angle | 73° | 46,7° |
Angle of view vertical | 34,3° | 20,4° |
Image circle | 25,92x21,6mm | 25,92x21,6mm |
compression factor | 2X | 2X |
Sensor type | S35 | S35 |
Flare color | silber | silber |
Maximum aperture | T2 | T2 |
Minimum aperture | T22 | T22 |
Aperture blades | 10 | 10 |
Aperture setting | manuell | manuell |
Aperture ring | infinitely variable | infinitely variable |
Optical structure | 17 units in 14 groups | 17 units in 14 groups |
Back-to-back dimension | Arri PL: 52mm / Canon EF: 44mm | Arri PL: 52mm / Canon EF: 44mm |
Focus rotation angle | 300° | 300° |
Aperture rotation angle | 60° | 60° |
Focus scale | Metric | Metric |
Focusing | manuell | manuell |
Close focusing limit | 55cm | 70cm |
Follow focus pitch | 0,8mm | 0,8mm |
Image scale | - | - |
Filter thread | 105mm | 105mm |
Dimensions (DxL) | ca. 119,6x182mm | ca. 119,6x198mm |
Weight | ca. 2400g | ca. 2300g |
material | Metall | Metall |
Connection | Arri PL | Arri PL |
Delivery Content:
- 1x Proteus 35mm T2 2X S35
- 1x Proteus 60mm T2 2X S35
- Backcover
- Frontcover
- Canon EF Mount
- tripod adapter
- Sims
- screws
- tools
- hard case
