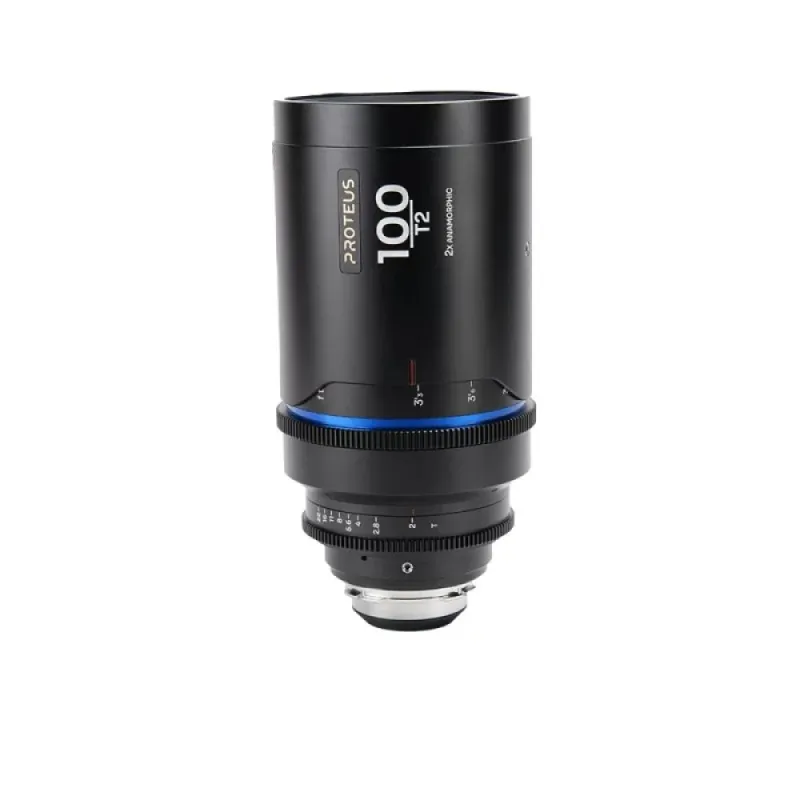

Laowa Proteus 2X Anamorphic 100mm T2 - Blue (Meters) Arri PL (Default) + EF

Laowa Proteus 2X Anamorphic 100mm T2 - Blue (Meters)

The Laowa Proteus 2X Anamorphic lens transforms image data from a 43 sensor into a 2.661 aspect ratio and from a 65 sensor into a 2.41 ratio, with cropping options for a 2.391 aspect ratio. It supports S35+ sensor formats, covering the Alexa 35 and Red V-Raptor 7K sensors.

With a large T2 aperture, this lens excels in low-light conditions, producing sharp images and effective background separation. Optimal image quality is achieved at T4 aperture. The close focus distance is just 48 cm, and the 2x squeeze factor creates elongated bokeh, characteristic of anamorphic lenses.

Available flare colors include blue, amber, or silver.

Features

• Patented anamorphic design
• Constant 2x squeeze factor
• Large T2 aperture
• Short close focus distance
• Artistic oval bokeh
• Minimal focus breathing
• Exceptional sharpness
• Full-frame coverage with 1.4x extender
• Professional cine housing
• Available flare colors: silver, blue, amber

Delivery Content

• 1x Proteus 2X Anamorphic 100mm T2 Blue (PL-Mount)
• 1x EF mount
• 1x rear lens cap
• 1x front lens cap
• Shims
• Tools
• Lens support
• Case

Technical Specifications

Focal Length: 100 mm

• 18 lens elements in 14 groups
• Horizontal angle of view: 29.1 degrees
• Vertical angle of view: 12.3 degrees
• Sensor type: S35
• Maximum aperture: T2
• Minimum aperture: T22
• 10 aperture blades
• Manual, stepless aperture adjustment
• Manual focus
• Close focus distance: 99 cm
• Filter thread: 105 mm
• PL mount (EF mount included)
• Dimensions: approx. 11.6 x 24 cm
• Weight: approx. 2800 g
