DZOFILM Cine Lens Catta Zoom 70-135 T2.9 Black for E Mount
Produkto numeris: 50570
| Lens mount | Sony E |
| Lens Design | Zoom Lenses |
| Lens focus length, mm | 70-135 |
| Lens type | CINEMA |
| Maximum Aperture | T2.9 |
DZOFILM Cine Lens Catta Zoom 70-135 T2.9 Black for E Mount (FF) (DZO-FF70135E-BLK)
The concept of DZOFILM is to explore more possibility and incorporate it into daily filming and thinking. At DZOFILM it is all about the interaction and the relationship between the cinematographer and their projects.
There is no need to look for other cine-lenses or hesitate. DZOFILM is dedicated to balance the harmony between aesthetics and utility and keep their cine-lenses compact and versatile. This way DZOFILM cine-lenses are enabling a swift and fast workflow and amazing footage.

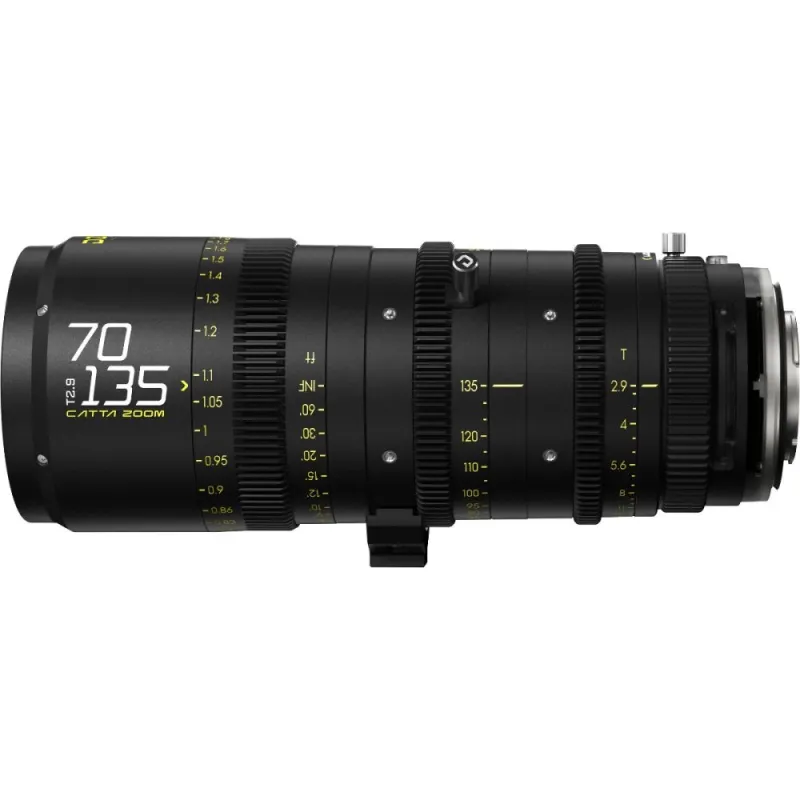

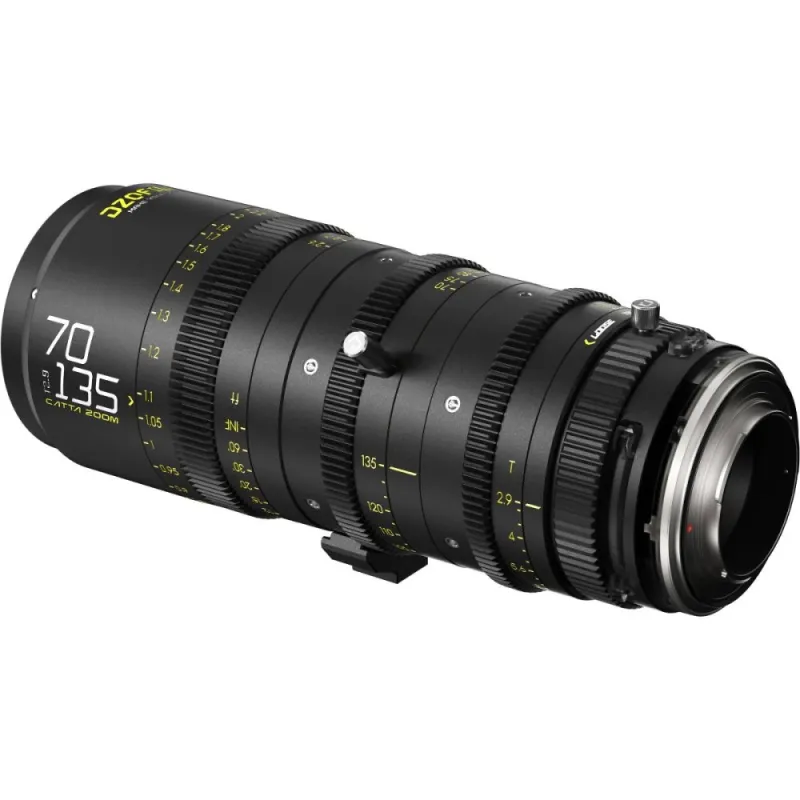

Cine Zoom Lens Catta 70-135mm T2.9 with Sony E-Mount (black)
- Maintains focus throughout 70 to 135mm zoom range
- Minimal breathing
- 16-blade iris with a soft bokeh
- T2.9 to T22 aperture; 1.9x magnification ratio
- 270° focus rotation; 100° zoom rotation; 80° iris rotation
- 76cm minimum focus distance
- 80mm front diameter
- 0.8 MOD gears
This cine lens is designed to maintain focus as you zoom in or out. The Catta line reproduces accurate color and features a smooth focus/defocus transition. It features a wide T2.9 to T22 aperture, a 16-blade iris for a smooth bokeh, and a long 76cm close focus range.
True to its cine design, it has a focus rotation of 270°, a 100° zoom rotation range, and a 75° iris rotation range. The lens features a Sony E-mount, and it can be easily interchanged with optional RF, L, X, and Z mounts. Multiple accessories are included with the lens, including front and rear lens caps, a shim set, a support base, a support rod, and a filter bracket.

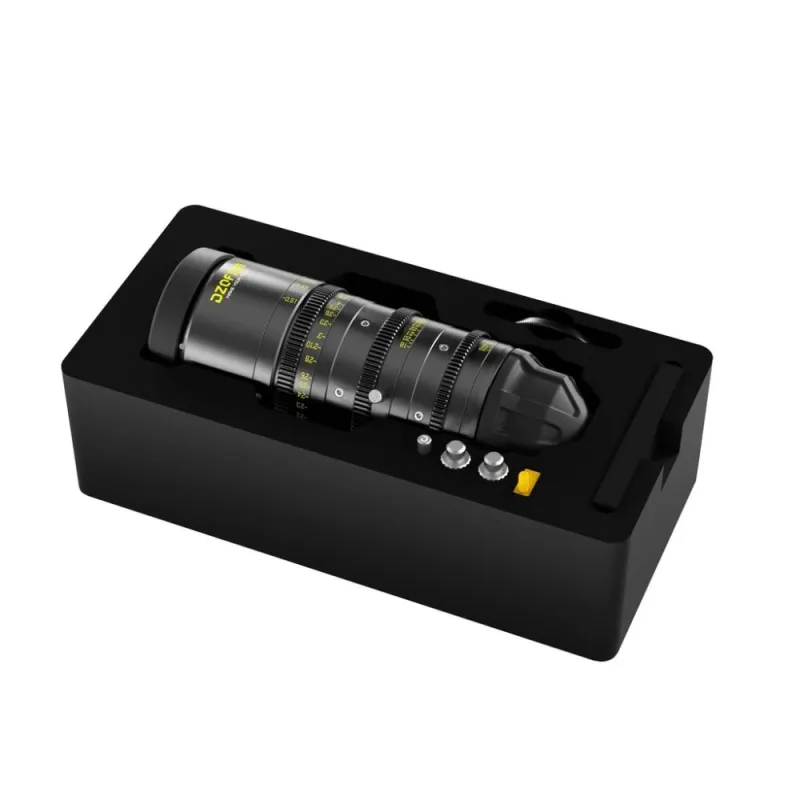

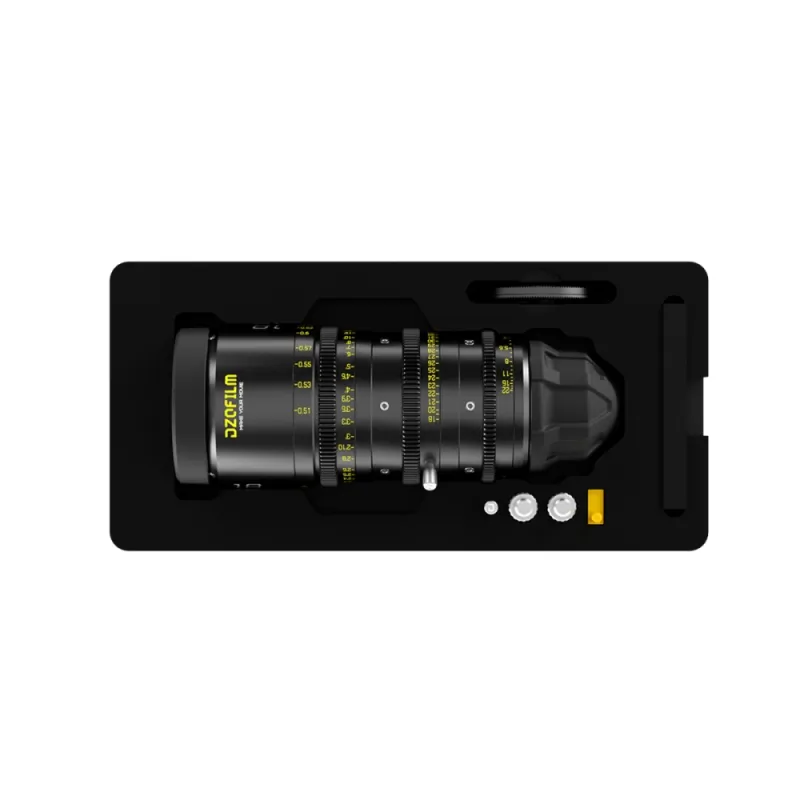

In the Box
1x DZOFILM Catta 70-135 T2.9 E Mount Cine Zoom Lens (Black)
Specifications
- Focal Length
- 70-135mm
- Colour
- Black
- Mount
- E / RF* / L* / X* / Z* (*optional)
- T-stop
- T2.9 - T22
- Image circle
- Ø 43.5mm (FULL FRAME)
- Optical Construction
- 17 Elements in 11 Groups
- Flange Distance
- E=18mm, L/RF=20mm, X=17.7mm, Z=17mm
- Close Focus (from Sensor Plane)
- 0.76m (2ft6in)
- Zoom Ratio
- 1.9X
- Iris control
- Manual (rotation angle 80°)
- Focus control
- Manual (rotation angle 270°)
- Zoom control
- Manual (rotation angle 100°)
- Front Diameter
- Ø 80mm
- Length
- 214.4mm
- Iris Blades
- 16
- Filter Size
- M77
- Gear Pitch
- 0.8 Mod
- Material
- PC+GF
- Weight
- ≈1597g
