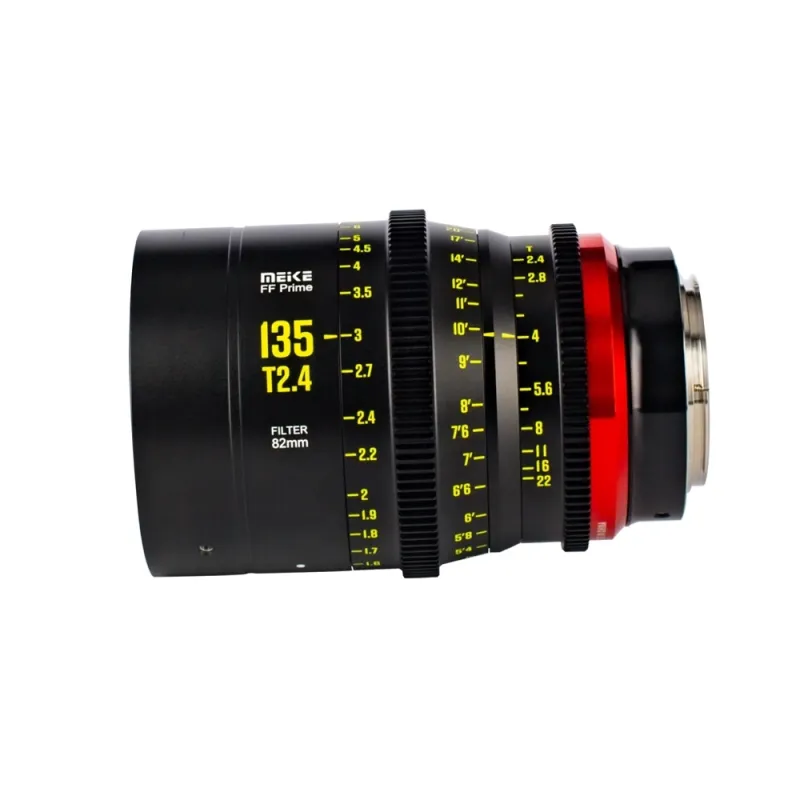

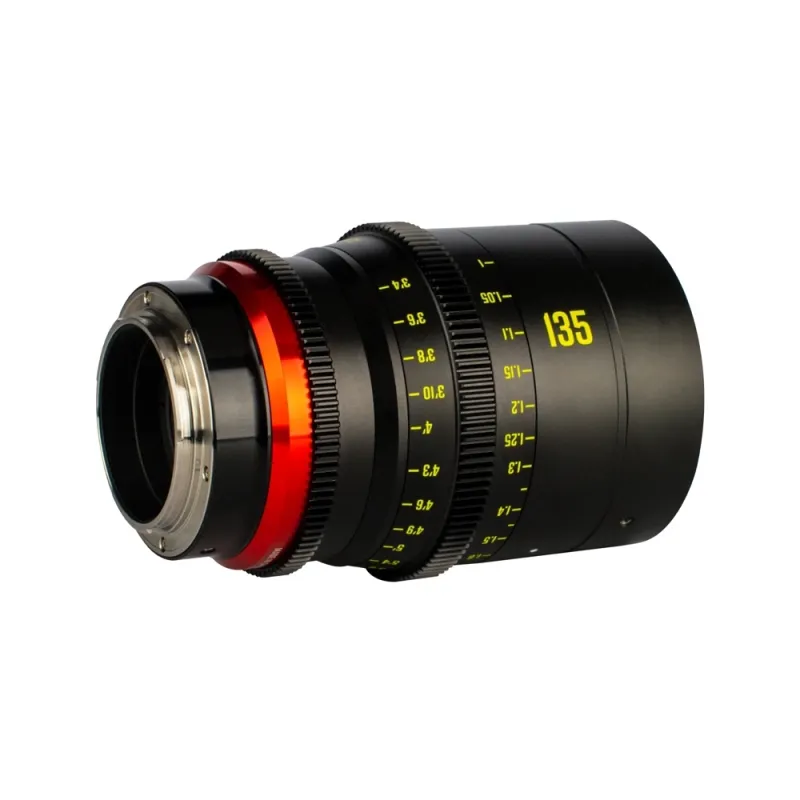

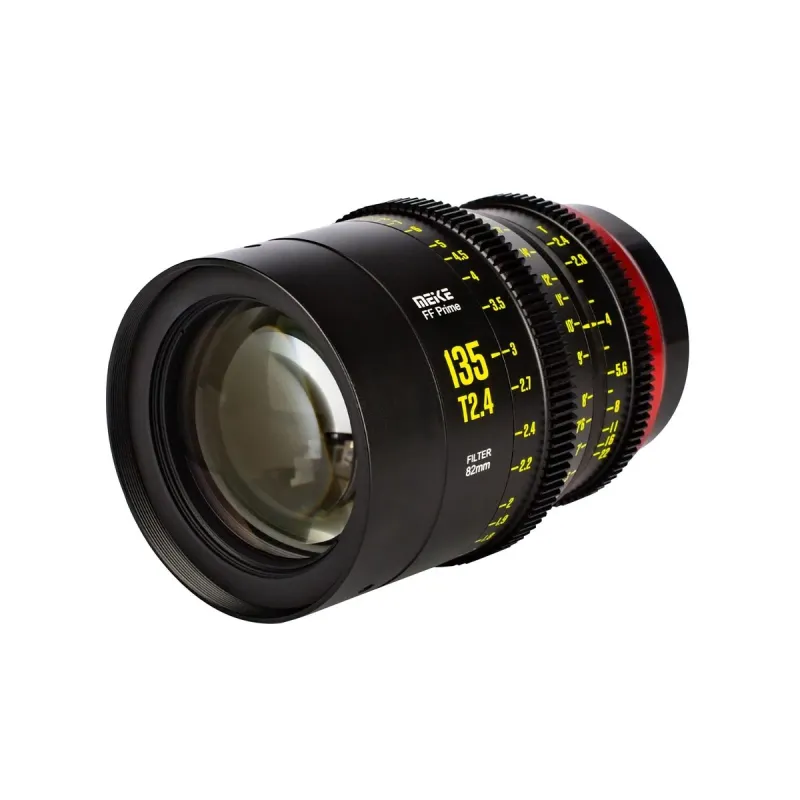

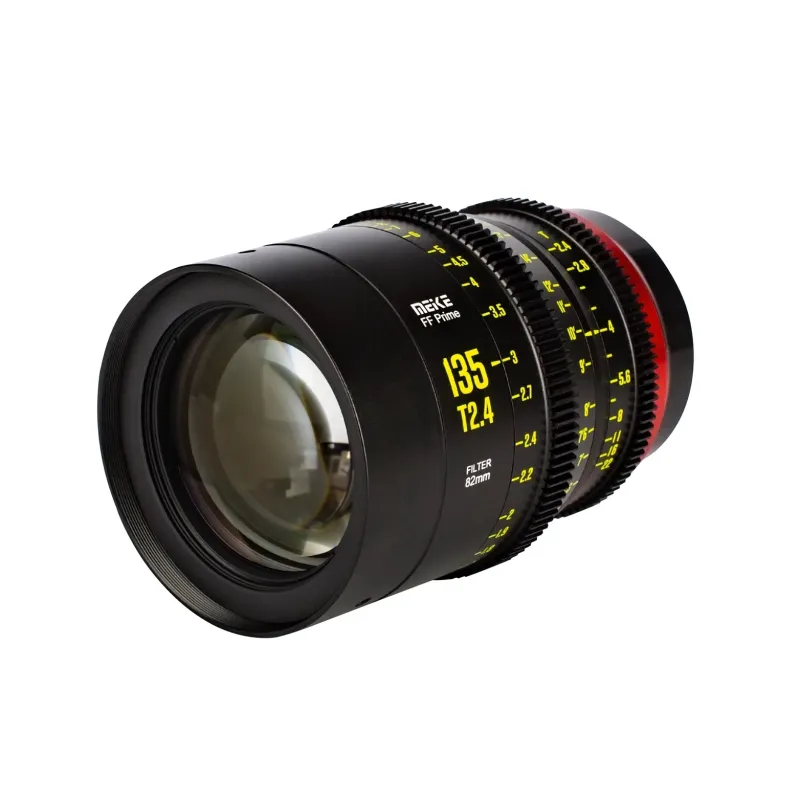

Meike MK 135mm T2.4 Canon RF Mount 21300003

This is Meike’s seventh FF cine lens and it now joins the FF cine lens family.  It covers an image circle of 45mm. It is available in either PL, Canon EF, Canon RF, Sony E, and Panasonic L mounts. It has industry-standard 0.8mm pitch gears on the focus and aperture ring.The lens design of the Meike 135mm T2.4 FF-Prime consists of 12 elements in 8 groups.The aperture mechanism consists of 17 aperture blades. The minimum focus distance is 100cm.

• Lens Mount:     PL/EF/RF/E/L
• Aperture Range: T2.4-T22
• Diaphragm blades: 17
• Focal Length: 135mm
• Filter Thread: Ф 82mm
• Outer Diameter:85mm
• Minimum focusing distance: 100cm
• Lens Structure: 12 elements in 8 groups
• FF View of Angle:
• Diagonal 18.5°
• Horizontal 15.4°
• Vertical 10.3°
• Aps-C View of Angle:
• Diagonal 12.1°
• Horizontal 10.1°
• Vertical 6.6°
