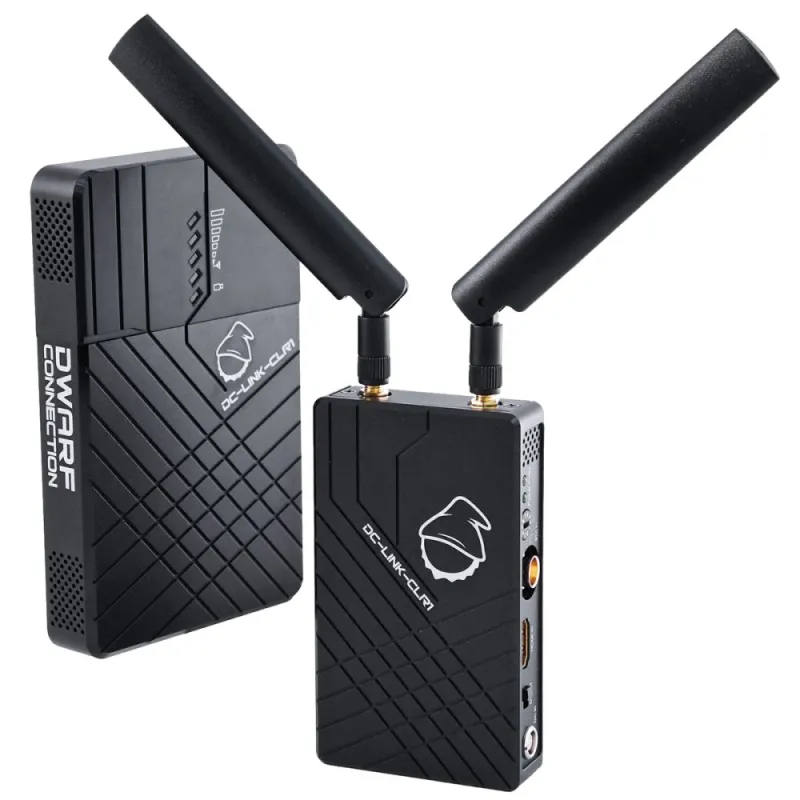

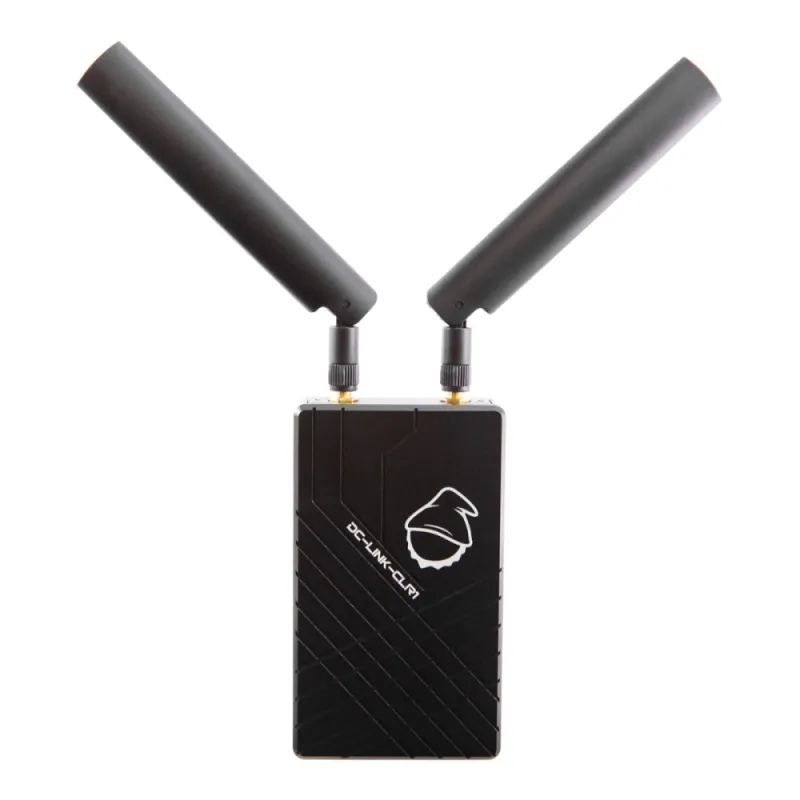

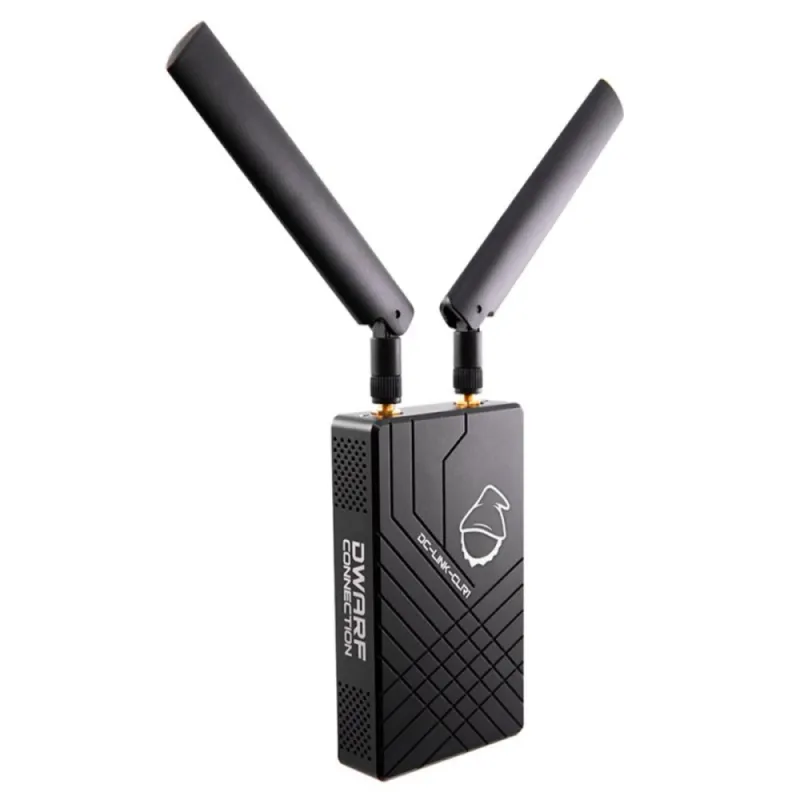

DwarfConnection DC Link CLR1 WHDI Video Transmission System

DwarfConnection DC Link CLR1 WHDI Video Transmission System

The DC-Link-CLR1 is a high-performance WHDI video transmission system that can transmit uncompressed video and audio signals up to 250m with low latency (1 ms delay).

• Real-Time Transmission
• Uncompressed Transmission in 422 10-bit up to 1080p60 (3G-SDI & HDMI)
• 250m Range
• Compact design & durable Metal Casing
• Approved for indoor use
• Rapid and Reliable Connectivity
• Works in the License-free 5GHz ISM Frequency Band

Due to the decision not to implement the DFS System, the device has a longer range and better usability than comparable systems, but is only authorized for indoor use.

The system is compatible with the DC-Link-LR1 Video Transmission System. Four receivers can be used for every transmitter.

In the Box

• 1x Transmitter
• 1x Receiver
• 2x External Antennas
• 2x DC Adapter Cables
• 2x Power Supplies
• 1x Pro Clamp
• 1x Magic-Arm with 1/4 Screw
• 1x Hot Shoe Adapter
• 1x Slot Screwdriver
• 1x Quickstart Manual
• 1x Transport Case

Technical Data

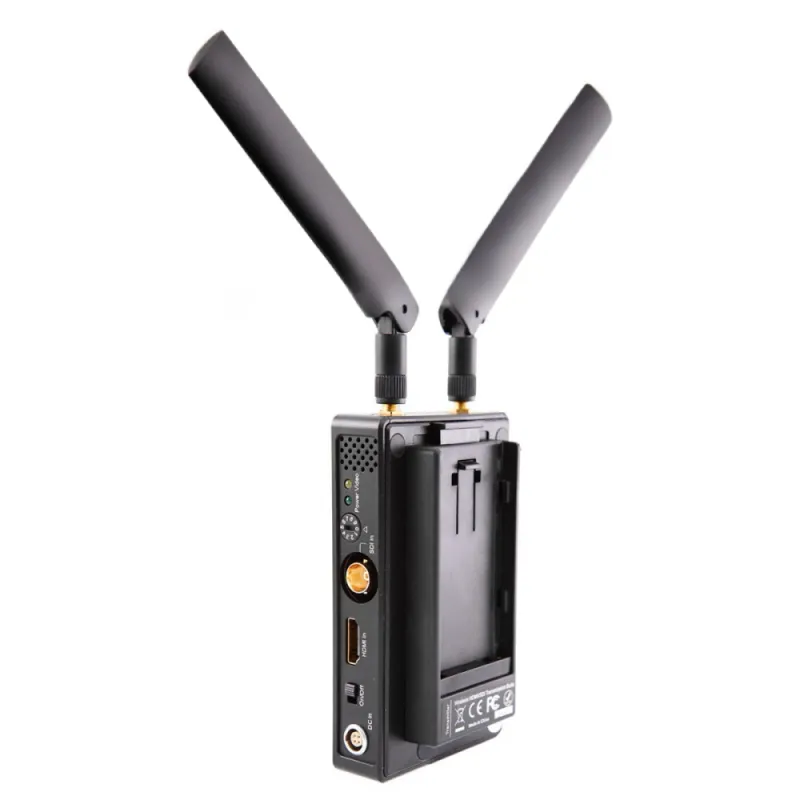

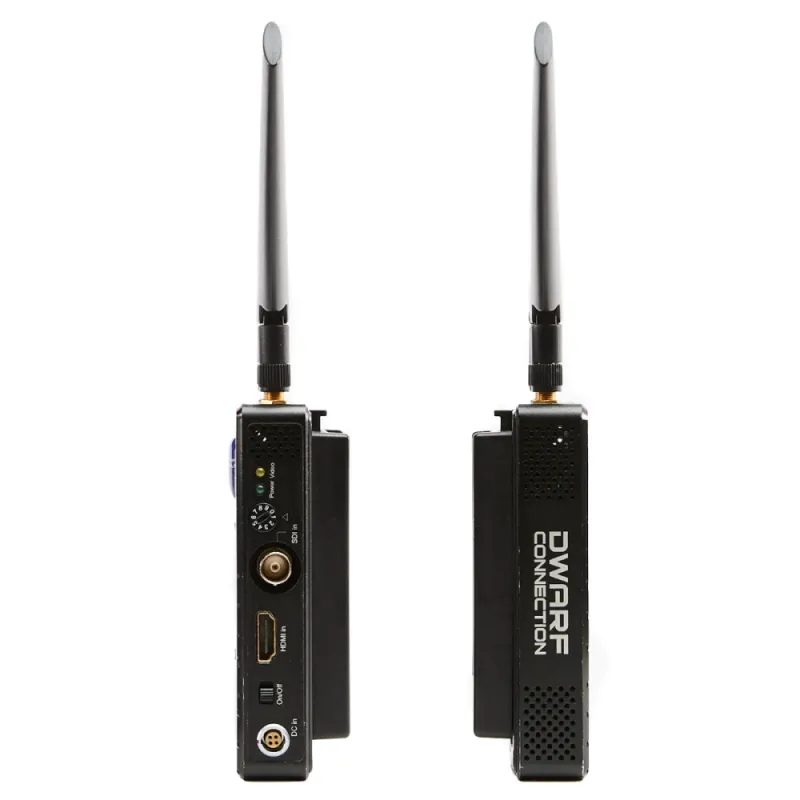

Transmitter

1x 3G/HD/SD-SDI Input

1x HDMI Input

Frequency Range 5.1-5.9GHz

Power 6.5 - 16.8V

Power Consumption 6.5W

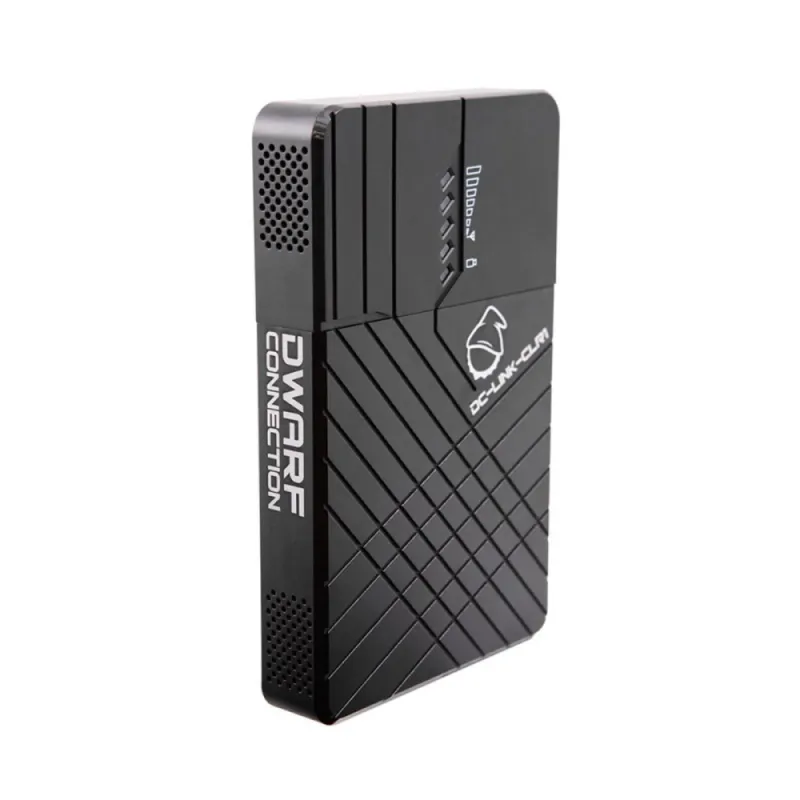

Receiver

1x 3G/HD/SD-SDI Output

1x HDMI Output

Video Formats

SDI/HDMI 1080p, 1080i, 720p, 576i, 480i

Audio

SDI embedded Audio - 2 Channel (Ch1, Ch2) 48KHz/24bit

Weight

Transmitter 0.270kg

Receiver 0.355kg
