DJI Video Transmitter CP.RN.00000180.01

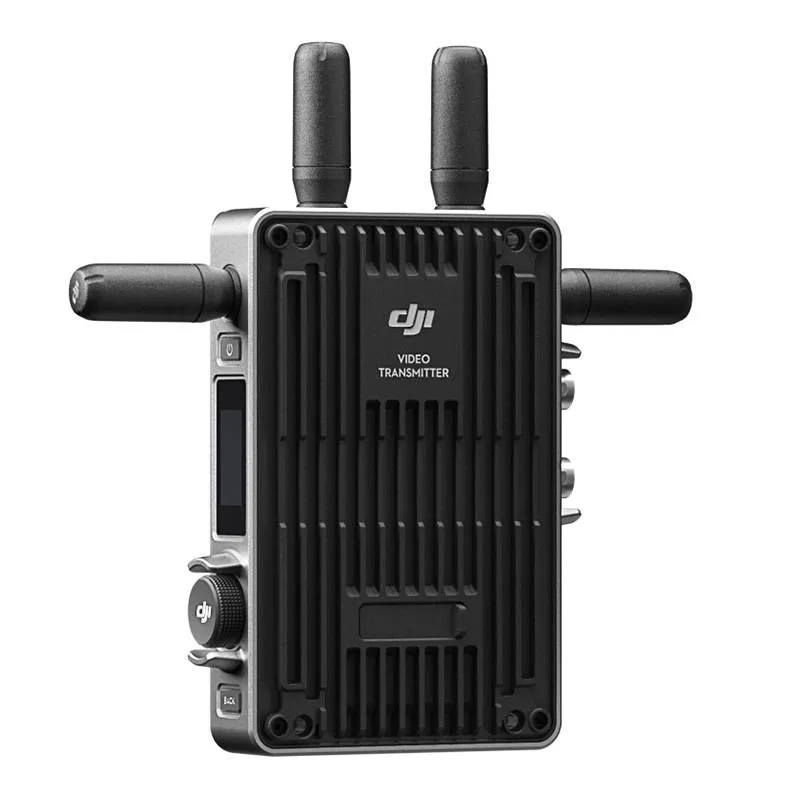

DJI Video Transmitter

Enhance your film set experience with the DJI Video Transmitter, utilizing DJIs latest O3 Pro technology for reliable long-range transmission. It operates on 2.4 GHz, 5.8 GHz, and DFS bands, featuring AES 256-bit encryption for secure content protection. Transmit 1080/60FPS FHD video to multiple remote monitors simultaneously, ensuring stable transmission and resistance to interference. Note: The DJI Video Transmitter requires the DJI High-Bright Remote Monitor, sold separately.

Included in the Box

• DJI Video Transmitter x1
• Ronin Video Transmission Antenna x2
• WB37 Battery Adapter (TX) x1
• NP-F Battery Adapter (TX) x1
• USB-C Cable x1
• SDI Cable x1
• DJI DC Power Cable x1
• DC Power Cable to P-TAP x1
• USB-C to LEMO Power Cable x1
• RS Gimbal Mounting Plate x1
• Mounting Tool Set x1

Specifications

• Manufacturer: DJI
• Model: DJI Video Transmitter
• Max Transmission Range: Approx. 6 km (FCC), 4 km (CE / SRRC / MIC)
• Max Resolution & Frame Rate: 1920x1080 at 60FPS
• Operating Frequency: Non-DFS bands 2,400-2,484 GHz, 5,150-5,250 GHz, 5,725-5,850 GHz; DFS bands 5,250-5,350 GHz, 5,470-5,600 GHz, 5,650-5,725 GHz
• Max Bandwidth: 40 MHz
• Compatibility: DJI High-Bright Remote Monitor, DJI Ronin 2, DJI RS 3 Pro
