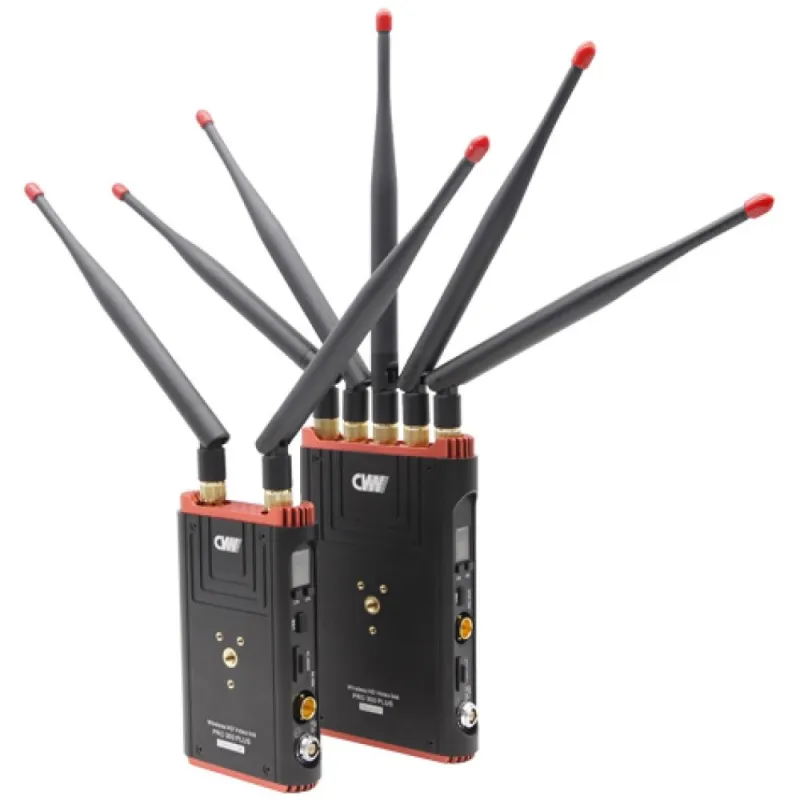

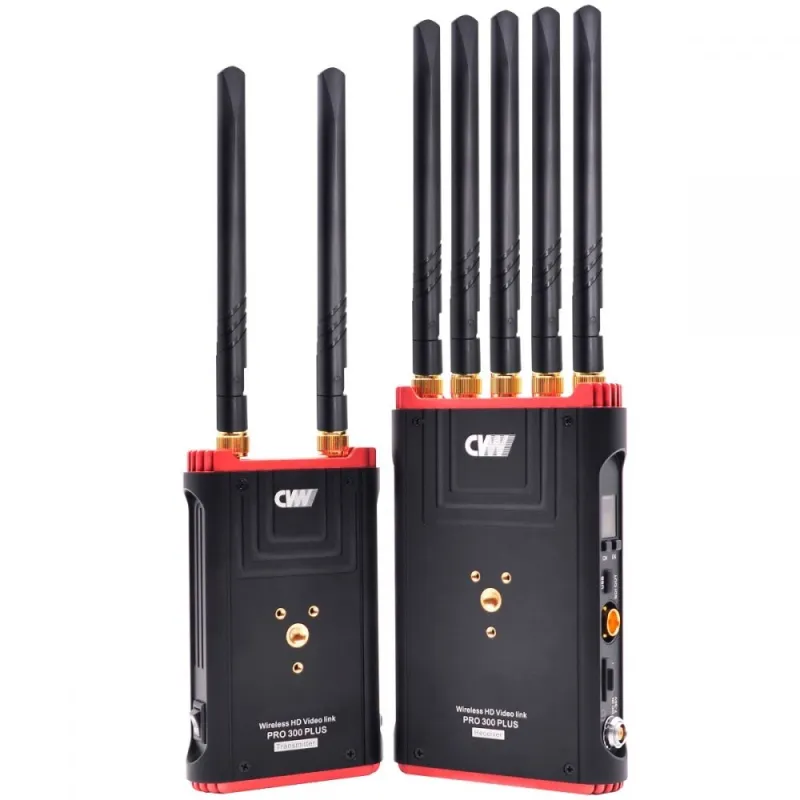

CVW Crystal Video Pro300 Plus-2R Wireless Video Transmission

Pro300 Plus provides you more convenient and safer solution for live broadcasting. With the advantage of long distance transmission, plug-and-play usage, it can satisfy your various indoor and out door shooting requirements. With addition of its free cable wiring needed,it will bring much safer and more rofessional experience to you!

• latency under 1ms
• 3G-SDI / HDMI connections
• Range with visual contact: 300m
• Frequency range (EU): 5150 - 5250 MHz / 5725 - 5825 MHz
• Bandwith: 40MHz
• Video in Full HD 1080/60p (uncompressed 4:2:2 at 10bit)
• Audio formats: PCM, DTS-HD, Dolby True HD
• Frequency selection: manually with buttons (Control via LED display)
• Mounting options: internal thread (hot shoe adapter included)
• Timecode transmission
• Metadata transfer
• Battery mount: V-mount bracket on both sides
• Power consumption: 8W (Tx), 7W (Rx)
• Exquisite design; plug & play; simple installation
• In consideration of portable demand, V buckle design can enable you to install high-capacity battery
• Reliable and stable; LEMO socket for more stable power supply;strong anti-jamming capability

• 1x 3G-SDI
• 1x HDMI Out
• 1x Mini USB
• 1x DC In 7 - 36 V, Lemo compatible plug, 2-pol (f)
• 5x antenna

• 1x 3G-SDI In
• 1x HDMI In
• 1x Mini USB
• 1x DC In 7 - 36 V, Lemo compatible plug, 2-pol (f)
• 2x antenna

Delivery Contents:

The system works without DFS. This gives you the opportunity to choose free radio channels in the 5Ghz range yourself. Depending on the environment or the requirements of the organizer, a change of channel can be useful or mandatory. Please note that, depending on the location, if this cannot be classified as indoor or indoor similar (such as football stadiums), DFS is mandatory in some countries.

Specifications

Transmitter

Transmission power

16dBm

Frequency

5.1-5.9GHz

Antenna Mode

2*5 MIMO 5dBi External antenna

Power consumption

7-8W

Operating voltage

DC12V/2A(6V-17V)

Videoformat

480i, 480p(SDI),576i, 576p (SDI)

720p, 1080i, 1080p

Audio Format

PCM, DTS-HD, Dolby True HD

Transmission Distance

Open space up to 300 meters

Product size (mm)

121.5(L)*83.5 (W)*35(H)

Mechanical Interface

1/4 inch nut in bottom

Temperature

-10~50 C(Working)；-40~80 C(Storage)

Bandwith

40 MHz

LCD screen display

Frequency point setting, signal strength indication, connection status display

Receiver

Frequency

5.1-5.9GHz

Antenna Mode

2*5 MIMO 5dBi External antenna

Power consumption

12W

Operating voltage

DC12V/2A(6V-17V)

Videoformat

480i, 480p(SDI),576i, 576p (SDI)

720p, 1080i, 1080p

Audio Format

PCM, DTS-HD, Dolby True HD

Transmission Distance

Open space up to 300 meters

Product size (mm)

162.7(L)×107.5(W)×68.3(H)

Mechanical Interface

1/4 inch nut in bottom

Temperature

0~40°C(Working)；-20℃～+80℃(Storage)

Bandwith

40 MHz

Receiving Sensitivity

-70dBm

LCD screen display

Frequency point setting, signal strength indication, connection status display
