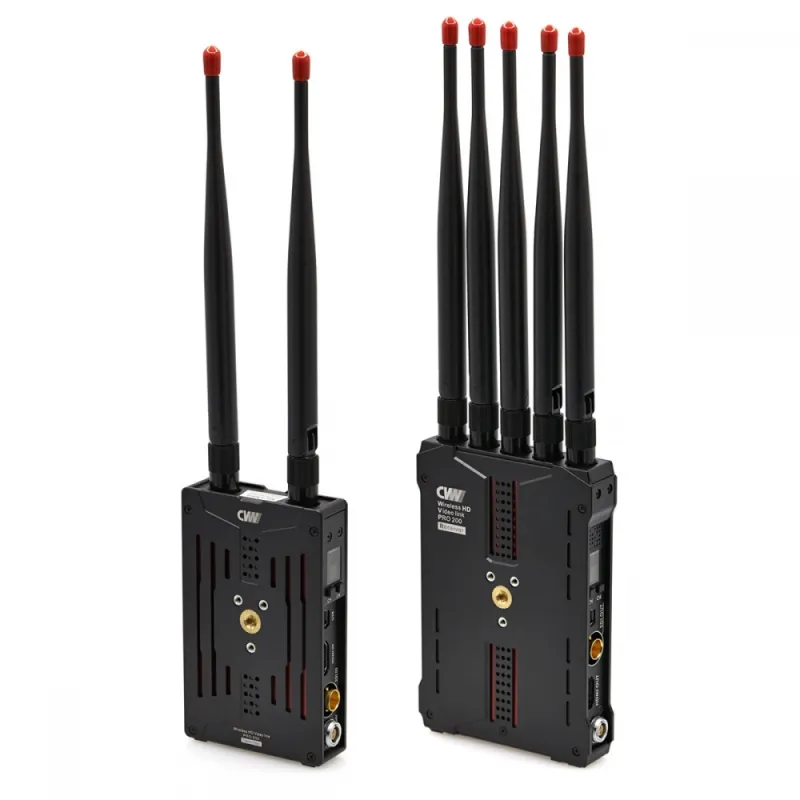

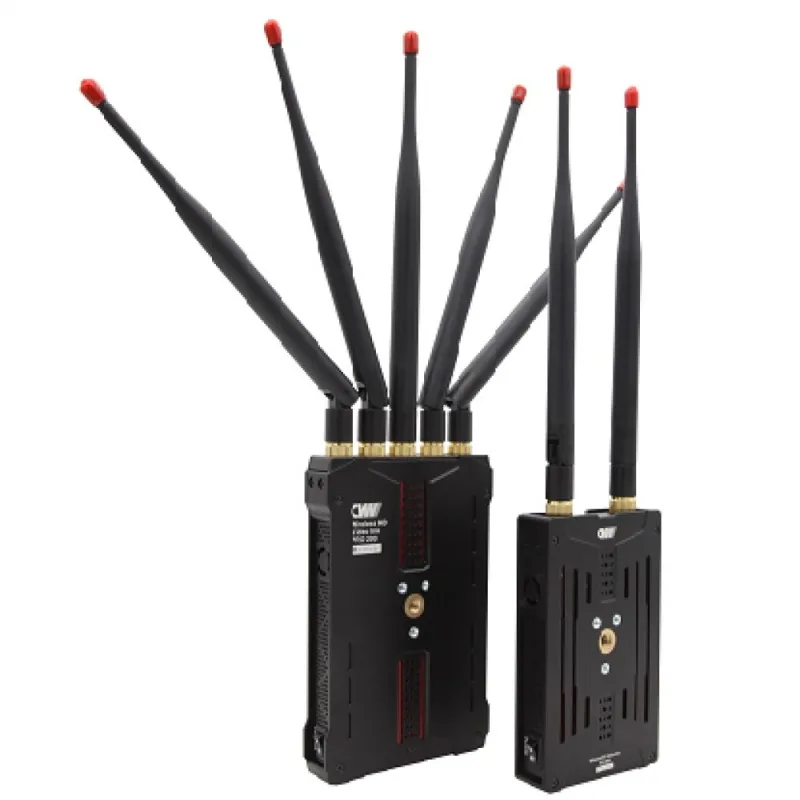

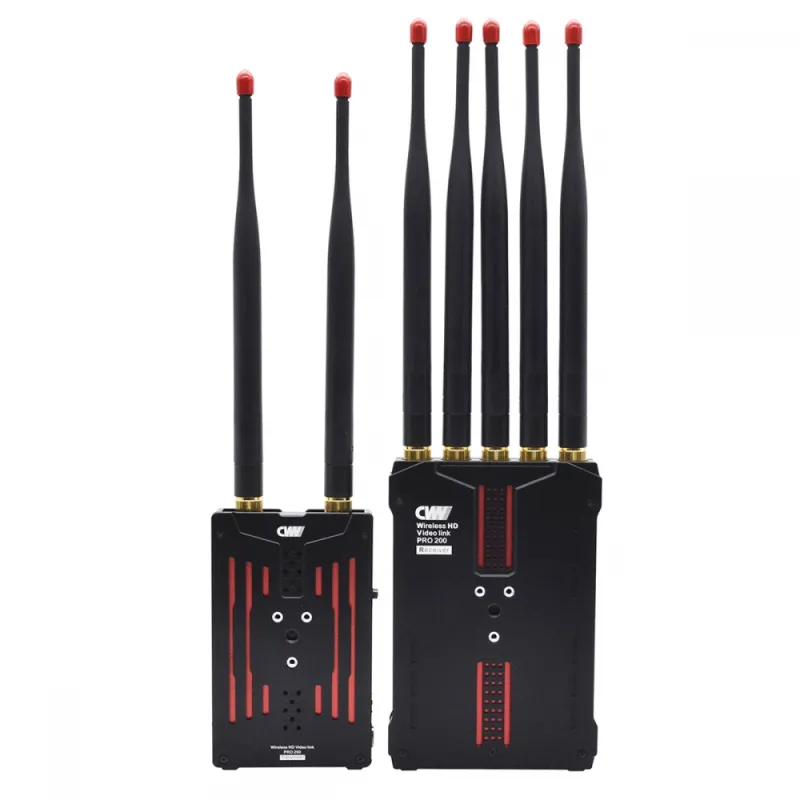

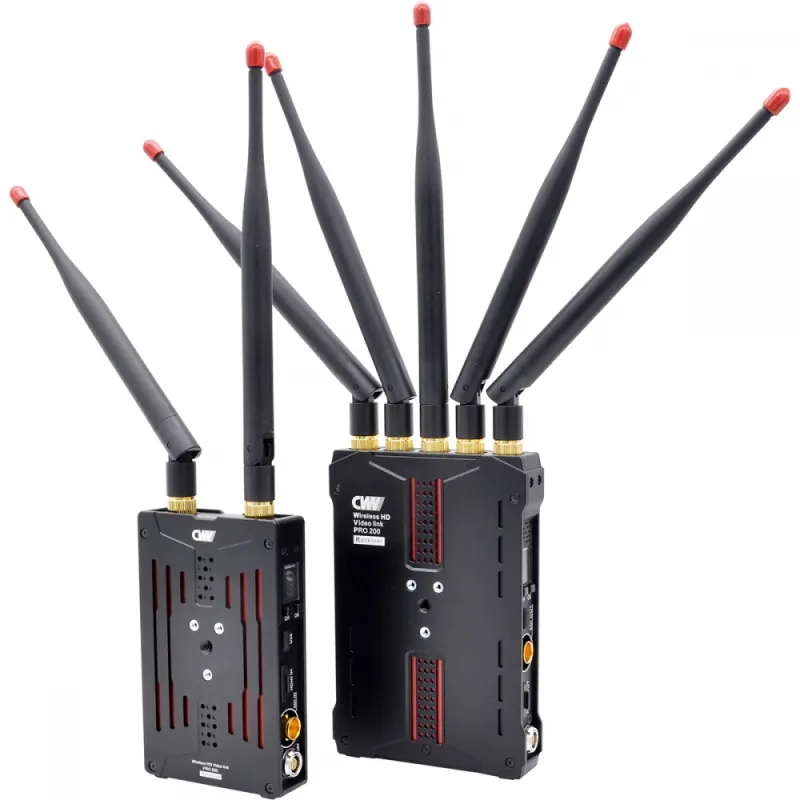

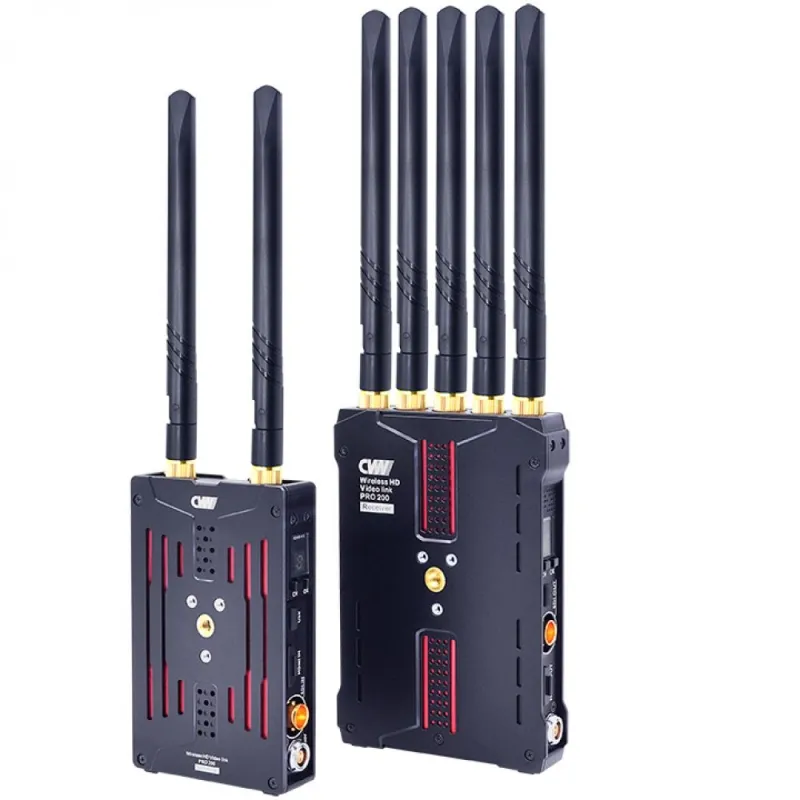

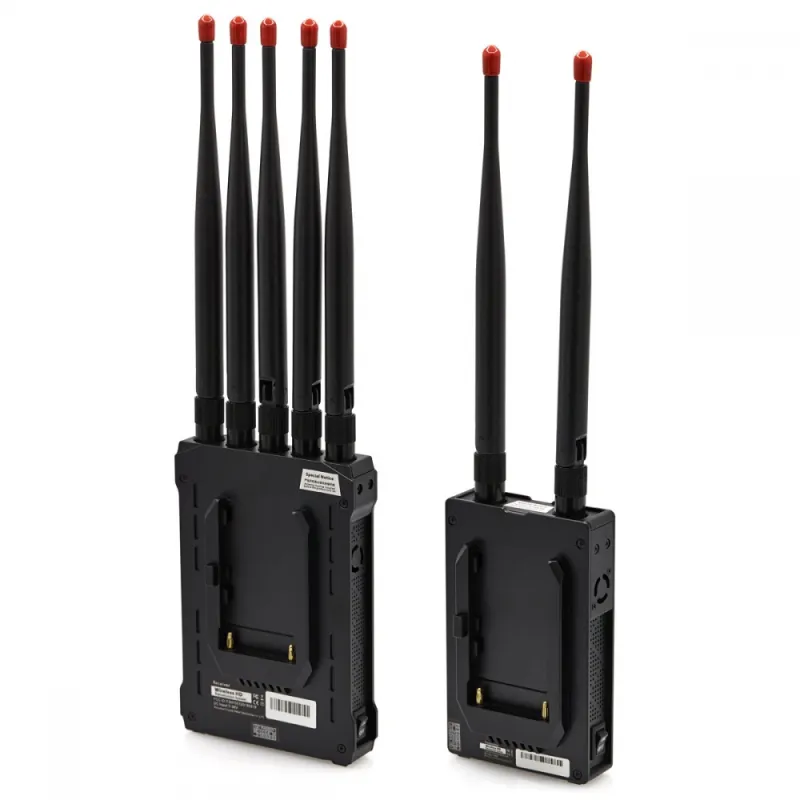

CVW Crystal Video Pro200-2R Wireless Video Transmission

Pro200 provides you more convenient and safer solution for live broadcasting. With the advantage of long distance transmission, plug-and-play usage, it can satisfy your various indoor and out door shooting requirements. With addition of its free cable wiring needed,it will bring much safer and more professional experience to you.

• latency under 1ms
• 3G-SDI / HDMI connections
• Range with visual contact: 200m
• Frequency range (EU): 5150 - 5250 MHz / 5725 - 5825 MHz
• Bandwith: 40MHz
• Video in Full HD 1080/60p (uncompressed 4:2:2 at 10bit)
• Audio formats: PCM, DTS-HD, Dolby True HD
• Frequency selection: manually with buttons (Control via LED display)
• Mounting options: internal thread (hot shoe adapter included)
• Timecode transmission
• Metadata transfer
• Battery mount: SONY F-Type Battery Plate
• Power consumption: 8W (Tx), 7W (Rx)
• Strong flexibility; support manual setting for frequency.
• Exquisite design; equipped with external SONY F970 battery mechanical interface for battery plug-in.
• Good stability and strong anti-jamming capability

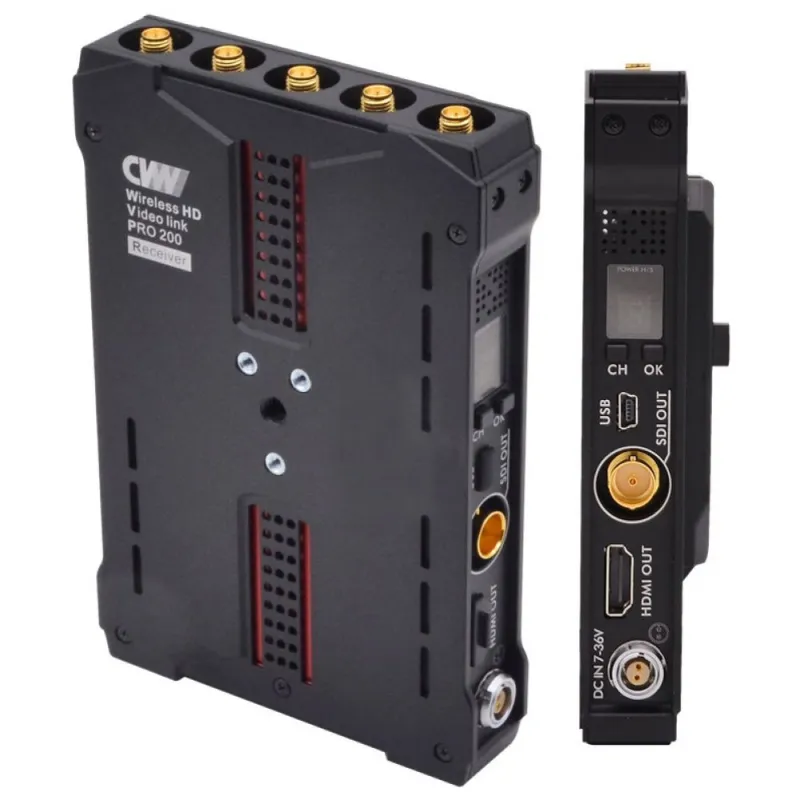

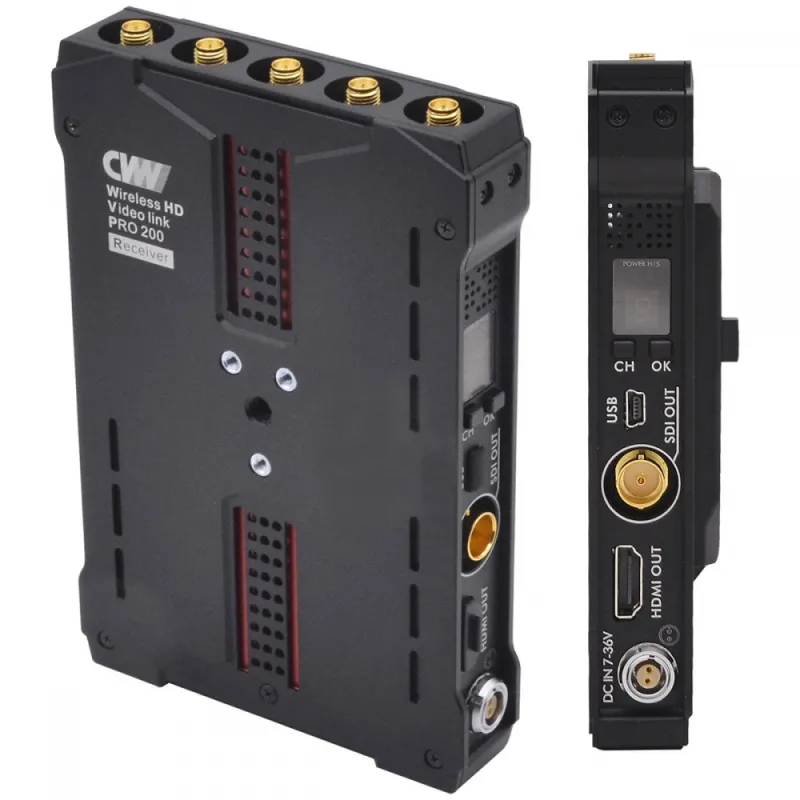

• 1x 3G-SDI
• 1x HDMI Out
• 1x Mini USB
• 1x DC In 7 - 36 V, Lemo compatible plug, 2-pol (f)
• 1x NP-F Battery mount
• 5x antenna

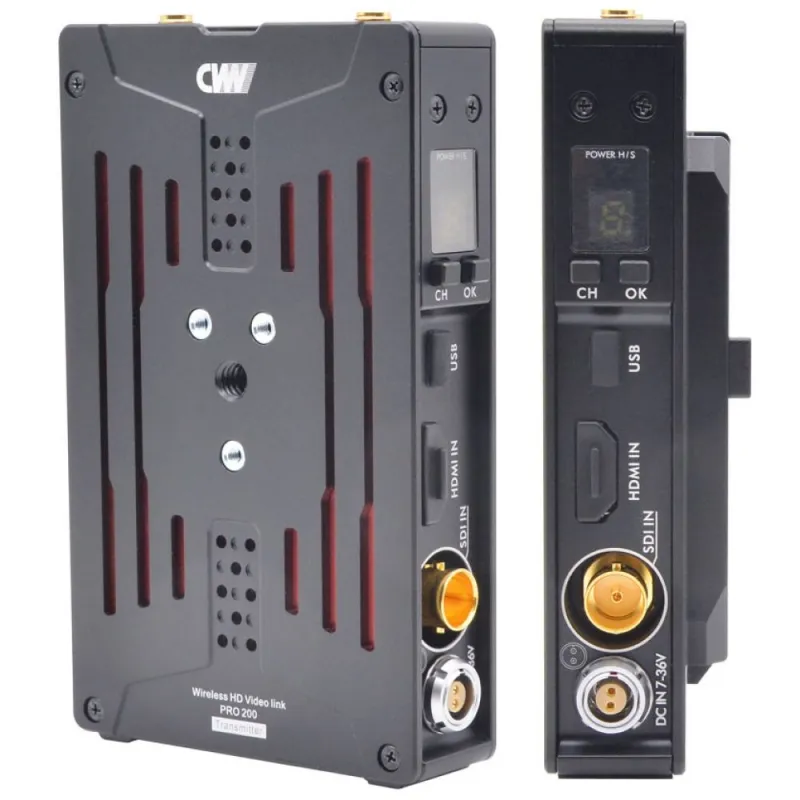

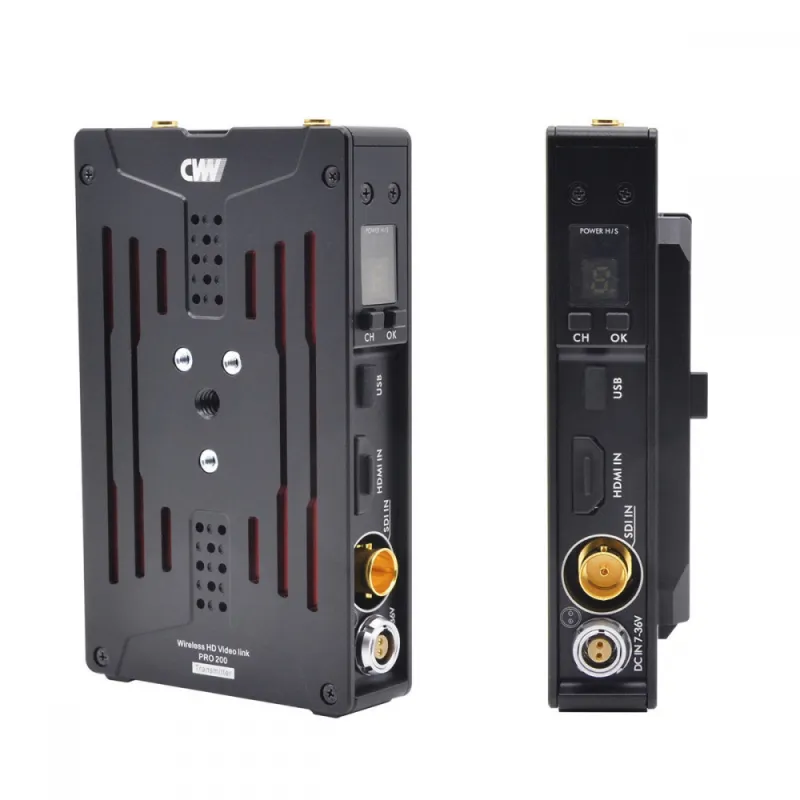

• 1x 3G-SDI In
• 1x HDMI In
• 1x Mini USB
• 1x DC In 7 - 36 V, Lemo compatible plug, 2-pol (f)
• 1x NP-F Battery Mount
• 2x antenna

The system works without DFS. This gives you the opportunity to choose free radio channels in the 5Ghz range yourself. Depending on the environment or the requirements of the organizer, a change of channel can be useful or mandatory. Please note that, depending on the location, if this cannot be classified as indoor or indoor similar (such as football stadiums), DFS is mandatory in some countries.

Specifications

Transmitter

Transmission power

17dBm

Frequency

Free Frequency (EU): 5150 to 5250 MHz, 5725 to 5825 MHz
Free Frequency (USA): 5150 to 5250 MHz, 5725 to 5825 MHz
Free Frequency (JAP): 5150 to 5250 MHz

Antenna Mode

External antenna

Power consumption

8W

Operating voltage

7V~36V

Latency

≤1ms

Audio Format

PCM, DTS-HD, Dolby True HD

Transmission Distance

200m

Product size (mm)

117.5(L)×72(W)×27.5(H)

Mechanical Interface

1/4 inch nut in bottom, SONY F-Type Battery Plate

Temperature

0~40 C(Working);-20~80 C(Storage)

Bandwith

49 MHz

Waterproof and dustproof

IP54

Receiver

Frequency

Free Frequency (EU): 5150 to 5250 MHz, 5725 to 5825 MHz
Free Frequency (USA): 5150 to 5250 MHz, 5725 to 5825 MHz
Free Frequency (JAP): 5150 to 5250 MHz

Antenna Mode

External antenna

Power consumption

6W

Operating voltage

7V~36V

Latency

≤1ms

Audio Format

PCM

Transmission Distance

200m

Product size (mm)

144(L)×95(W)×27.5(H)

Mechanical Interface

1/4 inch nut in bottom, SONY F-Type Battery Plate

Temperature

0~40 C(Working);-20~80 C(Storage)

Bandwith

49 MHz

Receiving Sensitivity

-70dBm

Waterproof and dustproof

IP54
