Saramonic UwMic15 Wireless Audio Transmission Kit

Description

The Saramonic UwMic15 is a versatile and easy-to-use wireless audio transmission kit. It will help you achieve broadcast-quality audio for YouTube videos, online streams, interviews, as well as stage performances and conferences. It’s a great choice for both amateurs and professionals. The RX15 receiver and TX15 transmitter are powered by popular AA batteries, so you don’t have to worry about running out of power delaying your work. You’ll pair the units quickly using the infrared ports or the “Auto Scan” feature. You’ll also find a tie microphone, belt mounts, and an adapter for camera or tripod mounting included. You’ll also get: an accidental shutdown protection for the transmitter and 3.5mm mini jack sockets with a plug-in lock.

Main Product Features

• a wireless audio transmission kit with 1 transmitter and 1 receiver
• ideal for working with digital SLRs, mirrorless cameras and camcorders
• very well suited for: interviews, reports, live broadcasts, realization of materials published on YouTube or television
• emission quality sound transmitted on UHF frequencies
• devices equipped with safe 3.5 mm mini jack sockets with a lock
• instant “plug and play” configuration with the possibility of synchronization via infrared ports
• possibility to work within 16 channels
• a 3.5mm audio output for real-time monitoring from headphones
• an easy to read backlit LCD display for comfortable configuration of recording parameters
• a special lock on the front panel for easy operation
• special switch lock to prevent accidental switching off the transmitter
• the transmitter and receiver powered by popular AA batteries
• belt mounts and adapter included for camera or tripod mounting
• support for other devices within the UwMic15 system (available separately: transmitter with XLR socket and wireless microphone SR-HM15)

Lightweight and functional

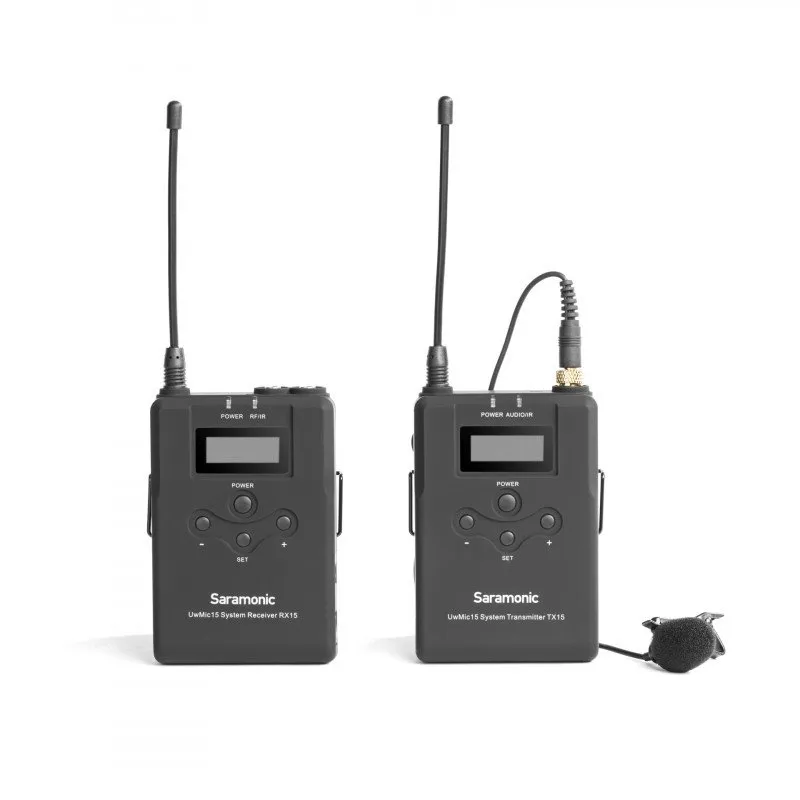

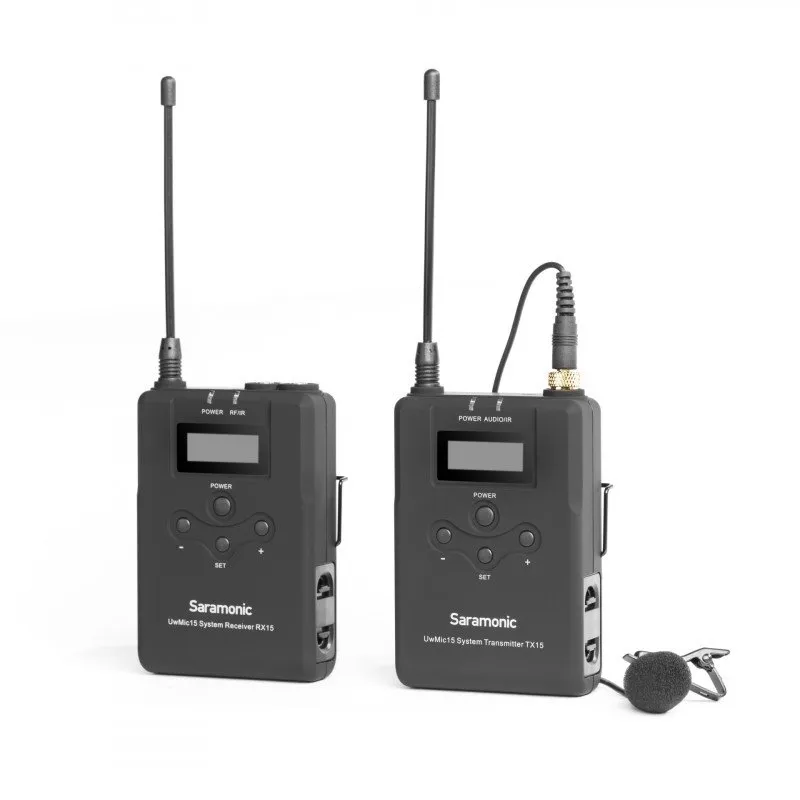

The Saramonic UwMic15 is a lightweight and versatile wireless audio transmission kit consisting of a transmitter (TX15) and receiver (RX15). The black microports encased in rugged housings are perfect for interviews, reports, vlogs, filming weddings or webinar broadcasts. The receiver weighs just 73 grams and the transmitter 65 grams. This will make working with the Saramonic UwMic15 system comfortable and convenient.

Everything you need

In the Saramonic UwMic15 wireless audio transmission kit, you will find many useful accessories to enhance your work comfort. A special adapter allows you to attach the receiver to your camera or tripod. The belt clip attachment, on the other hand, facilitates quick and efficient switching of transmitters when recording interviews or reportage set-ups. All 3.5 mm mini jack sockets are also equipped with safety locks that will protect you against unexpected unplugging of cables from microphones, headphones or other devices connected to this versatile system. Of course, the set does not lack a tie microphone protected by a foam cover, as well as a clip for its convenient attachment to clothing.

Automatic sync

Are you looking for express alignment of transmitter and receiver waves? With the UwMic15, you don’t have to waste time manually searching for the right frequency. Just use the infrared ports, which are located on the housing of the devices included in the set. Just put them together and… done! Alternatively, the innovative “Auto Scan” function can detect the presence of distant devices. Whether you’re recording vlogs, interviews, podcasts or documentaries, you can be sure it will only take a few seconds to sync. So your interviewees or on-stage performers will never be distracted by long pauses in their recordings.

Professional listening always at hand

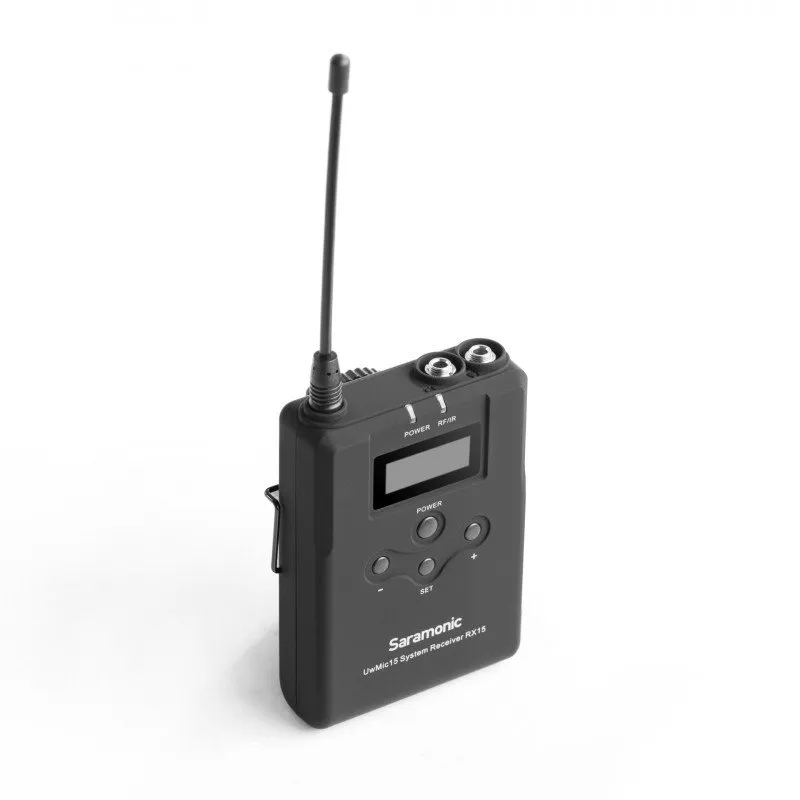

On the casing of the RX15 receiver you will find a 3.5 mm mini jack socket, which allows you to conveniently connect headphones. The ability to monitor recorded interviews, conversations and speeches will enable you to effectively catch crackles, noises or unwanted sounds that often cannot be heard when working without monitoring. Listening is also the best way to eliminate mistakes or slip-ups. By monitoring your recordings with headphones you have more control over the material you are making!

Proven power supply

You may have forgotten to charge your micro USB or USB-C powered equipment. Such situations can contribute to delays and interruptions that are not welcome on a film set or during stage performances. In some situations, the capacity of the built-in battery can also limit the runtime. If you don’t want to take any risks, choose proven solutions! The Saramonic UwMic15 wireless audio kit is powered by popular AA batteries, which you can buy from almost any newsagent, no matter what country you happen to be in. In the interest of the environment and expense, you can also choose rechargeable batteries of the same shape. A power system proven over the years is a guarantee of peace of mind when shooting!

Everything according to plan

Limited space, cramped clothing under which to hide a microport, or rich gesticulations of the interviewee – when recording interviews, many pitfalls await you, which may contribute to an unexpected interruption of the transmission. In the case of the Saramonic UwMic15 system, appropriate safeguards have fortunately been taken care of. The lockable 3.5mm mini jack socket protects your cables from accidental disconnection. But that’s not all. A very useful feature is the switch lock, which prevents accidental switching off of the transmitter.

Extendable kit

The Saramonic UwMic15 Wireless Audio Transmission Kit can easily be expanded with additional components to provide even more functionality. For example, the special SR-XLR15 transmitter is available separately, which can be used to conveniently connect devices that use an XLR socket. The SR-HM15 wireless microphone is also a great choice for vocalists, presenters and journalists. Combined with the SR-XLR15 transmitter, you will have a versatile tool for recording stage performances!

Specifications

• Model: Saramonic UwMic15 wireless audio transmission kit

Transmitter TX15

• number of channels: 16
• oscillator type: frequency synthesizer with PLL loop
• frequency range: 555 MHz – 579 MHz
• reference deviation: ±5 kHz (-60 dBV, 1 kHz input)
• Signal-to-noise ratio: > 70 dB
• damping level: -60 dB
• latency: 10 ms
• antenna: wired, 1/4 λ
• input socket: mini Jack 3.5 mm
• reference input level: -5 dB
• input socket: mini Jack 3.5 mm
• reference audio input level: -60 dBv (Mic input, 0 dB attenuation)
• audio attenuation: < 0.25%
• power supply: 2 AA batteries or rechargeable batteries
• dimensions: 180 x 64 x 23 mm
• weight: 65 g

RX15 receiver

• number of channels: 16
• type of oscillator: frequency synthesizer with PLL loop
• input socket: mini Jack 3 5 mm
• output socket: mini Jack 3.5 mm
• antenna: wired, 1/4 λ
• output signal level: -60 dBV
• signal level for headphone listening: 30mW (16 Ω)
• frequency range: 555 MHz – 579 MHz
• sensitivity: -95 dBm
• signal-to-noise ratio: > 70 dB
• latency: 10 ms
• reference deviation: ±5 kHz (-60 dBV, 1 kHz input)
• Pass bandwidth: 40 Hz – 18 kHz (+/-3 dB)
• sound distortion: < 0.5%
• damping level: -60 dB
• power supply: 2 batteries or rechargeable AA batteries
• dimensions: 180 x 64 x 49 mm
• weight: 73 g

Kit contents

• 1 x RX15 receiver
• 1 x TX15 transmitter
• 1 x tie microphone
• 1 x foam microphone cover
• 1 x microphone clip
• 2 x belt clip
• 1 x audio cable – mini Jack / XLR
• 1 x mini Jack 3.5 mm cable / mini Jack 3.5 mm cable
