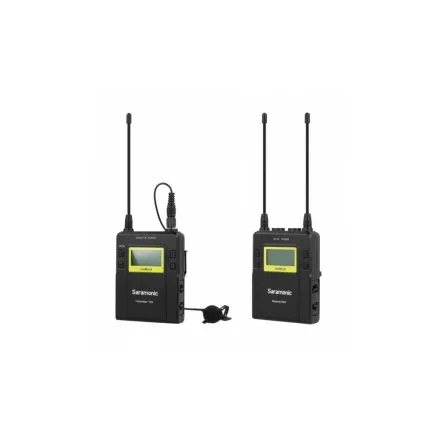

Saramonic UwMic9 Kit 1 (RX9 + TX9) UHF

The Saramonic UwMic9 Kit 1 (RX9 + TX9) is a receiver and one transmitter with a tie microphone, which are part of a UHF wireless transmission system in the analog frequency range from 514 MHz to 596 MHz. Key features of the UwMic9 system . UwMic9 features a long range of up to 100 metres in an open area. The ability to wirelessly transmit audio between a wide range of devices will be appreciated by camera operators, reporters and vloggers.

The system enables operation in two groups of transmitters (A and B), to choose from 96 radio frequency channels. The main advantage of the system is the ability to split the signal into two mono paths. Intuitive menu and synchronization functions "Auto Scan" or infrared (RF) make it much easier to use and speed up the work with the system. All Kit 2 transmission components are powered by sets of two AA batteries. Input types . UwMic9 allows you to connect to a wide range of cameras, VDSLRs, camcorders, smartphones, recorders or mobile devices using cables with specific input types: - cameras, camcorders, recorders: mini Jack 3.5 mm TRS (included) - cameras, audio mixers: XLR (mini Jack 3.5 mm / XLR included) - iOS devices: Lightning (LC-C35 cable optional) - Android devices: USB-C (UTC-C35 cable optional) - mobile devices: mini Jack 3.5 mm TRRS (optional adapter SR-UC201 or cables SR-PMC2 or SR-PMC1) - PC | MAC: (optional USB-CP30 cable) RX9 receiver .

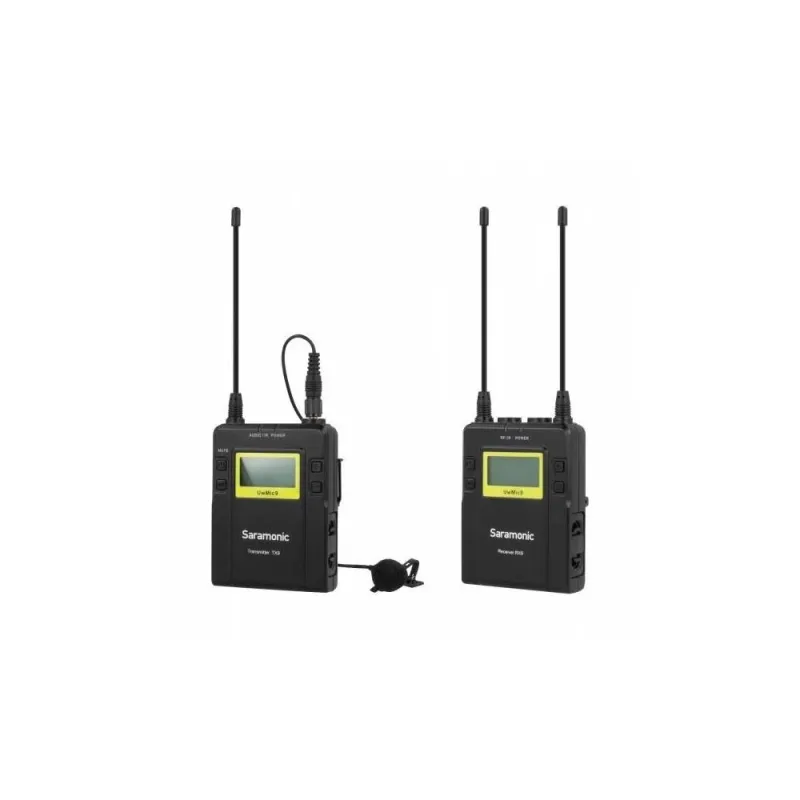

The centerpiece of the system is the Saramonic RX9 receiver, which allows you to receive signals from two microphones simultaneously. The receiver is equipped with two mini Jack (3.5 millimeter) outputs with a safety lock and a headphone output for monitoring the transmitted signals.   TX9 Transmitter . The new version of the transmitter has a microphone sensitivity setting from 0 to 12 decibels. Each transmitter has one input in the standard mini Jack 3.5 mm TRS allowing you to connect a microphone or other audio source.

The input has a lock to prevent accidental disconnection of the cable. The Saramonic DK6A head microphones can also be used with the transmitter, which will find their practical application for conferences, television, theaters or houses of culture. Durable and metal casing . The receiver and transmitter housings are made of high quality, durable aluminum.

Easy to read LCD display and control buttons allow for comfortable use of the devices even when wearing gloves. Orange displays make it easy to use the devices in harsh weather conditions such as strong sunlight or night-time aura. Accessories included . In addition to the transmitter and receiver the set includes: - two mounts allowing you to hang the transmitter and receiver on your belt - 1/4" tripod mount and cold shoe adapter allowing to install the transmitter or receiver on the tripod or in the camera flash sockets - mini Jack / XLR cable for connecting the receiver to a professional standard recorder - mini Jack / mini Jack connection cable for camera or camcorder - omnidirectional tie microphone with 3.5 mm mini jack connector

Specification . - number of transmission channels: 96 - number of groups: 2 - frequency of operation: 514 MHz - 596 MHz - operating sensitivity: - 95 dBm - signal-to-noise ratio: 70 dB - reference deviation: ±5 kHz (-60 dBV, 1 kHz) - frequency response: 40 Hz - 18 kHz (± 3 dB) - range: up to 100 m in open field - power supply: o transmitter: 2 batteries type AA o receiver: 2 x AA batteries - weight: o transmitter: 260 g o receiver: 275 g - dimensions: o transmitter: 6.4 x 8.7 (+ 10.5 cm antenna) x 2.5 cm o Receiver: 6.4 x 8.7 (+ antenna 10.5 cm) x 2.5 cm Kit contents - RX9 receiver - 1x TX9 transmitter - 1x SR-UM10-M1 tie microphone - 2x belt clip - tripod / camera mount adapter - mini Jack 3.5 mm TRS cable / mini Jack 3.5 mm TRS cable - mini Jack / XLR cable
