Sennheiser EW-DP ME2 SET (S4-7 630 - 662 MHz)
SKU: 22143
Ean: 4044155247282
Būklė: Naujas produktas
Produktas užsakomas. Pristatymo laikas nuo 3 savaičių.
€ 698,99 su mokesčiais
| Connection type | Wireless |
| Accessories for microphones | Komplekti |
| Connector | XLR |
| Connector | USB-C |
| Connector | 3,5mm |
| Connector | TRRS |
| Headphone type | Intercom |

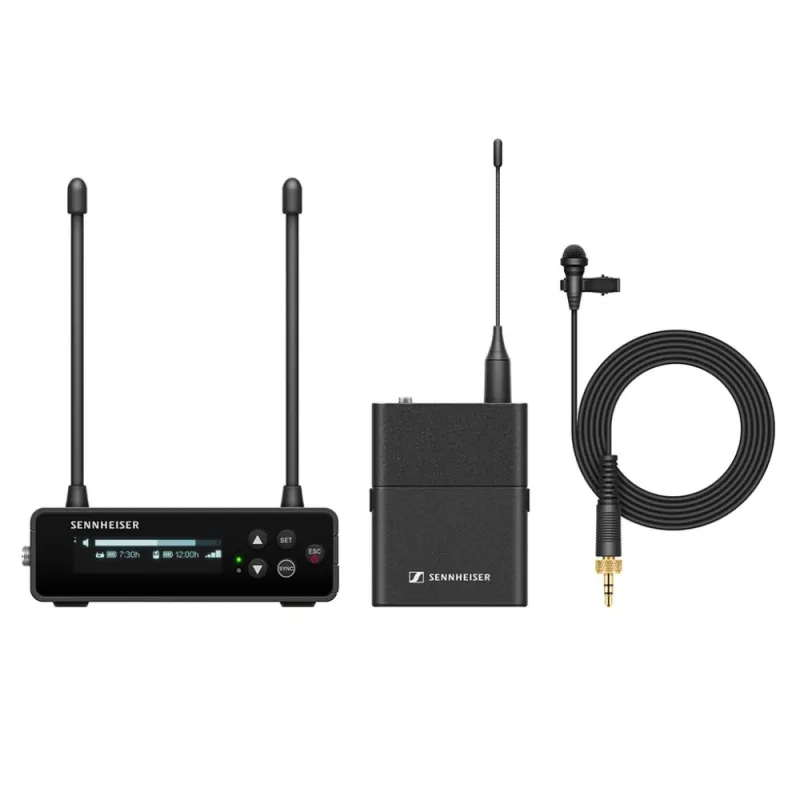

Sennheiser EW-DP ME2 SET (S4-7: 630 - 662 MHz)
Portable digital UHF wireless microphone system with ME 2 omnidirectional lavalier for filmmakers, content creators, and broadcasters.
- Fully digital UHF wireless microphone system for video applications
- Integrated Bluetooth for synchronization and control
- Smart Notifications for troubleshooting and system guidance
- Intelligent battery management provides operating time (hours:minutes)
- Extended battery life: up to 12h on transmitter, 7h onreceiver
- Magnetically stackable components for versatile mounting
- Industry leading 134 dB dynamic range for distortion free transmission
- Up to 56 MHz bandwidth for flexibility in any RF environment
- Exceptionally low latency (1.9 ms)
- External charging and powering via USB-C (receiver only)
- Smart Assist app for monitor & control
Delivery Content
• EW-DP EK digital portable single channel receiver

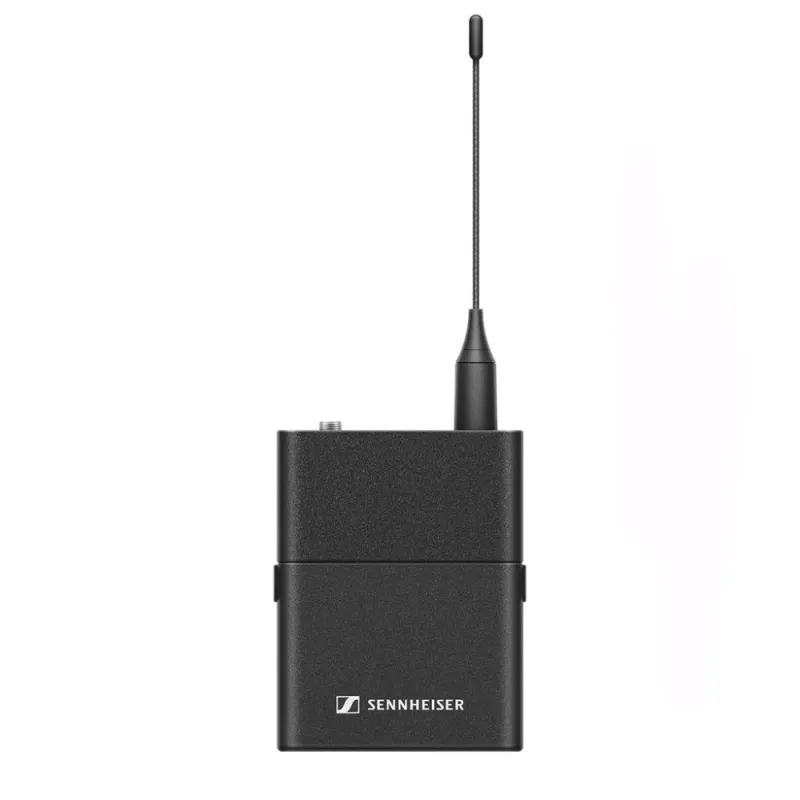

• EW-D SK digital bodypack transmitter
• ME 2 omnidirectional lavalier microphone
• Mounting kit (cheese plate, cold shoe, belt clip & screws)

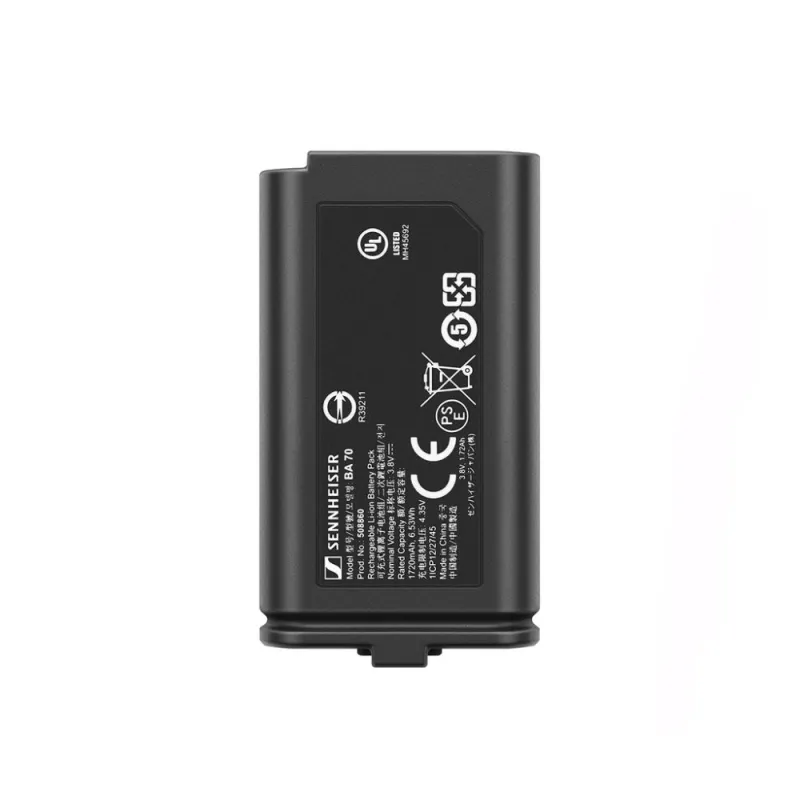

• BA 70 li-ion battery & (2) AA battery

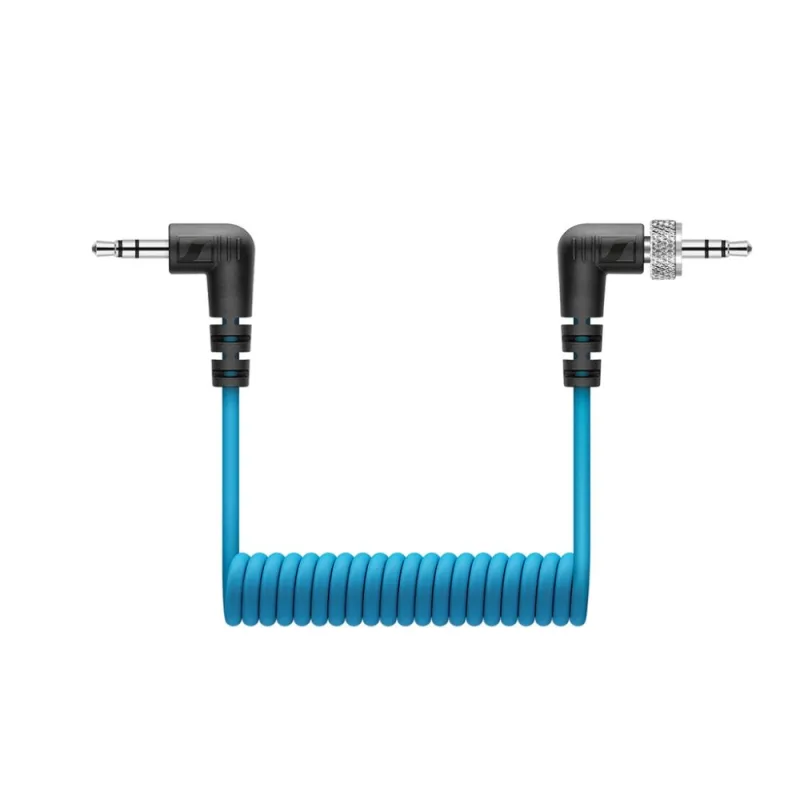

• Locking 3.5 mm TRS plug to 3.5 mm TRS plug cable

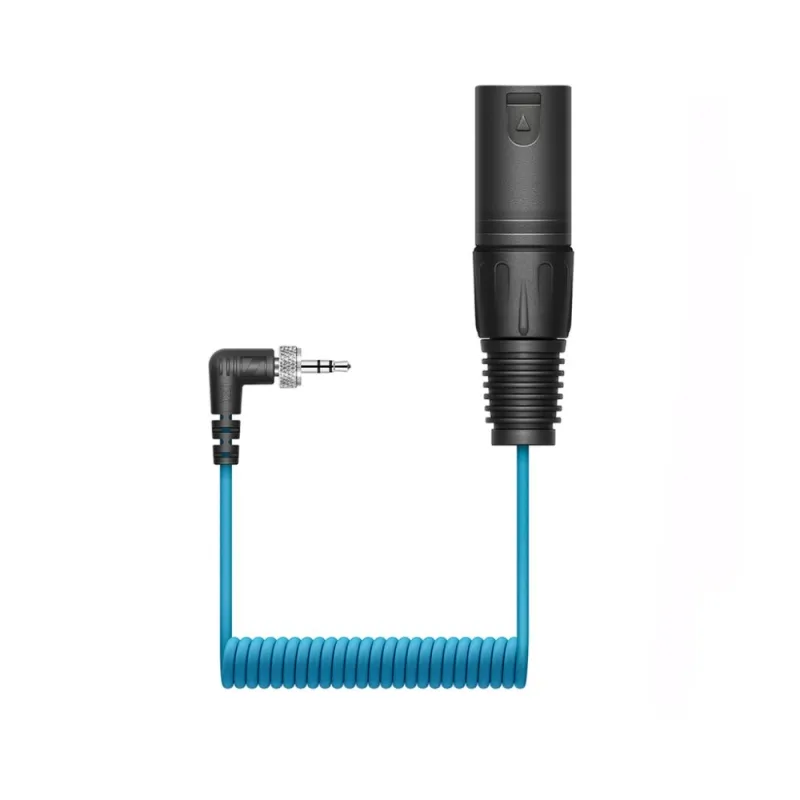

• Locking 3.5 mm TRS plug to XLR plug cable
• USB-C charging cable
Specifications
| System | Bluetooth® Low Energy (BLE) frequency range | 2402 - 2480 MHz |
| Audio frequency response | 20 Hz - 20 @ 3 dBfs | |
| Audio THD | ≤ -60 dB for 1 kHz @ -3 dBfs input level | |
| Dynamic range | 134 dB | |
| System Latency | 1.9 ms | |
| Operating temperature | -10 °C - +55 °C (14 °F - 131 °F) | |
| Relative air humidity | 5 - 95 % (non-condensing) | |
| EW-DP EK | Input voltage | ~ 1.8 - 4.35 V |
| Input Current | Typ. < 250 mA / Max. < 400 mA (BA 70) Typ. < 400 mA / Max. < 750 mA (2x AA batteries) < 300 mA@5 V (USB-C standalone) | |
| Power supply | 2x AA batteries 1.5V or BA70 rechargeable battery pack or USB-C PD power supply (max.): 5V / 1500mA 9V / 900mA 12V / 700mA | |
| Transmission power | BLE: max. 10 mW EIRP | |
| Audio output power | < 2 dBV max. (high level) / < 4dBU max (high level) | |
| Headphone Output | < 50 mW into 16 Ohms | |
| Dimensions | 86 x 67 x 28 mm (3.39 x 2.64 x 1.1) | |
| Weight (without antennas and power supply) | approx. 140g (0.31 lbs) | |
| EW-D SK (Transmitter) | Input voltage | 2.0 - 4.35 V |
| Input Current | < 300 mA | |
| Power supply | 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack | |
| Occupied bandwidth | 200 kHz | |
| Transmit power (radiated) | Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP) BLE: max. 10 mW EIRP | |
| ME 2 (Lavalier) | Transducer principle | pre-polarized condensor microphone |
| Pick-up pattern | omni-directional | |
| Sensitivity in free field, no load (1kHz) | 17 mV/Pa | |
| Frequency response | 50 to 18,000 Hz | |
| Equivalent noise level A-weighted | 32 db | |
| Connector | 3.5 mm jack | |
| Cable length | approx. 1.60 m (62.99) | |
| Supply voltage | 7.5 V |
Frequencies
| Frequency variants | Region | |
|---|---|---|
| Q1-6 | 470.2 - 526 MHz | EU, US, Canada, Middle East, Japan |
| R1-6 | 520 - 576 MHz | EU, US, Canada, Australia, Middle East, Japan |
| R4-9 | 552 - 607.8 MHz | EU, US, Canada, Australia, Middle East, Japan |
| S1-7 | 606.2 - 662 MHz | UK, Australia, Korea, Japan |
| S4 - 7 | 630 - 662 MHz | EU |
| S7-10 | 662 - 693.8 MHz | China |
| U1/5 | 823.2 - 831.8 MHz & 863.2 - 864.8 MH | EU, UK |
| V3-4 | 925.2 - 937.3 MHz | Korea |
| Y1-3 | 1785.2 - 1799.8 MHz | EU, UK, Australia |
