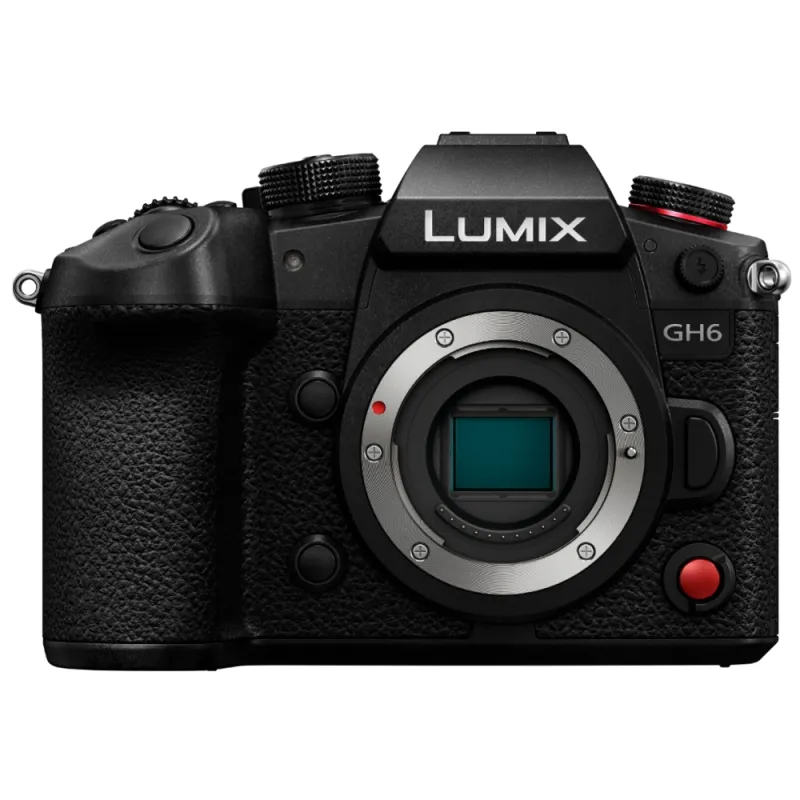

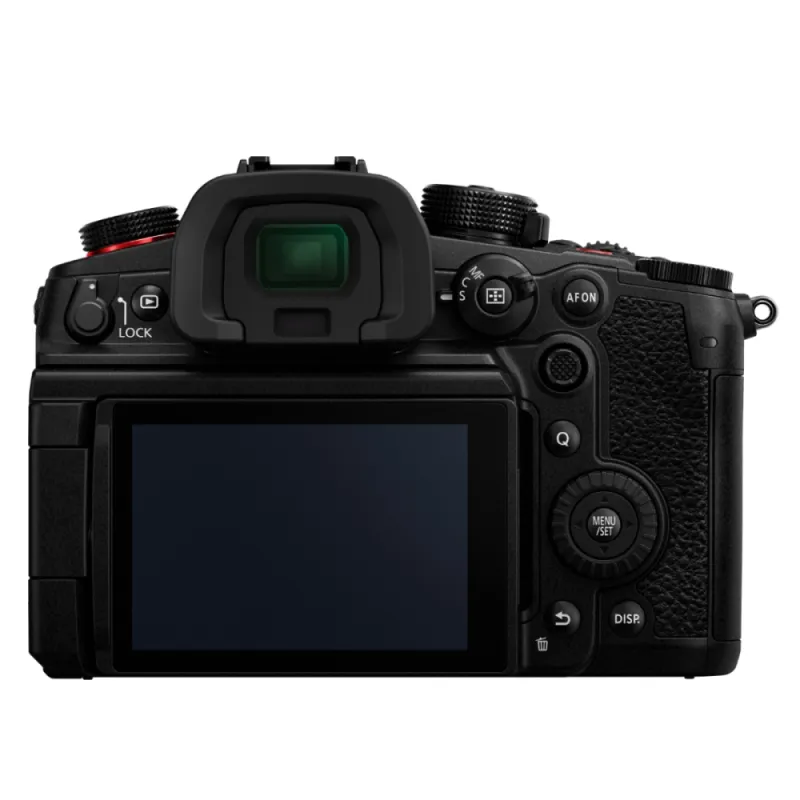

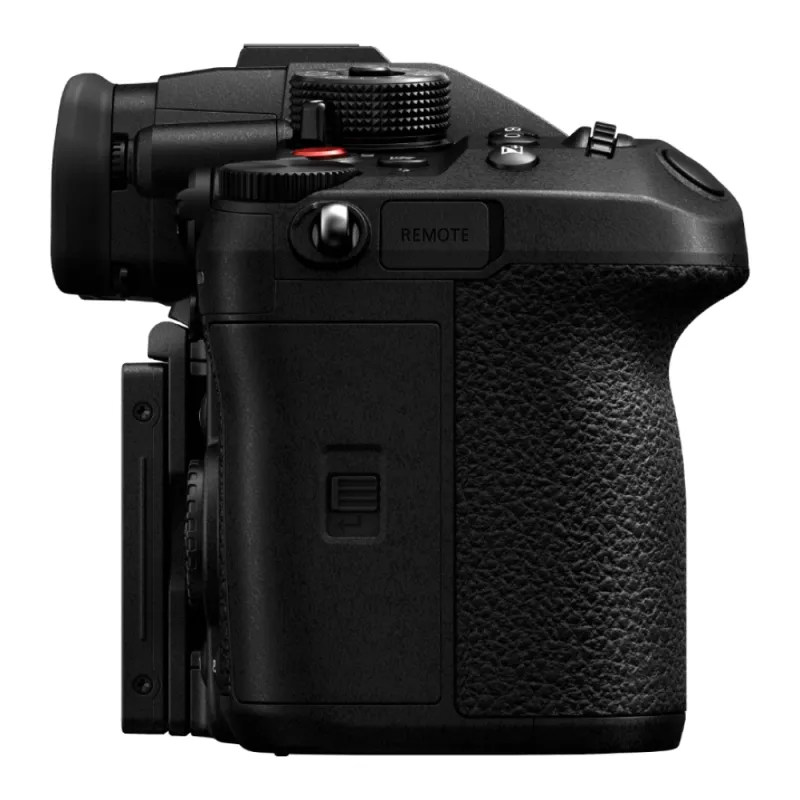

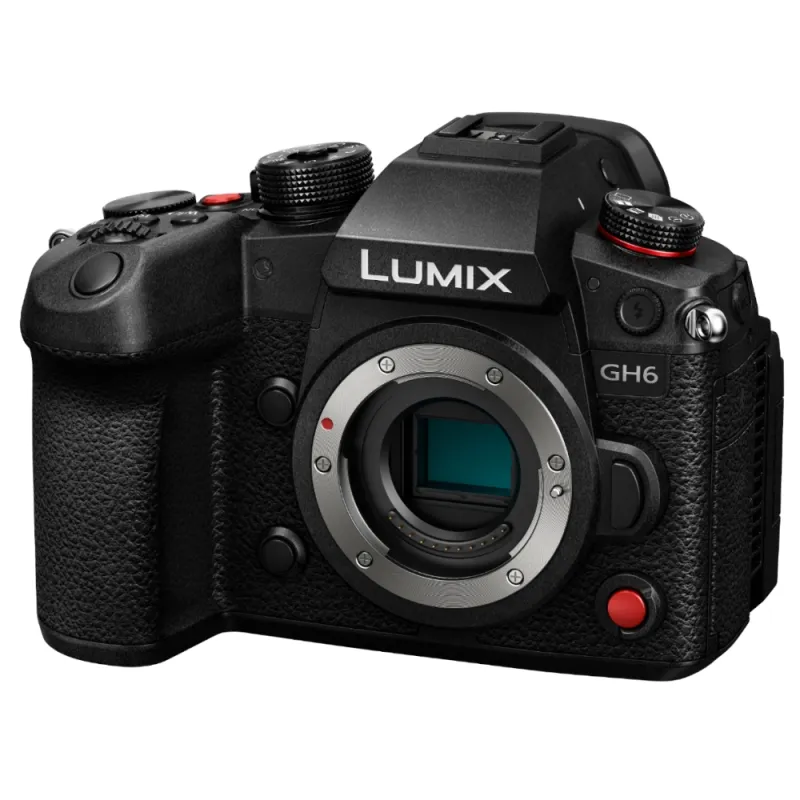

Panasonic Lumix GH6 Body (DC-GH6E)

A LUMIX first Apple ProRes codec video

Using a CFexpress Type B card (MOV, 5.7K, 5728x3024, 29.97p/25.00p/24.00p), you can internally record ProRes 422 HQ and ProRes 422 codec videos, the professional industry standard, which deliver high image quality at low compression. This significantly reduces the load on the computer during post-production and allows NLE (non-linear editing) without transcoding, streamlining your workflow from start to finish.

5.7K 10-bit 60p/50p recording

With 5.7K (5728x3024) 420 10-bit 60p/50p (179) and 5.8K (5760x4320) 30p/25p/24p 420 10-bit anamorphic (43) modes, the LUMIX GH6 offers higher resolution and higher bit rates than ever before, and delivers the latest in high image quality, versatility, and expressive range needed for film, TV, and all types of video production.

Unlimited 422 10-bit C4K/4K 60p/50p video recording time

The first LUMIX to offer 422 10-bit C4K/4K 60p/50p internal recording, the GH6 delivers unlimited recording time when used at the recommended operating temperature. Ideal for small production teams and in demanding conditions where mobility and high-quality are a must. Also allows for simultaneous internal recording and external recording via HDMI output.

• Under the guaranteed operating environment. When using a battery. The recording time depends on the capacity of the battery and the recording media.
• -10 to 40.
• Corresponding to 4K (4096 x 2160) as defined by Digital Cinema Initiatives (DCI).
• CFexpress card or an SD memory card with Video Speed Class 90 is required.

7.5-stop Dual I.S. 2 (Image Stabilizer)

5-axis Dual I.S. 2 (Image Stabilizer) combines control of the Body I.S. and Lens O.I.S. to offer 7.5 stops’ worth of correction.

HFR/VFR 10-bit recording

High-resolution slow-motion recording, recently gaining popularity in video production, is now made possible using C4K/4K 10-bit 120p/100p HFR (high-frame-rate) video recording with audio. The LUMIX GH6 also offers a wide range of 10-bit ALL-Intra recording modes for high-end editing, so you can shoot FHD 240p/200p HFR and FHD 240fps VFR (variable frame rate) video. With VFR you can record up to 12.5x super slow-motion video (FHD 10-bit 24p/300fps).

Maximum output of sensor is 60fps when Dynamic Range Boost is set to ON.

New Venus Engine

The new Venus Engine delivers approximately twice the processing power as before, enabling high-speed processing of the new sensor's higher pixel counts and higher-resolution, higher-bit-rate video. Image quality performance is also greatly improved. New Intelligent Detail Processing offers higher resolution, and new 2D and high-performance 3D Noise Reduction (for videos) optimize noise reduction. The result is natural, 3D-like images with minimal noise even at high sensitivity. High-precision Dual 3D Color Control achieves improved color reproduction (brightness, saturation, and hue), resulting in more faithful and richer color expression.

New 25.2MP sensor

The LUMIX GH6 features the first Micro Four Thirds system standard 25.2-megapixel Live MOS sensor. With no low-pass filter, its design allows for both more pixels and higher resolution, for ultra-realistic detail. Its higher readout speed delivers C4K/4K 120p video recording and 75-frames-per-second burst shooting using the electronic shutter while also minimizing rolling shutter distortion.

Delivery Content

• Lumix DC-GH6 Body
• Battery DMW-BLK22 (2200mAh)
• Charger (with USB AC Adapter)
• USB Connection Cable
• BNC Conversion Cable
• Strain relief (cable holder)
• Shoulder Strap GH6
• Body Cap

Technical Data

• AF/Exposure: Contrast AF + DFD, 315-area, EV -4 to 18, AFS TBD, Face/Eye/Head/Body/Animal Recognition
• Shutter: Mechanical 1/8000-60, X1/250, Electronic 1/32,000-60, Durability 200k
• Burst Shooting: Mechanical AFS 14 fps, AFC 8 fps, Electronic AFS 75 fps, AFC 7 fps

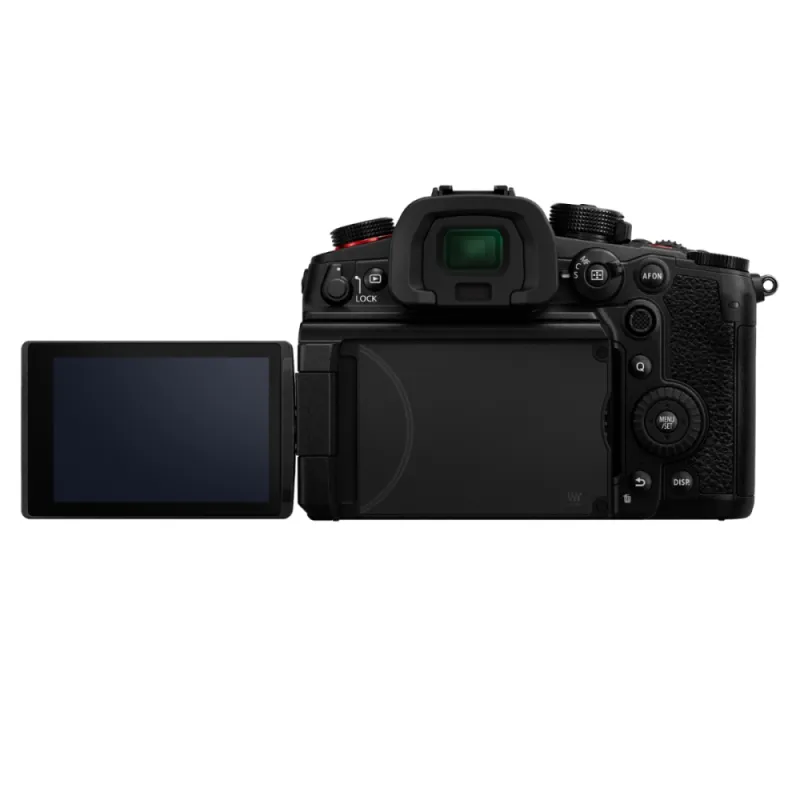

• Monitor: LVF 3.68MP OLED, 0.76x KB, LCD 1.84MP Touchscreen 3.0”, Tilt & Free-Angle

IN/OUT

• HDMI: Typ-A (Supports 4K 120p via HDMI2.1)
• USB / Charge / Supply: USB3.2 Typ-C (PD) / Yes / Yes
• Card Slot: Slot 1 CFexpress Typ B, Slot 2 SD UHS-II U3 V90
• Mic / Headphone: 3.5mm / 3.5mm
• XLR Audio Input: DMW-XLR1 (sold separately)
• Remote Socket: 2.5mm
• TC IN/OUT: Yes

Other Features

• Tally Lamp: Yes (Front / Rear)
• Wi-Fi / Bluetooth / Tether: Wi-Fi 5GHz / Bluetooth v5.0 / LUMIX Tether
• Cooling Fan: Yes

Battery

• Bundled Battery Pack: DMW-BLK22 (2200mAh)
• Battery Life: LCD 380 pic / LVF 380 pic

Physical Specifications

• Weatherproof: Dust / Splash / Freeze Resistant
• Dimensions / Weight: 138.4 x 100.3 x 99.6 mm / 823g

Camera Specifications

• Image Sensor: 25.2MP MFT
• High Resolution Mode: 100M with Handheld Shot Mode
• Body I.S.: 5-axis / 7.5-stop
• Log Recording: V-Log / 13+ stops, 12+ stops
• Codec: MOV / MP4, Apple ProRes 422 HQ / Apple ProRes 422
• Recording Time Limit: Unlimited
• 5.7K (Apple ProRes 422 HQ): 29.97p / 25.00p / 24.00p / 23.98p
• 5.7K (420 10-Bit): 59.94p / 50.00p / 29.97p / 25.00p / 24.00p / 23.98p
• C4K (422 10-Bit, 420 10-Bit): 59.94p / 50.00p / 29.97p / 25.00p / 24.00p / 23.98p
• 4K (422 10-Bit, 420 10-Bit): 59.94p / 50.00p / 29.97p / 25.00p / 24.00p / 23.98p
• FHD (422 10-Bit): 59.94p / 59.94i / 50.00p / 50.00i / 29.97p / 25.00p / 24.00p / 23.98p

Audio Format

• 2ch: MP4 AAC (48kHz/16-Bit), MOV LPCM (48kHz/24-Bit, 96kHz/24-Bit)
• 4ch: MOV LPCM (48kHz/24-Bit, 96kHz/24bit)

Notes

• Dust and Splash Resistant does not guarantee that damage will not occur if this camera is subjected to direct contact with dust and water.
• Body, Battery, Card.
• When using SD card.
• Dynamic Range Boost mode ON. From ISO2000 only at 60fps or less.
• Dynamic Range Boost mode OFF.
• Recommended ambient temperature is up to 35.
• When using DMW-XLR1 (sold separately).
