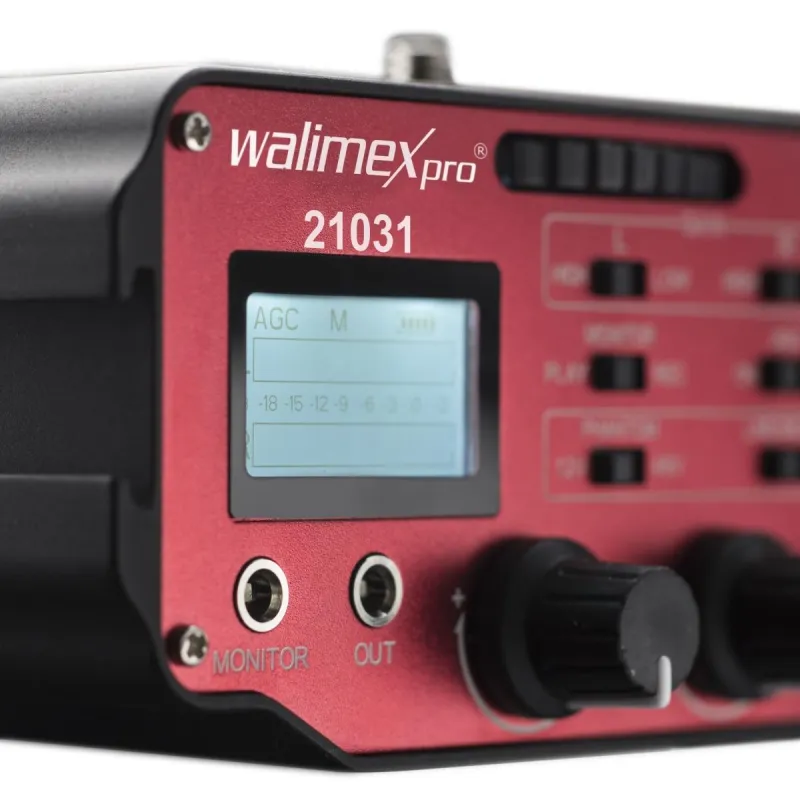

walimex pro Audioadapter 107

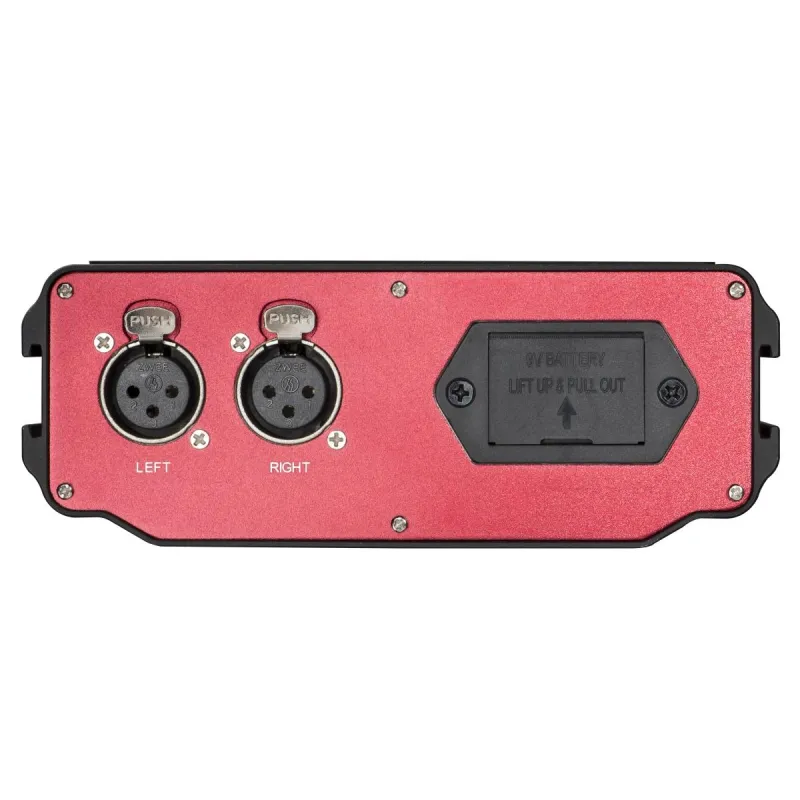

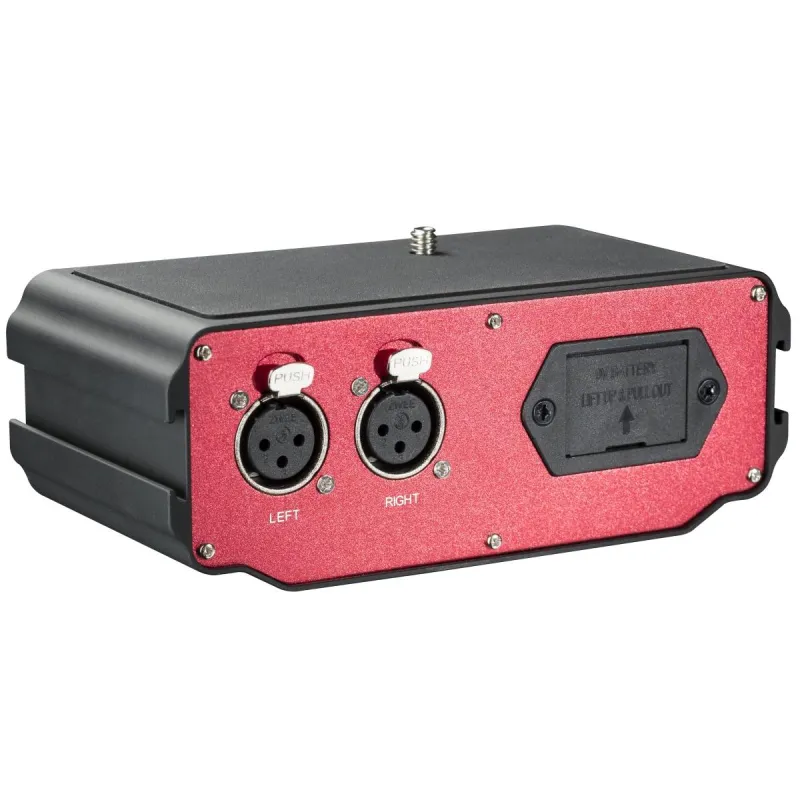

• 2 channel XLR adapter with pre-amplifier and phantom power
• ideal of all DSLRs with an integrated microphone socket
• The audio adapter is attached to the camera via a 1/4 inch thread

The walimex pro audio adapter is a 2 channel XLR adapter with pre-amplifier and phantom power. Ideal of all DSLR cameras with an integrated microphone socket A display shows optical monitoring of the sound recording. There is also a wide range of settings to optimise the sound quality. The audio adapter can be attached simply from below via a 1/4 inch thread to the camera.

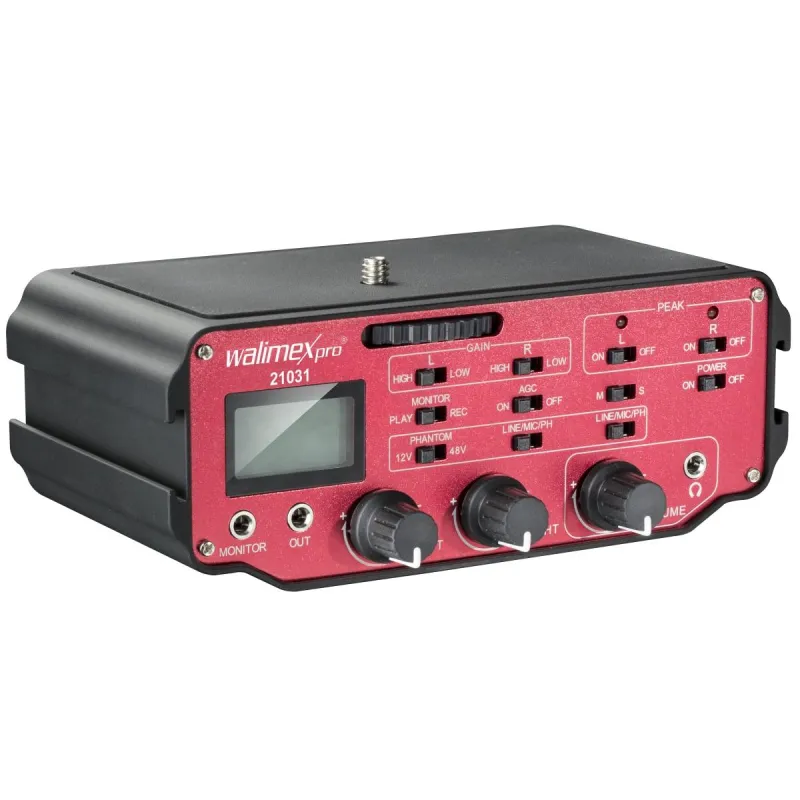

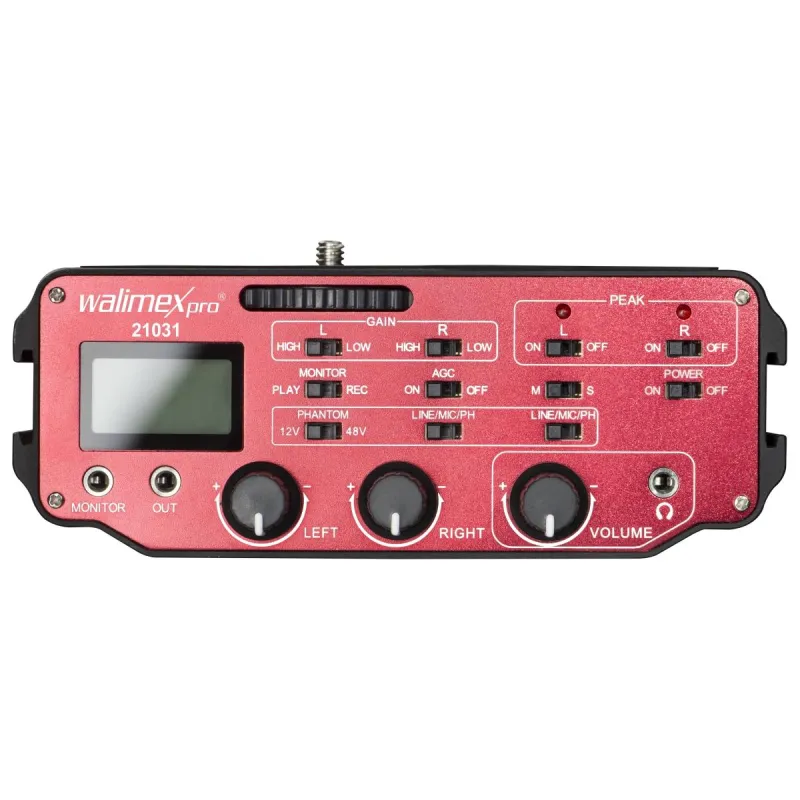

Functions
LCD Display: Level status display in dB
GAIN switch: Signal amplifier, low to high +20dB
PEAK switch: On/off switch of the LED signal displays. LEDs flash red in the event of overload
Monitor PLAY/REC switch: Play for headset - playback of camera audio signals. REC for headset - recording of audio signals during recording
AGC on/off switch: when activated (on), the output level of the camera is kept constant. Note: Function only possible with AGC cameras. Read the manual for your camera to learn more about this.
M/S switch: to select mono (M) or stereo (S) output mode
POWER switch: On/off switch
PHANTOM 12 V/48 V switch. For 12 or 48V condenser microphones. Note: Most microphones use 12 V. Read the manual for your microphone to learn more about this.
LINE/MIC/PH switch
LINE mode is for amplifiers and other audio devices with a line output. The signal is reduced to approx. 40dB
MIC mode is for self-powered microphones
PH (phantom) mode is for microphones with a pH value that require a phantom setting.

• 1 x Audio adapter
• 1 x User manual
• 1 x Jack-jack cable 3.5mm
• 1 x Jack-cinch cable
