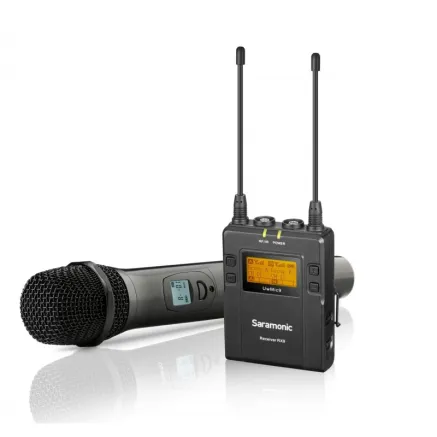

Saramonic UwMic9 Wireless Audio Kit 4 (RX9 + HU9)

Description

The Saramonic UwMic9 Wireless Audio Kit 4 (RX9 + HU9) is a set of the RX9 receiver with a HU9 reporter microphone. It is an ideal solution for users looking for mobile equipment for audiovisual recordings such as: conferences, presentations or interviews. Optionally, the UwMic9 system also offers transmitters that can be combined with the receiver: TX-XLR9 – transmitter with phantom power (+48V) and transmitter with tie microphone TX9.

Functions and possibilities
The kit is easy to use, so we can synchronize devices with the automatic scan or infrared function. UwMic9 operates in the safe UHF radio frequency band from 514 to 596 MHz. It has a choice of up to 96 transmission channels, which gives us the ability to expand the sets of up to 48 transmitters and 24 receivers in total. The “+” and “-” buttons allow quick and convenient navigation through the menu. Detailed information on the display functions can be found in the manual.

RX9
The receiver has two mini jack (3.5 millimeter) TRS inputs for connection to the device recording the signal and listening through headphones. The signal input is equipped with a lock to prevent accidental disconnection of the cable.
The receiver’s housing is made of high quality aluminum. Clear LCD display and control buttons allow comfortable use of the device even when wearing gloves. Intuitive menu and synchronization functions facilitate use and speed up work with the system. The device is powered by two AA batteries.

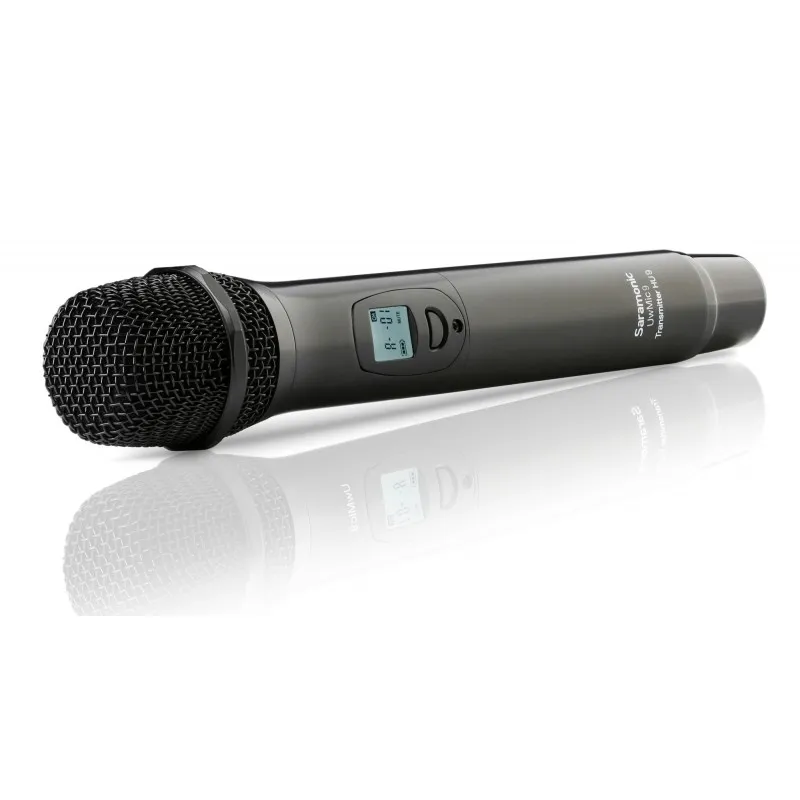

HU9
It is a stage microphone dedicated to the Uwmic9 wireless audio transmission system. The microphone has a clear LED display, easier synchronization with the receiver and a radio signal power switch. An additional function is to lock the switch to eliminate the possibility of accidental switching off the microphone during recording.

Range
The manufacturer determines the range of the system in the field up to 60, and in the open air up to 100 meters away from the microphone.

Specification
– number of transmission channels: 96
– number of groups: 2
– the frequency of operation: 514 MHz – 596 MHz
– sensitivity: – 95 dBm
– Signal-to-noise ratio (SNR): 70 dB
– reference deviation: ±5 kHz (-60 dBV, 1 kHz)
– the frequency response: 40 Hz – 18 kHz (± 3 dB)
– power:
microphone: 2 AA batteries
receiver: 2 AA type batteries
– the weight:
microphone: 335 g
receiver: 275 g
– dimensions:
microphone: 25,4 x ⌀5,2 cm
receiver: 6.4 x 8.7 (+ 10.5 cm antenna) x 2.5 cm

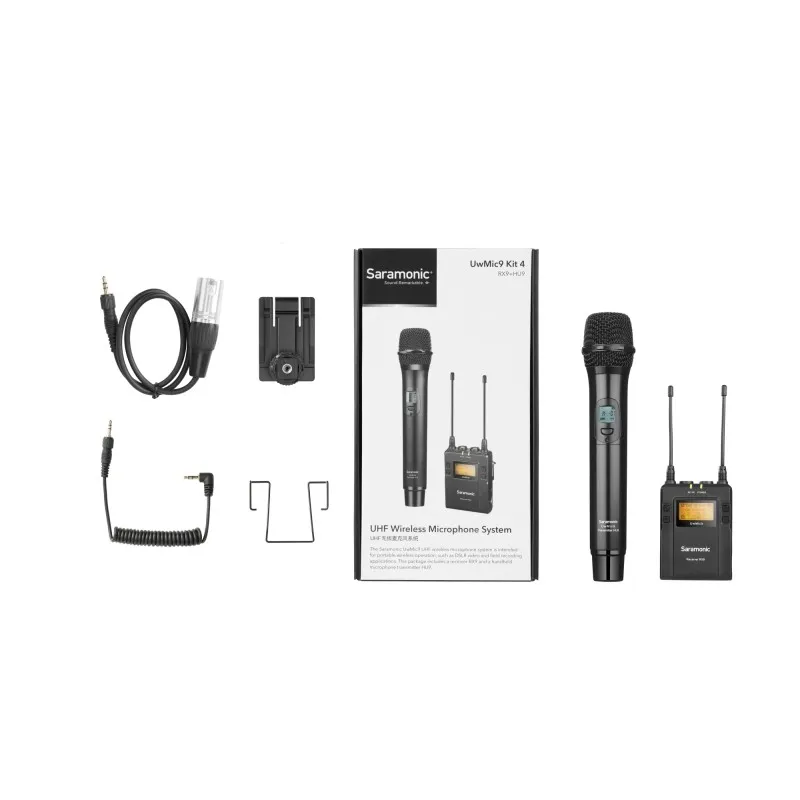

Set contents
– RX9 receiver
– microphone HU9
– strap attachment
– XLR cable
– 3.5 mm mini jack cable TRS
