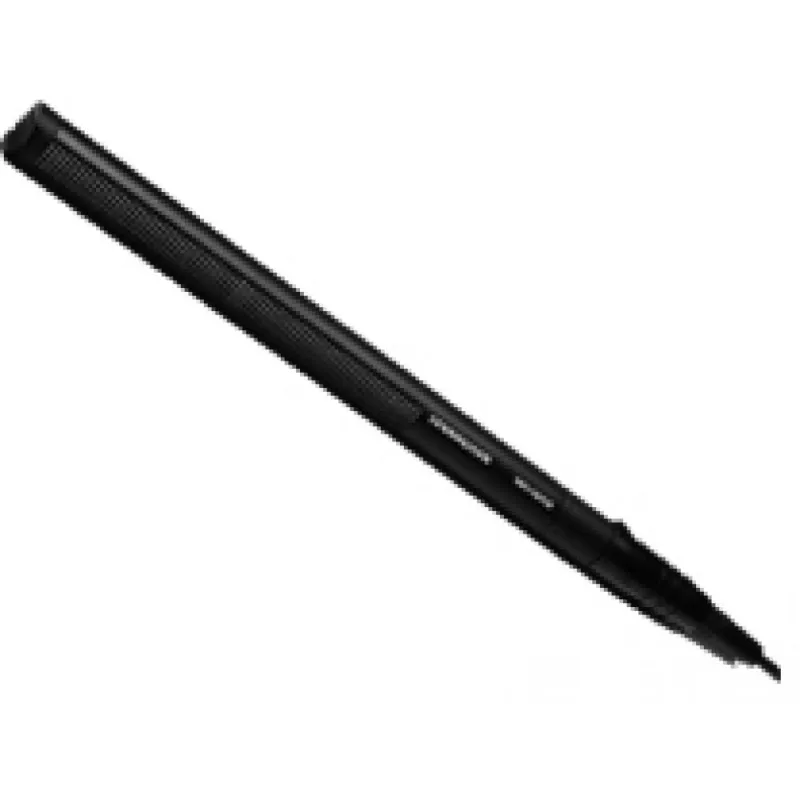

Sennheiser MKH 416-P48U3 Microphone

Sennheiser MKH 416-P48U3 Microphone

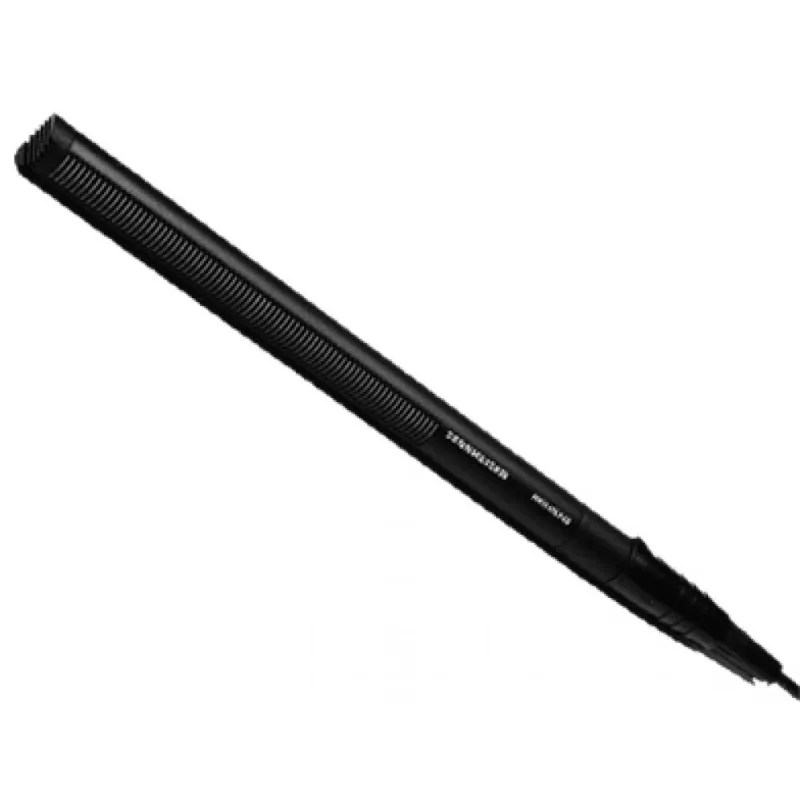

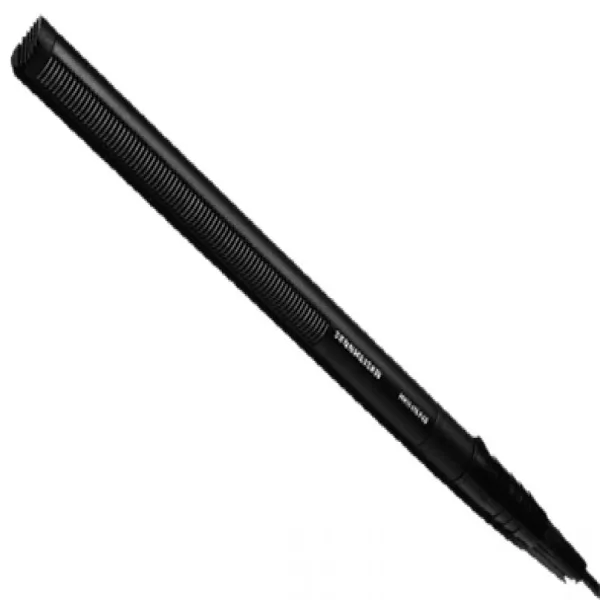

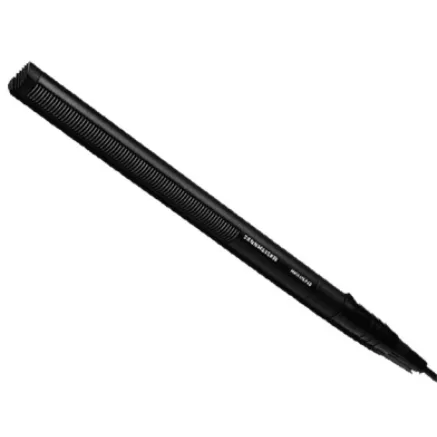

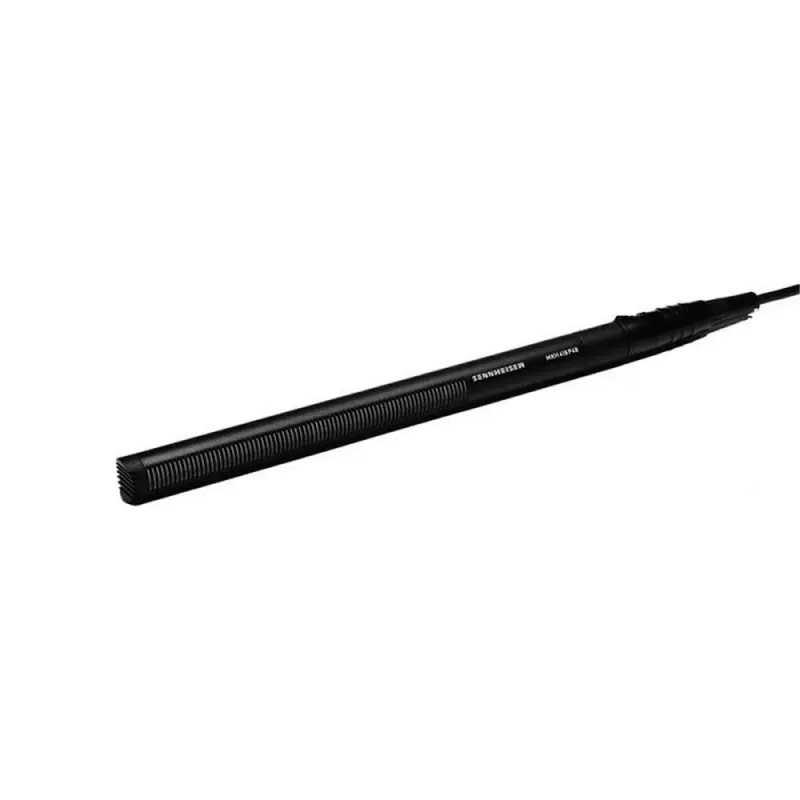

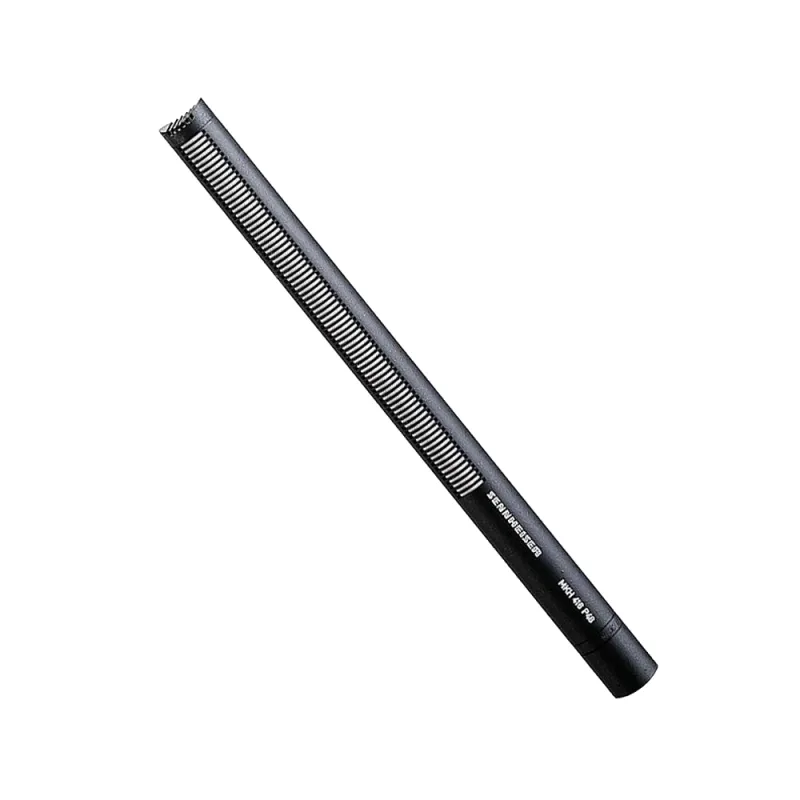

The MKH 416 is a short gun interference tube microphone. Its excellent directivity and compact design, high consonant articulation and feedback rejection make the MKH 416 a superb all-round microphone for film, radio and television, especially for outside broadcast applications.

Features

- Increased directivity due to interference tube principle
- Very low inherent self-noise
- High sensitivity
- Transformerless and fully floating balanced output
- Rugged, suitable for adverse climatic conditions
- Matt black all-metal body

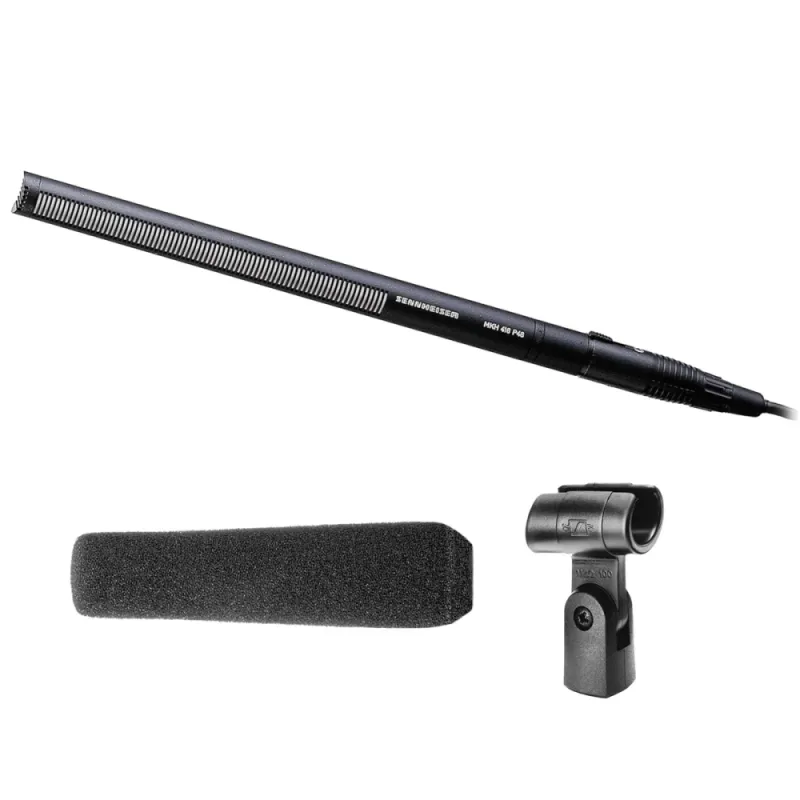

Delivery Includes

1 MKH 416 P 48 U 3

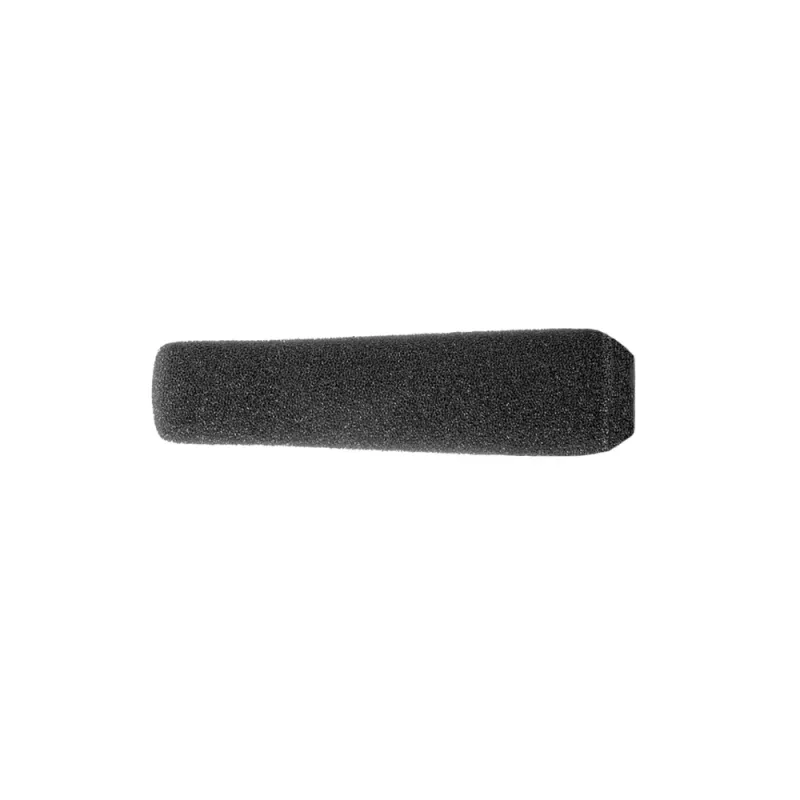

1 MZW 415 windshield

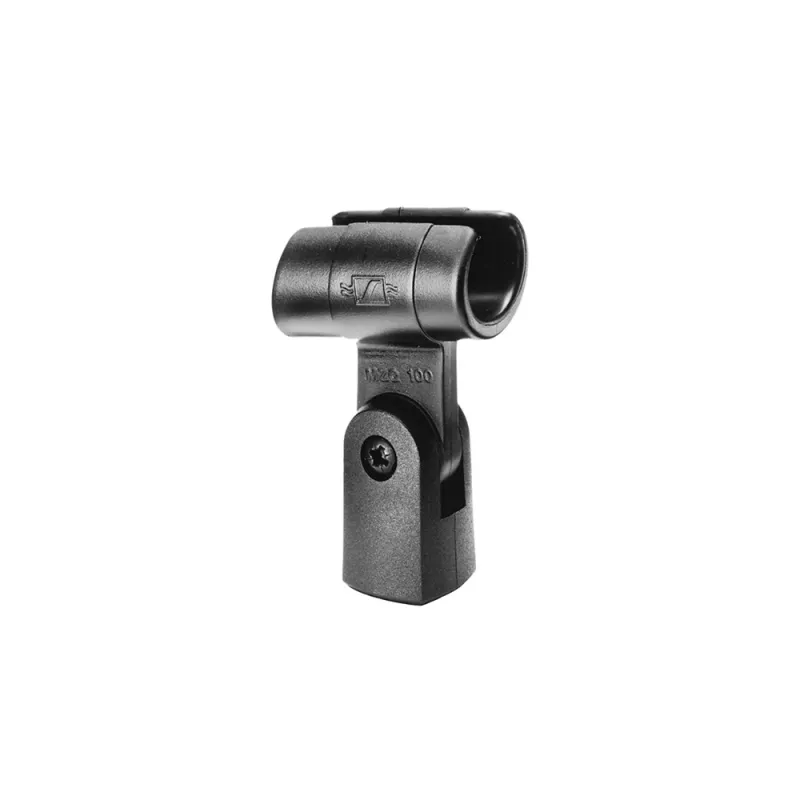

1 MZQ 100 microphone clamp

Transducer principle (Microphone)

RF condenser microphone

Pick-up pattern

super-cardioid/lobar

Frequency response (microphone)

40.....20000 Hz

Sensitivity in free field, no load (1kHz)

25 mV/Pa +- 1 dB

Nominal impedance

25 Ohm

Min. terminating impedance

800 Ohm

Equivalent noise level

13 dB

Equivalent noise level weighted as per CCIR 468-3

24 dB

Maximum sound pressure level (passiv)

130 dB

Voltage

48 +- 4 V Phantom

Current consumption

2 mA

Dimensions

d 19 × 250 mm
