Libec LX-ePed 2 Motorized Base for PTZ Cameras, 10kg Load LX-EPED 2

Libec LX-ePed 2 Overview

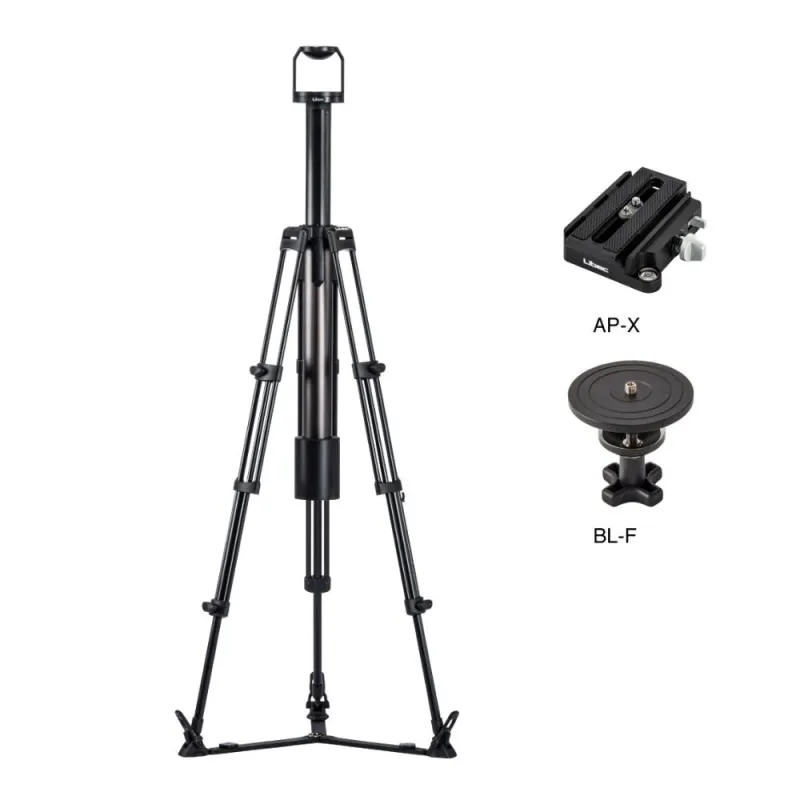

The Libec LX-ePed 2 is a motorized base designed for PTZ cameras, featuring a motorized center column and remote control for height adjustments, with a load capacity of up to 10 kg and a maximum height of 250 cm.

Key Features

• Electric PTZ Camera Base: The first of its kind, ideal for broadcast and production.
• Position Presets: Store up to three preset positions for easy height adjustments.
• IP Connectivity: Works with PTZ controllers and the LX-ePed PC APP via the optional MPC-1 multi-protocol converter.
• Smart Quick Release Adapter: Includes AP-X adapter for secure camera attachment with a safety rope hole.
• Smooth Movements: Minimizes wobble with precise control for smooth operation.
• Continuous Speed Adjustment: Adjust speed via the control lever for fine-tuning.
• Reliable Cable Connection: No Wi-Fi or Bluetooth interference; powered through the base.
• Compatibility: Supports devices with 1/4 and 3/8 screw holes, and can mount video heads with 100mm or 75mm bases.
• Compact Design: Easily transportable with collapsible components.
• Safety Features: Designed to prevent finger injuries and includes a built-in spirit level for adjustments.

Technical Specifications

• Load Capacity: 10 kg
• Elevation: 400 mm
• Lifting Speed: 14 to 40 seconds/movement
• Continuous Operation Time: 3 minutes
• Power Supply: AC 100V-240V
• Operating Temperature: -10C to 40C
• Weight: 11.9 kg
• Height Range: 98.5 to 250 cm

Expected availability from April 2025.
