Libec LX-ePed 2 Studio Motorized Base for PTZ Cameras LX-EPED 2 STUDIO

Libec LX-ePed 2 Studio Overview

The Libec LX-ePed 2 Studio is a motorized base designed for PTZ cameras, featuring a motorized center column, tripod wheels, and a remote control for height adjustments. It supports a load capacity of up to 10 kg and reaches a maximum height of 264 cm.

Key Features

• Electric PTZ Camera Base: The first of its kind, ideal for broadcast and production.
• Preset Positions: New model includes preset positions and supports IP connectivity with the optional MPC-1 multi-protocol converter.

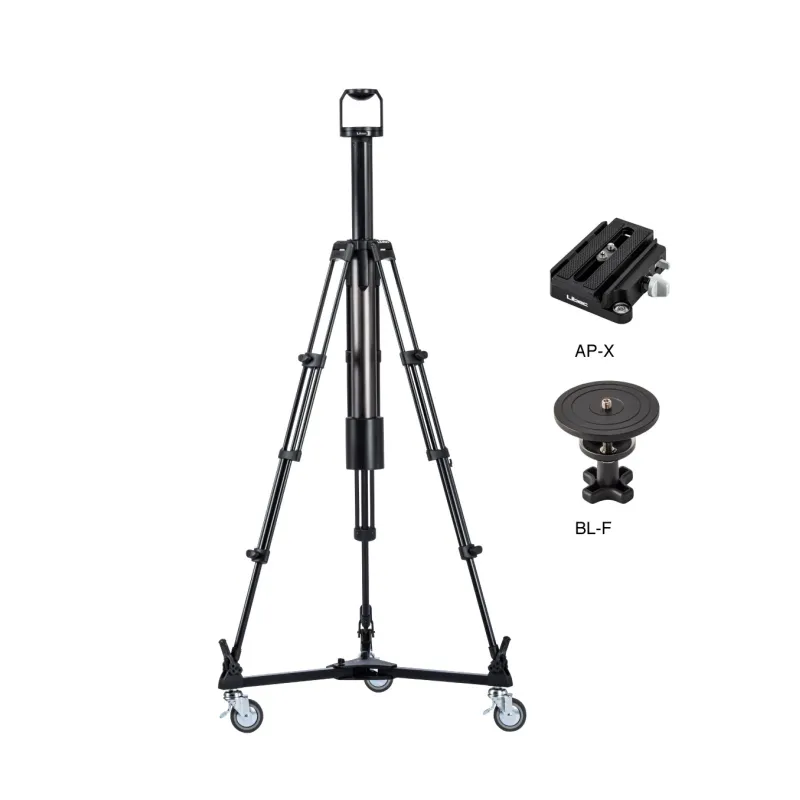

• Smart Quick Release Adapter: The included AP-X adapter allows secure and quick camera attachment with a safety rope hole.
• Remote Control: Stores up to three preset positions for easy height adjustments.
• Smooth Movements: Minimizes wobble with precise mechanical control for smooth operation.
• Continuous Speed Adjustment: Speed can be adjusted via the control lever for fine-tuning.
• Reliable Connection: Uses a wired connection to avoid interference, powered through the base.
• Compatibility: Supports devices with 1/4 and 3/8 screw holes, and can mount video heads with 100mm or 75mm bases.
• Compact Design: Detachable unit for easy transport, collapsible for storage.
• Safety Features: Designed to prevent finger injuries and includes a built-in spirit level for adjustments.

Technical Specifications

• Load Capacity: 10 kg
• Elevation: 400 mm
• Lifting Speed: 14 to 40 seconds/movement
• Continuous Operation Time: 3 minutes
• Power Supply: AC 100V-240V
• Operating Temperature: -10C to 40C
• Weight: 14.9 kg
• Height Range: 109.5 to 264 cm

Expected availability from April 2025.
