Manfrotto 504X Fluid Video Kit with 645 Fast Twin Alu Tripod (MVK504XTWINFA)

• Fluid video head with 4-step counterbalance system up to 6.5 kg
• Maximum versatility thanks to flat base
• FAST Lever Lock & 3-angle selection mechanism for easy set up
• 100 mm half ball, compatible with a 75 mm half ball adapter.
• Side lock plate attachment and two 3/8'' easy link connectors.

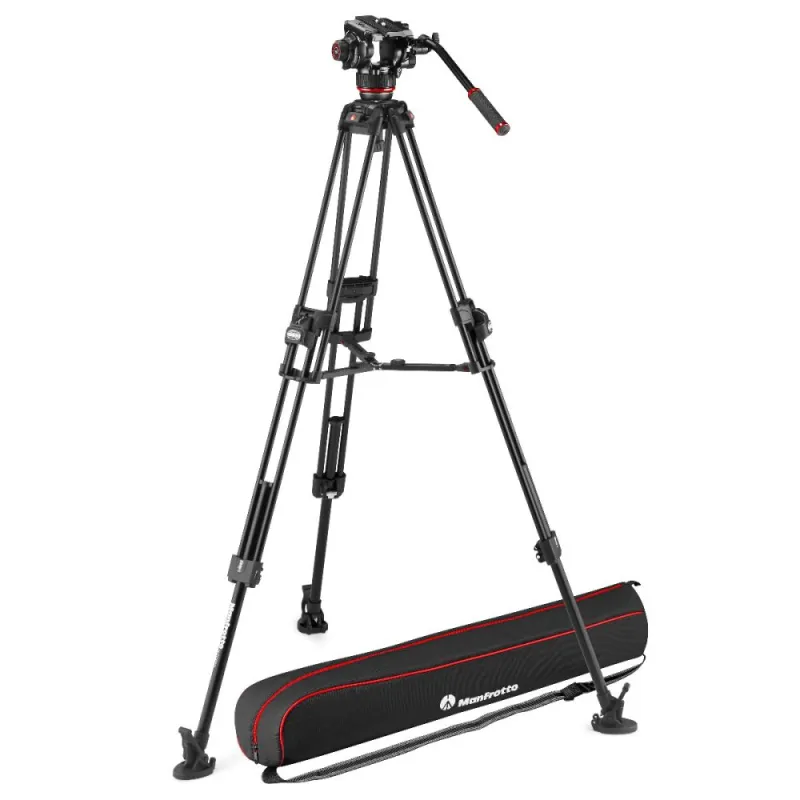

This video system includes the Manfrotto 504X Fluid Video Head and the 645 Fast Twin Tripod in aluminium.

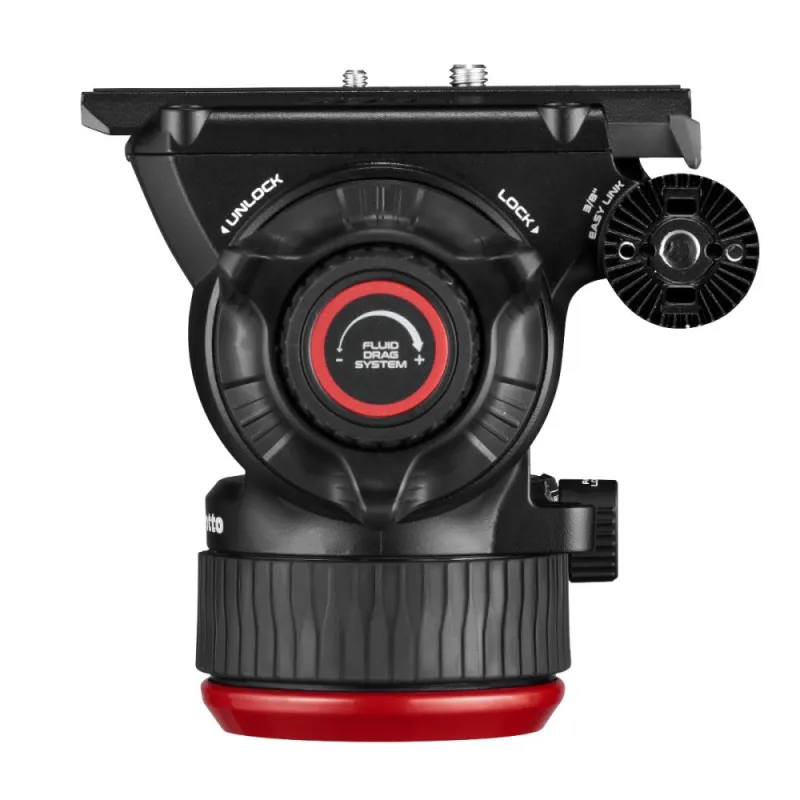

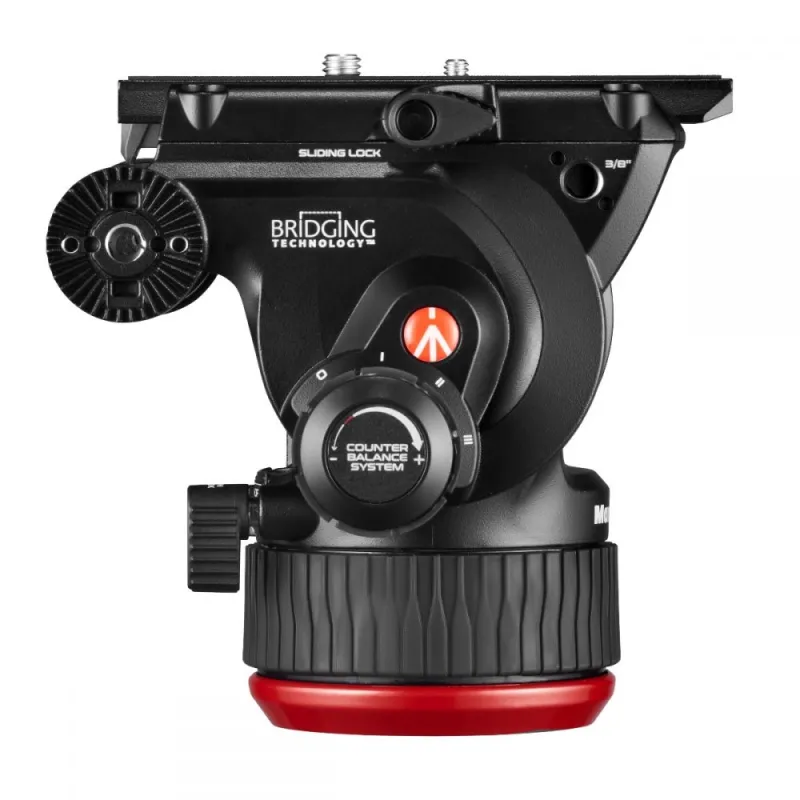

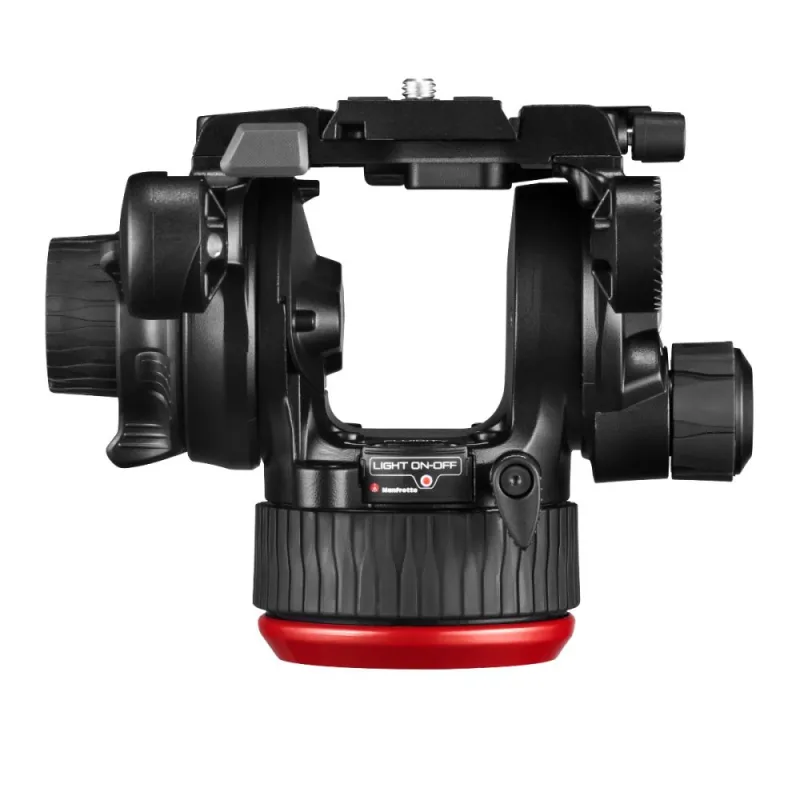

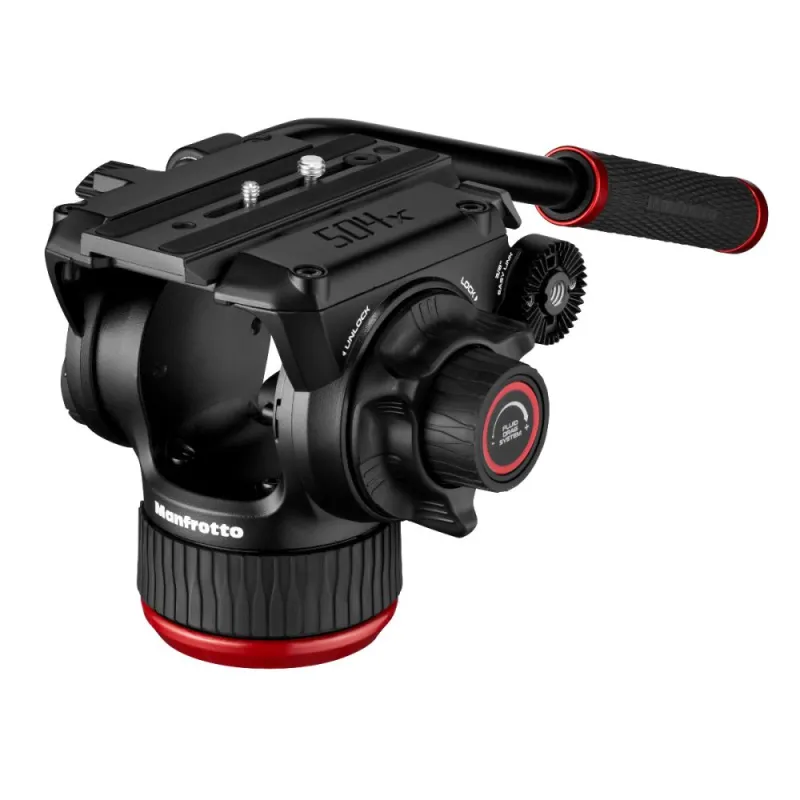

The Manfrotto 504X fluid video head with flat base features the new Manfrotto fluid technology which allows smoother operation and unrivalled stability in both pan and tilt movements. It presents a 4-step counterbalance system that can take loads of up to 6.5 kg at 55 mm C.O.G.

The head is made from a brand-new catching aluminium design and has a maximum payload of 12 kg.

It is a compact and light head with a flat base (base diameter 75 mm), that lets you choose from a wide variety of different shooting options. It also features two 3/8” Easy Link connectors, equipped with an anti-rotation function that enables the fitting of external monitors or other accessories. A cap fits over the easy link, to avoid cutting during use. The sliding plate attachment and side-lock mechanism allows safe, quick and easy camera attachment.

The 645 FTT Fast Twin Alu Tripod features a double tubing and FAST Lever Lock technology for the most robust support ever. The synchronized closure mechanisms between the upper and lower locks enable videographers to control the entire leg with a single lock and get to work in record time.

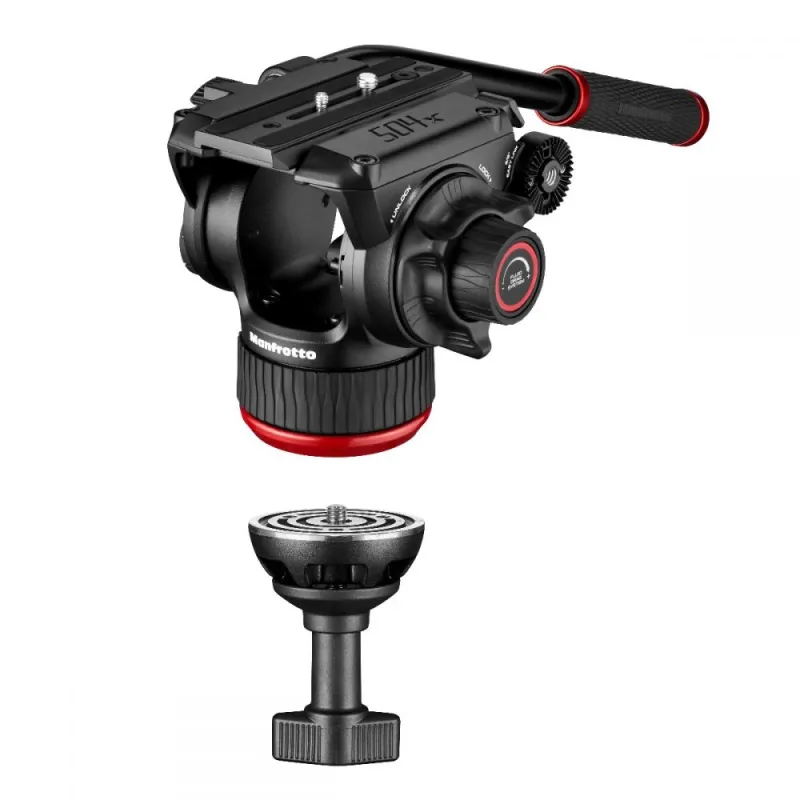

The tripod is provided with a 2-in-1 half ball: a standard 100mm bowl compatible with a 75mm adapter (included in the kit) to enable the use of a wider range of video heads. It also features a middle spreader lock. However, the 3-angle selectors make the use of a spreader a matter of optional preference.

It is compatible with the 2-in-1 ground and middle telescopic spreader (sold as an optional accessory) and it features a 3-angle selection mechanism for easy set up. It is equipped with spiked feet with rubber overshoes for a firm grip and adaptability to the most diverse shooting locations.

Delivery Content
• 504X Videohead
• 75mm Halfball adapter
• MVTTWINFA Tripod
• Middle Spreader
• Bag

Specifications

Weight

6.2 kg

Top Attachment

1/4″ screw, 3/8″ screw

Ball Flat

Flat

Safety Payload Weight

12 kg

Counterbalance System

Variable Steps

Base Diameter

75 mm

Counterbalance Weight

2.2, 4.4, 6.5 kg

Bubble Spirit Level (No.)

1

Center of gravity

55 mm

Carrying Bag Included

yes

Center Column

no centre column

Closed Length

89.5 cm

Colour

Black

Easy Link

Yes (with antirotation)

Front Tilt

-70° / +90°

Head Type

Video/Fluid Head

Leg Type

Twin

Leg Angles

20°, 50°, 70°

Leg Lock Type

Flip Lock

Material

Aluminium

Maximum Height

173 cm

Maximum Working Temperature

60 °C

Min Height

43.5 cm

Minimum Working Temperature

-30 °C

Pan Bar Included

Yes

Pan Drag

continuously adjustable from 0 to max level

Panoramic Rotation

360 °

Plate Type

504PLONGR-1

Quick Release

Yes

Spreader

mid level - variable arm length

Tilt Drag

continuously adjustable from 0 to max level

Manfrotto 504X Fluid Video Kit with 645 Fast Twin Alu Tripod (MVK504XTWINFA)

• Fluid video head with 4-step counterbalance system (up to 6.5 kg)
• Flat base for maximum versatility
• FAST Lever Lock & 3-angle selection for easy setup
• 100 mm half ball, compatible with 75 mm adapter
• Side lock plate attachment with two 3/8 easy link connectors

The Manfrotto 504X Fluid Video Head and 645 Fast Twin Tripod are designed for smooth operation and stability in video production. The fluid head features advanced technology for pan and tilt movements, supporting loads up to 6.5 kg with a maximum payload of 12 kg.

The tripod includes double tubing and FAST Lever Lock technology for robust support, allowing quick setup with synchronized closure mechanisms. It comes with a 2-in-1 half ball and a middle spreader lock, offering flexibility in shooting angles.

Delivery Content

• 504X Video Head
• 75mm Halfball Adapter
• MVTTWINFA Tripod
• Middle Spreader
• Carrying Bag

Specifications

• Weight: 6.2 kg
• Top Attachment: 1/4 screw, 3/8 screw
• Safety Payload Weight: 12 kg
• Base Diameter: 75 mm
• Maximum Height: 173 cm
• Minimum Height: 43.5 cm
• Material: Aluminium
• Panoramic Rotation: 360
• Quick Release: Yes
