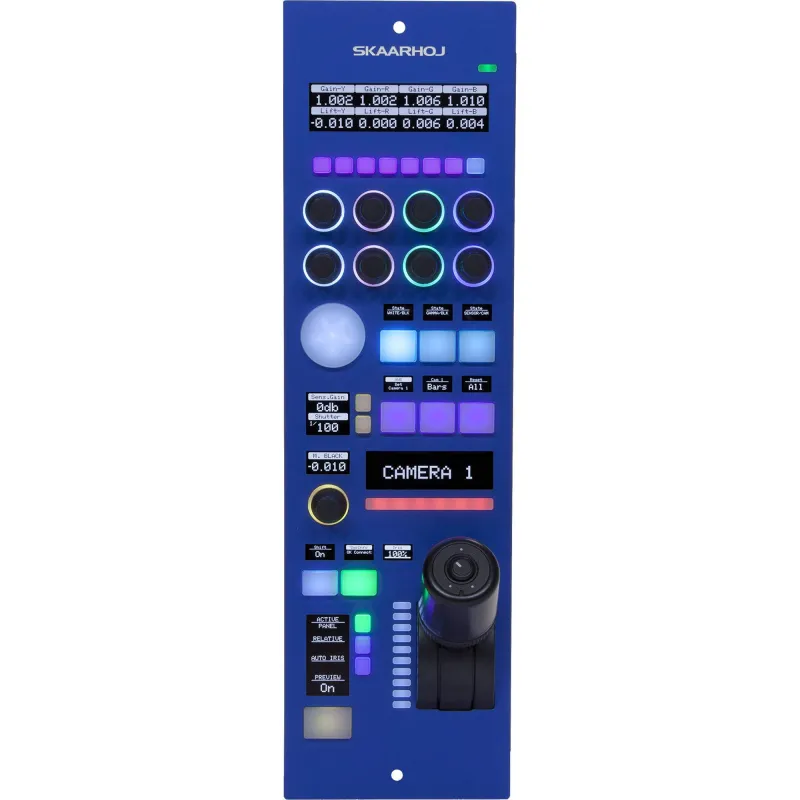

Skaarhoj RCPv2 Joystick w/SDI Shield RCP-V2.0-FE-JOY-S
Produkto numeris: 49449
Galima įsigyti iš tiekėjo: 1 prekė
- Universal Remote Control Panel
- Classic Iris Joystick
- Built-In Blackmagic SDI Arduino Shield
- Large OLED Display for Settings
- 8 x Utility Buttons
- 8 x RGB Backlit Encoder Knobs
- Programmable Joystick Pad
- Master Black Knob, Preview Button
- 6 x Four-Way Buttons with OLED Displays
| Type of Product | Video Mixer |
Whichever camera brand you're shading, the RCPv2 from SKAARHOJ provides you with a versatile and programmmable remote control panel to help you get the job done. The RCPv2 fits into your rack or sits console-style on your tabletop. This version of the RCPv2 is equipped with a classic iris joystick with a display and a LED bar as well as encoder knobs, a joystick pad, OLED displays, a preview button, four-way buttons, and a master black knob. Additionally, a Blackmagic Design SDI Arduino shield is built-into the controller for reading and writing camera control data.
The RCPv2 runs the SKAARHOJ-developed open-source UniSketch OS, which is user-programmable to fit specific workflows. PoE technology simplifies setup by enabling signals and power to travel via a single cable.

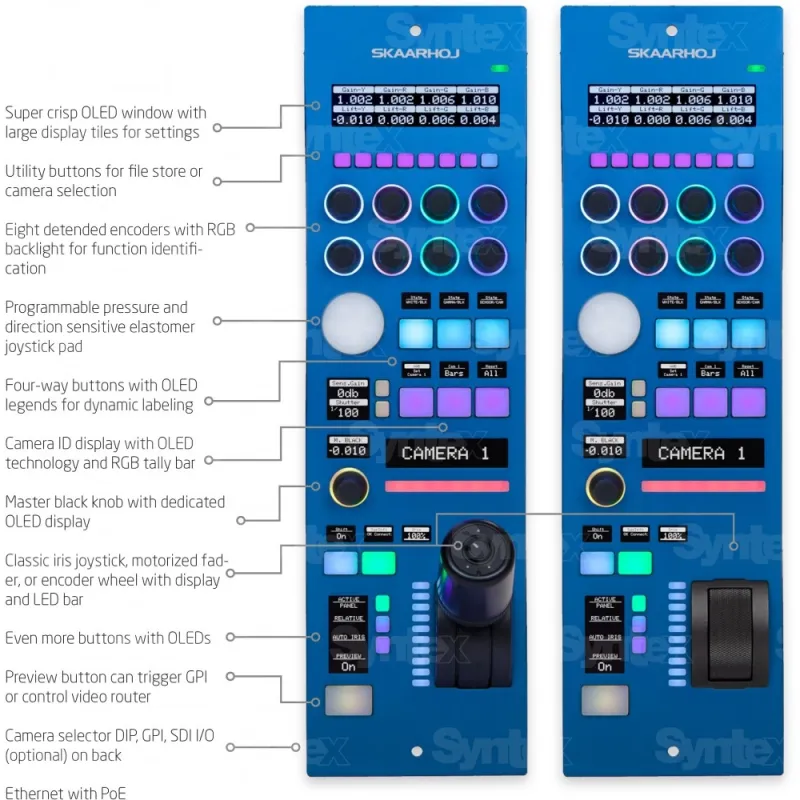

- OLED display with large display tiles for settings
- Eight encoder knobs with RGB backlight for function identification
- Pressure- and direction-sensitive joystick pad
- Camera ID display with OLED technology and RGB tally bar
- Classic iris joystick with master black ring and preview button
- Preview button for GPI or control of video router
- Four-way buttons with OLED displays for dynamic labeling and functionality
- Fits in your existing OB van rack or sits console-style on your tabletop
- Ethernet with PoE (IEEE802.3af)
- UniSketch OS
- Works with a wide range of devices including IO Industries Flare 4K, AIDA Imaging PTZ3-X20L, ARRI AMIRA SSCP, Blackmagic Design CamCtrl, Ensemble Designs NXT 950, and Sony SSCP
